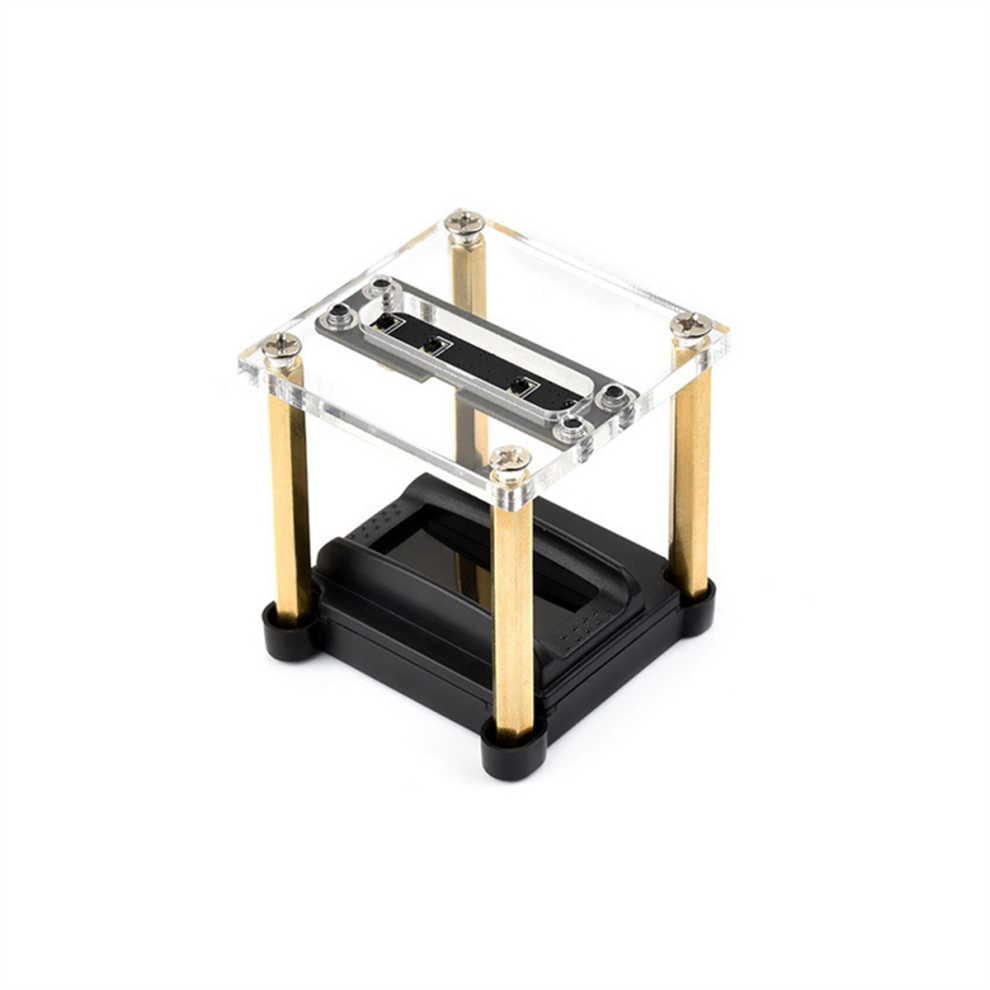

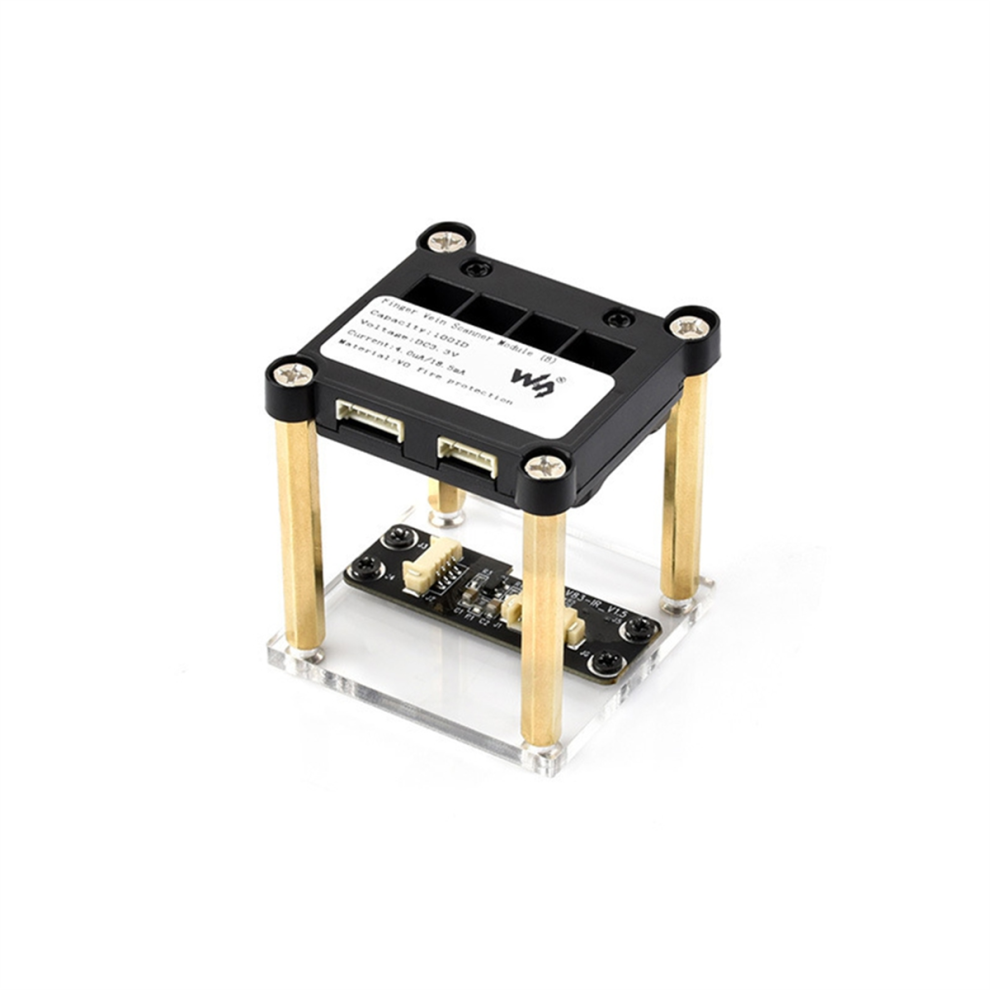

Finger Vein Scanner Module 192MHz 32-Bit ARM -M4F Support 100 ID User Capacity for Smart Door Lock

Finger Vein Scanner Module 192MHz 32-Bit ARM -M4F Support 100 ID User Capacity for Smart Door Lock Description

This product is a finger vein recognition module based on a 32-bit ARMCortex-M4F processor with a main frequency of up to 192MHz, supporting floating-point operations and instruction sets, and can efficiently run biometric algorithms

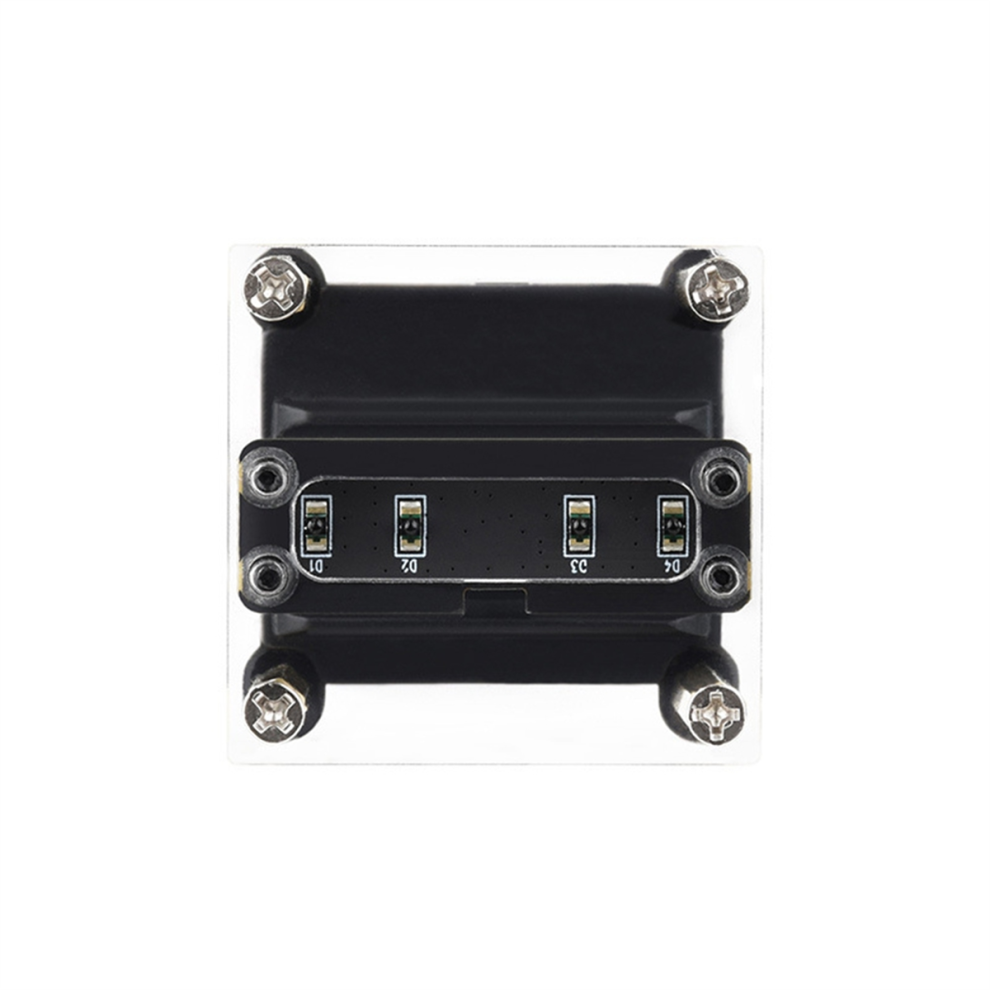

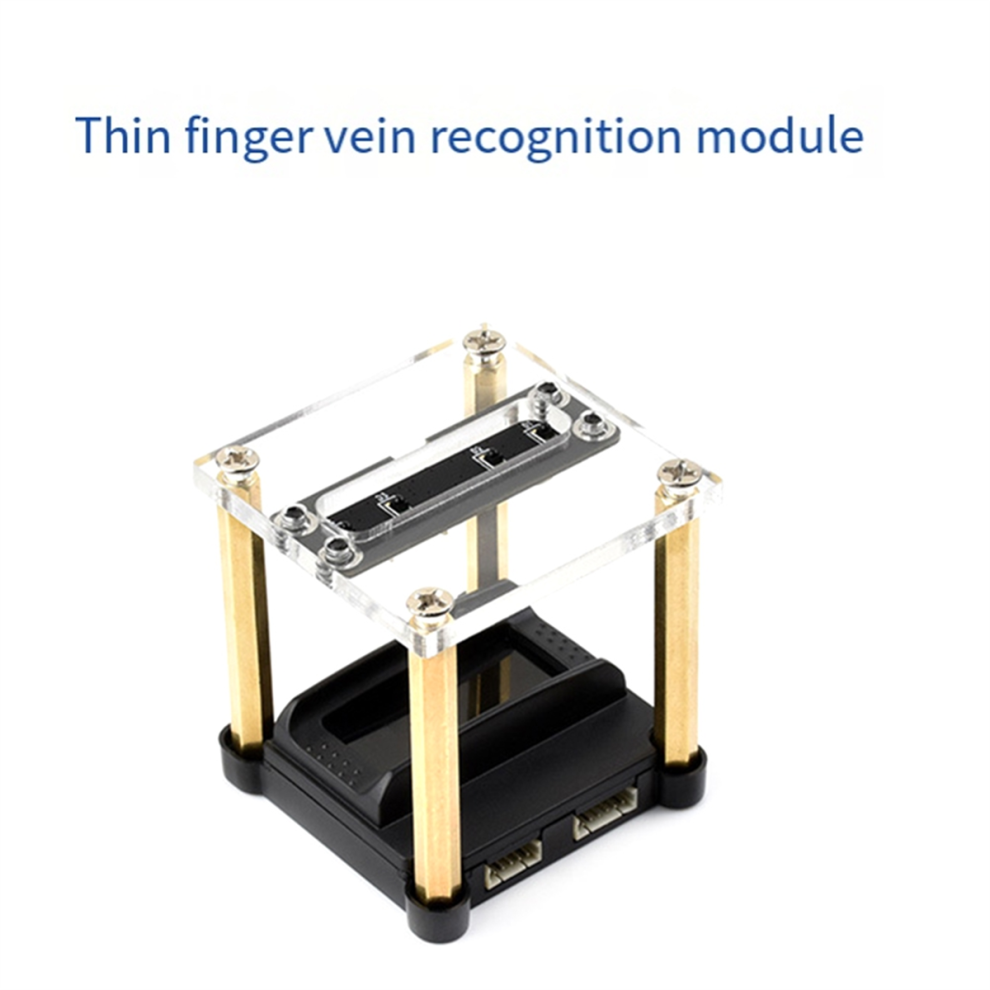

The module adopts a light-board separated structure design, which is easy to embed into terminal devices and improve the integration of the whole machine
The module interface is compatible with the fingerprint recognition industry standard protocol, has good platform adaptability and scalability, and supports rapid development and deployment
The vein module adopts a closed design method, with no exposed devices except the wiring terminals, and the waterproof level reaches IP56, with industrial-level three-proof standards
It is widely used in smart door locks, push-pull or hidden handles, small smart lockers, access control and attendance systems and other smart security equipment to help achieve high-precision and high-reliability identity authentication solutions

SOC:192MHz 32-bit ARM -M4F microprocessor
User capacity: 100
Recognition speed: Less than 1s
Comparison method: 1:1 or 1:N
Vein template data: single template 1K bytes
False acceptance rate (FAR): Less than 0.0001% (at high security level)
False rejection rate (FRR): 0.01% (at higher security level)

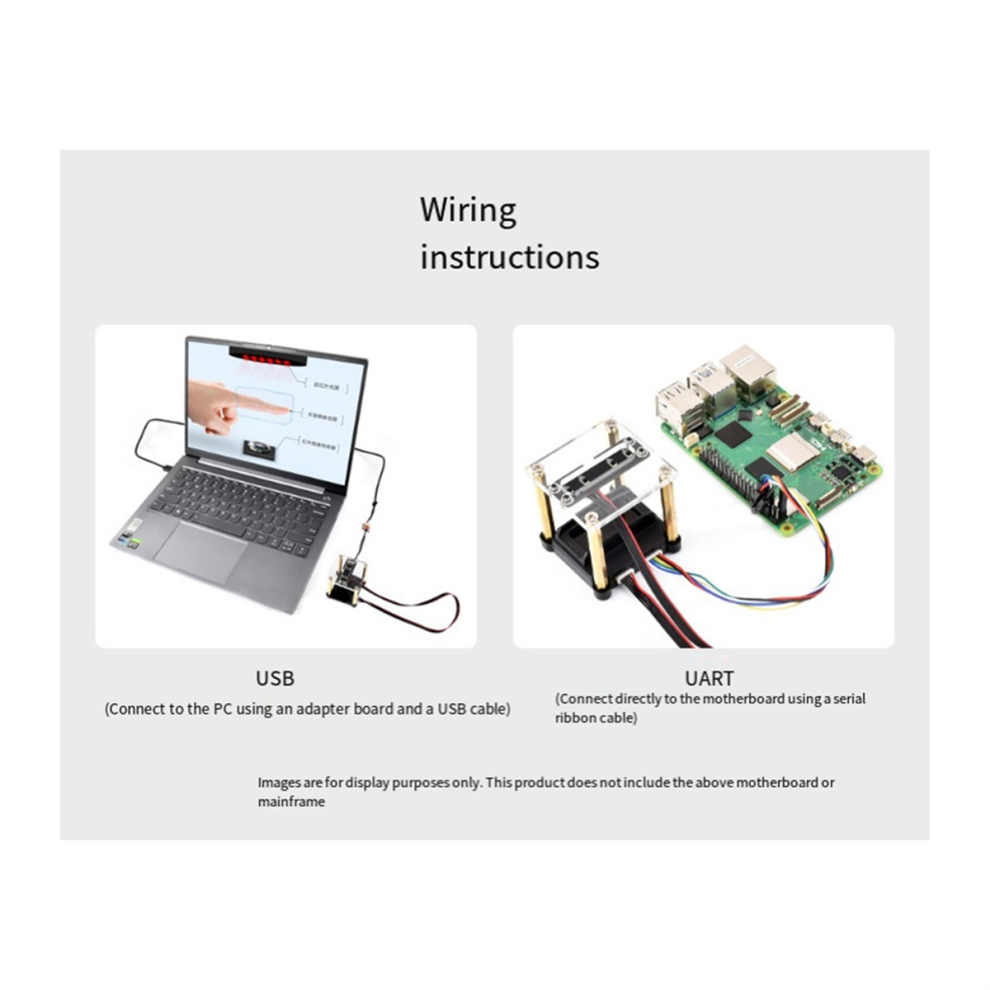

Communication interface:
USB: Adaptive USB driver-free ()
UART: 3.3V TTL, default baud rate: 57600bps
Operating voltage: 3.3V (3%)
Operating current: 19.5mA
Sleep current: 5uA
Fireproof grade: UL94-5VB
Waterproof grade: IP56 (except port and light board)
Due to different batches, there may be differences in product appearance and printed text, which not affect use
Color: Black
Material: plastic

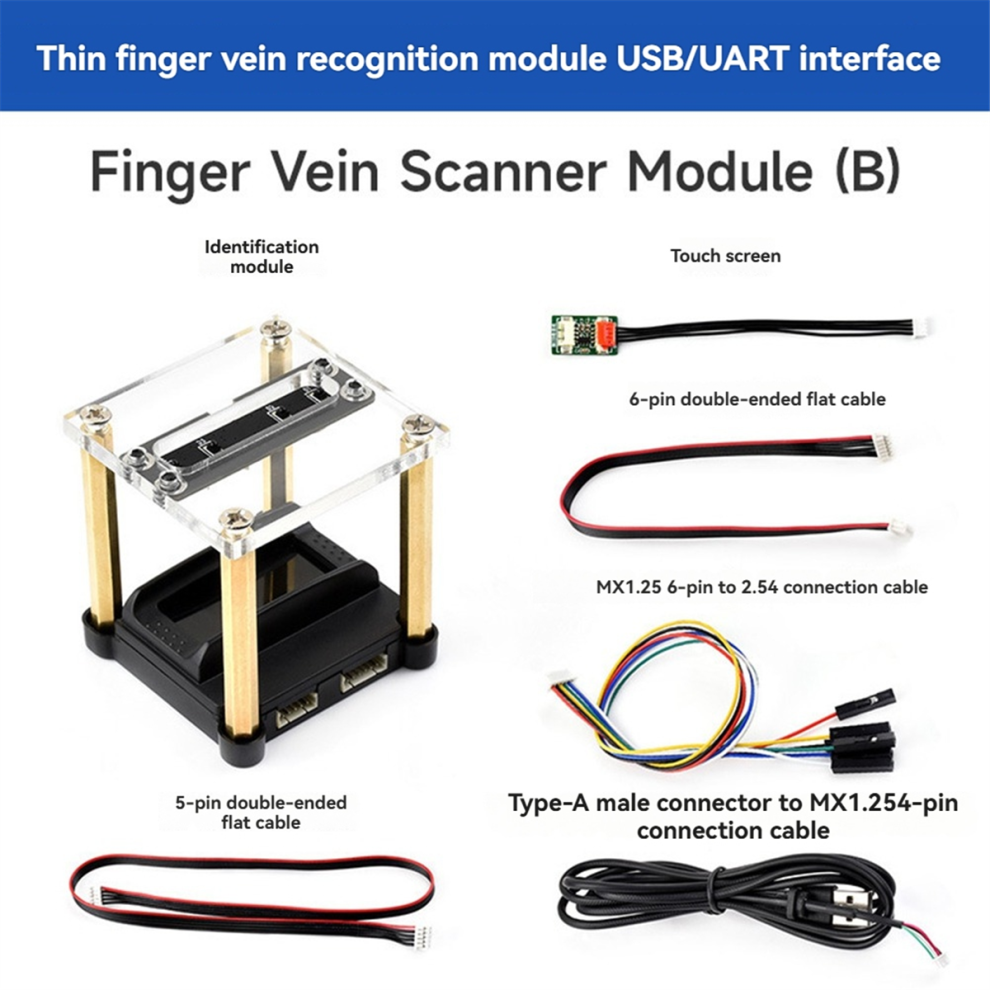

Package Contents:
1 * Finger Vein Scanner Module Kit

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
