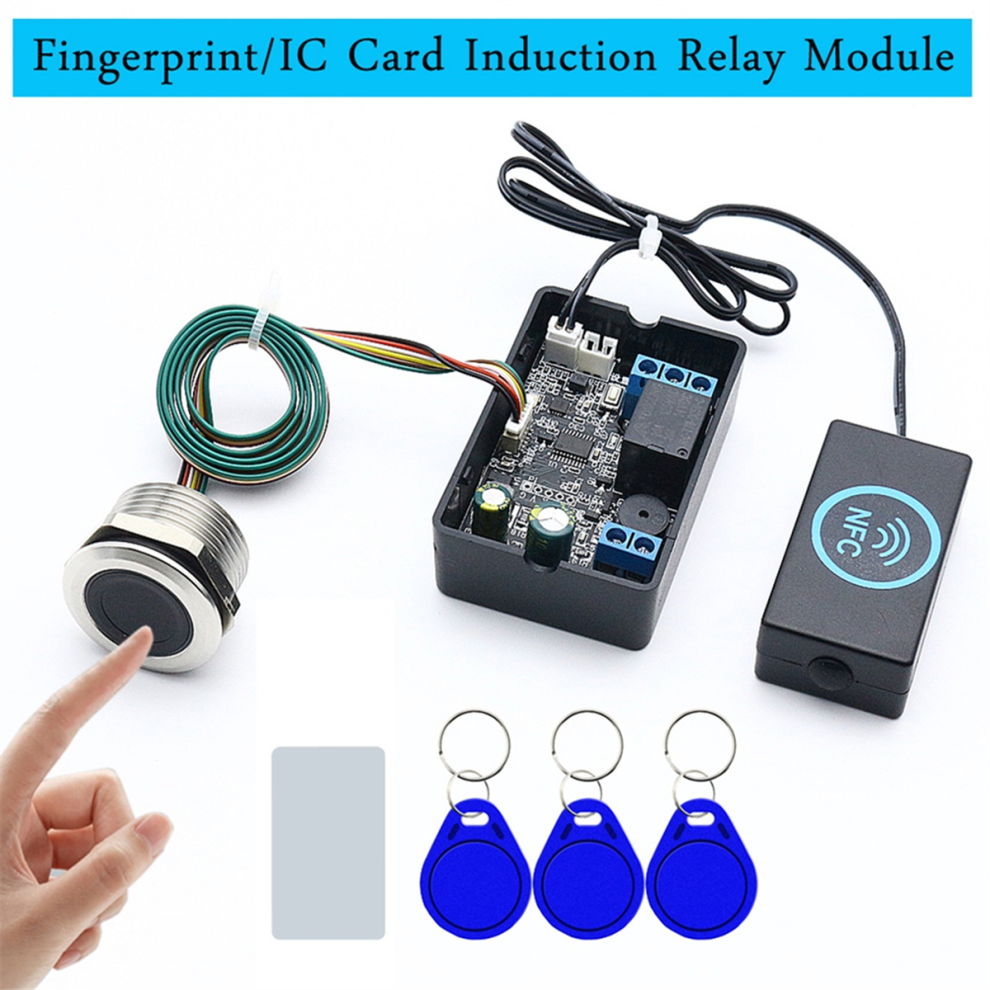

Fingerprint access controller with S1 fingerprint and IC card DX1

Fingerprint access controller with S1 fingerprint and IC card DX1 Description

Fingerprint Access Controller with S1 Fingerprint and IC Card DX1 Description
1. Compatible with the voltage range DC10V-120V;
2. In touch mode, the output time can be adjusted and the output can be up to 15 minutes;
3. With normally open and normally closed relay output control.
4. Detection distance for IC card/NFC: 25 mm
5. Can be connected to the output button; meets your requirements; easy installation; suitable for DIY user modifications, can be used for door lock control, vehicle modifications, electrical control and other occasions.
Three Control Modes:
Touch Mode: Turns on after fingerprint recognition; Automatic power-off after releasing the finger and reaching the set delay time.
Self-lock mode: Powers on after fingerprint recognition; after releasing the finger, the connection is immediately disconnected after re-identification of the fingerprint.
Ignition mode: Fingerprint recognition remains active; It remains powered on at all times and disconnects immediately upon finger release.
Color: as shown
Material: Composite materials

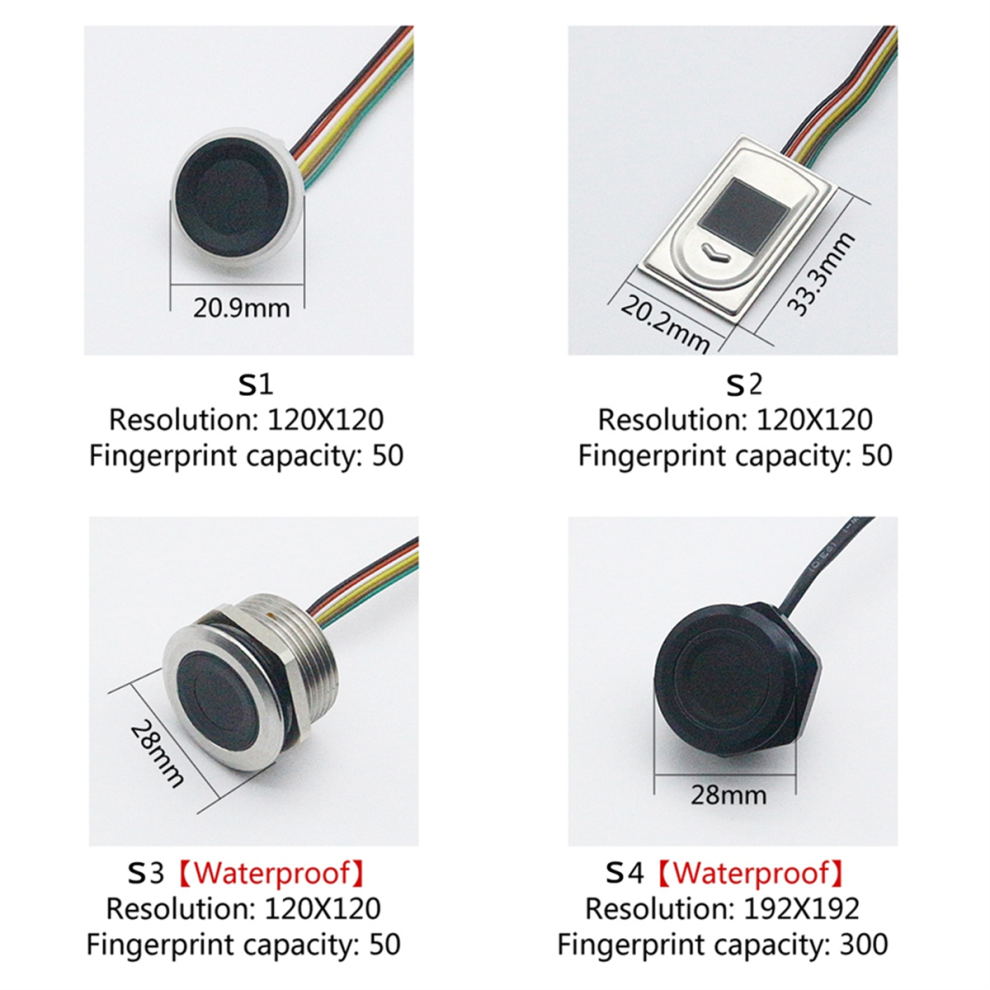

Style: IC card and NFC and S1 fingerprint
(Fingerprint reader sold separately if required)

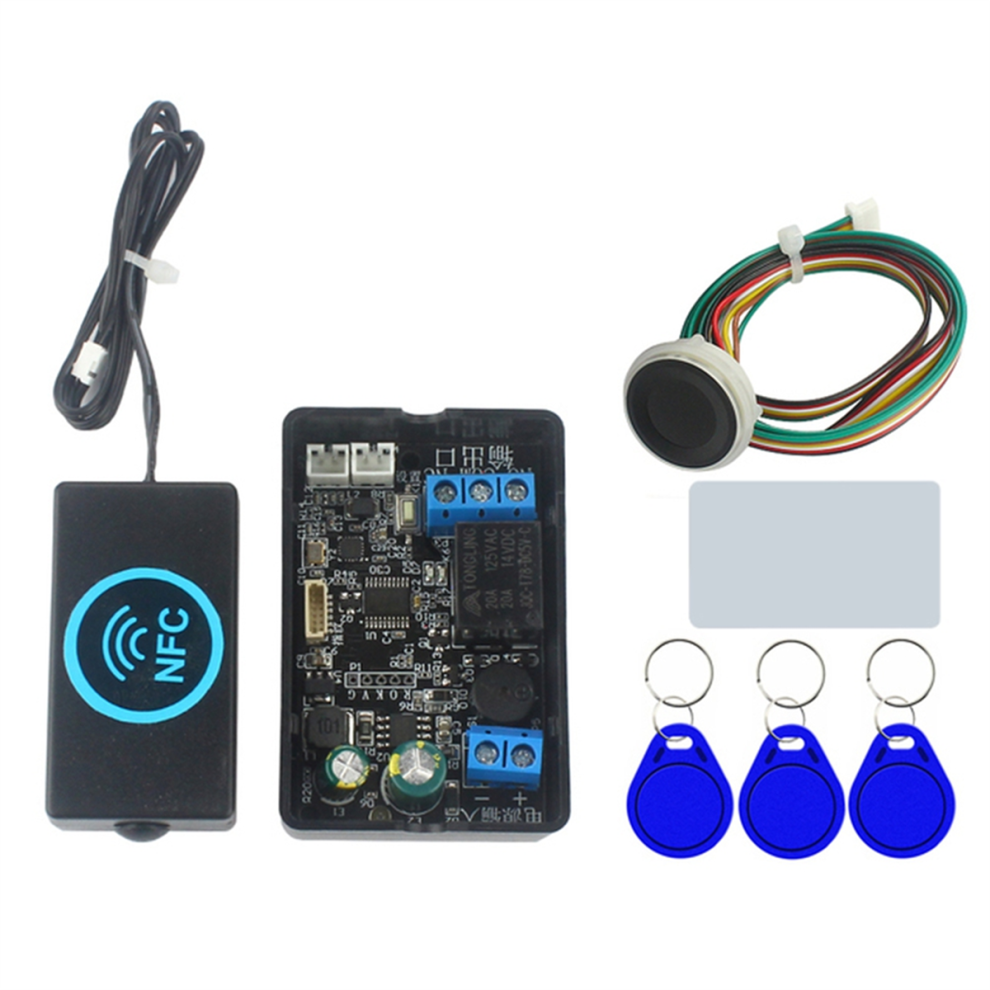

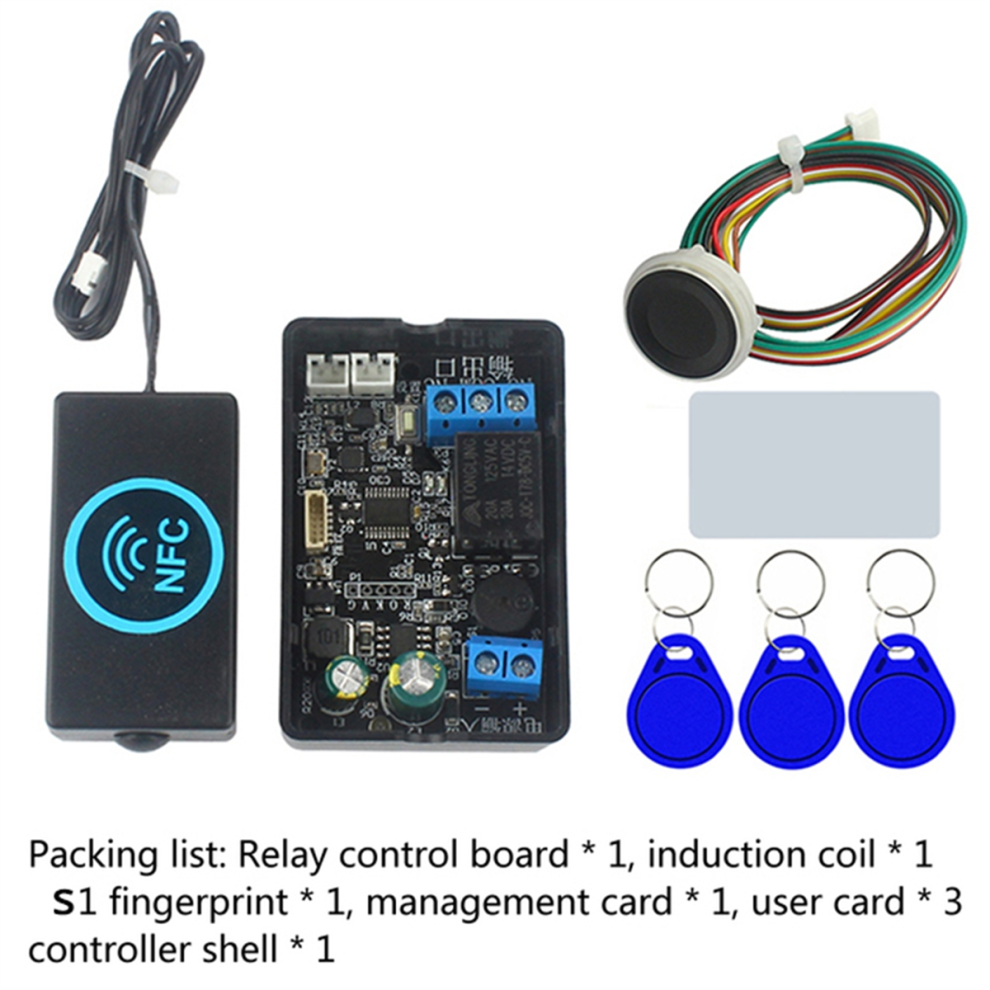

Package Contents:
1 x Control board with housing
1 x Induction antenna
1 x Management card
3 x User cards
Only the above package contents, other products are not included.
Note: Light reflections and different displays may cause the color of the item in the picture to be slightly different from the actual product. The allowable measurement error is +/- 1-3 cm.
