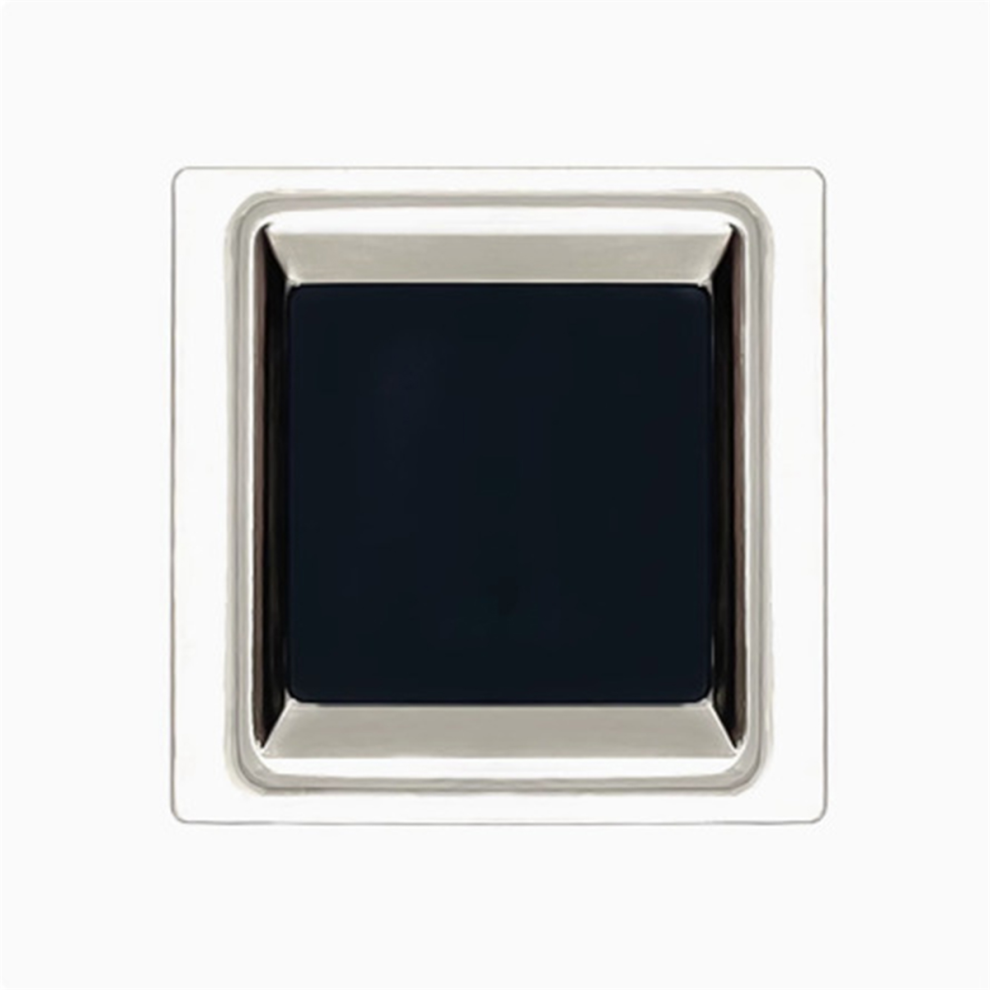

Fingerprint Identification Module ZW0608 Square Semiconductor Capacitive Acquisition Sensor Switch Module,C

Fingerprint Identification Module ZW0608 Square Semiconductor Capacitive Acquisition Sensor Switch Module,C Description

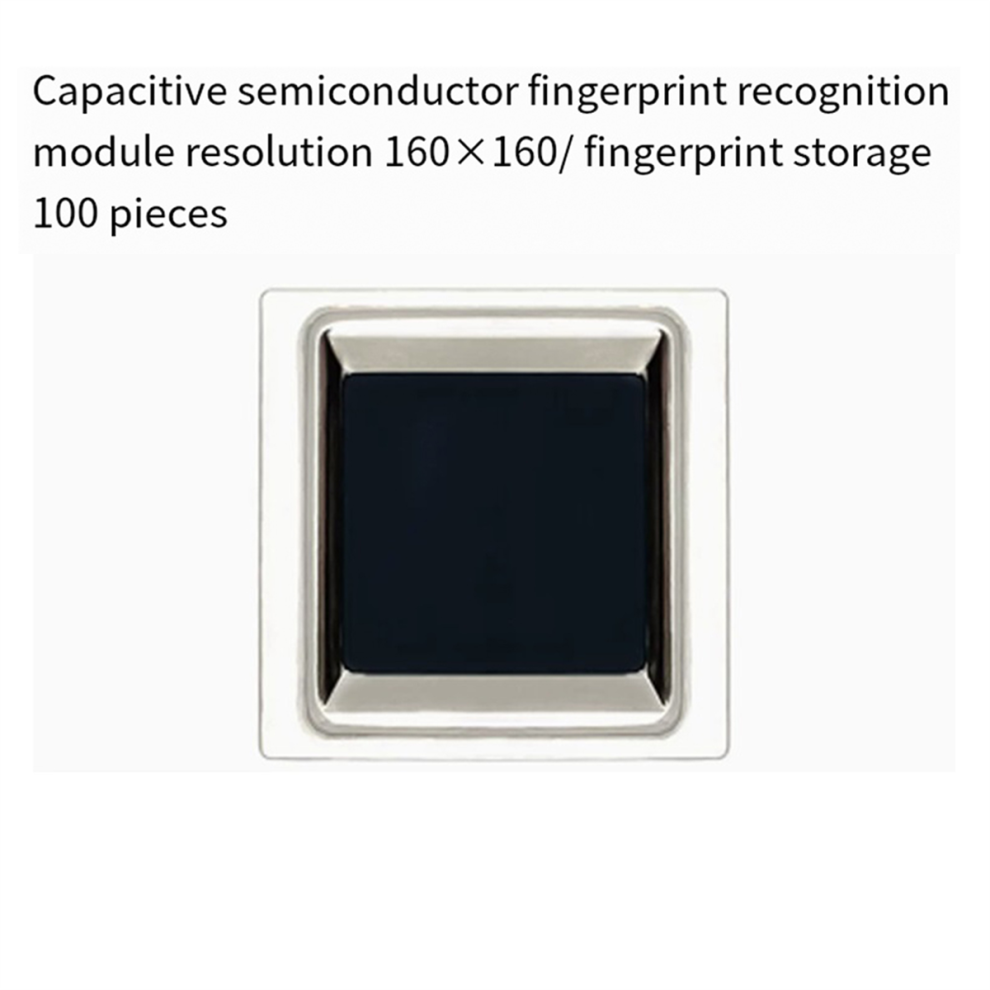

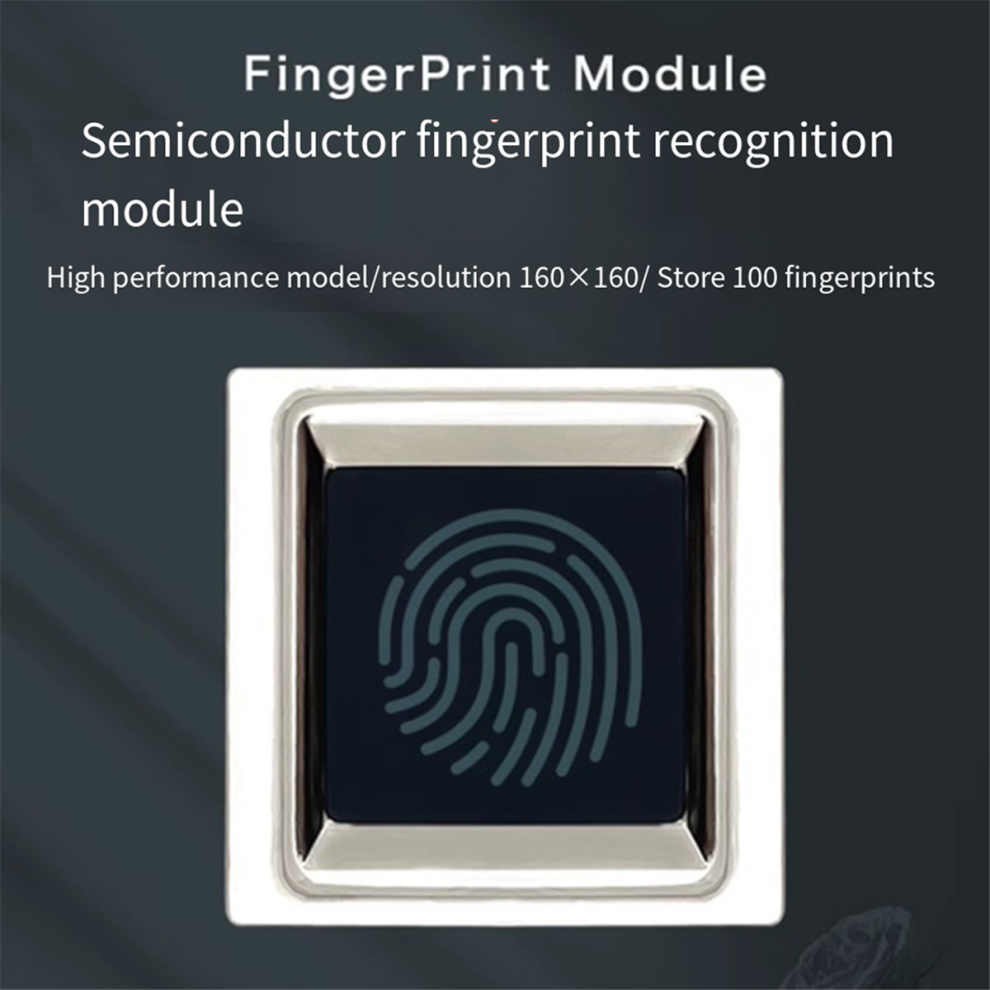

1. Semiconductor Fingerprint Recognition Module, High-Performance Model, Resolution 160x160, Storage Of 100 Fingerprints

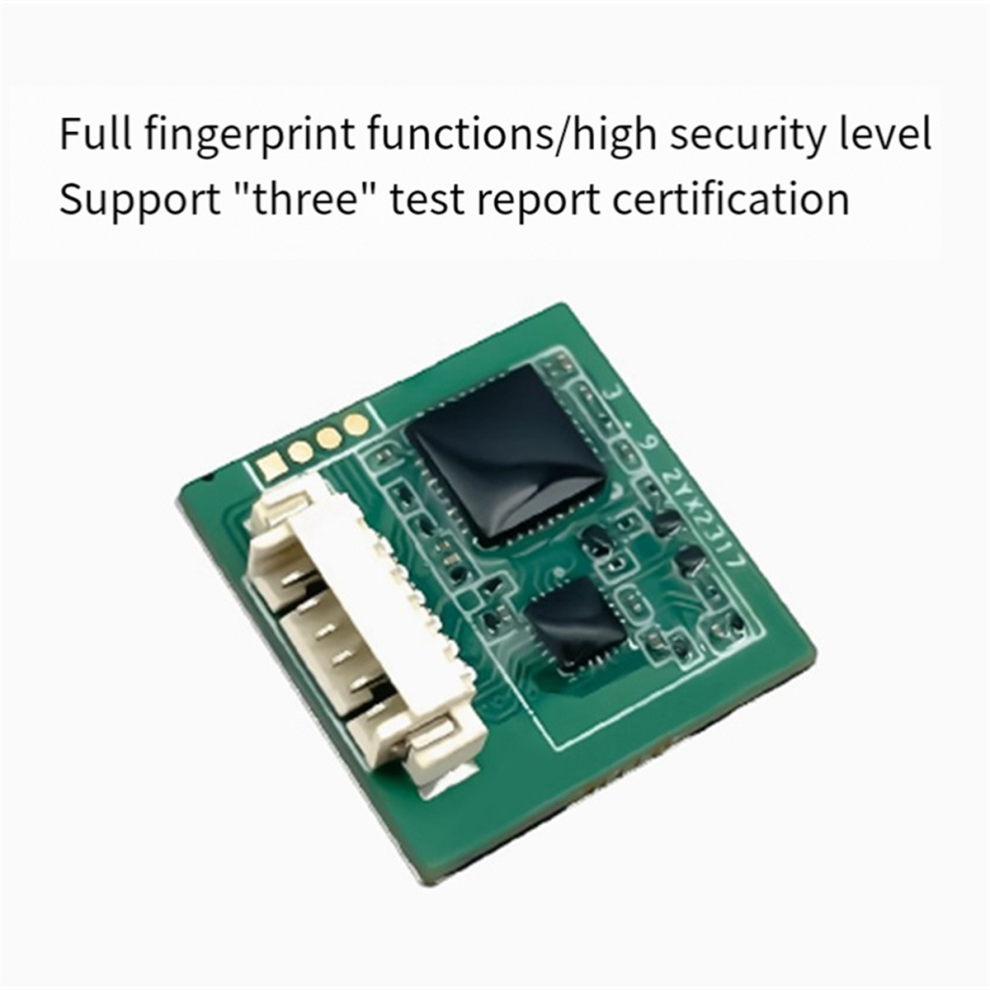

2. Zw0608 Is A Capacitive Fingerprint Recognition Module, Consisting Of An Active Semiconductor Fingerprint Collection Sensor And A Fingerprint Recognition Processing Chip.
3. Supports Functions Such As Fingerprint Image Processing, Template Extraction, Template Matching, Fingerprint Search And Template Storage. The Product Structure Is Simple And Highly Integrated, Which Improves The Stability And Consistency Of The Product And Can Be Customized According To User Needs.

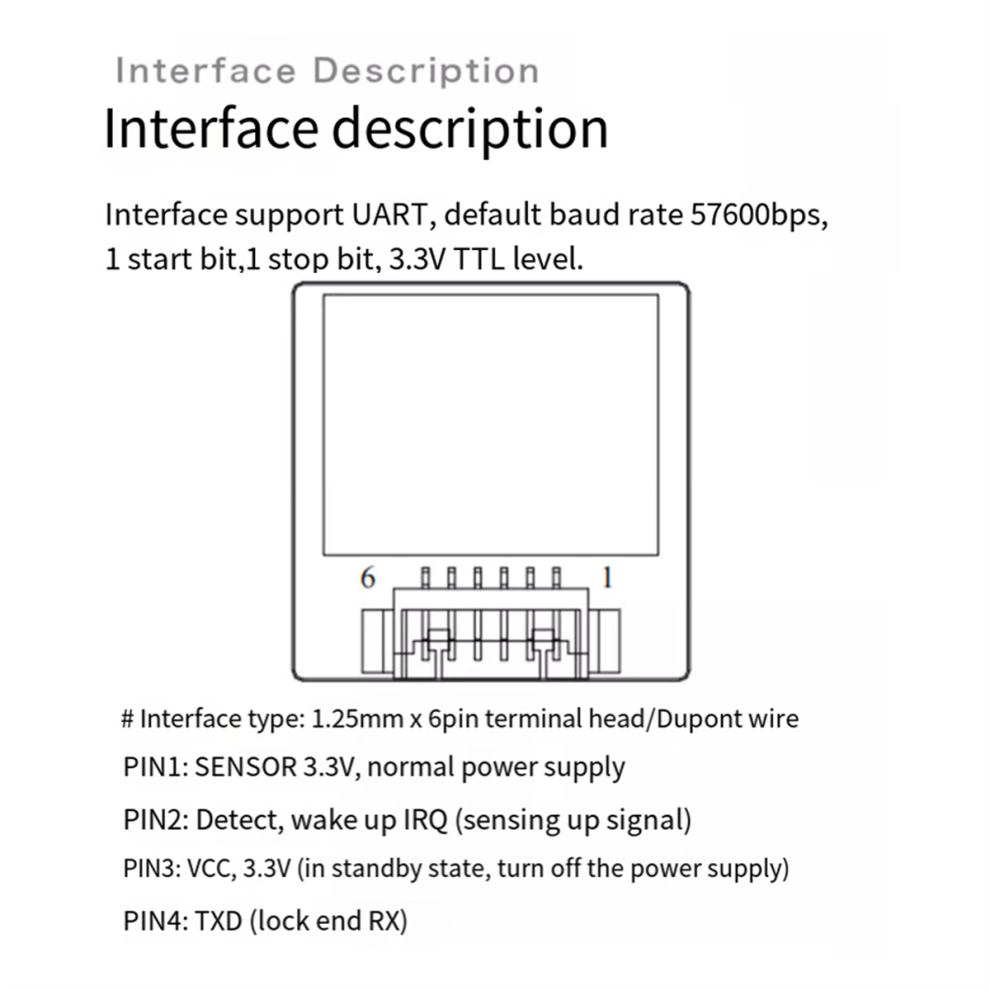

4. The Interface Supports Uart, The Default Baud Rate Is 57600bps, 1 Start Bit, 1 Stop Bit, 3.3vttl Level.

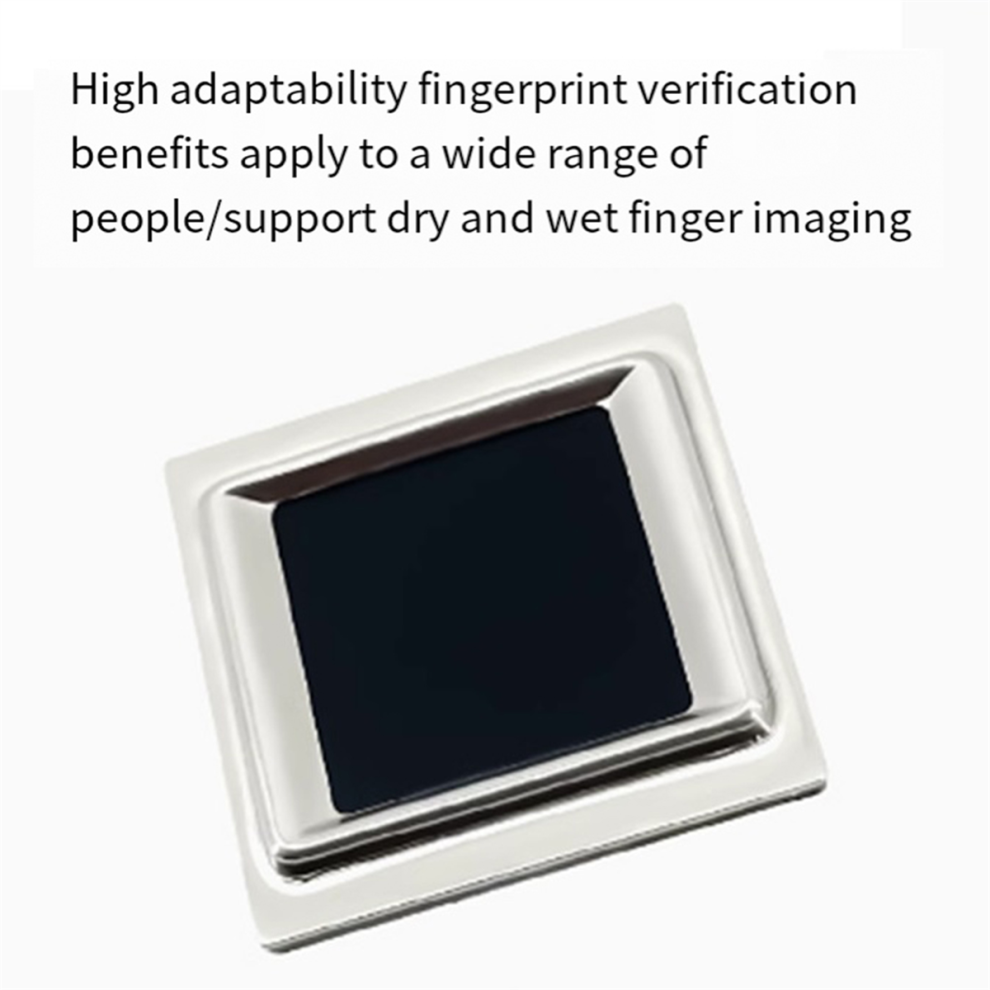

5. Fingerprint Adaptability Is Strong. During The Fingerprint Image Reading Process, An Adaptive Parameter Adjustment Mechanism Is Adopted To Achieve Better Imaging Quality For Both Wet And Dry Fingers, And Is Applicable To A Range Of People.

Description:

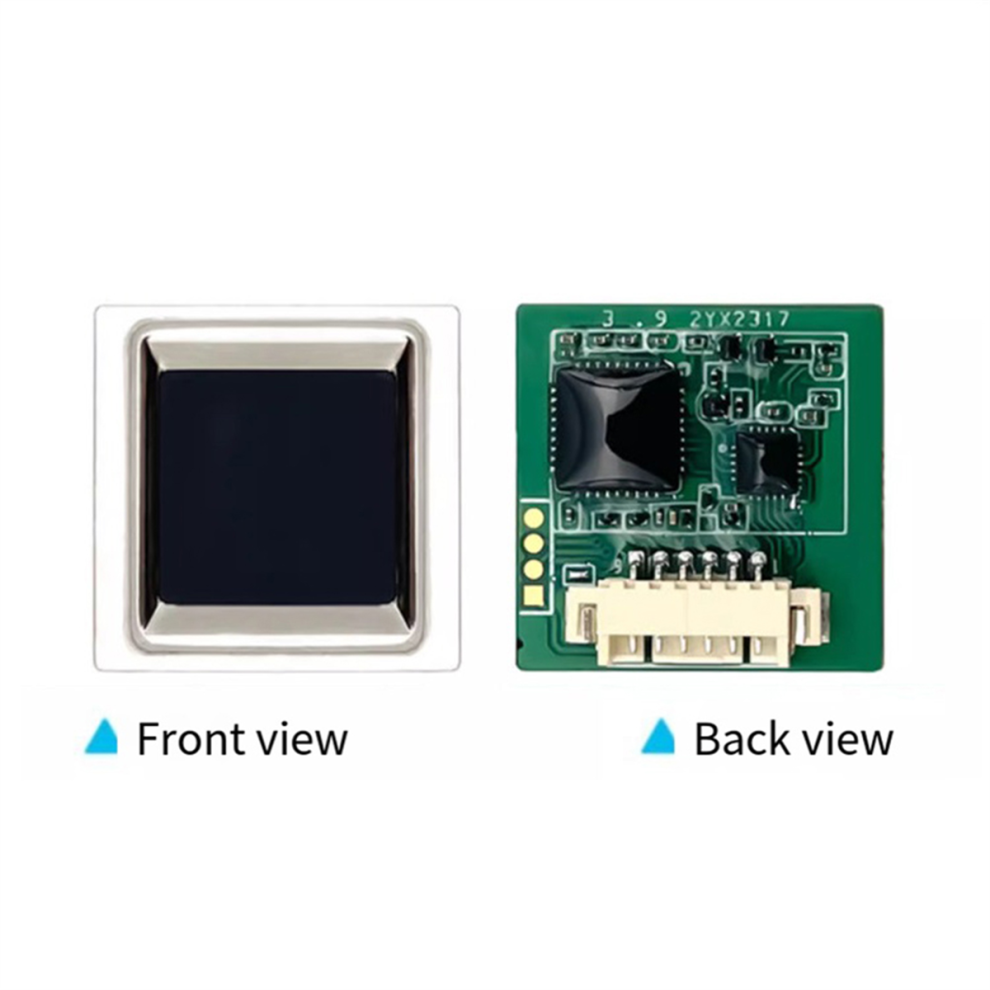

1.Module Size: About 19 x 19mm
2.Sensor Size: About 12.05 x 12.05mm
3.Resolution: 160 x 160 Pixel
4.Data Connection: Uart
5. Interface Protocol: Ttl Serial Port
6. Communication Baud Rate: Default Baud Rate 57600bps/1 Start Bit/1 Stop Bit 3.3v Ttl Level

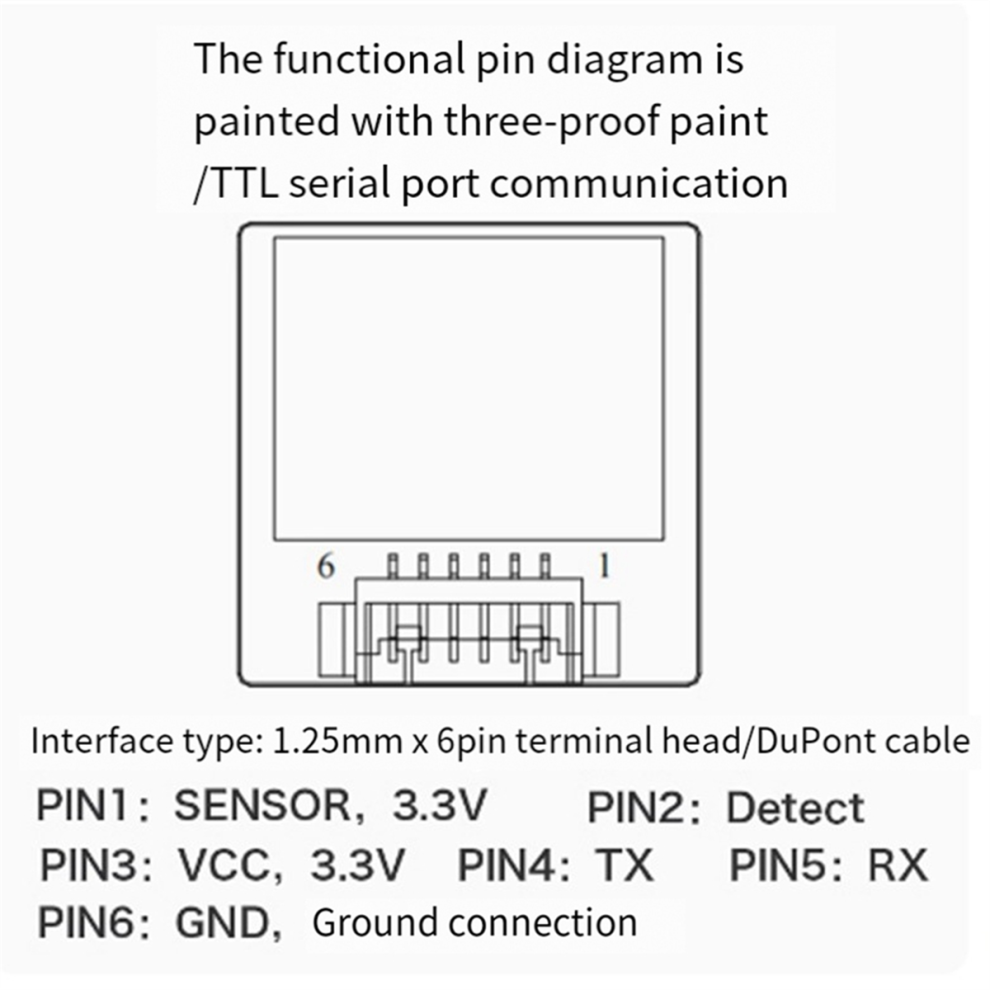

7. Interface And Line Sequence: 1.25mm x 6pin Horizontal Patch
8. Fingerprint Library Capacity: 100 Pieces
9. Storage Temperature And Humidity: -40~+85; 45%~95%Rh
10. Working Temperature And Humidity: -25~+85;45%~85%Rh
11. False Recognition Rate: Less than 0.001%
12.Rejection Rate: 1%
13.Comparison Method: 1:N
14. Actively Send Handshake After Initialization Is Completed: Supported
15.Self-Learning Function: None
16.Fingerprint Serial Number: Supported
17. Fingerprint Entry Buffer Definition: Buffers Charbuffer1, Charbuffer2 Or Charbuffer3 Are 0x00, 0x01 And 0x02 Respectively.
18. Security Level: Default Level 3
Material: PCB
Color: as shown

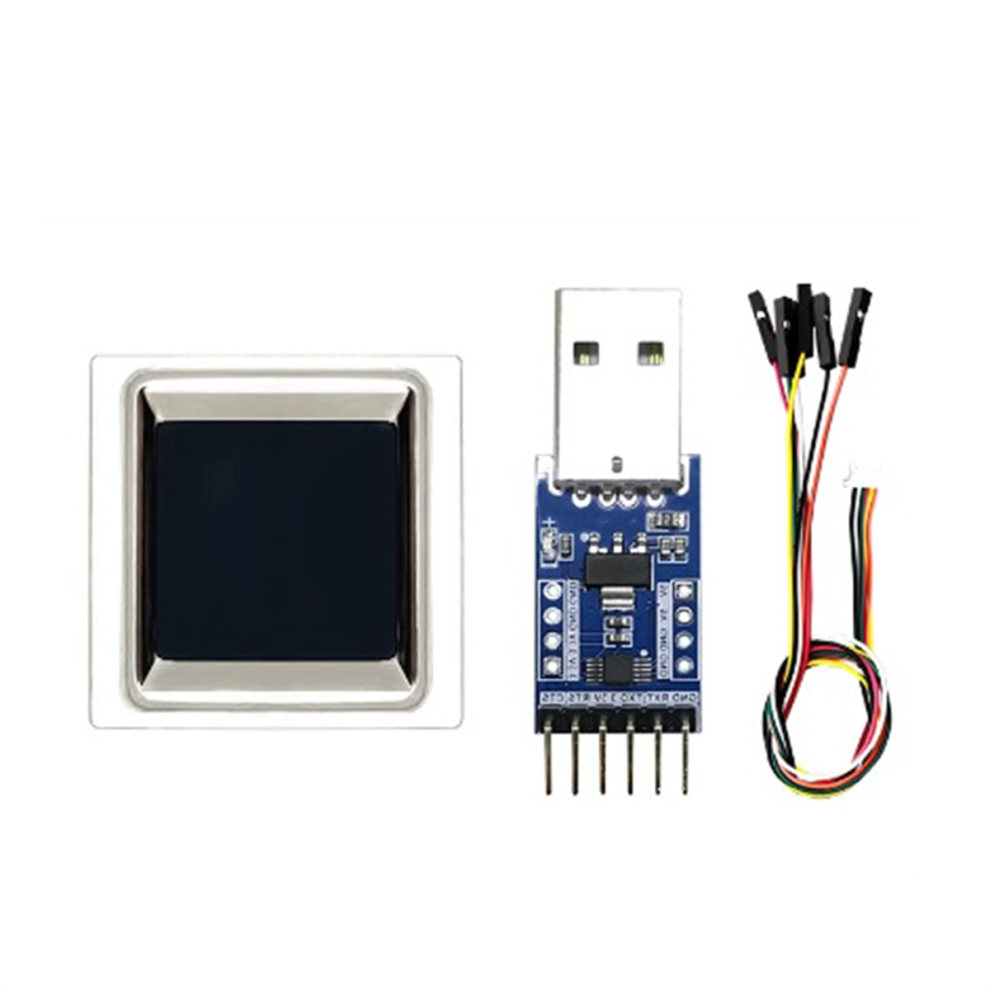

Package Contents:
1 x Fingerprint Recognition Module
1 x Connecting Cable
1 x Serial Port Board Module
Note:
Different Batches May Have Differences In Product Appearance, Color, And Printed Characters, Which Not Affect The Use

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
