For Beidou GPS Filter 1575MHz Bandwidth 20MHz Band

For Beidou GPS Filter 1575MHz Bandwidth 20MHz Band Description

1) Center frequency: 1575MHz
2) Working bandwidth: 20MHz
3) Out-of-band suppression: 38db
4) In-band fluctuation: Less than 1.0dB
5) Insertion loss: 1.5dB (GPS), 2.4 (Beidou)

Maximum power: 10dBm (10mW)
Applicable temperature: -40C-70C
1575 bandpass filter
Center frequency: 1575MHz
3dB bandwidth: 1565-1585MHz
Maximum withstand power: 100mW
Impedance: 50Ω
Insertion loss: Less than 1.5dB
Note:
Installation guide not included, we strongly recommend you professional installation.
Please check as much as possible to make sure the item is what you need.
Tips: The product may be updated constantly ,Due To Different Batches, The Actual Product May Have Slight Differences Or Color Differences, Which Does Not Affect Use

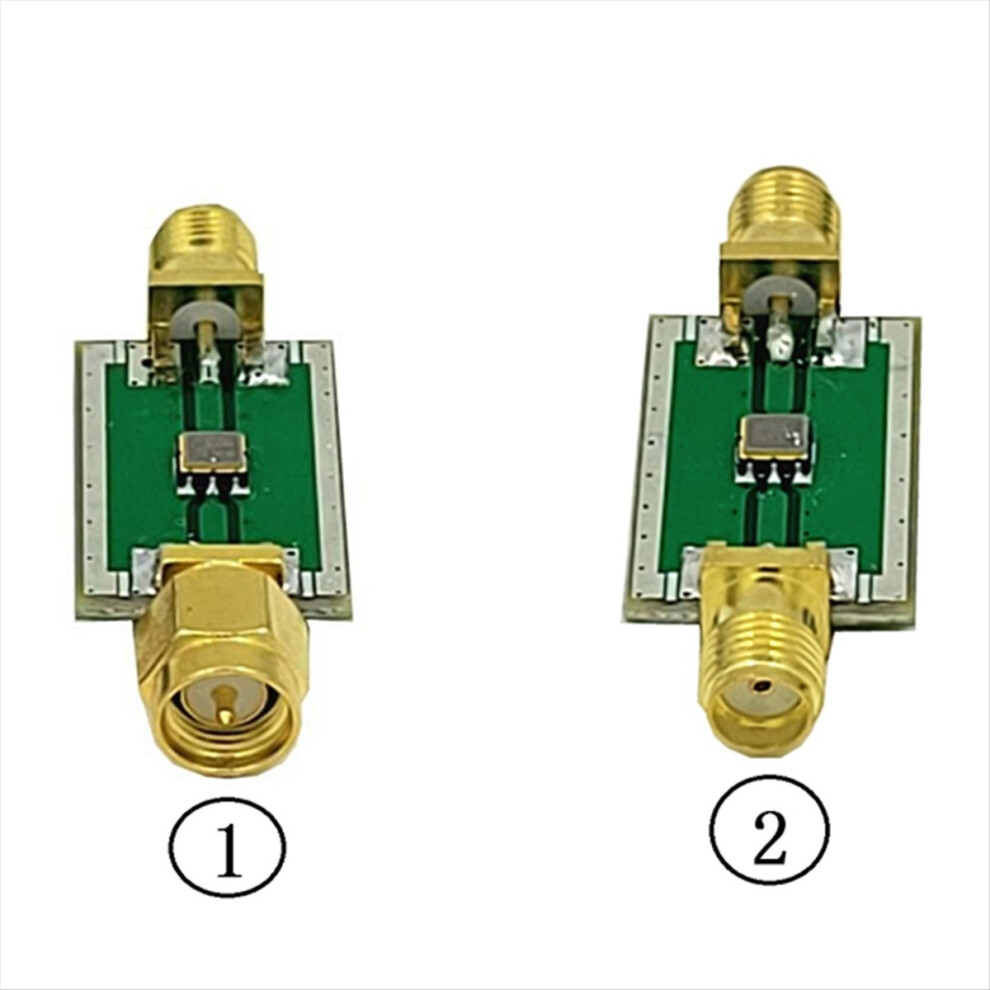

Specifications: B: female + female
Color: As Shown
Material: PCB

Package Contents:

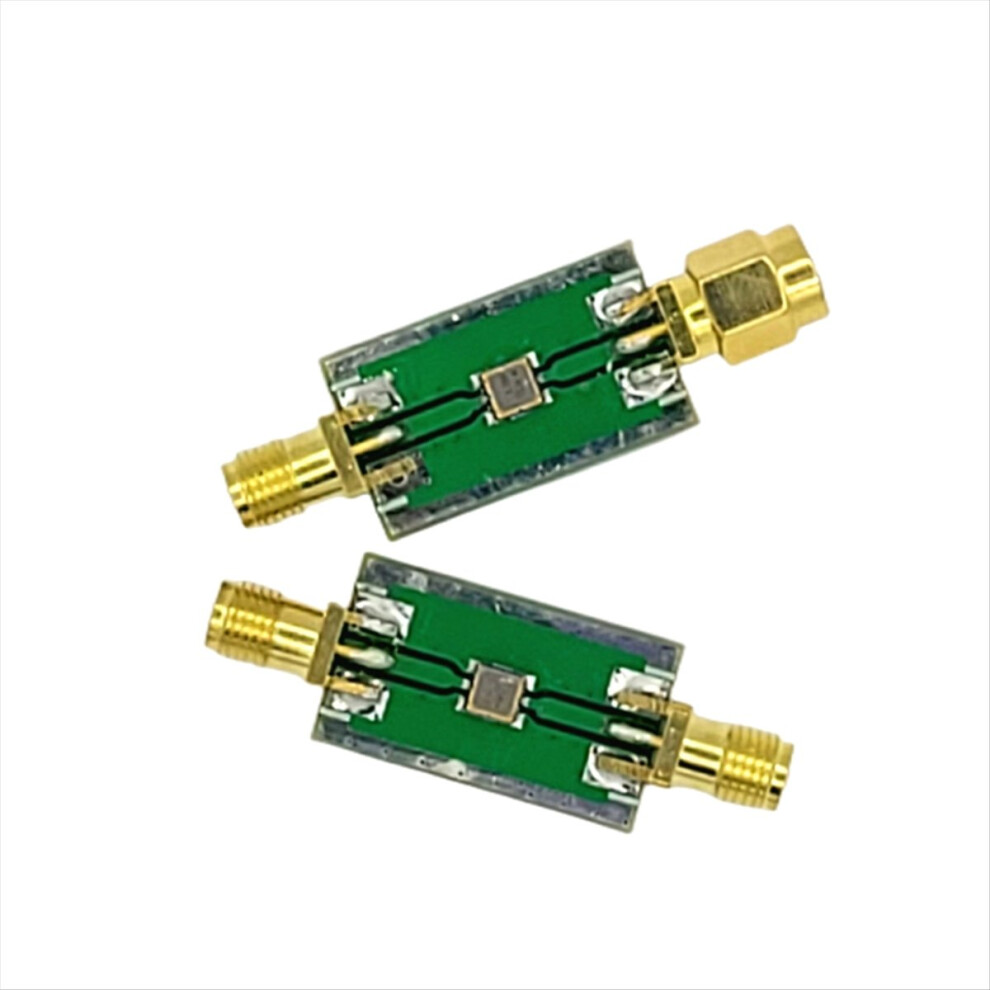

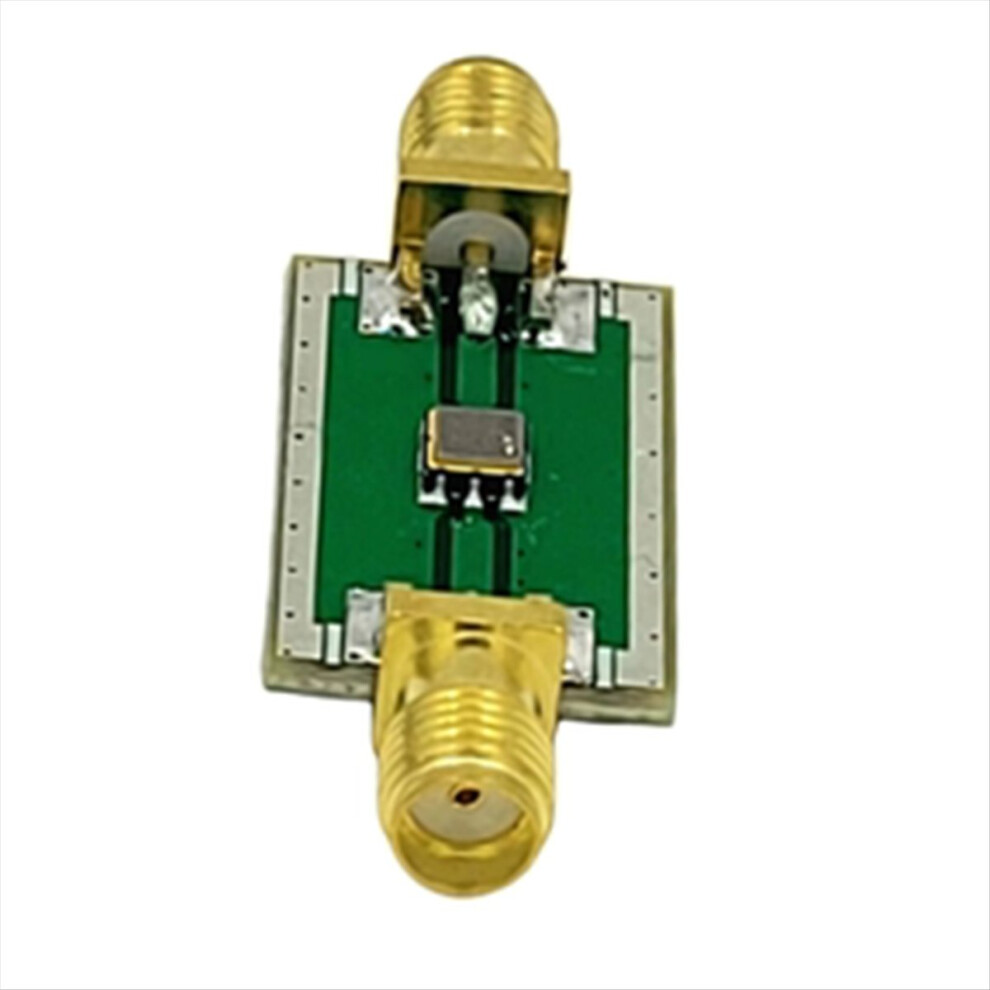

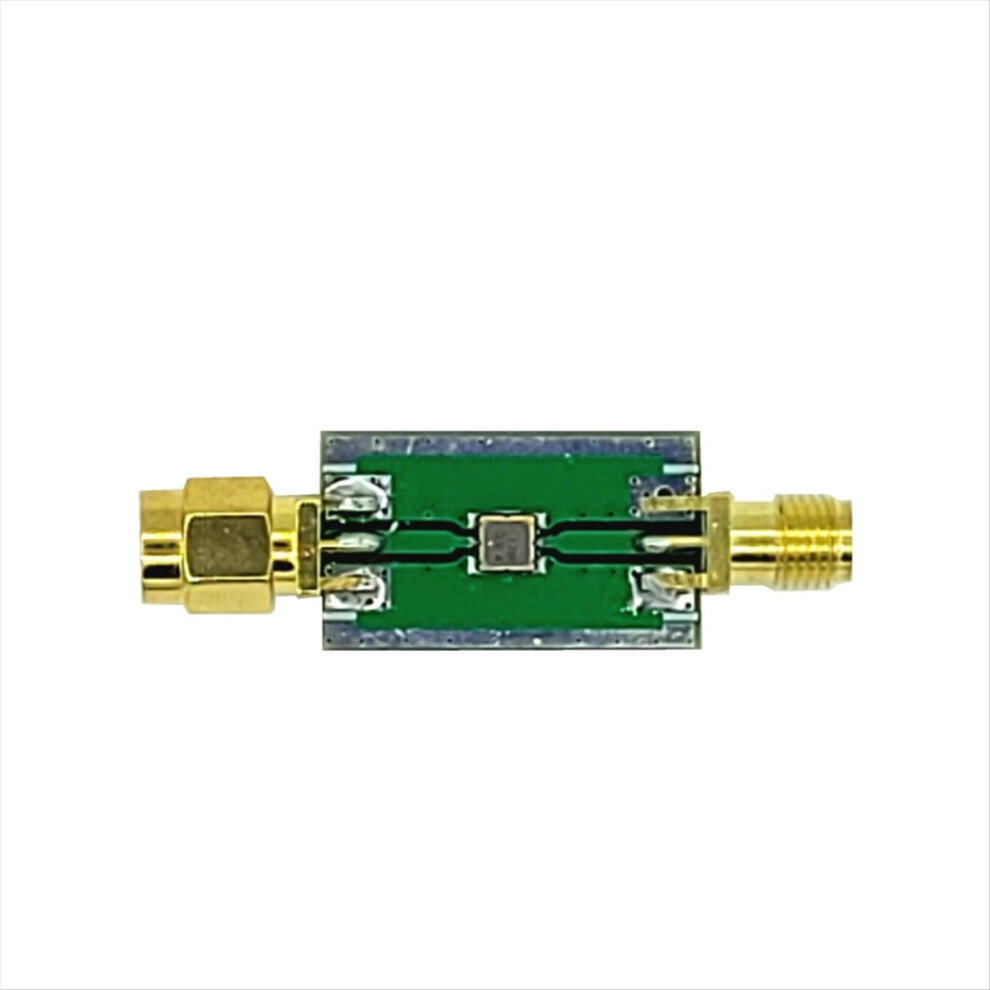

1 x BPF Module Board

Only the above package content, other products are not included.

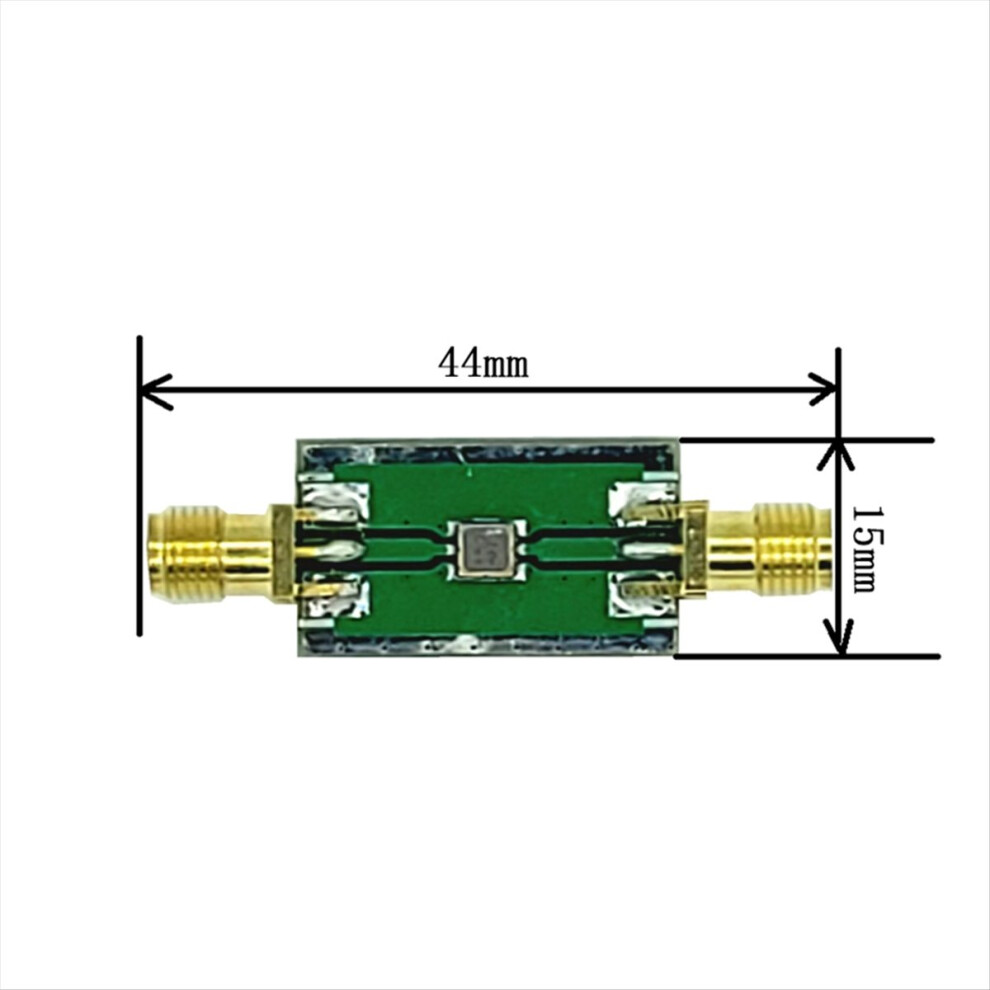

Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
