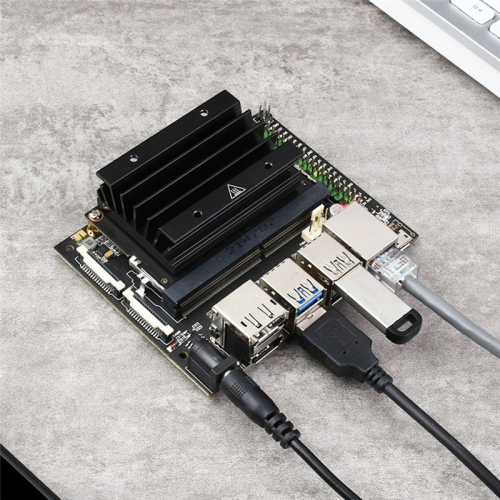

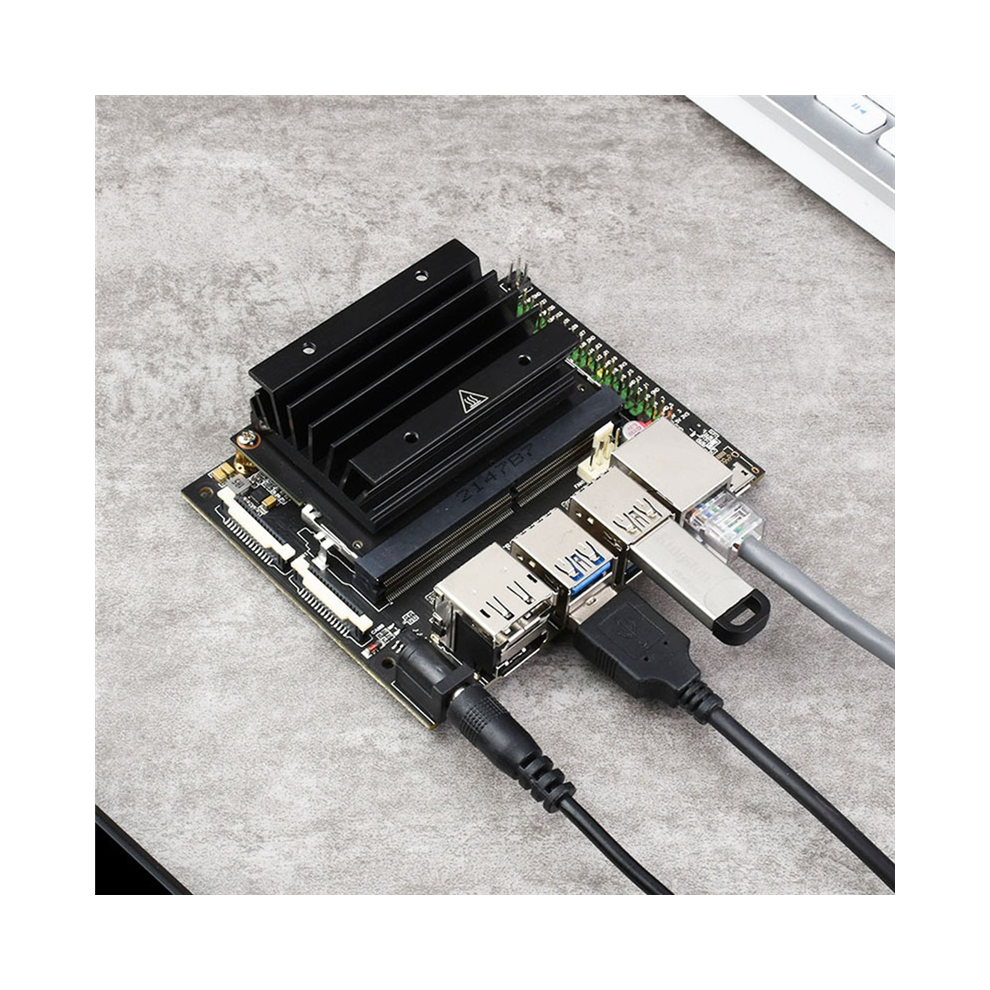

For Nano 4GB Kit AI Artificial Intelligence Development Board with Heat Sink Programming Robot Learning

For Nano 4GB Kit AI Artificial Intelligence Development Board with Heat Sink Programming Robot Learning Description

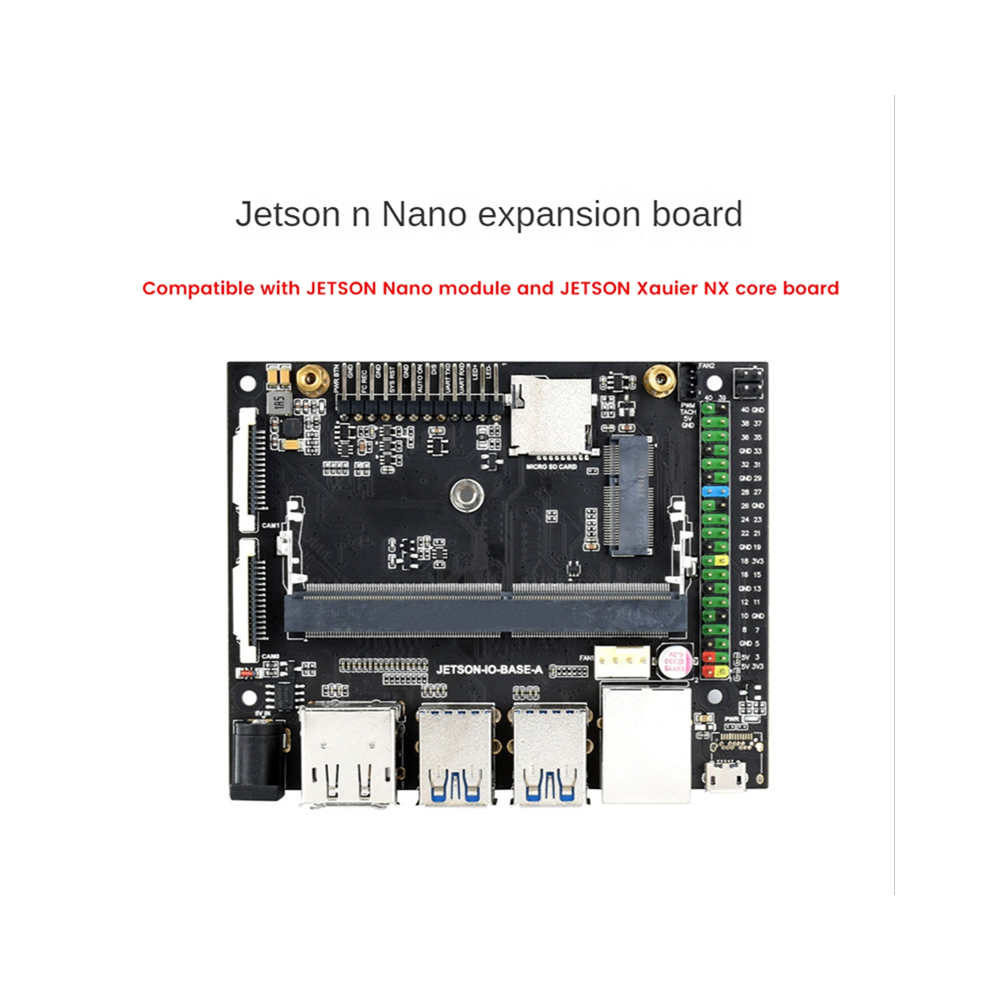

Support dual-core upgrade more convenient and compatible with Nano Module and NX core board. Alternative to B01 expansion board
It can be used to run the core board to achieve image classification, target detection, segmentation, voice processing and other functions, and to be applied to artificial intelligence projects.
Supports 2-channel data camera, which is very suitable for binocular algorithm ranging, face recognition, living body detection, recording VR video and other applications that require binocular vision.
4K dual-screen output supports Display port interface and -compatible high-definition interface.

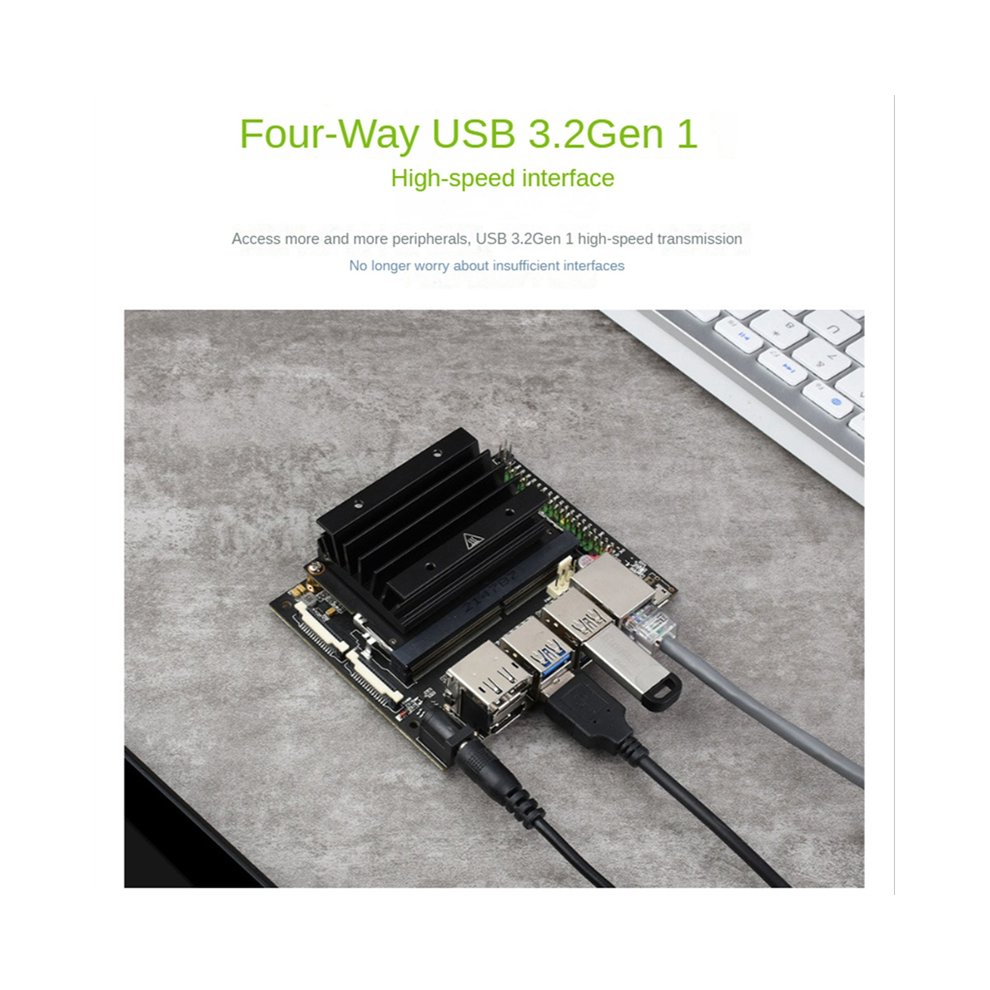

Four-way USB3.0 high-speed interface can access more and richer peripherals, USB3.0 high-speed transmission no longer worry about

GPU: 128-core
CPU: Quad-core ARM [email protected]
Memory: 4GB 64-bit LPDDR4 25.6 GB/s
Video encoding: 250 MP/s
1x 4K @ 30 [HEVC]
2x 1080p @ 60 [HEVC]
4x 1080p @ 30 [HEVC]
Video decoding: 500 MP/s
1x 4K @ 60 [HEVC]
2x 4K @ 30 [HEVC]
4x 1080p @ 60 [HEVC]
8x 1080p @ 30 [HEVC]

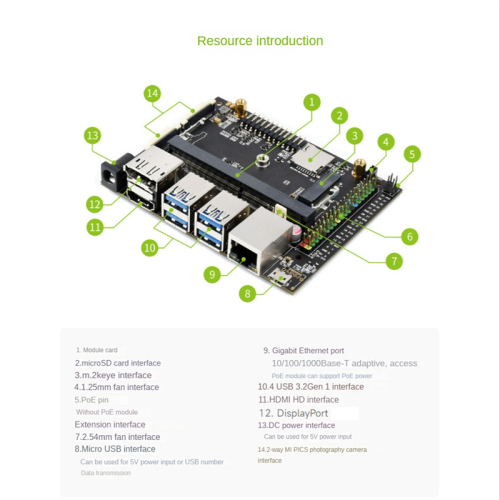

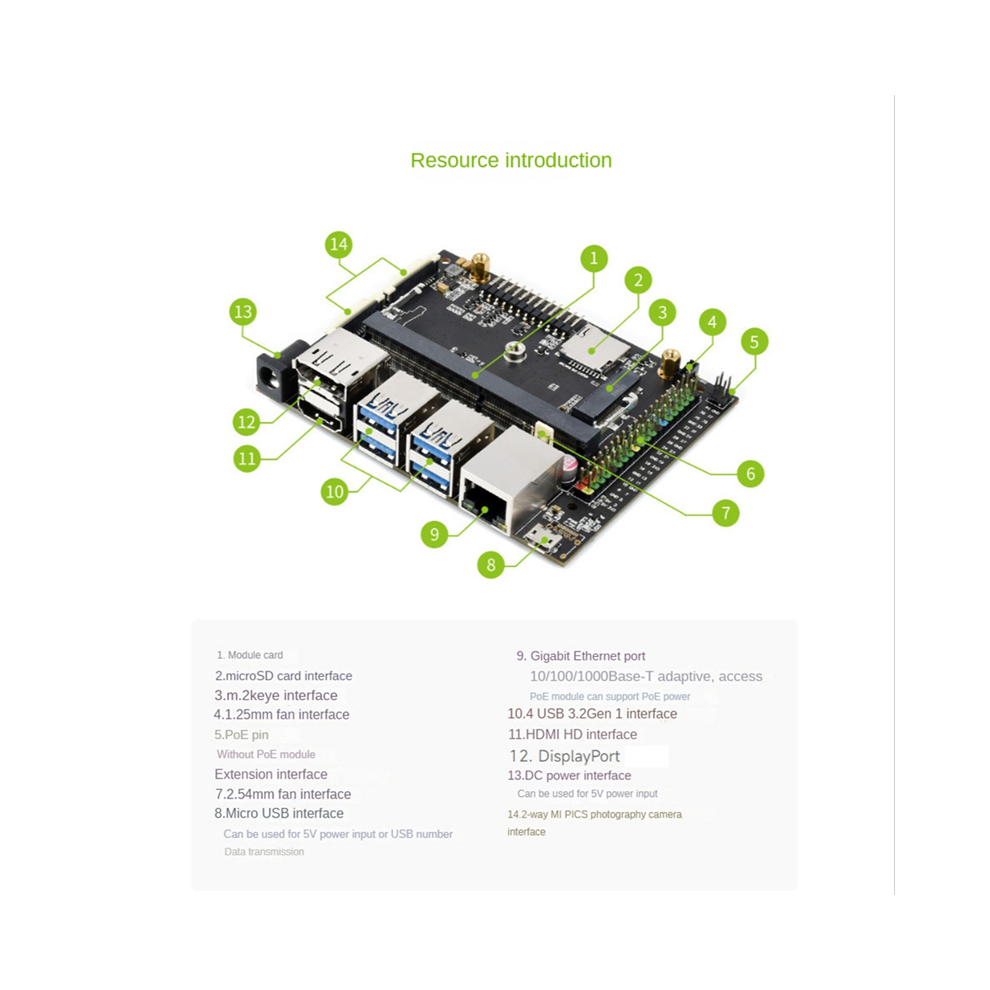

Camera: 2x MIPI -2 D-PHY lanes
Networking: Gigabit Ethernet, M.2 Key E interface expansion
Display: -compatible and DP Display Interface
USB: 4x USB 3.2 , USB 2.0 Micro-B
Expansion interface: GPIO, I2C, I2S, SPI, UART
Other: 260-pin connector
Model Number: For Nano
Feature 1: kit
Feature 2: Expansion Board
Features 3: Programming
Features 4: Programming Toys
Features 5: HighTech Toys
Version: For NANO 4GB Kit (SUB)
color:Black
Material:PCB+Aluminum alloy

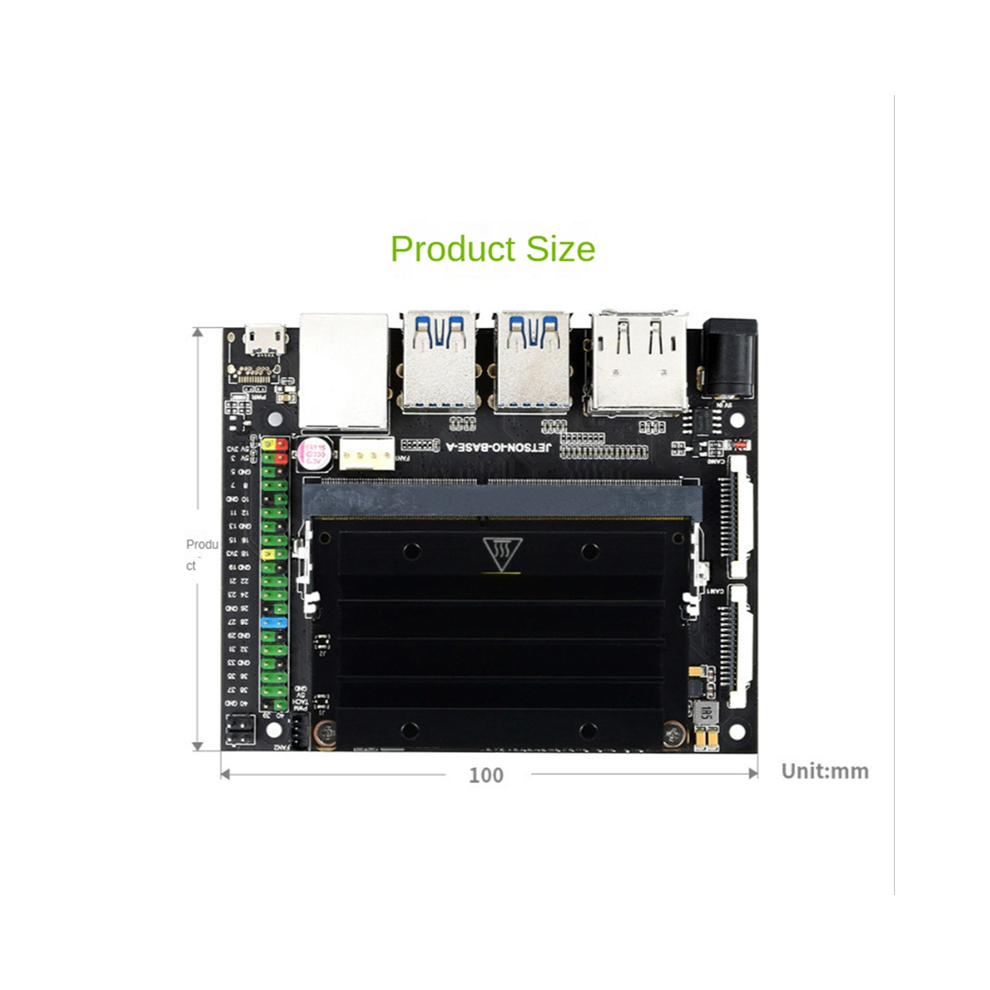

size:100 x 80 x 29mm

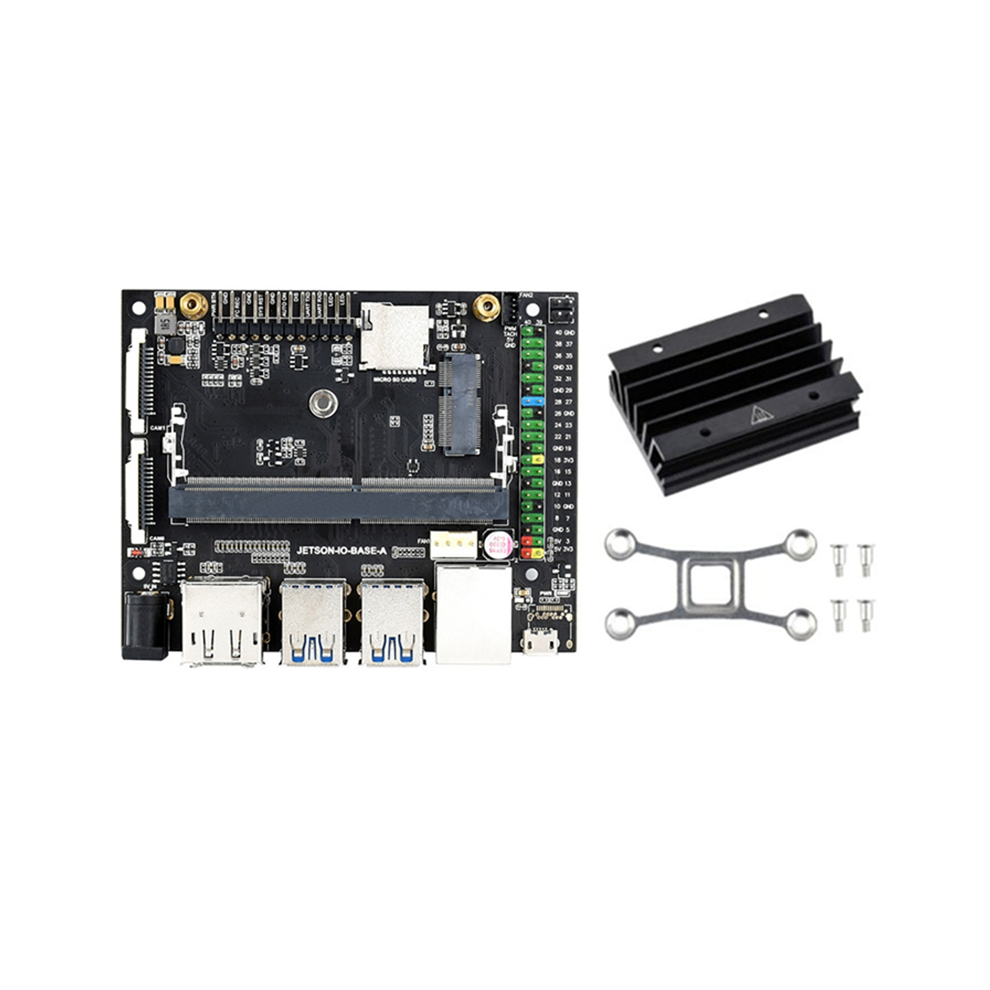

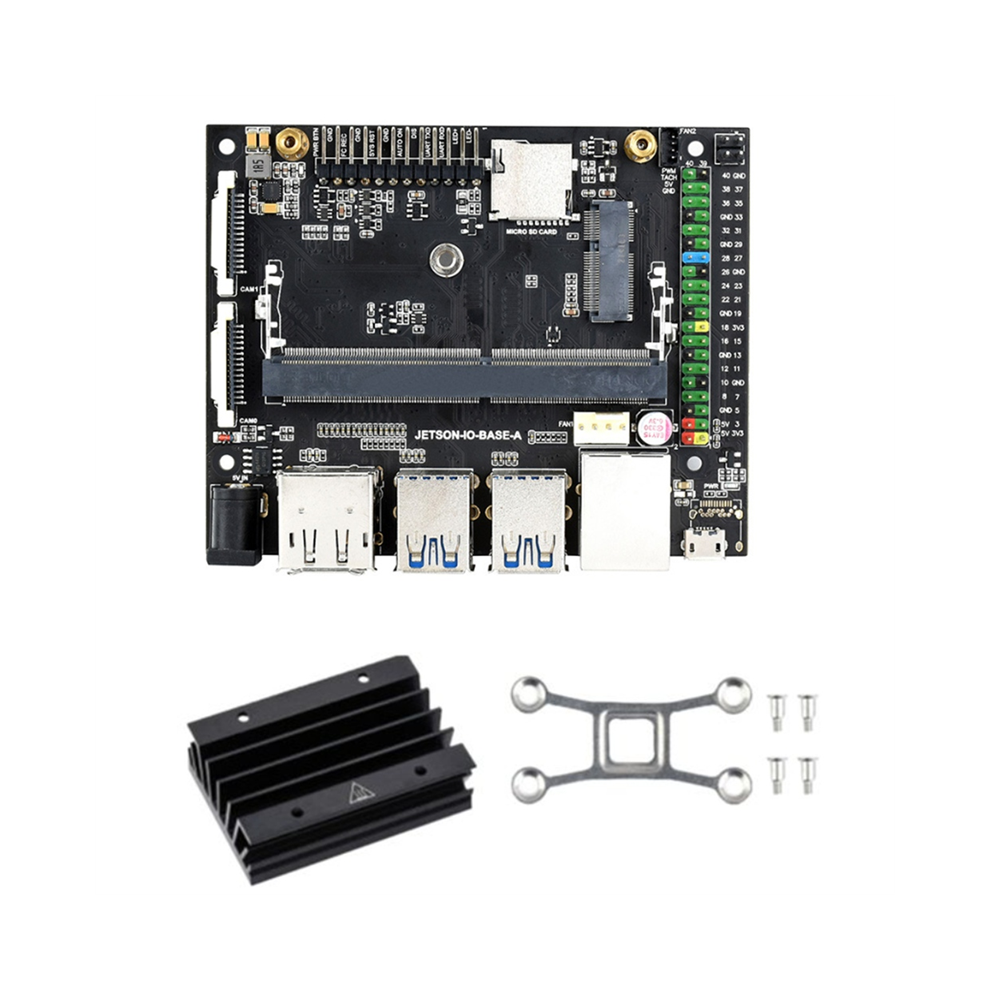

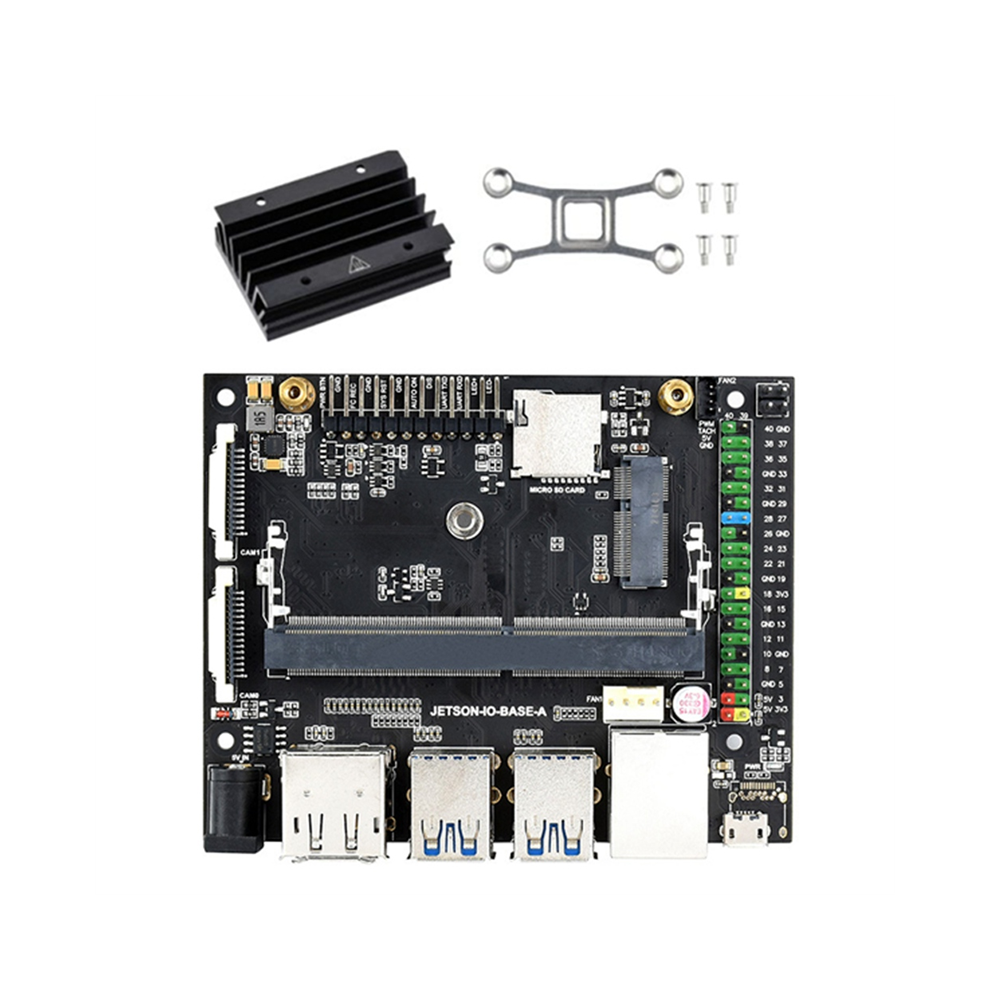

Package Contents:
1 x For BASE Board
1 x Heat Sink
1 x Bracket screw

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
