For Nextion 2.4 Inch 2.8 Inch Discovery Series HMI

For Nextion 2.4 Inch 2.8 Inch Discovery Series HMI Description

1. The clock speed of For Nextion Discovery series MCU is 64 MHz, which is more powerful than the Basic series.

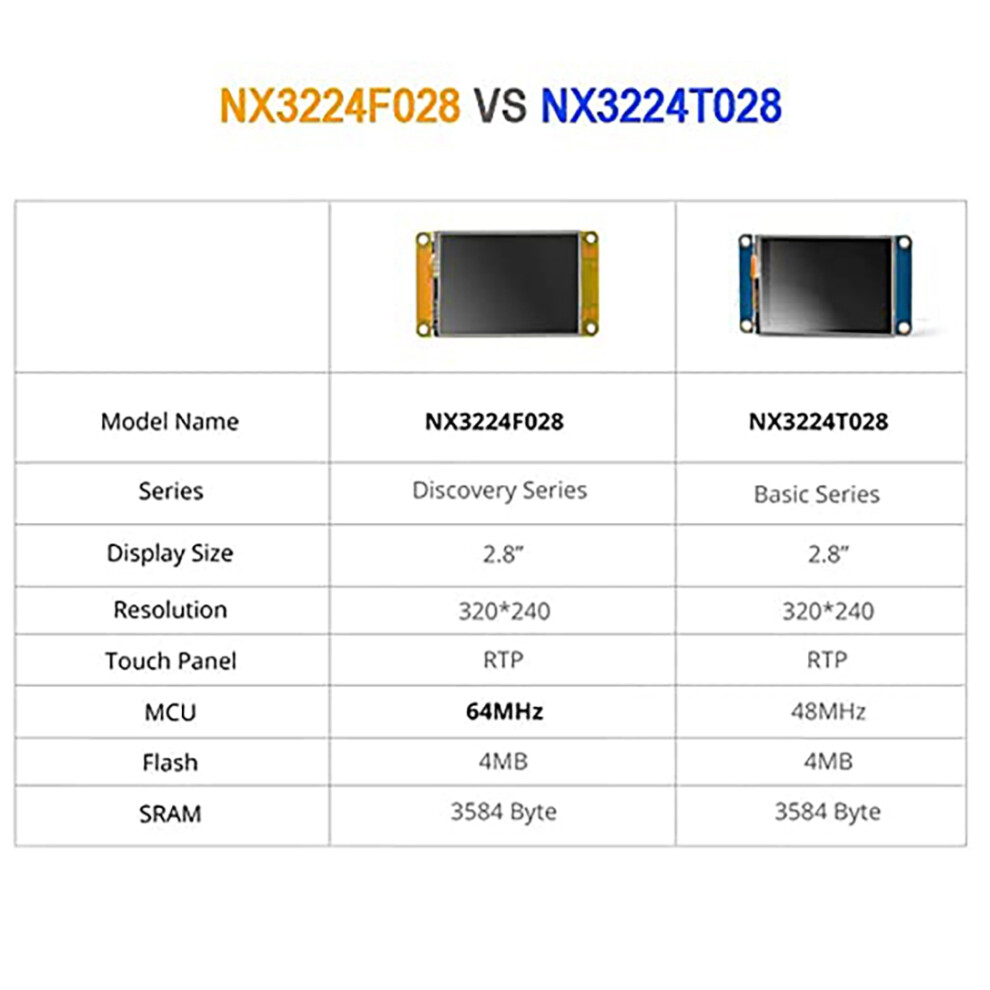

2. Compared with Basic series, Discovery series has better MCU performance and adopts new image compression technology. Compared with Basic and Enhanced, Discovery series can take more pictures under the same amount of flash memory.
3. The SD card slot is only used to update For Nextion firmware/HMI design. For Nextion NX3224F024 / NX3224F028 only supports FAT32 format.

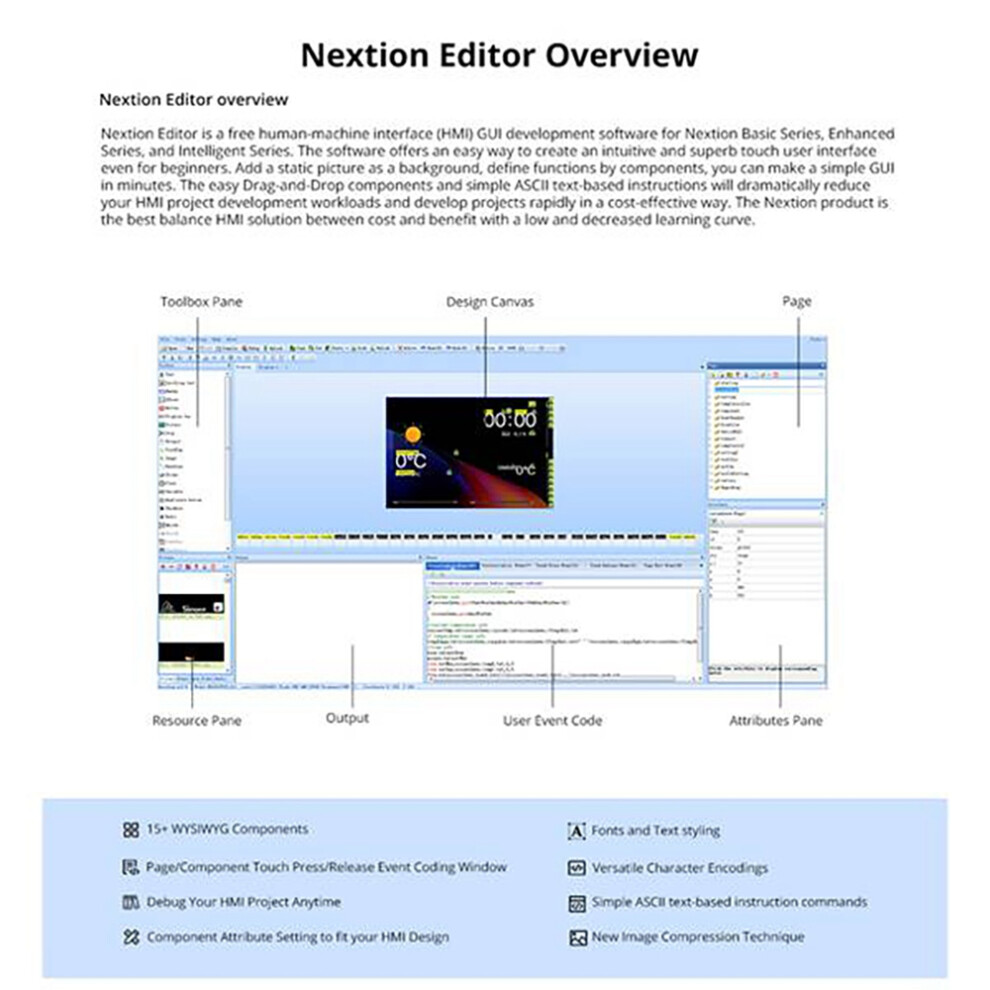

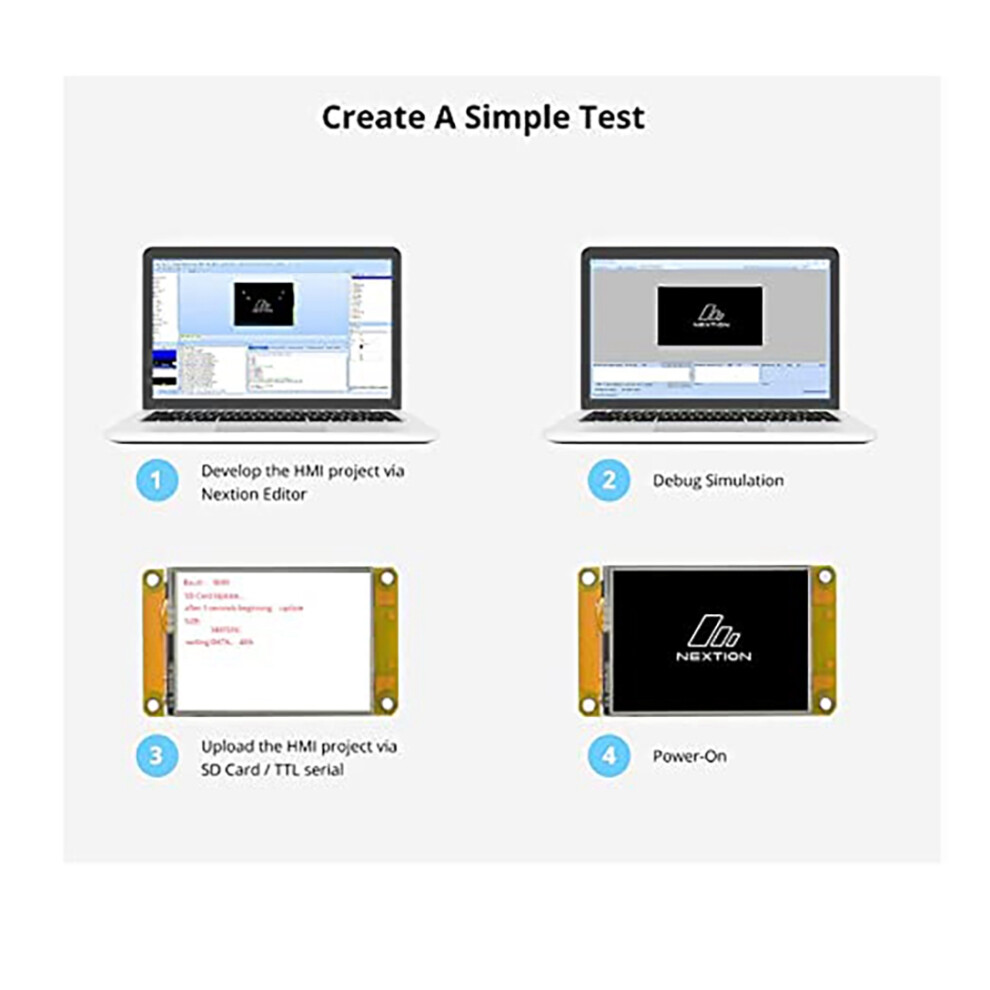

4. You can develop HMI GUI projects through the free For Nextion Editor software, simple drag-and-drop components and simple ASCII text-based instructions will greatly reduce your HMI project development workload.
5. For Nextion solution is the best balance between cost and advantage HMI solution with low and reduced learning curve.

Product name: 2.4/2.8 inch HMI display
Model: NX3224F028
Display Siz: 2.4 / 2.8 inches
Resolution: 480 x 320
Touch Panel: RTP
MCU: 64MHZ
Flash: 16MB
SRAM: 3584 Bytes
XH2.54 4-pin (+5V, TX, RX, GND) serial TTL interface
Layout Dimensions: 100.5(L) x 54.94(W) x 5.55(H)
Viewable Area (V.A. 73.44mm (L) x 48.96mm (W)
Recommended power supply: DC 5V, 500mA
SD card slot: FAT32 format (up to 32 GB)

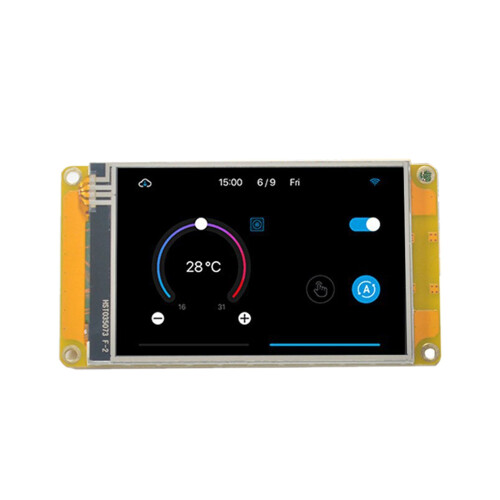

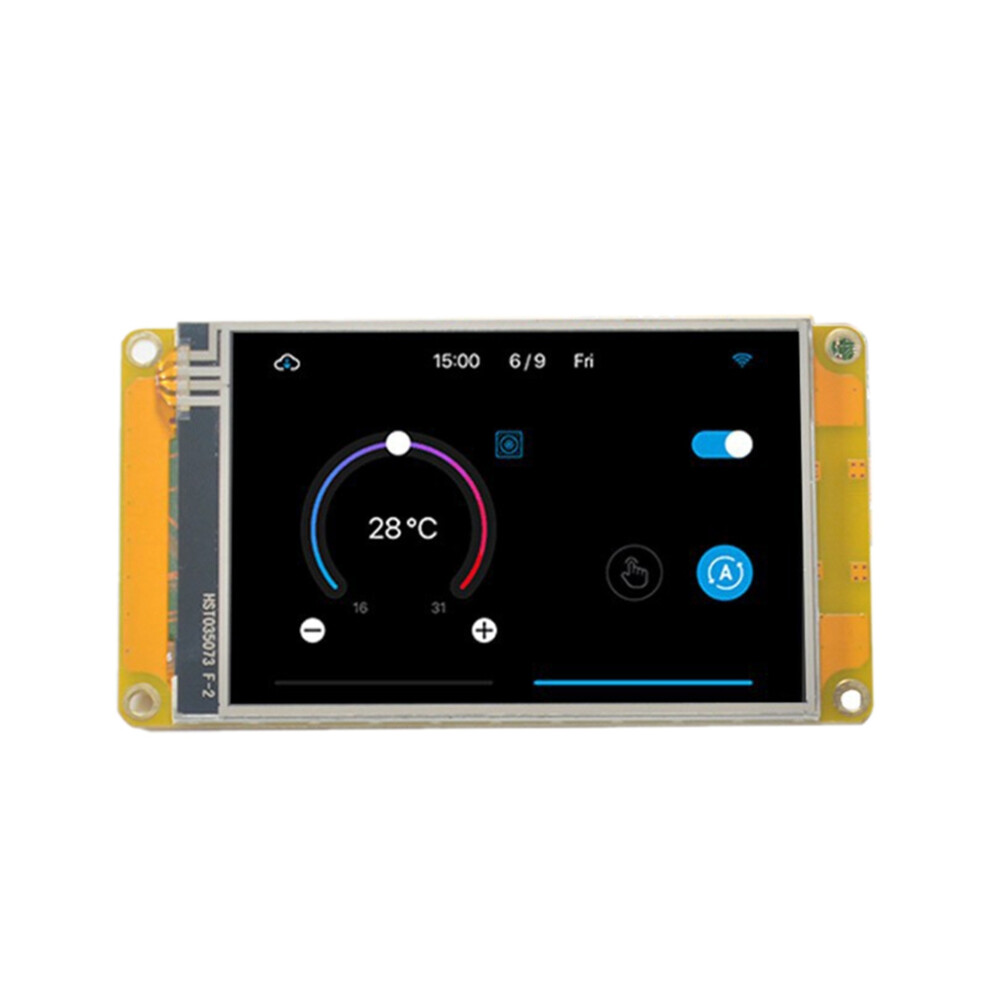

for Nextion Discovery Series HMI Resistive Touch Display

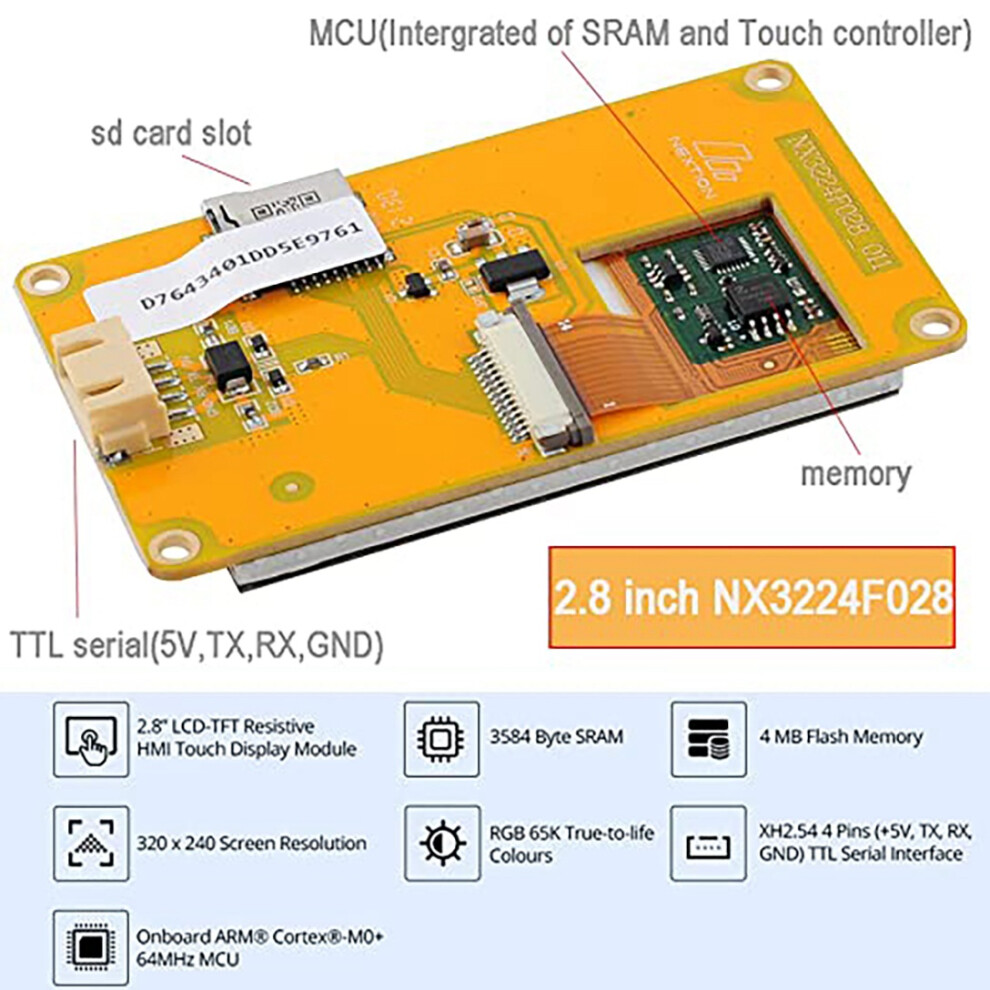

STM32GO ARM Cortex -M0+ 64MHz Onboard MCU Processor
Fonts Creator with Versatile Character Encodings
Low Learning Curve Text-based Instruction Set
Support 15+ Amazing WYSIWYG Components
New Nextion Cost-effective HMI Solution

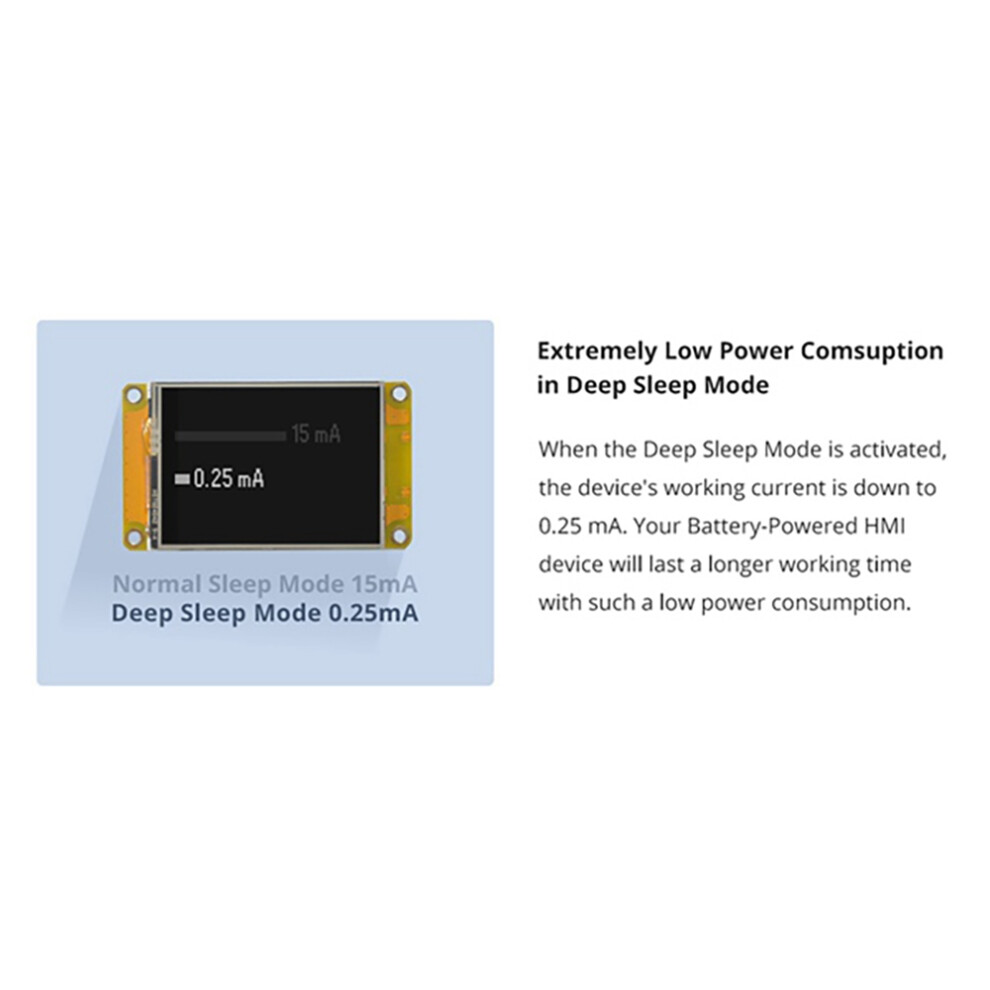

Extremely Low Power Comsuption in Deep Sleep Mode:When the Deep Sleep Mode is activated, the device's working current is down to 0.25 mA. Your Battery-Powered HMI device will last a longer working time with such a low power consumption.
Material: PCB+Metal
colour: yellow

Package Contents:
1 x HMI DISPLAY
1 x XH2.54 4P Wire

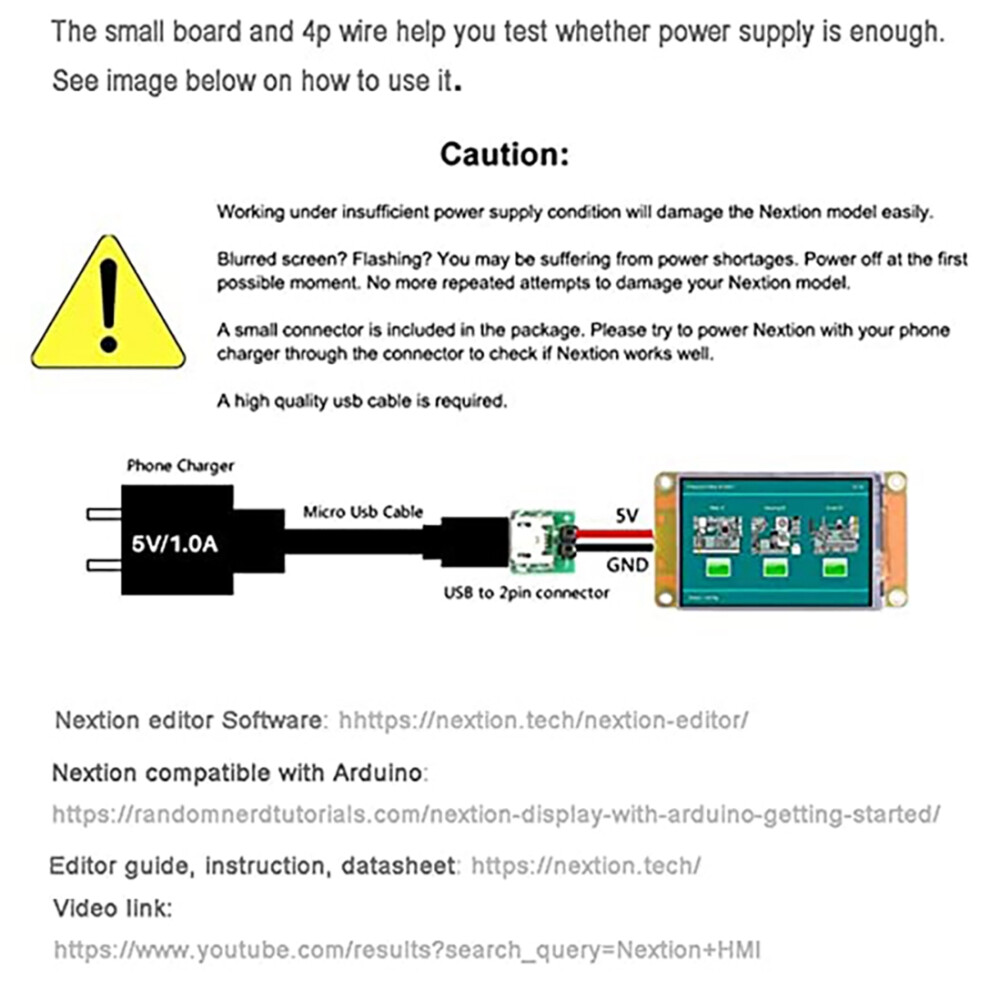

1 x Power Supply Test Board

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
