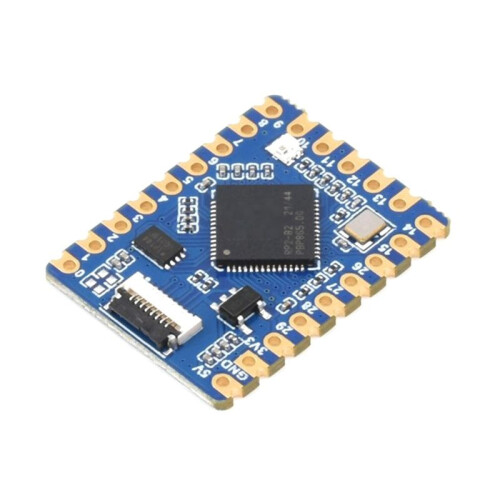

For Raspberry Pi RP2040-Tiny Development Board -Board with RP2040 Chip USB Port

For Raspberry Pi RP2040-Tiny Development Board -Board with RP2040 Chip USB Port Description

RP2040 microcontroller chip designed by for Raspberry Pi in the United Kingdom
Dual-core Arm Cortex M0+ processor, flexible clock running to 133 MHz
264KB of , and 2MB of onboard Flash memory

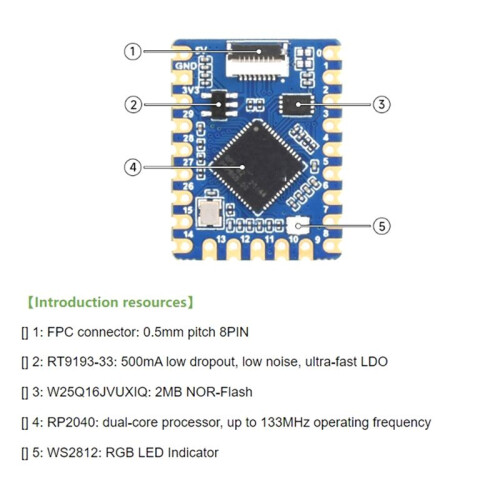

Onboard FPC 8PIN connector, adapting USB Type-C port via adapter board
Castellated module allows soldering direct to carrier boards

USB 1.1 with device and host support
Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB
2 x SPI, 2 x I2C, 2 x UART, 4 x 12-bit ADC, 16 x controllable PWM channels
Accurate clock and timer -chip
Temperature sensor
Accelerated floating-point libraries -chip
8 x Programmable I/O (PIO) state machines for custom peripheral support
Support C/C++, Micro-Python, for , Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started
Compact Size, Separate Adapter Board Design, Castellated Holes With Immersion Gold Design, Highly Integrated Packaging, Easy To Embed Into Various Product Applications
Dual-Core Arm Processor, Dual-Core Arm Cortex M0+ Processor, Flexible Clock Running To 133 MHz
20 x Multi-Function GPIO Pins, Configurable Pin Function, Allows Flexible Development And Integration, Reserved two 0402 resistor pads for user mode selection, you need solder the corresponding resistors or short the pads and complete the corresponding programming.
Colour:
Material:Plastic

Package Contents:
1 * RP2040-Tiny Development Board
