For Tab5 IoT Controller/Development Kit Portable Smart Terminal ESP32-P4 + ESP32-C6 with NP-F550 Battery

For Tab5 IoT Controller/Development Kit Portable Smart Terminal ESP32-P4 + ESP32-C6 with NP-F550 Battery Description

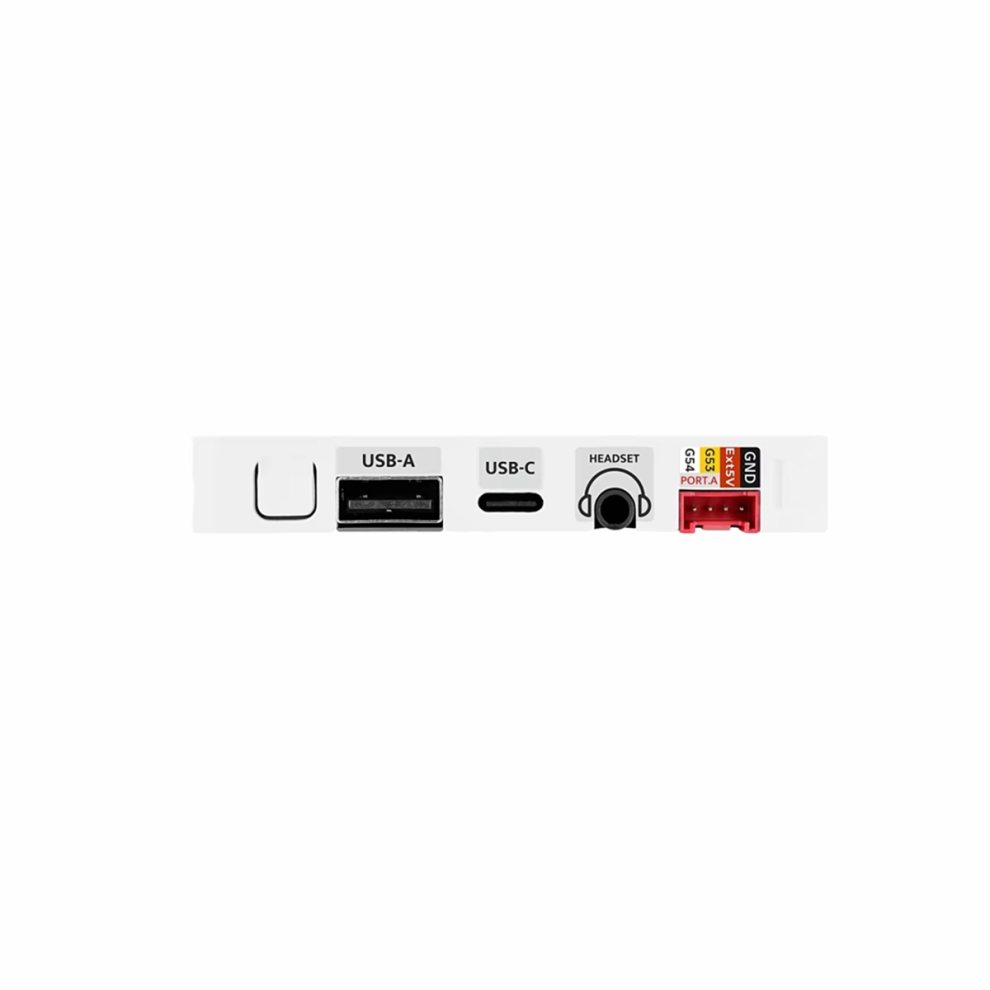

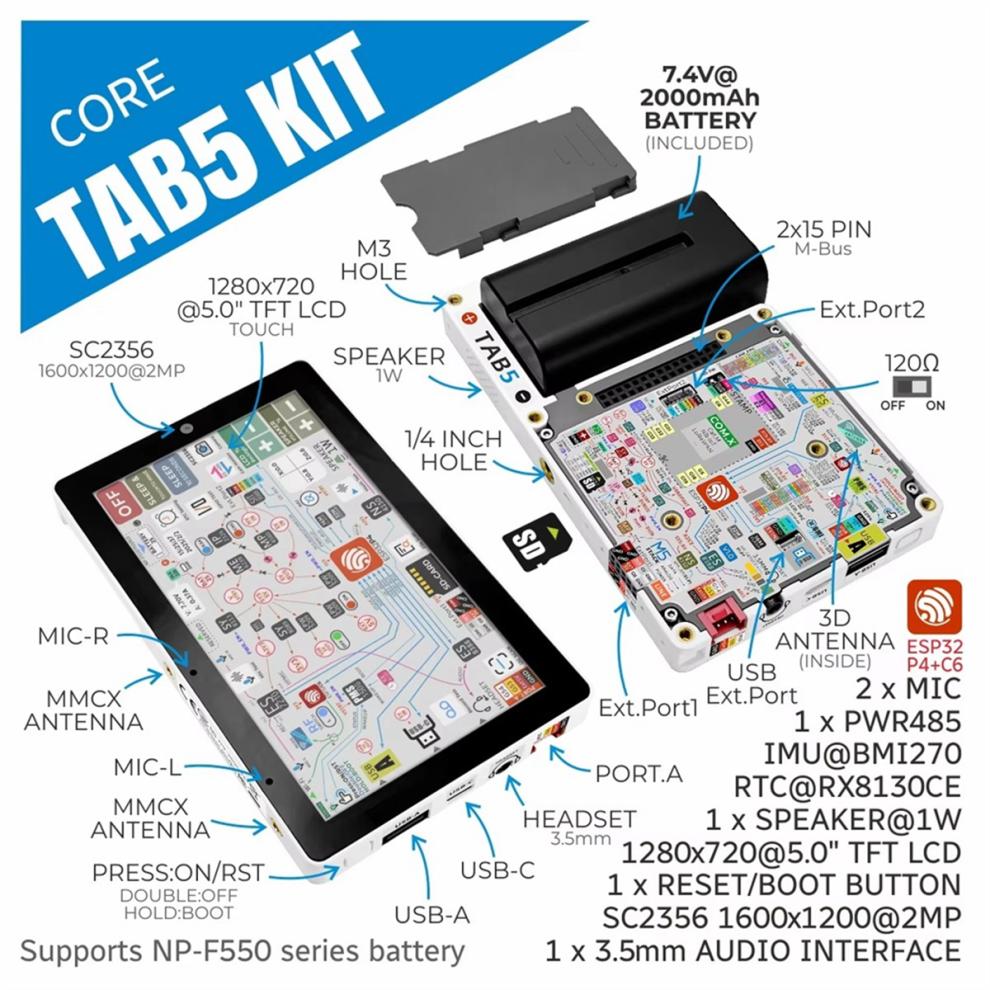

Tab5 is a -oriented, highly extensible portable IoT terminal development device. Its main controller is the RISC-V-based ESP32-P4 SoC, equipped with 16 MB Flash and 32 MB PSRAM; the wireless module uses ESP32-C6-MINI-1U, supporting Wi-Fi 6 with an antenna system that can switch between a built-in 3D antenna and an external MMCX antenna port. Tab5 features a 5Inch 1280x720 IPS TFT display driven over MIPI-, with touch input handled by the GT911 multi-touch controller (I²C) for smooth, precise response. A MIPI--connected SC2356 2 MP camera (1600x1200) enables HD video capture, image processing, and edge AI applications (e.g., face recognition, object tracking). I/O and expansion include USB-A (Host) and USB-C (USB 2.0 OTG) ports for traditional peripherals; industrial communication via -485 (SIT3088 with switchable 120 Ω termination); 1 x GROVE, 1 x M5BUS, GPIO_EXT header, and a Micro-SD slot; plus a STAMP solder-pad for Cat.M/-IoT/LoRaWAN modules. A Reset/Boot button allows quick reset and firmware flashing. Tab5 is ideal for smart home control, remote monitoring, industrial automation, IoT prototyping, and educational research, offering developers and enterprises a full-featured, extensible, high-performance platform. ESP32-P4 dual-core MCU ESP32-C6 wireless module Wi-Fi 6 Built-in 3D antenna & MMCX external antenna port 5Inch 720P MIPI- display GT911 multi-touch SC2356 2 MP camera USB-A Host + USB-C OTG -485 industrial interface Grove & M5BUS expansion Micro-SD card slot STAMP expansion pad ES8388 audio codec ES7210 dual microphones 1W speaker + 3.5 mm jack BMI270 six- sensor RX8130CE real-time clock Reset/Boot & Power buttons NP-F550 2S removable battery Standard 1/4Inch-20 tripod mount nut Development platforms: ESP-IDF Note:due to different production batches, there are differences in printing screen printing, which does not affect the use. Color:White & Black Material:plastic Package Contents: 1 x Tab5 1 x NP-F550 2S 2000 mAh removable battery Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
