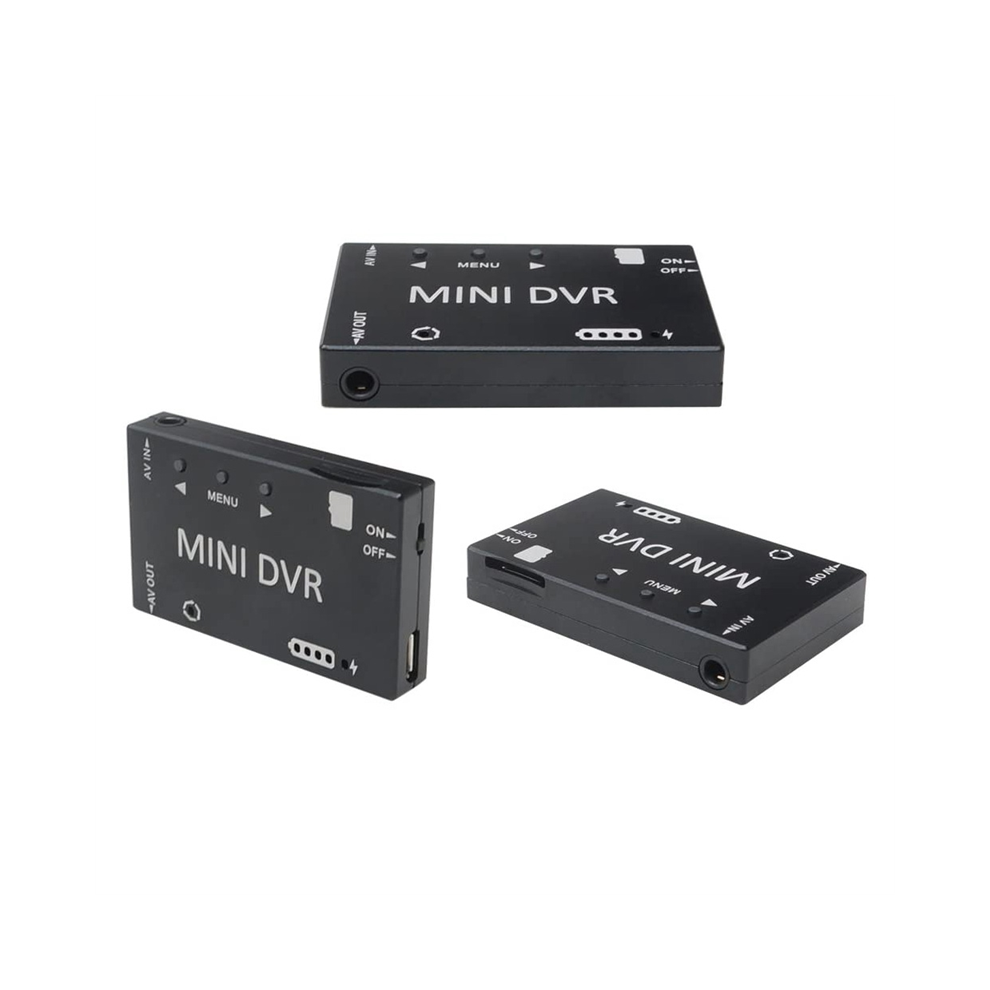

FPV Recorder Mini DVR Module NTSC/PAL for RC Models Racing (A)

FPV Recorder Mini DVR Module NTSC/PAL for RC Models Racing (A) Description

Features: Small size and light weight; Low power consumption, operating current 200 mA;
Aluminum alloy casing (CNC processing); Support 32GB TF card (10 level recommended);
Built-in 3.7V/400 mAh lithium ion polymer battery; Universal USB charging interface;
High-precision 4-level battery power indicator; Multi-language menu, 11 menu language choices;
CVBS signal input (built-in video decoder); Support playback and AV signal output (built-in video encoder)

System startup time: 3 seconds
Video input format: NTSC/PAL
Video input impedance: 75? Typ.
Video compression format: MJPEG
Record file resolution: VGA (640 x 480) / D1 (720 x 480) / HD (1280 x 720) selectable
Record file format:
Recording sound: ON/OFF selectable
Cycle recording time: 10min/20min/30min
Frame rate: 30 Frames
Memory card: TF card, support up to 32GB (C10 recommended)
Menu language: 11 language choices
Optical frequency: 50Hz/60Hz can be
Video playback: CVBS output (connected to the monitor)
Audio input interface: 3.5mm AV jack
Audio output interface: 3.5mm AV jack
Charging interface: Micro-USB interface
Charging voltage: 5V DC
Charging current: 500mA Max
Battery (non-removable): Built-in 3.7V/400 mAh lithium ion polymer battery
Battery life: Each working load is 1.5 to 2 hours of working time.
Operating temperature: -10~60C
Operating humidity: 85% RH

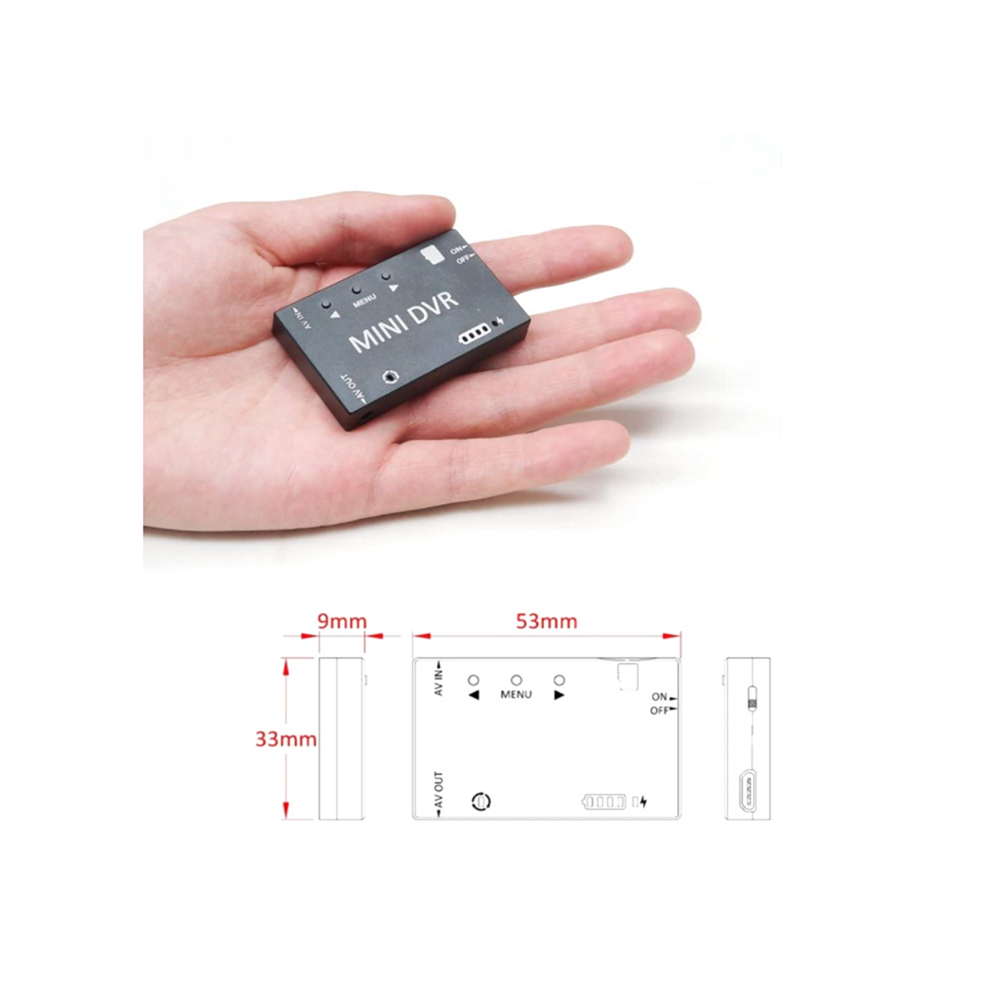

Dimension: 53mm x 33mm x 9mm
Menu language: English, French, German, Italian, Spanish, Portuguese, Traditional Chinese, Simplified Chinese, Japanese, Russian, Korean.
Color: Black
Material: plastic

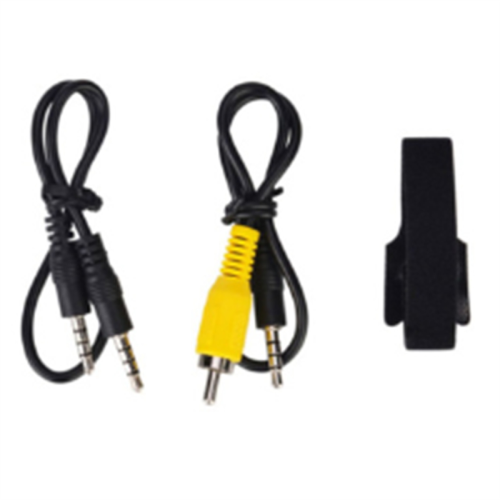

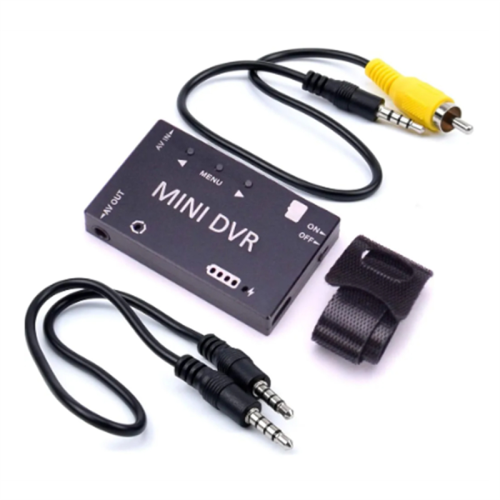

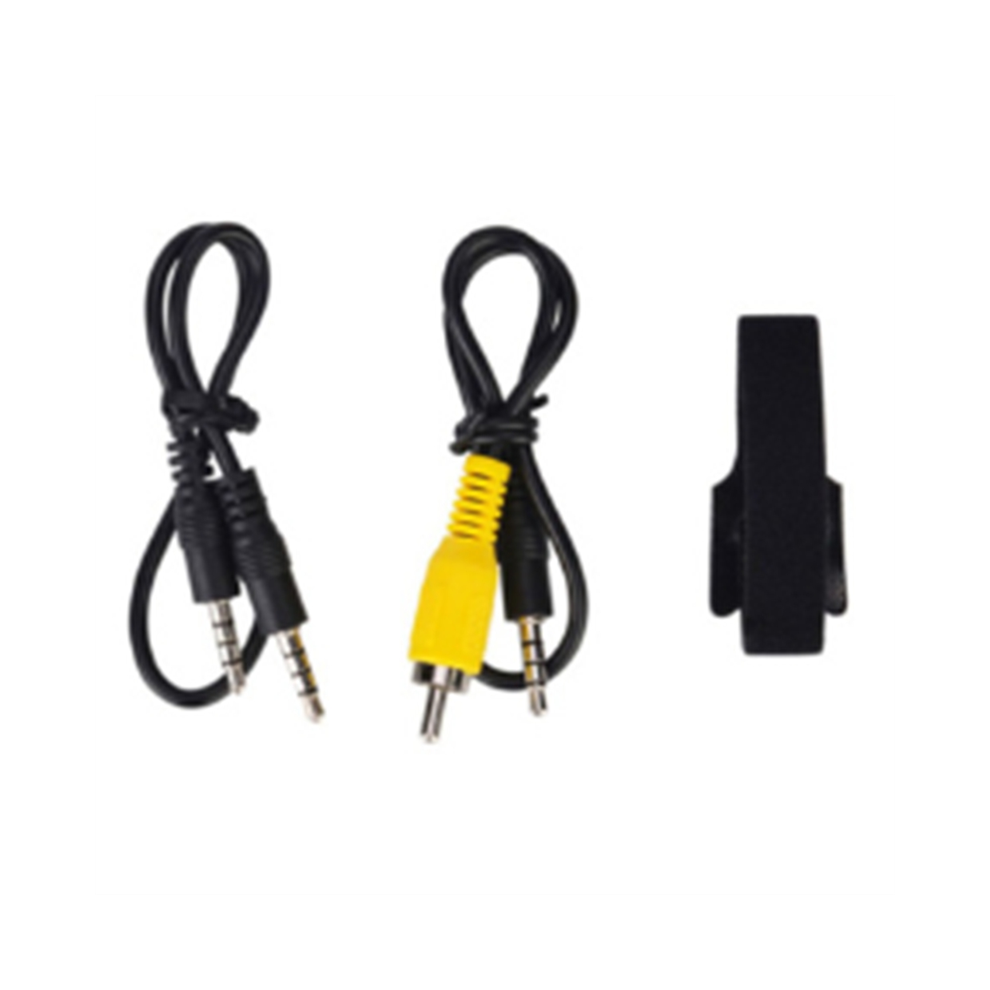

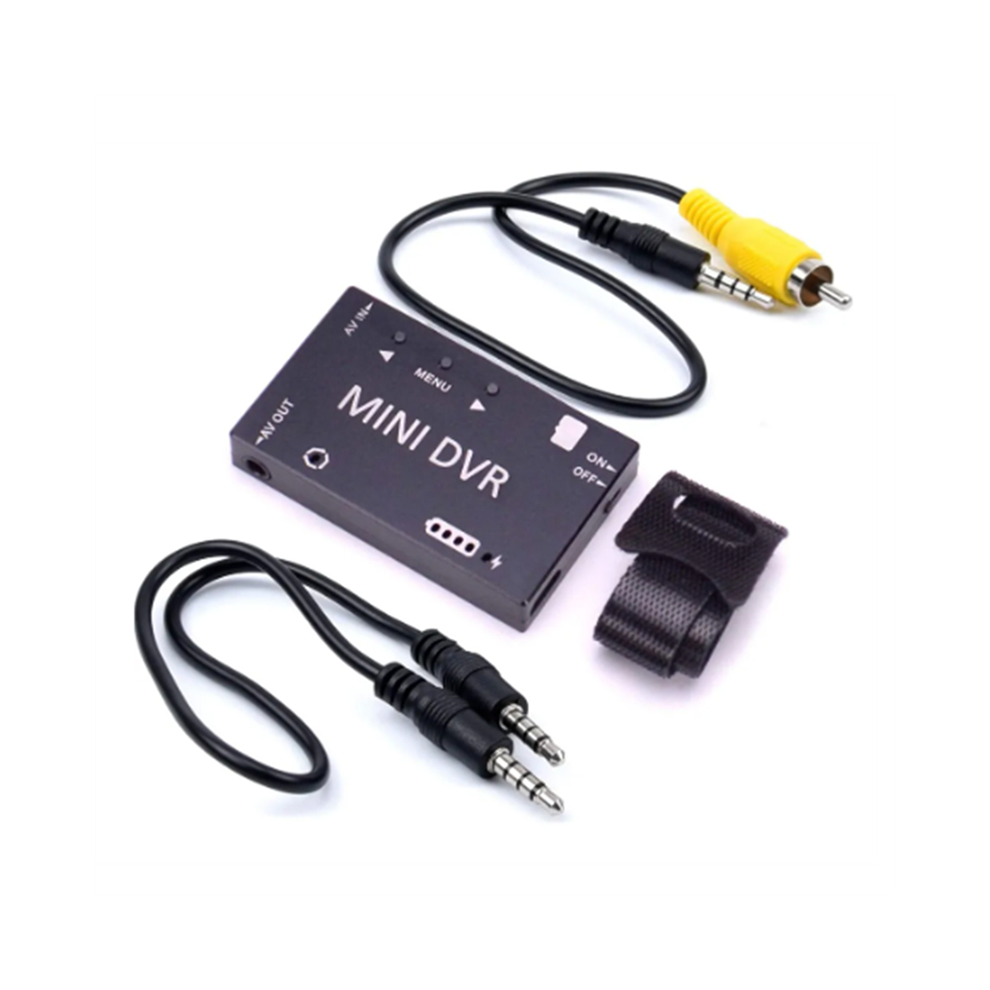

Package Contents:
1 x FPV minimum DVR
2 x AV cable
1 x magic tape
1 x English Manual

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
