GM65 1D2D QR Code Image Barcode Identification Module Scanner Scanning Embedded Bar Code Reader Module with Cable
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 126,000 Trustpilot reviews and an 'Excellent' rating
€27.52
€32.31
15% off!
+€1.50 Delivery
1%
What is instant Cashback?
Learn More
All prices include VAT.
Interest-free payment options available
See full product description & details
Delivery: Standard (€1.50) | Wed 17th - Tue 23rd Jun
Returns: 30 days
180-day payment protection
Description & Details
Summary
- GM65 scanning device module has low power consumption, working current less than 150mA, integrated design and small size.
- Support all common 1D barcodes and common 2D codes to directly identify the phone screen.
- Please connect USB, find a barcode or QR code to scan (not the QR code in the manual), on the computer? The place where you can input text will be displayed directly, such as WORD, chat window.
- Read code system 1D: UPC/EAN, UPC/EAN with supplementals, BooklandEAN, ISSN, UCC Coupon Extended Code, Code 128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT Concat.QR code 2D: QR Code, PDF417, Data Matrix
- scanning Reading Module
GM65 1D2D QR Code Image Barcode Identification Module Scanner Scanning Embedded Bar Code Reader Module with Cable Description
GM65 scanning device module has low power consumption, working current less than 150mA, integrated design and small size.
Support all common 1D barcodes and common 2D codes to directly identify the phone screen.
Please connect USB, find a barcode or QR code to scan (not the QR code in the manual), the computer? The place where you can input text will be displayed directly, such as WORD, chat window.
Read code system 1D: UPC/EAN, UPC/EAN with supplementals, BooklandEAN, ISSN, UCC Coupon Extended Code, Code 128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT Concat.QR code 2D: QR Code, PDF417, Data Matrix

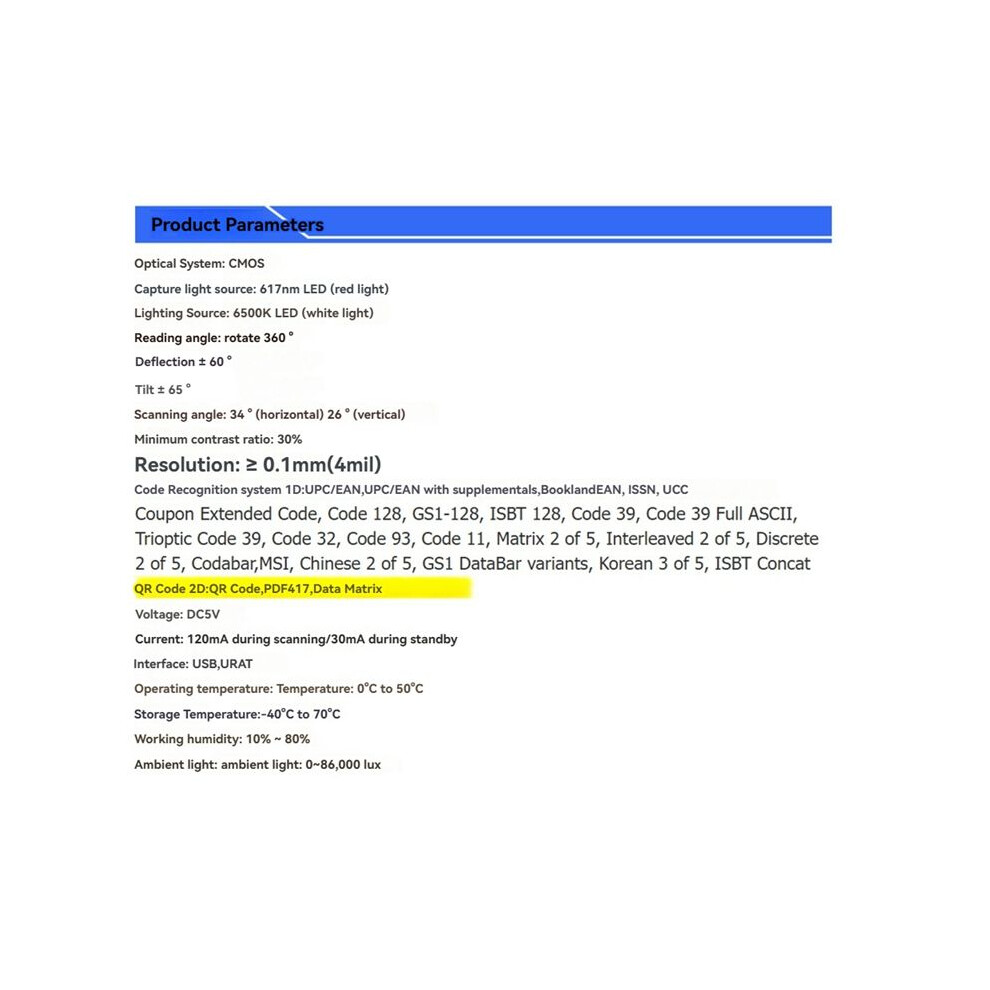

Hign-concerned Chemical:none
Model Number:GM65
Capture light source:617nm LED
Lighting source:6500K LED
Reading angle:Rotate 360 Deflection 60 Tilt 65
Scanning angle:34 (horizontal) 26 (vertical)
Minimum contrast:30%
Resolution:greater than equal 0. 1mm (4mil)
Voltage: 5V
Current: 120mA during scanning / 30mA during standby
Interface: USB, URAT
Working temperature: Temperature: 0-50
Storage temperature: -40-70
Working humidity: 10% to 80%
Ambient light: Ambient light: 0-86,000 lux
Colour:As Shown
Material:PCB
Package Contents:
1 * Module
1 * Cable
Details
| OPC | PQKR98M |
|---|---|
| Codes | 6133709041143 (EAN) |
Product Data
| Height | 1cm |
|---|---|
| Width | 7cm |
| Length | 10cm |
| Weight | 0.04kg |
| Colour | As Shown |
| Material | PCB |
