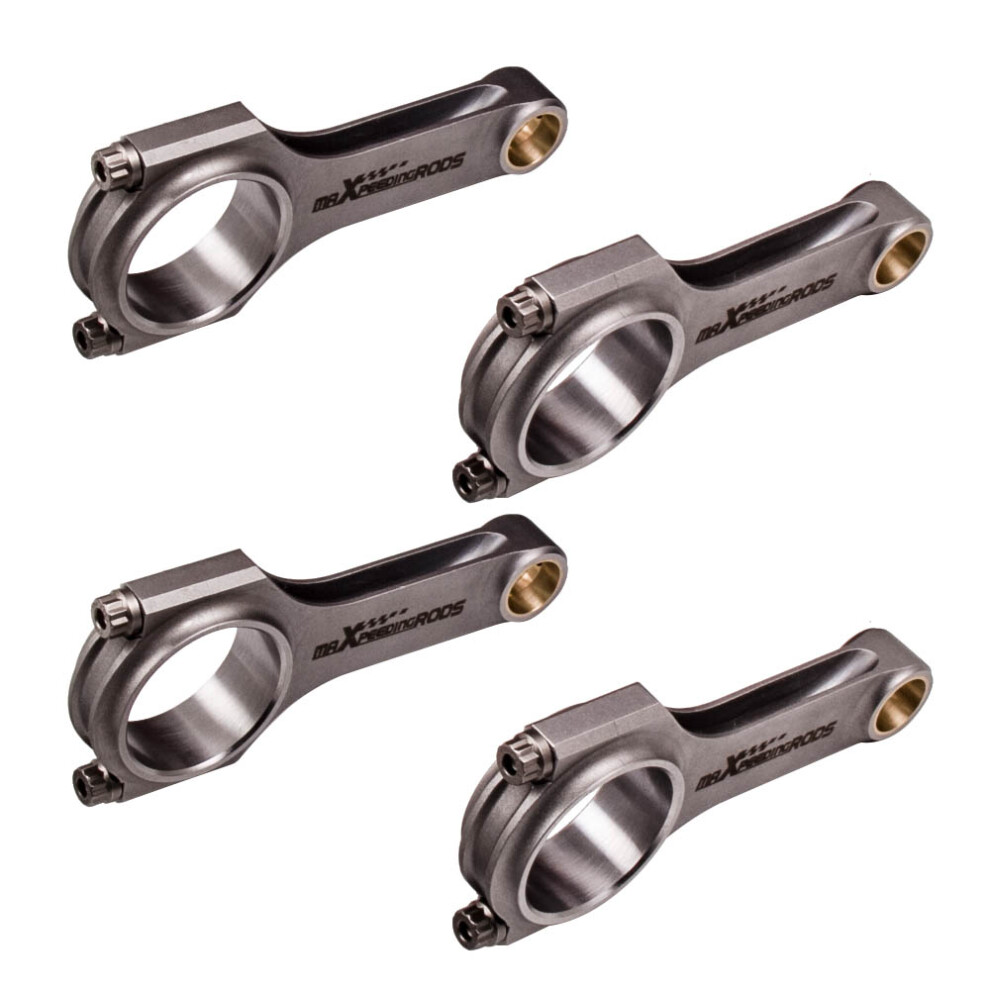

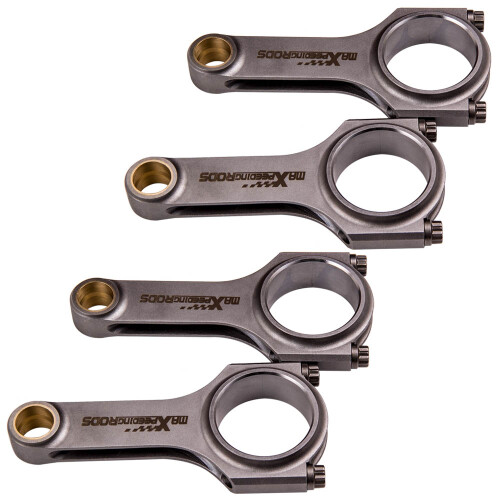

H Beam 4340 Conrods Connecting Rods For Subaru Legacy EJ20 EJ25 Engine ARP 2000

for Subaru Impreza  STI EJ20 EJ22 EJ25 Engine
for Subaru Legacy EJ20 EJ22 EJ25 Engine
for Subaru Impreza  STI Forester Legacy  2.0L Turbo 2002-2005  (EJ205 Engine)
for Subaru Impreza  STi  2.0L Turbo 1998-present  (EJ207 Engine)
for Subaru Impreza  2.5L Turbo 2006-2014 (EJ255 Engine)
for Subaru Impreza  STI 2.5L Turbo 2004-2016 (EJ257 Engine)
For Saab 9-2X 2005-2006
For Isuzu Aska 1990-1993
For Subaru Legacy 1989-2009
for Subaru Forester SF series (1997 - 2002)
For Subaru Impreza  2006-2014
For Subaru Forester XT 2004-2013
For Subaru Outback XT 2005, 2007-2009
For Subaru impreza 1995-2001
For Subaru Outback 1995-1996

Dimensions:
Center to center length: 130.5mm/5.137"
Big end diameter: 55mm/2.165"
Small end diameter: 23mm/0.905"
Big end width: 21.38mm/0.840"
Small end width: 21.38mm/0.840"

Specification:

* Material: Forged 4340 aircraft chrome moly quality steel for racing

* Quantity: 4 Pieces as showing in picture

* Pin Type: Bronzed bushing floating pin

* Bolts: Including Genuine ARP 2000 3/8" bolts (Note: Extra cost for upgrading to ARP L19 bolts)

* The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.

* The big end bores are honed to a +/-0.01mm tolerance

* Horsepower Rating? 200HP/piece

* Warranty: 2 years warranty.

* TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED

* H-Beam design reduces weight without compromising strength

* Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers

* 100% CNC machined,Precision rod cap alignment dowels

* Bores finished to +/- .005mm

* Balanced to within +/- 1 g per rod

* Each rod is magnetic particle tested to ensure free of flaws

* 100% X-rayed, sonic tested

Note:
* Please confirm the diemensions before purchasing
* Professional installation is highly recommended (Instruction Included. (If not, we could offer you the E-book version. ))
* For any needs please contact us
