H36 Combo Advanced 3D Printer Tool Board with 125C Heat Resistance USB Hubs, Enhanced Performance

H36 Combo Advanced 3D Printer Tool Board with 125C Heat Resistance USB Hubs, Enhanced Performance Description

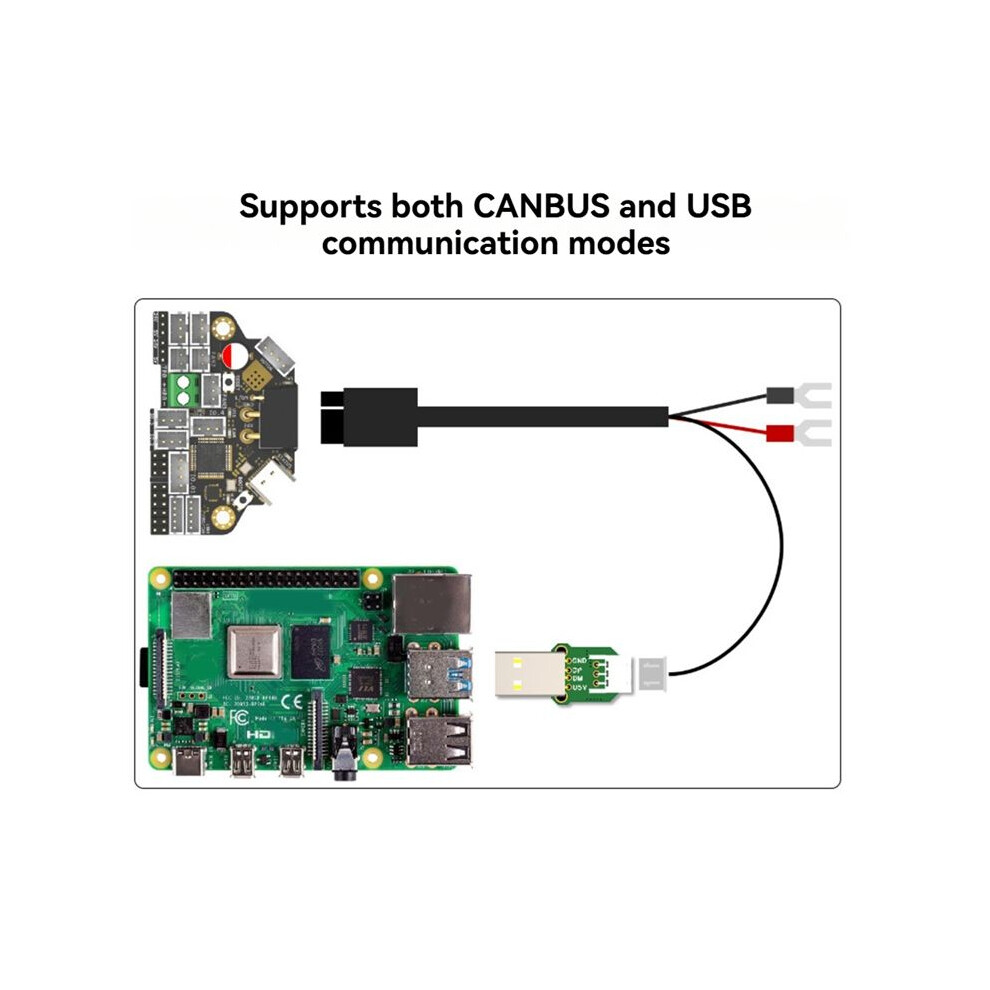

H36 Combo V1 is a newly designed high temperature tool board running Klipper firmware. Based STMG0B1T3, the maximum operating temperature can reach 125 degrees Celsius (CAN only). It also provides two communication methods: CANBUS and USB. The onboard USBHUB has to two USB interfaces (or one CAN and one USB), which can be used to connect to the IDM Scanner Leveling Sensor camera, etc.
Experience cutting- 3D printing with the H36 Advanced Tool Board, specifically designed to support Klipper firmware. This model includes onboard USB hubs that significantly enhance connectivity and performance, making it ideal for complex printing tasks. The robust construction and reliable firmware integration ensure a seamless printing experience, enhancing both efficiency and output quality.

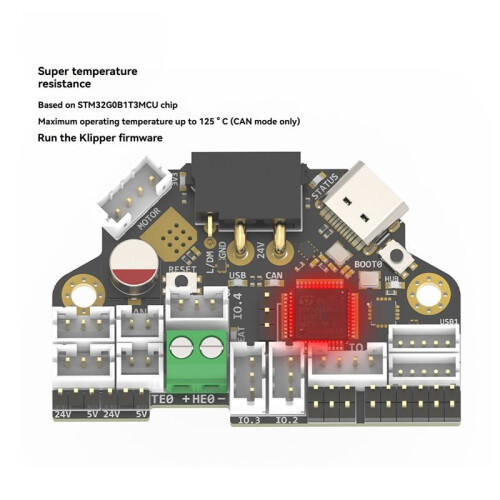

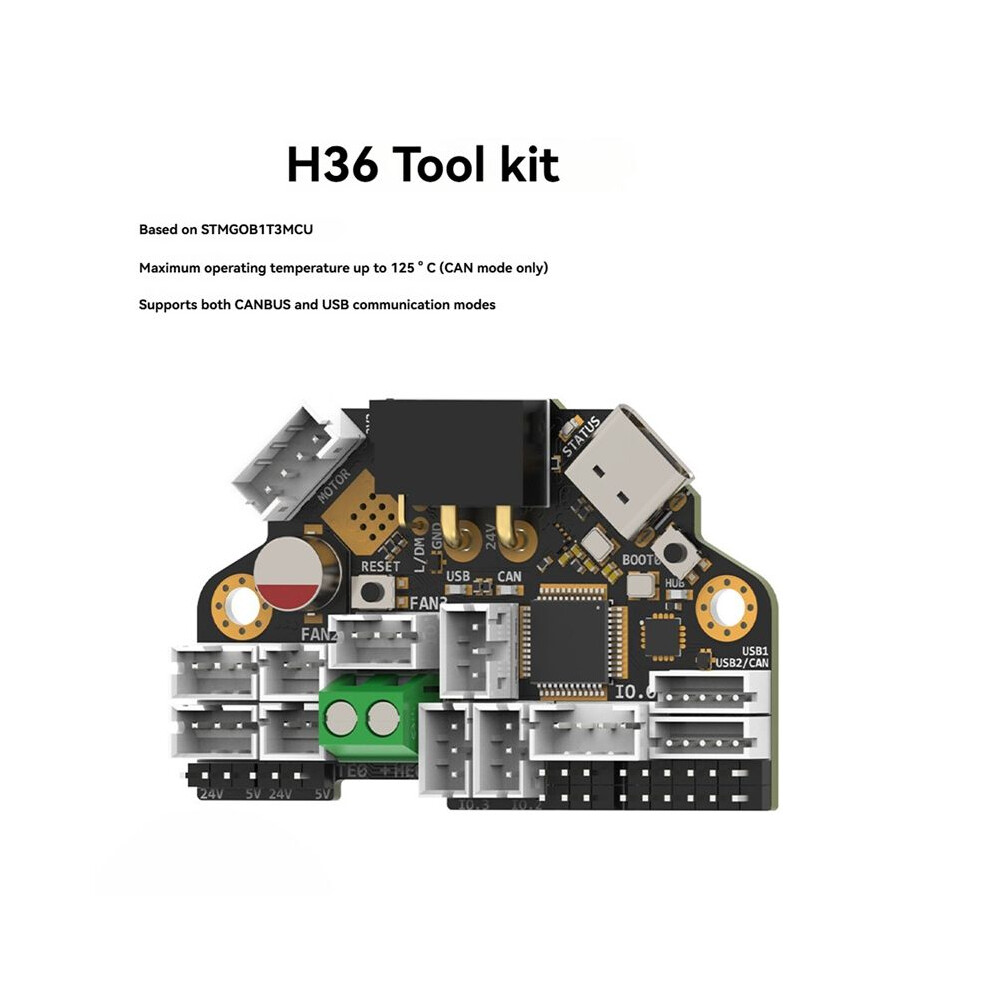

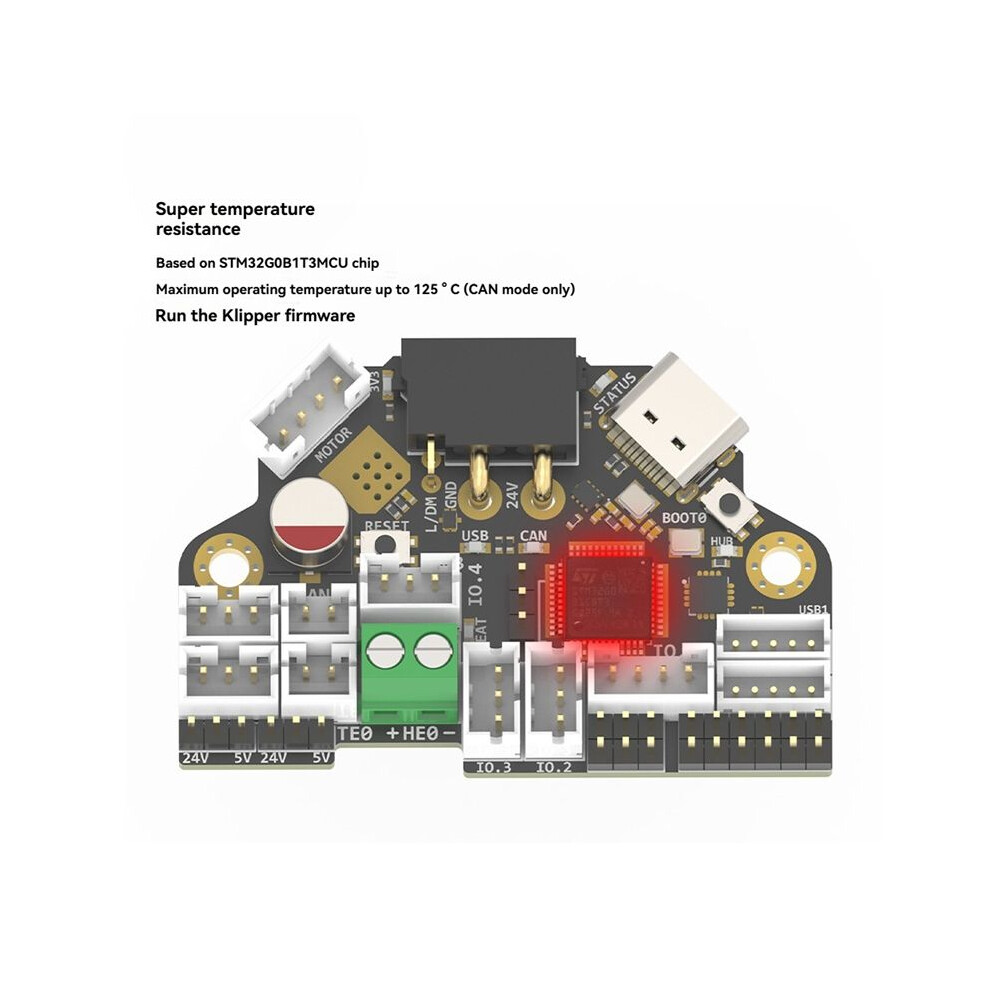

STM32G0B1T3 MCU, to 125 degrees Celsius, supports Klipper Firmware

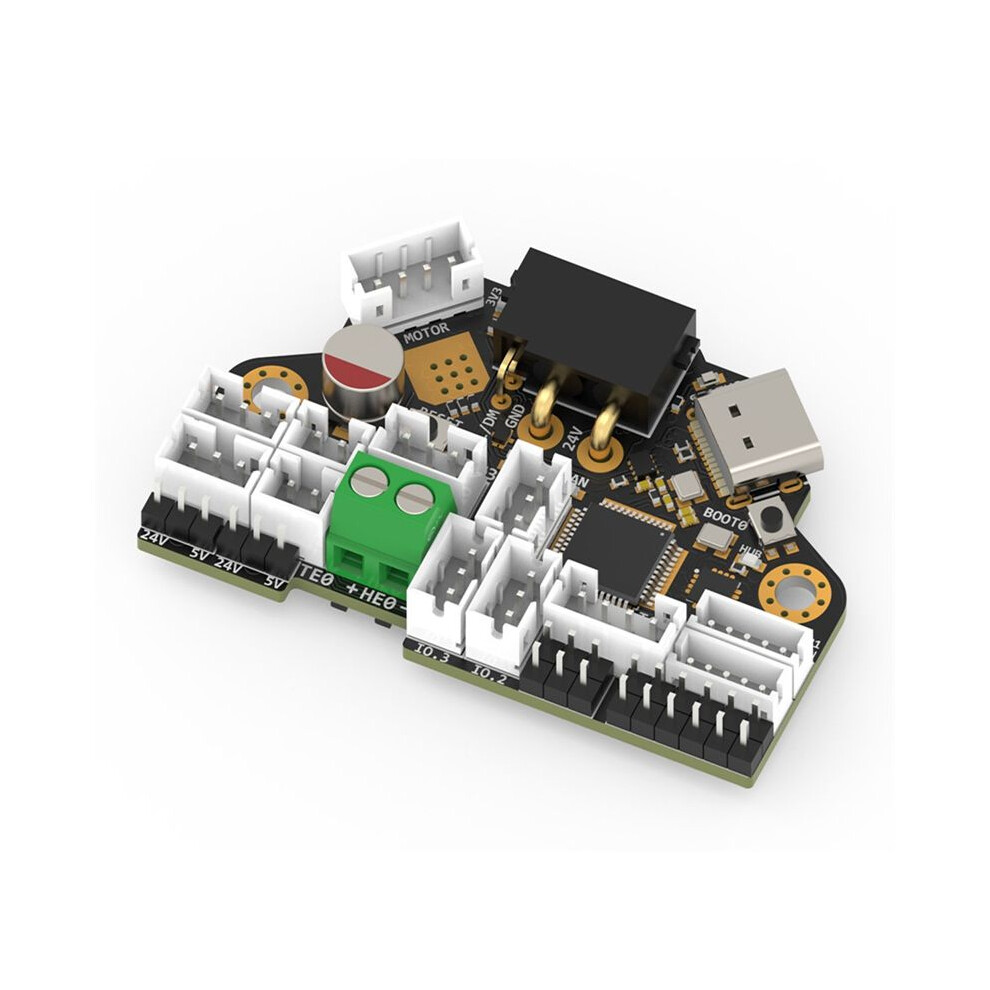

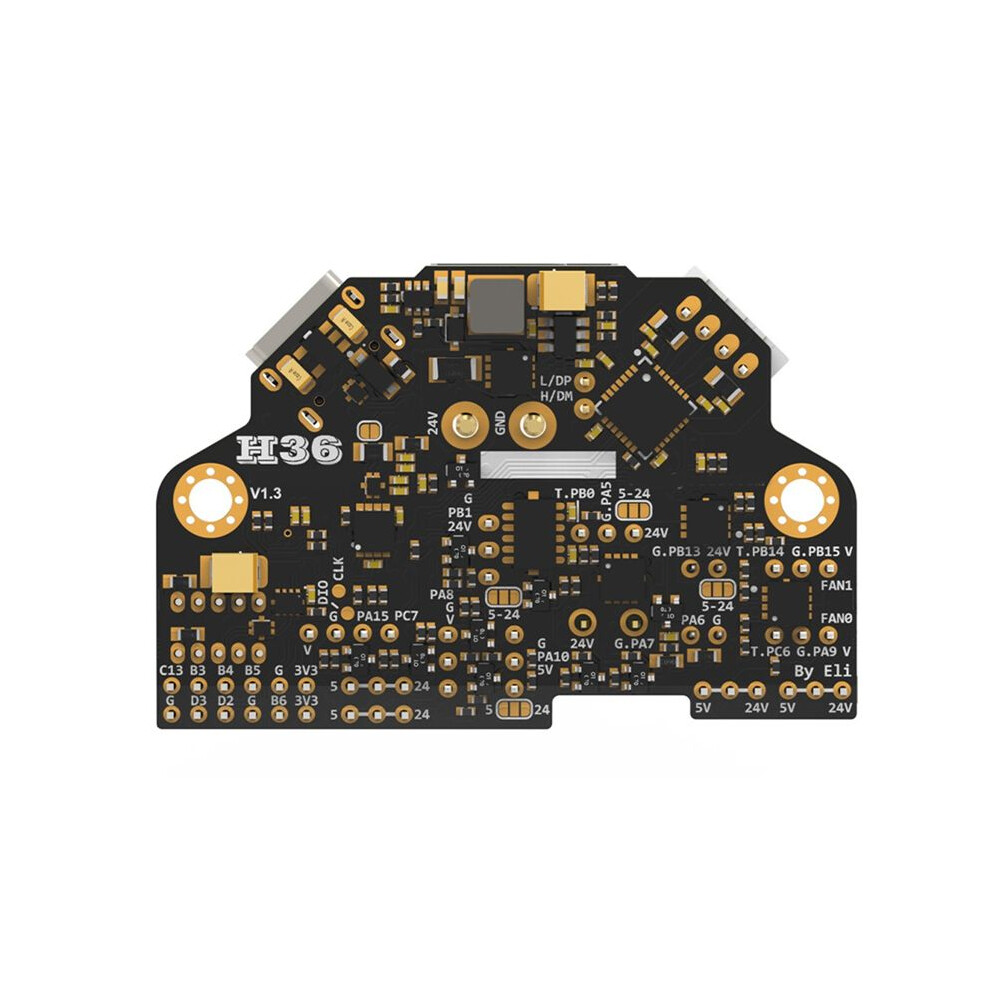

6-layer PCB design, all solid capacitors and tantalum capacitors, better heat dissipation
Onboard IO controlled CAN/USB
Onboard RESET and BOOT0 buttons for easy firmware update
Fan control/heating both use independent high-power MOS, safer and lower heat generation
Onboard 5V@3A -, 5V load can reach 15W

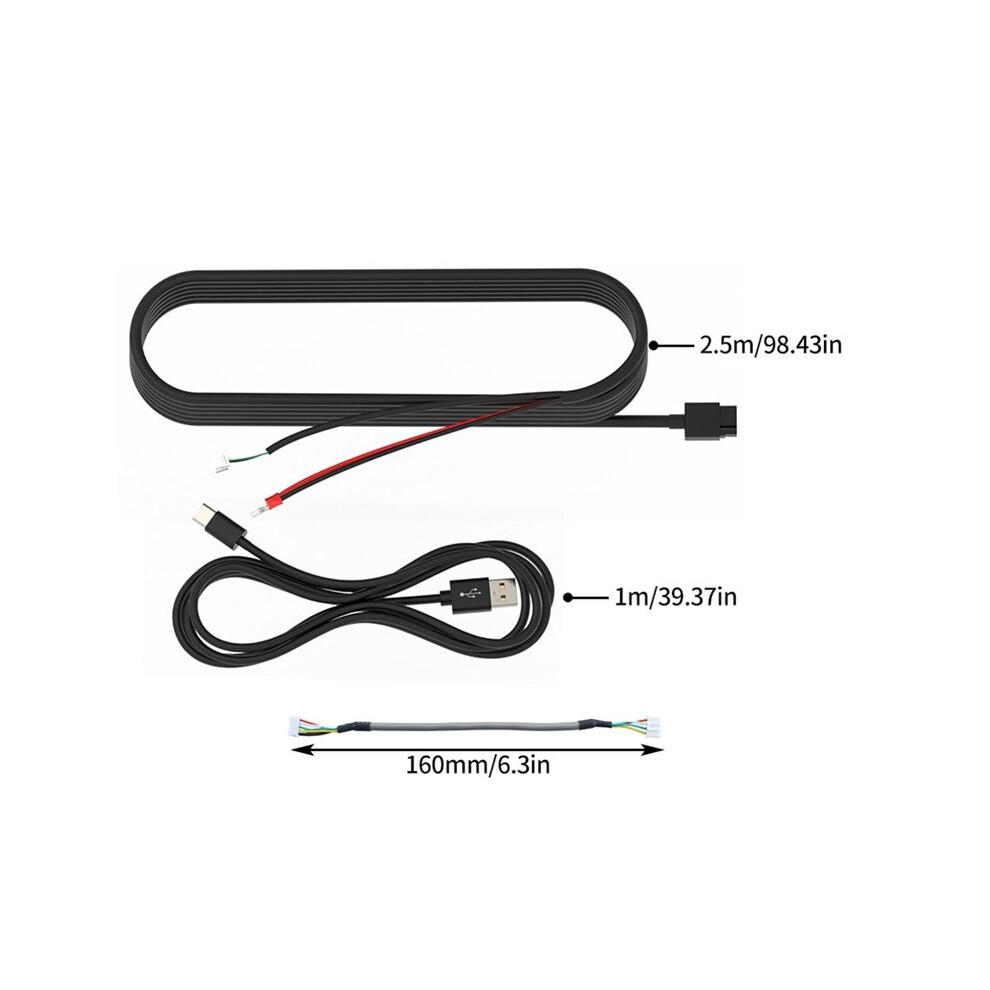

XT30 interface, custom cable comes with the board

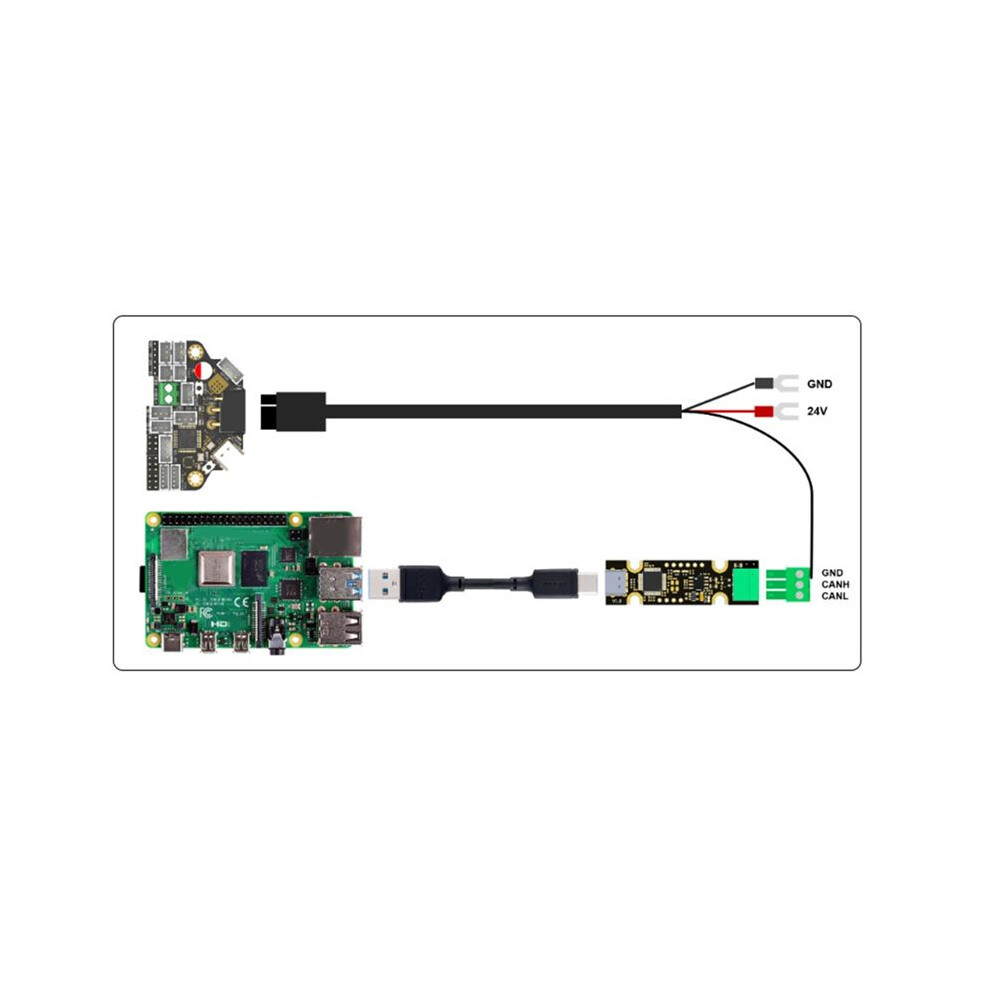

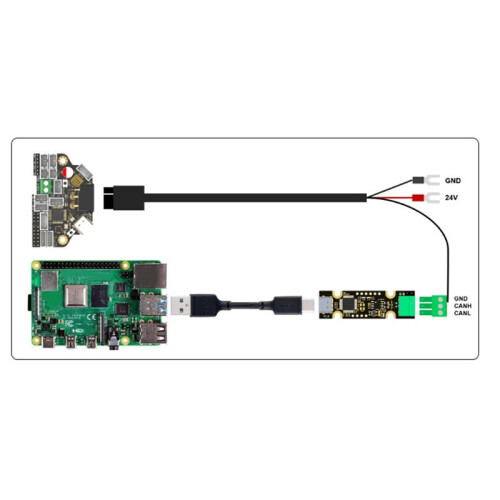

Support CAN / USB2.0 connection
Onboard TMC2209

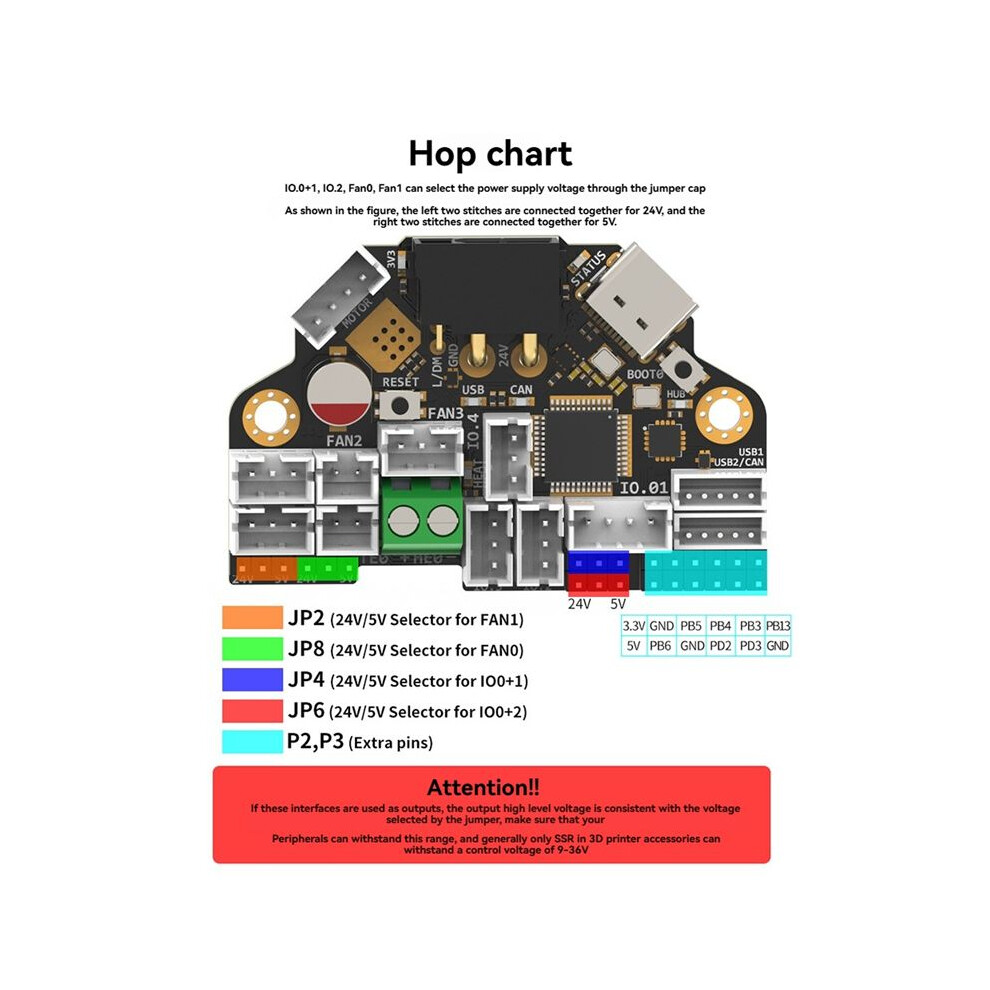

3x 3pin Fans, 3x IO with level converter, 1x RGB,1x Heat, 1x thermistor,1x status LED
ADXL345 Accelerometer onboard
USB-C onboard for Firmware update
Due to different batches, there may be differences in product appearance and printed text, which will not affect use.
Colour:Black
Material:PCB

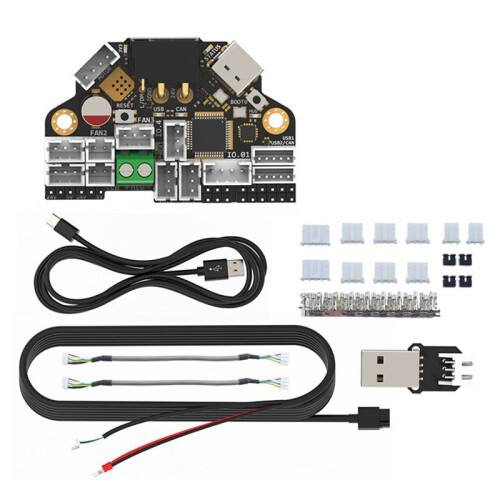

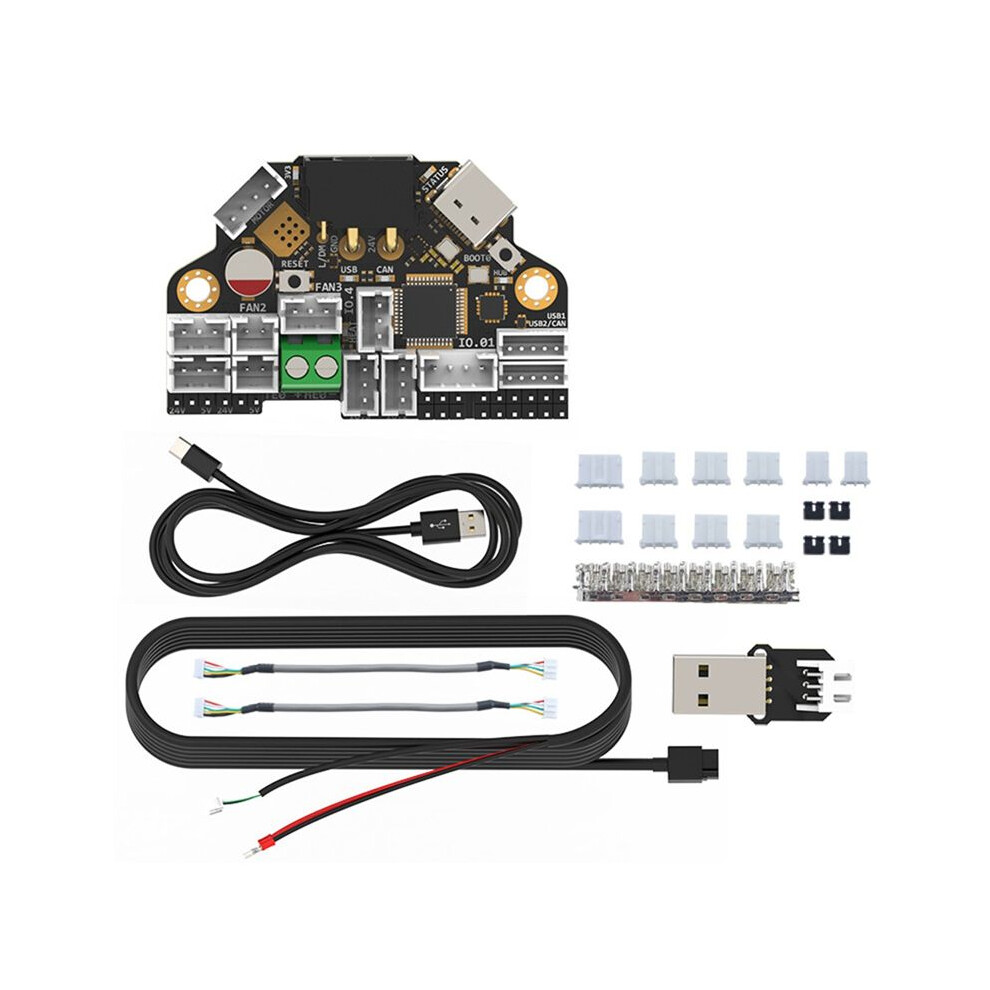

Package Contents:
1 * H36 Advanced 3D Printer Tool Board
