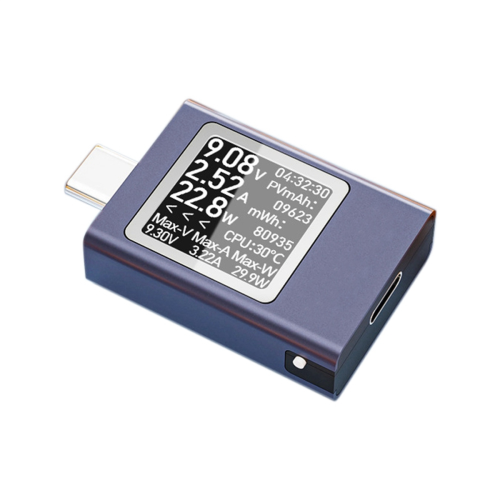

HDC-085C Color Screen Power Meter Tester Type-C PD3.1 Mobile Phone Charger Multi-Function

HDC-085C Color Screen Power Meter Tester Type-C PD3.1 Mobile Phone Charger Multi-Function Description

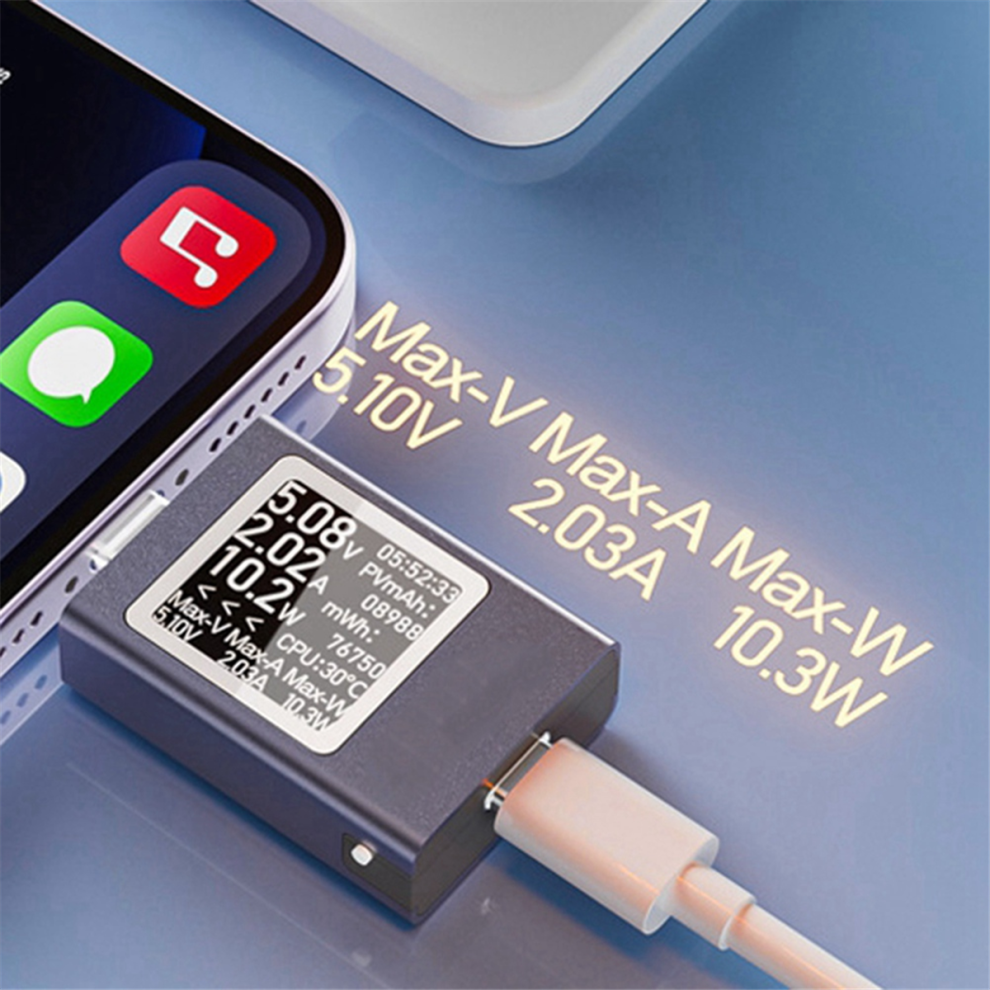

1. HDC-085C has multiple functions. Click the button above to switch between different interfaces. Long to clear all data. The operation is simple and clear at a glance.
2. 50V high-voltage fast charging protocol PD31, supports PD2.0, PD3.0, PD3.1, , QC2.0, and can be powered on for almost all protocols such as QC3.0, FCP, SCPAFC, PE, DASH VOOC, superVO0c, etc., and can be used for many years after purchase.

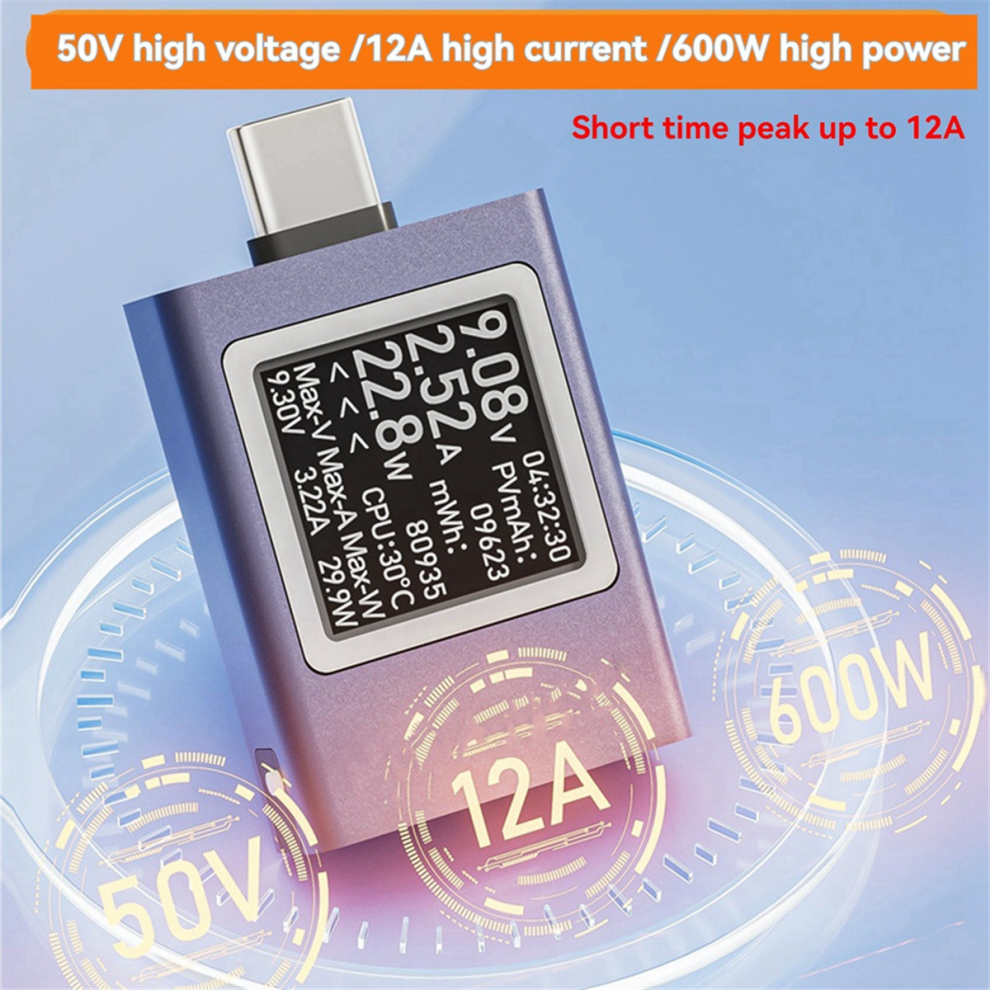

3. 50V high voltage/12A high current 1600W high power, new PD3.1 protocol, high voltage/high current/high power, etc. are integrated in one; this makes the measurement compatibility of this watch , more , and not easy to become outdated.

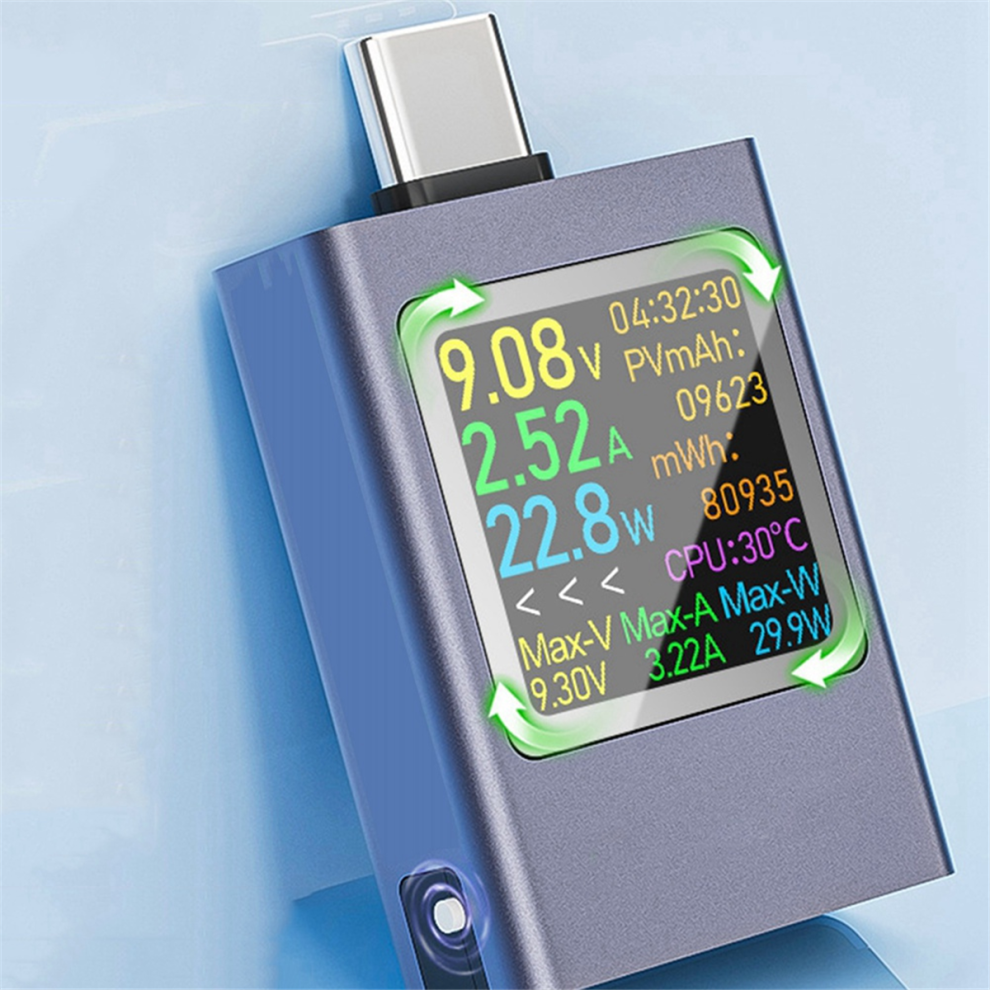

4. Four-sided rotating high-definition display. The newly added four-sided rotating screen function allows the HDC-085C instrument interface to rotate 360 degrees, adapting to the user's forward viewing of content during four-directional testing, to achieve a higher user experience.
5. The screen automatically turn off when there is no current in the PD protocol charger. This is a zero-power design. HDC-085C has added a function that the screen not light up when the output is not connected to the device or there is no current during the PD protocol charger test. This can extend the life of the screen while achieving zero power consumption, no interference at night, and save energy.

Product name: Type-C detector
Working voltage: DC4.5~50V
Working current: 0-6A (short-term 12A)
Power consumption of this meter: Less than 0.15W
Power display: 0-600W
Sampling resistance: 0.001R
Product model: HDC-085C
Power display: 0-9999WH
Capacity display: 0-99999mAh
Working temperature: 0-45/32-113
Due to different batches, there may be differences in product appearance and printed text, which not affect use
Colour:PhotoColor
Material:Metal

Package Contents:
1 x Type-C detector

Only the a package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
