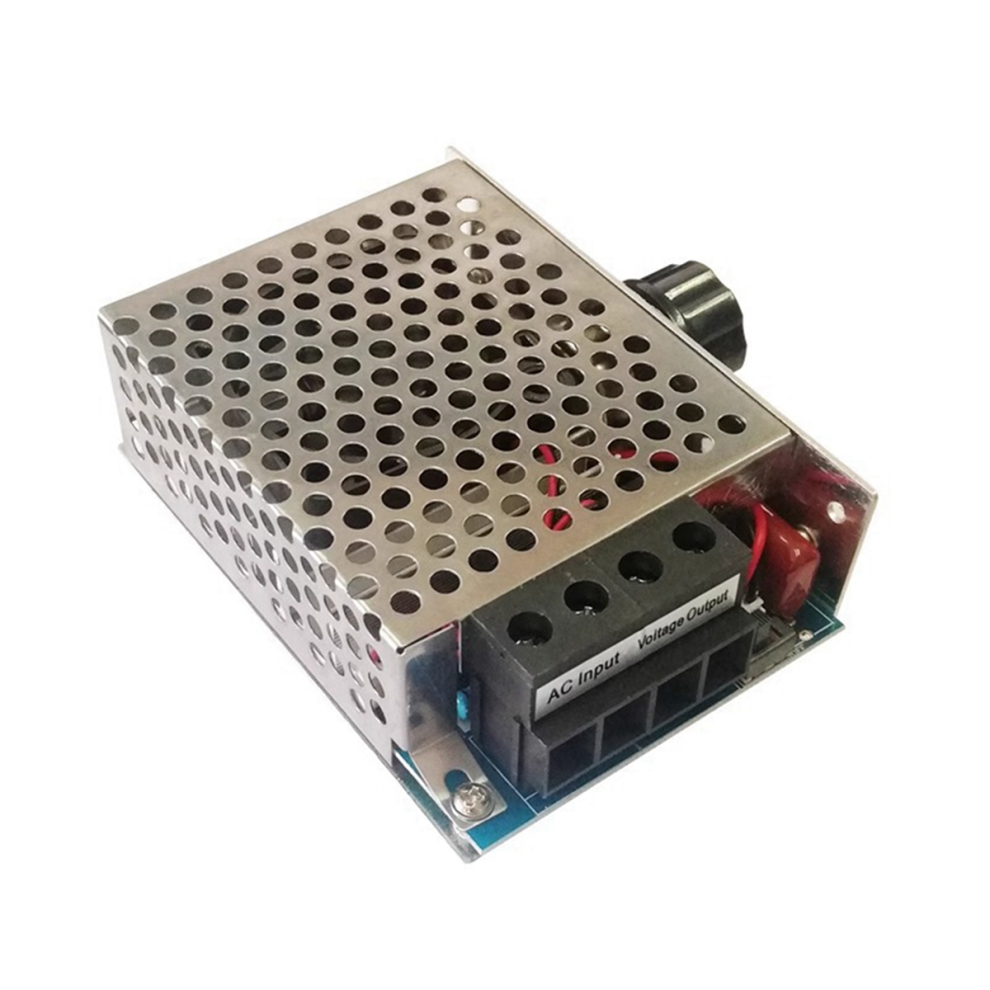

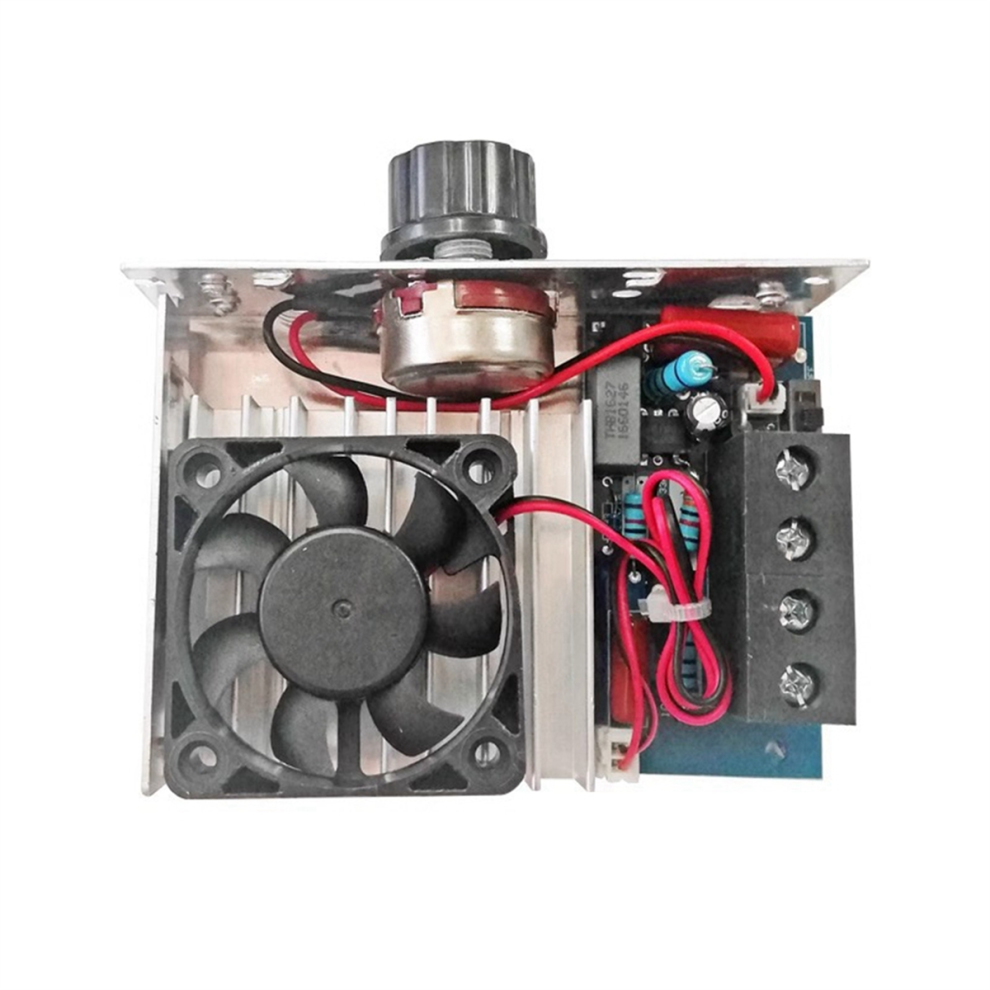

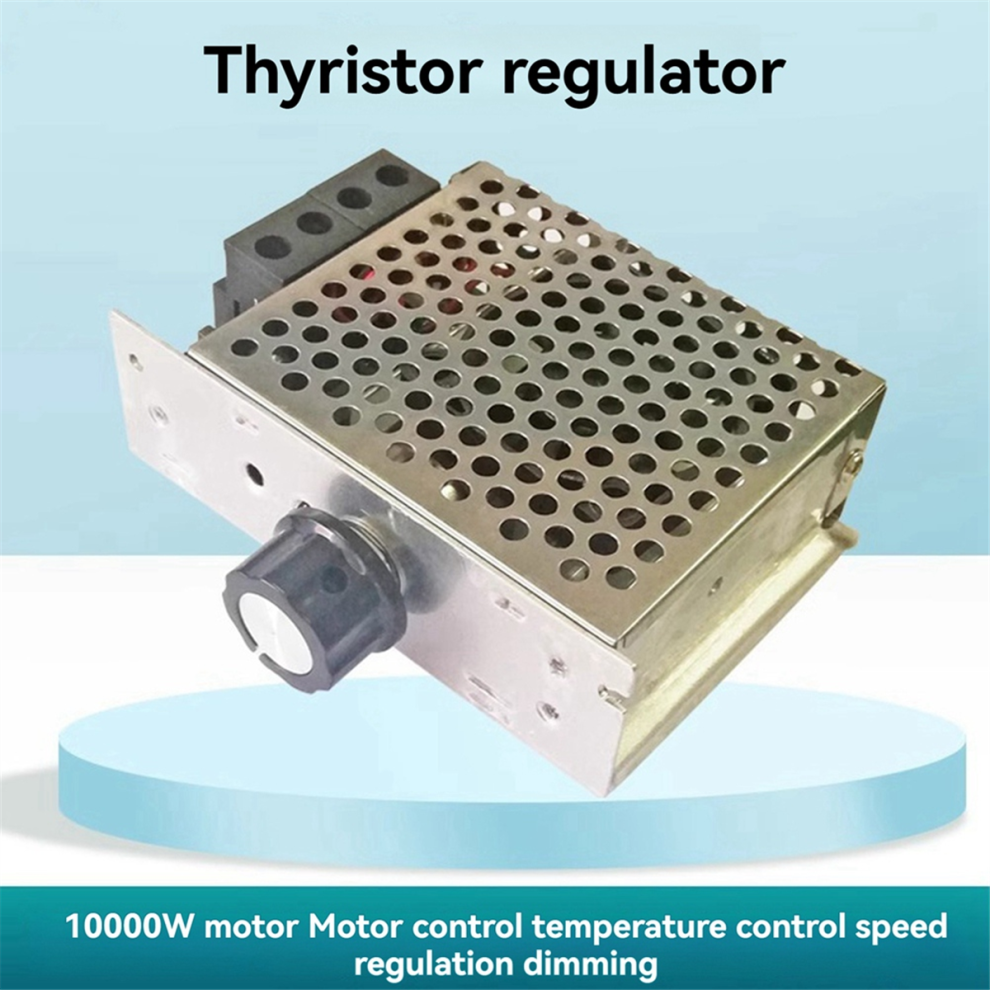

High-performance thyristor regulator with 10000 W, AC110V-220V

High-performance thyristor regulator with 10000 W, AC110V-220V Description

High-performance thyristor regulator with 10000 W, AC110V-220V Description
1. The trigger circuit features precise voltage regulation without delay. When the resistive load is switched off and on again, it can be adjusted from 10 V up to the maximum supply voltage close to the input.
2. The controlled silicon rectifier enhances the RC absorption protection circuit.
3. Equipped with intelligent switch control, providing good heat dissipation and a long service life.
4. Standard features include a high-quality and exquisite housing made of premium materials, making it more practical.
5. Upgrade the all-copper 75 A ultra-high current connector.
Voltage: AC 110 V-220 V
Maximum power: 10,000 W (connected resistive load)
Voltage regulation: AC 0 V to input voltage
Note:
The load must not exceed the specified maximum power. Please pay attention to the temperature during initial use. If the temperature exceeds 80C, please increase the heatsink, otherwise the module and load may burn out. When connecting to an inductive or capacitive load, a two-thirds (2/3) clearance must be maintained. Due to different batches, there may be variations in appearance and printing, which do not affect use. Color: as shown. Material: PCB. Package contents: 1 x SCR voltage regulator. Only the above-mentioned package contents are included; other products are not included. Note: Light reflections and different displays may cause the color in the picture to be slightly different from the actual product. The permissible measurement error is +/- 1-3 cm.
