Highly power 100W Stepping down Module With Heat Dissipation

Highly power 100W Stepping down Module With Heat Dissipation Description

Features:

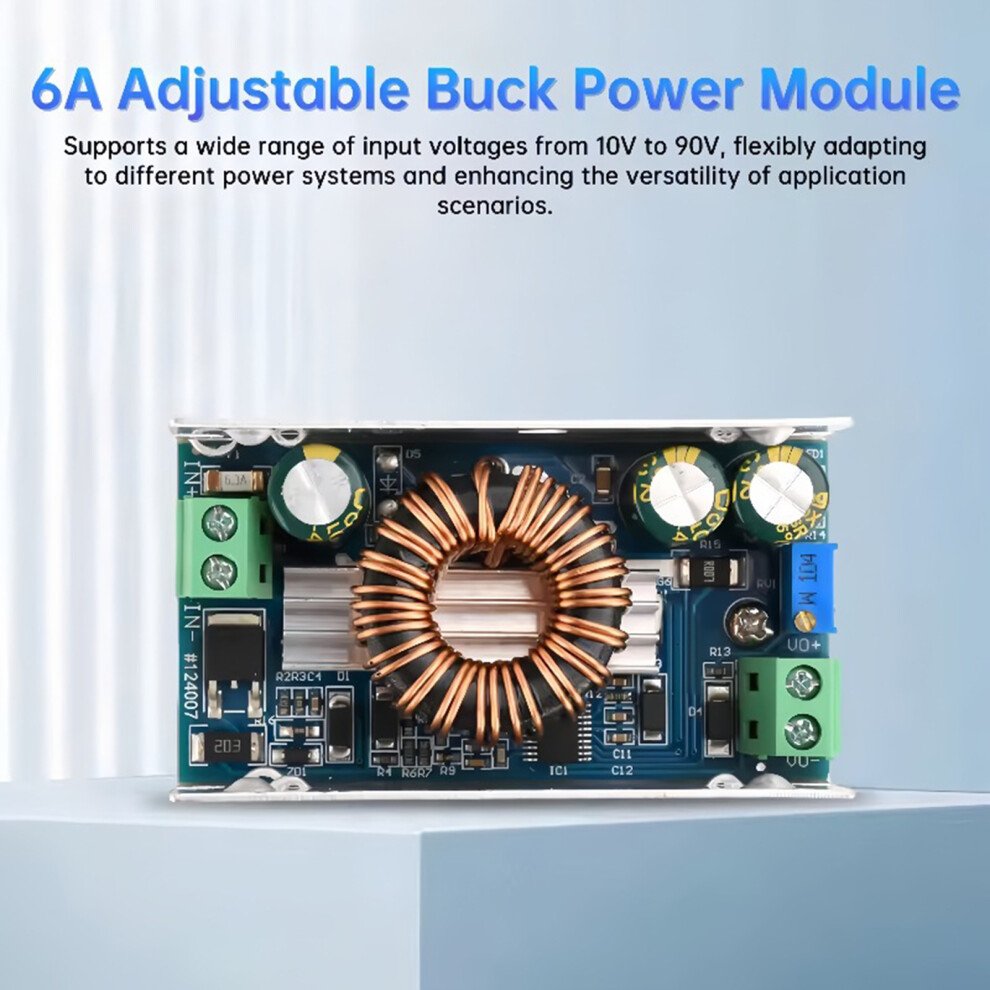

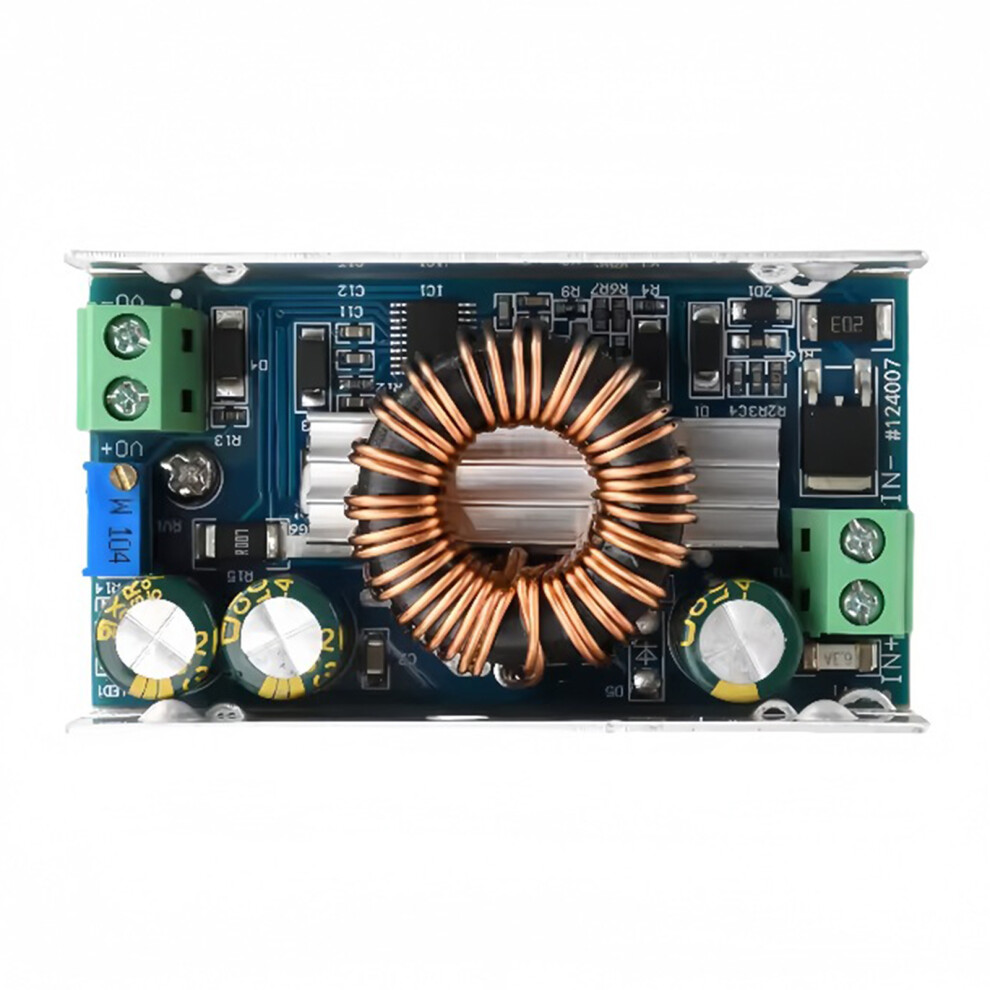

Introducing the 100W Bucking Converter with 97.5% conversion efficiency, featuring synchronous rectification technology to minimize energy loss while delivering stable 1.5-60V adjustable output for industrial power solution.
This step down module supports 10-90V wide input ranges, integrates heat sinks for optimized thermal management, and offer precise current control up to 6 a via block connection.
Ideal for electronics engineers, manufacturers, and enthusiasts requiring reliability power conversion for LED lighting systems, industrial automation, or high end music equipment.

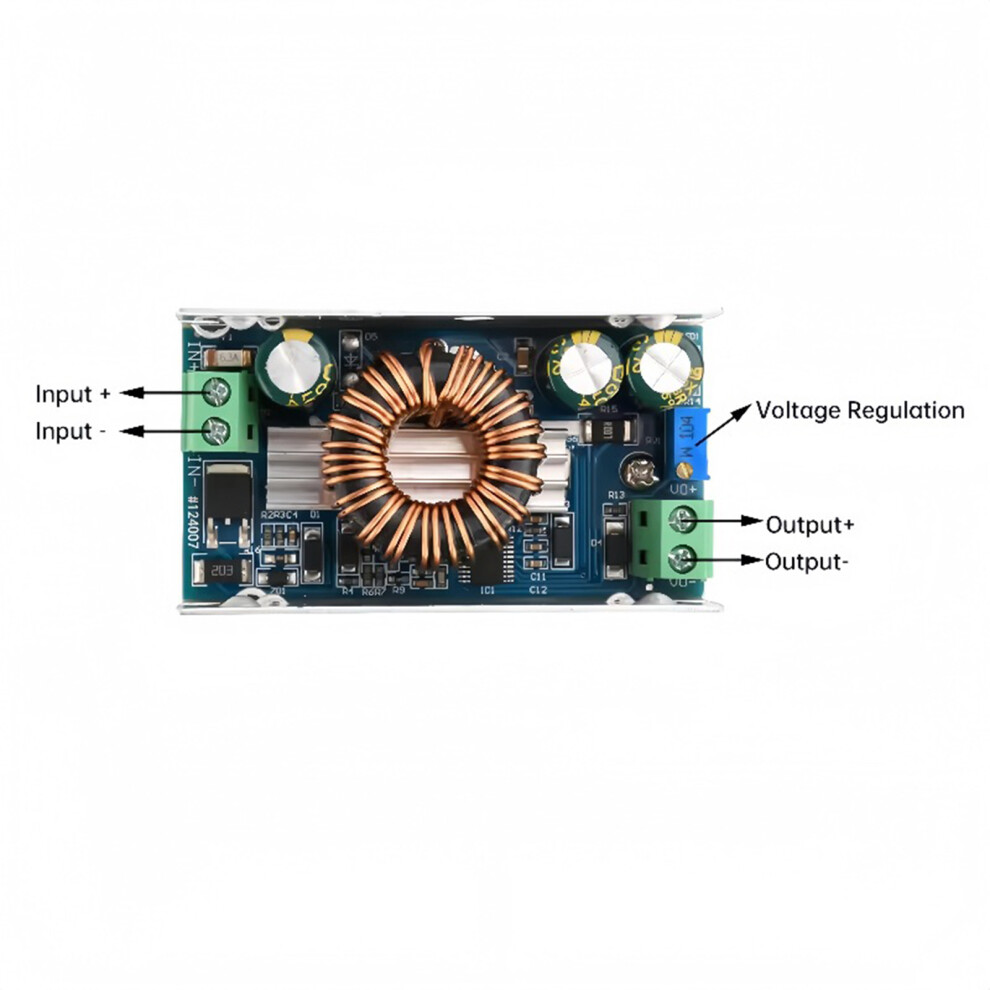

Adjust the output voltages to 60V, 48V or 12V according to the actual demand, applicable to a variety of electronic equipment power supply, improving the adaptability of the module.

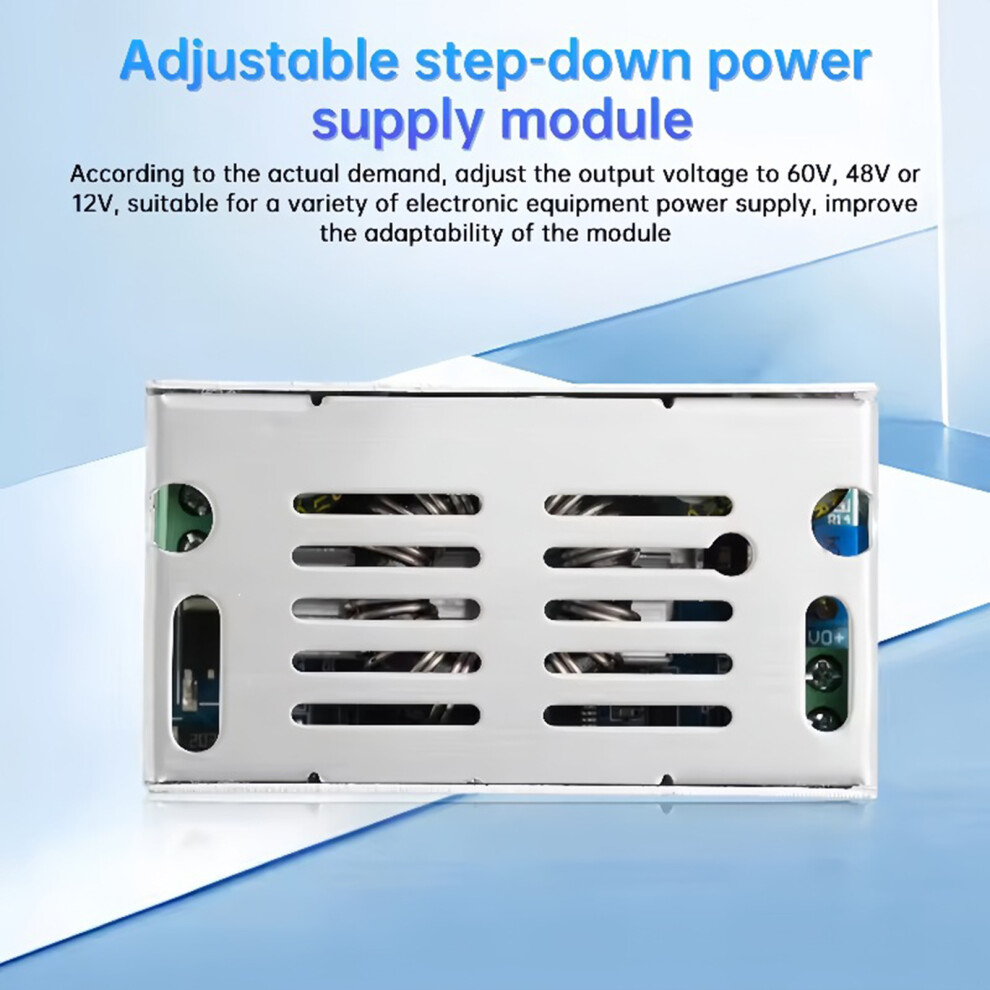

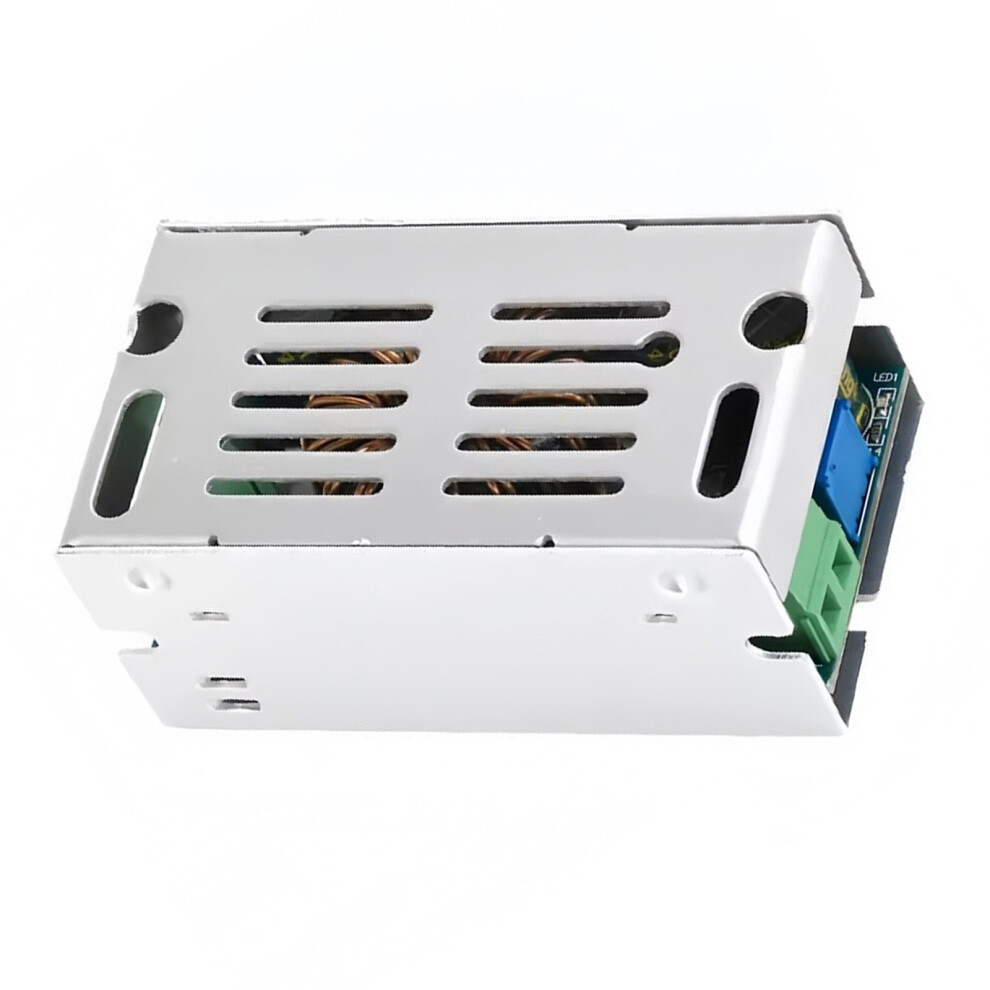

Optimized heat dissipation design, with heat sinks, can effectively emit heat to ensures long-term stable operate and prolong the life of the module.

Specifications:
Component: Metal + PCB

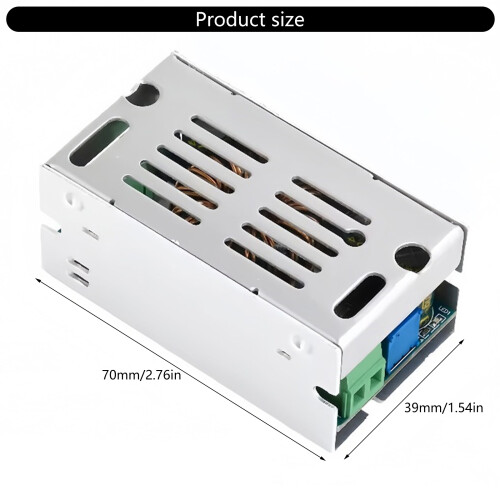

Size:Approx.70x39mm/2.76x1.54inch
Process: Adopt efficient synchronous rectification design, optimized heat dissipation design, equipped with heat dissipation flap
Input:DC10-90V
Output:DC1.5-60V,
Most output current:6 a
Most power:100W
Conversion efficiency:97.5%
frequency:180KHz
temperature:-40 to +85

Package Includes:
1pc Step Down Module

note:
Please allow 1-2cm errors due to manual measurement.
Please allow for slight color differences due to different display resolution.
