HVD100 Voltage Protection Module for AC Three-Phase Three-Wire Passive Switch Output Detection

HVD100 Voltage Protection Module for AC Three-Phase Three-Wire Passive Switch Output Detection Description

Monitor one source 3 phase voltage
Monitor over voltage, under voltage, miss phase.
The point of over voltage, under voltage is adjustable.
The timer of voltage abnormal delay is adjustable,
The output is a relay free voltage contact. Module structure design, ABS plastic , rail installation, plug connector. convenient maintenance.

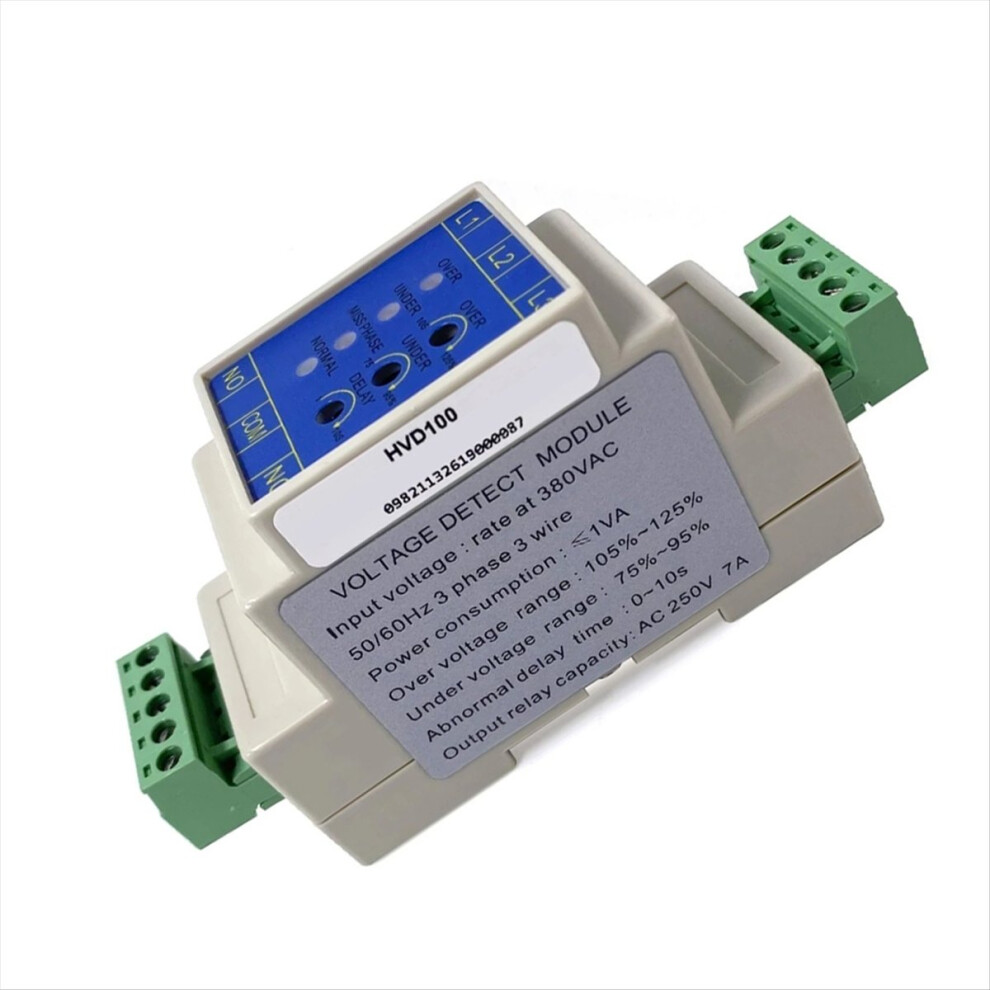

Input voltage: 380VAC 50/60Hz 3-phase 3 wires
Power consumption Less than 1VA
Over voltage range: 105%-125%Rated
Under voltage range: 75%-95%Rated
Delay of voltage abnormal: 0-
Relay output capacitance: AC250V 7A

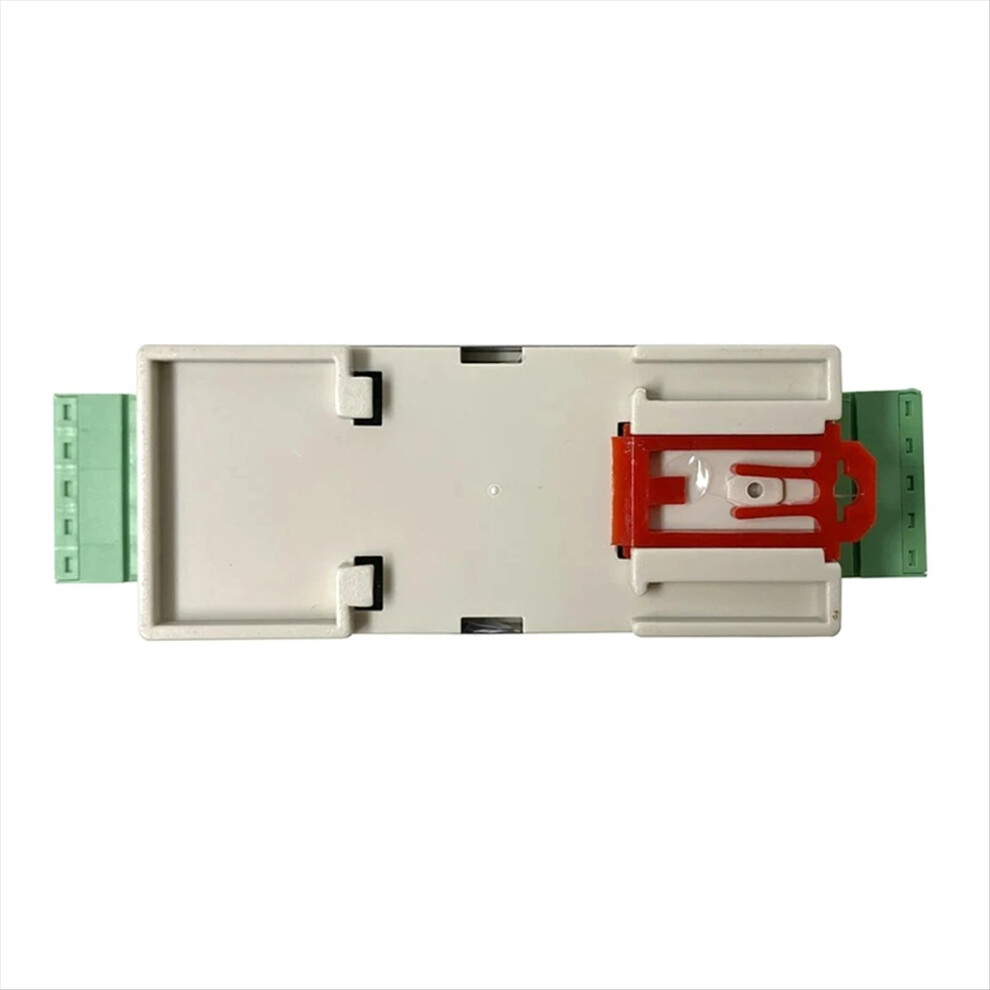

35mm rail installation
Operation temperature: -25 to +70C

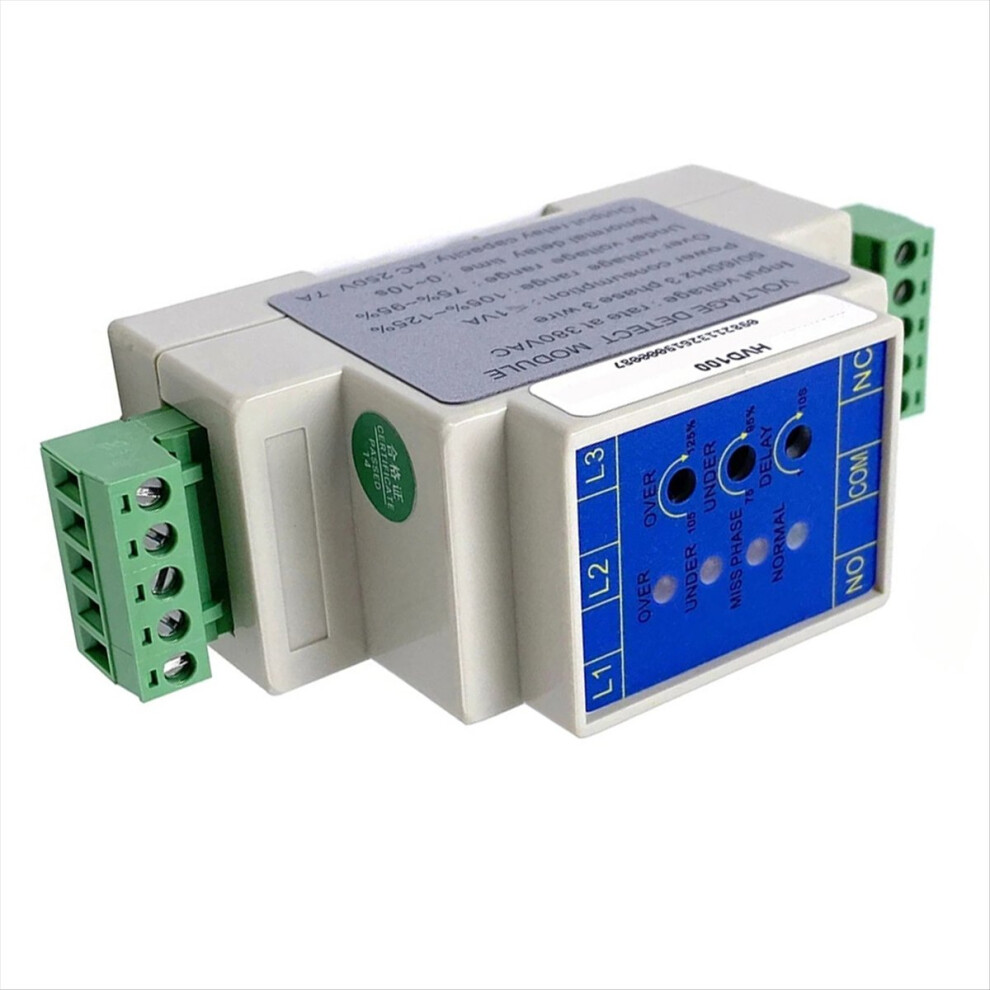

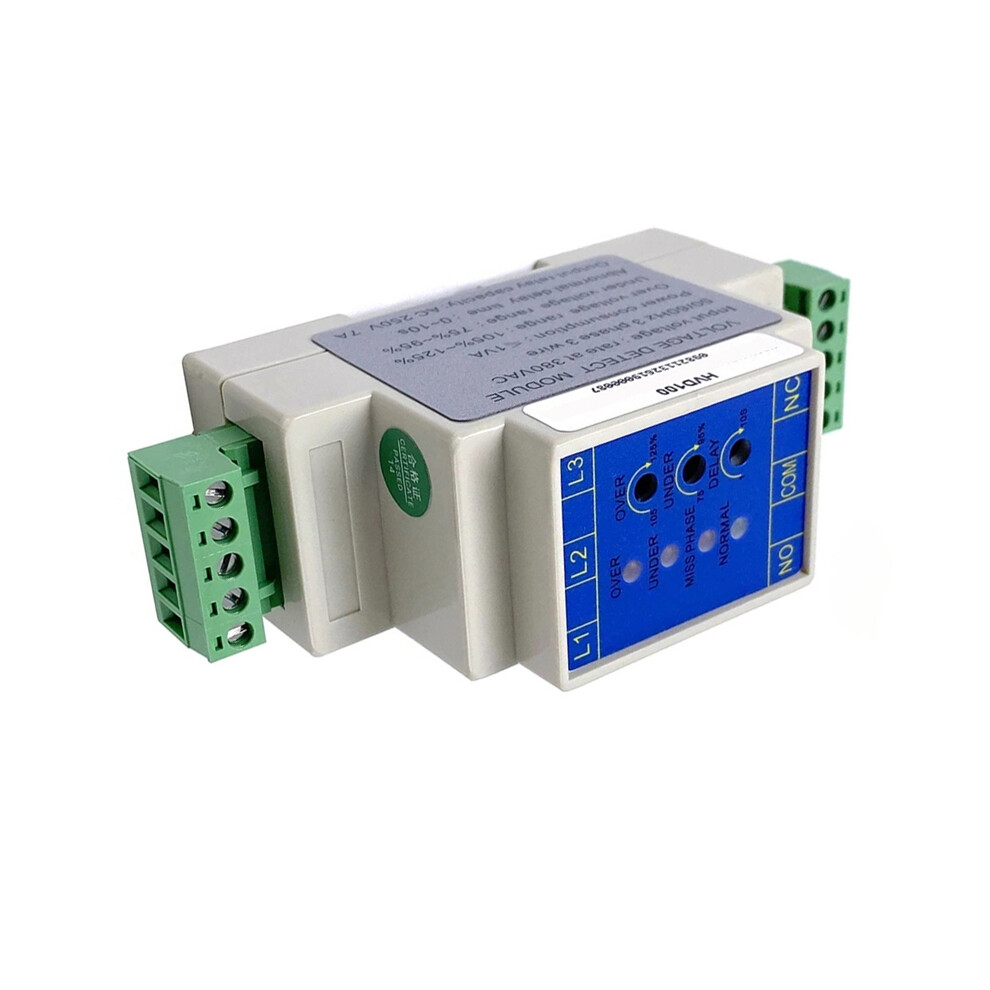

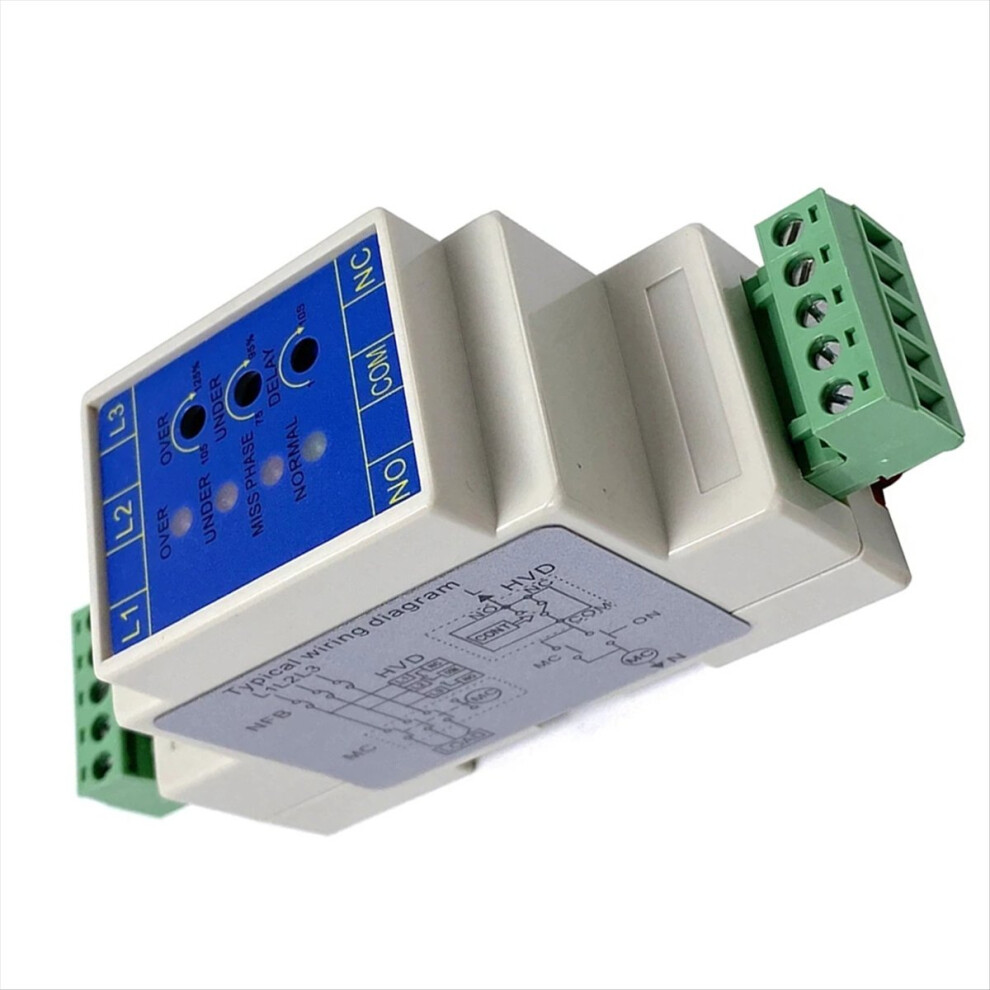

Case and Application
L1,L2,L3: 3 phase voltage input
NO,COM,NC:Normal Open Contact, Common Contact, Normal Close
Contact of the output relay.
OVER: The potentiometer of Over Voltage.
UNDER: The potentiometer of Under Voltage.
DELAY: The potentiometer of voltage abnormal delay
MISS PHASE: Miss Phase indication.
OVER: Over Voltage Indication.
UNDER: Under Voltage indication.
NORMAL: Voltage Normal output indication.
Color: As Shown
Material: ABS

Package Contents:
1x Voltage Protection Module

Only the above package content, other products are not included.
