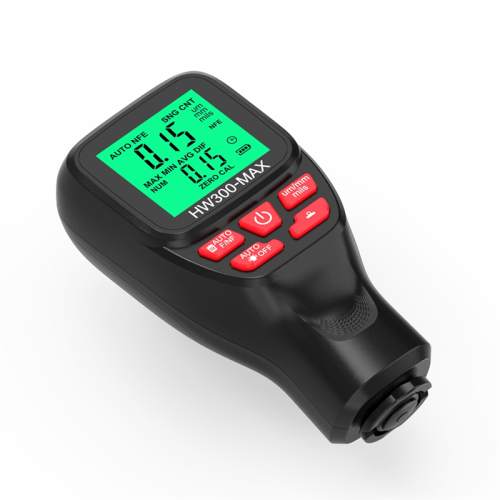

HW300-MAX Coating Thickness Gauge 0-2000UM Car Pai

HW300-MAX Coating Thickness Gauge 0-2000UM Car Pai Description

Easy Operation: Built-in magnetic induction and double principle probe, can automatically identify the measured metal substrate, only need to be placed on the measured , can automatically calculate the thickness of the coating.

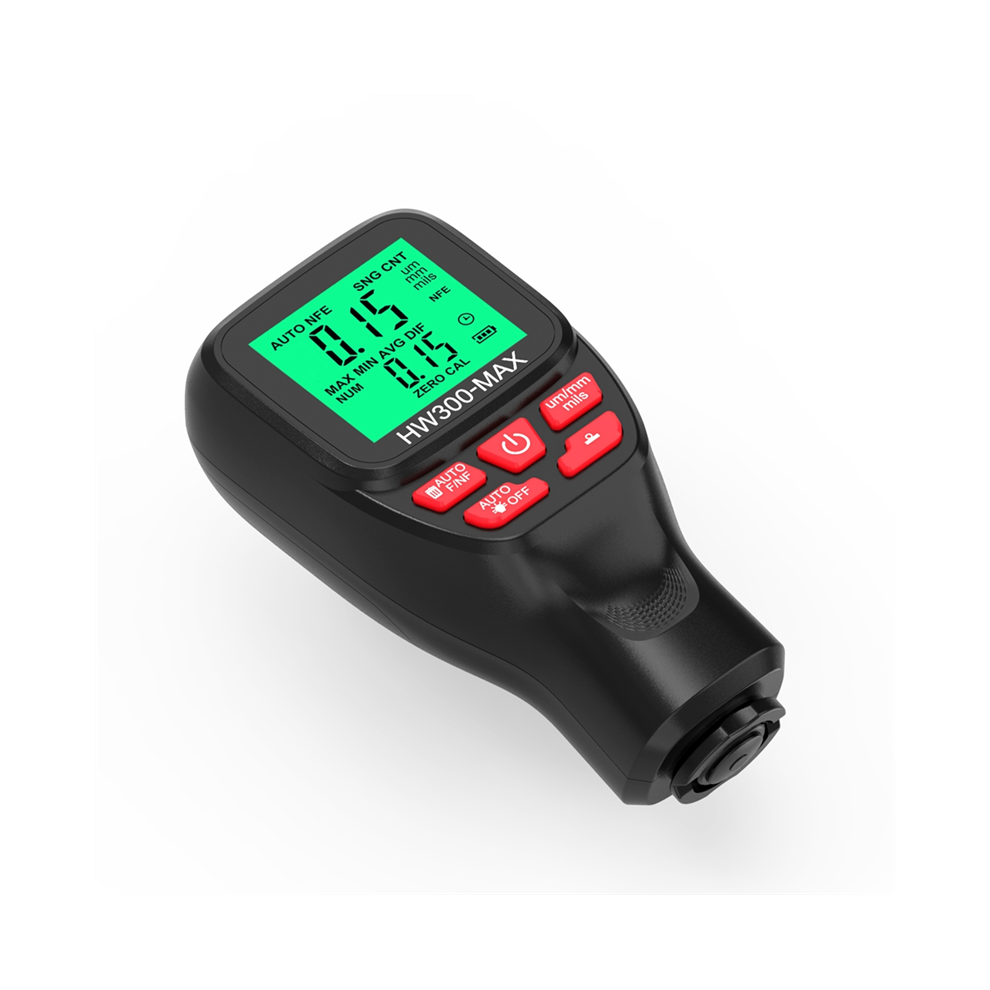

Digital LCD Display: Digital display with backlight, support statistical data display, average, minimum, maximum and number. This instrument supports up to 50 data to carry on the statistics, when reaches 50, the latest data replace the oldest data, the statistical value be updated automatically.
Three Probe Modes: With three probe modes of automatic (AUTO) mode, magnetic induction (F) mode and (NFE) mode, you can switch depending on your needs.
Unit Switching Function: to switch the units between -um, millimeter mm, and Mill mils.
Calibration: In order to improve the test accuracy, it is suggested that the instrument should be calibrated, to higher accuracy.

Multifunctional Design: Equipped with battery power indicating and 3 minutes no operation automatic shutoff function, and support turn on and off the backlight.

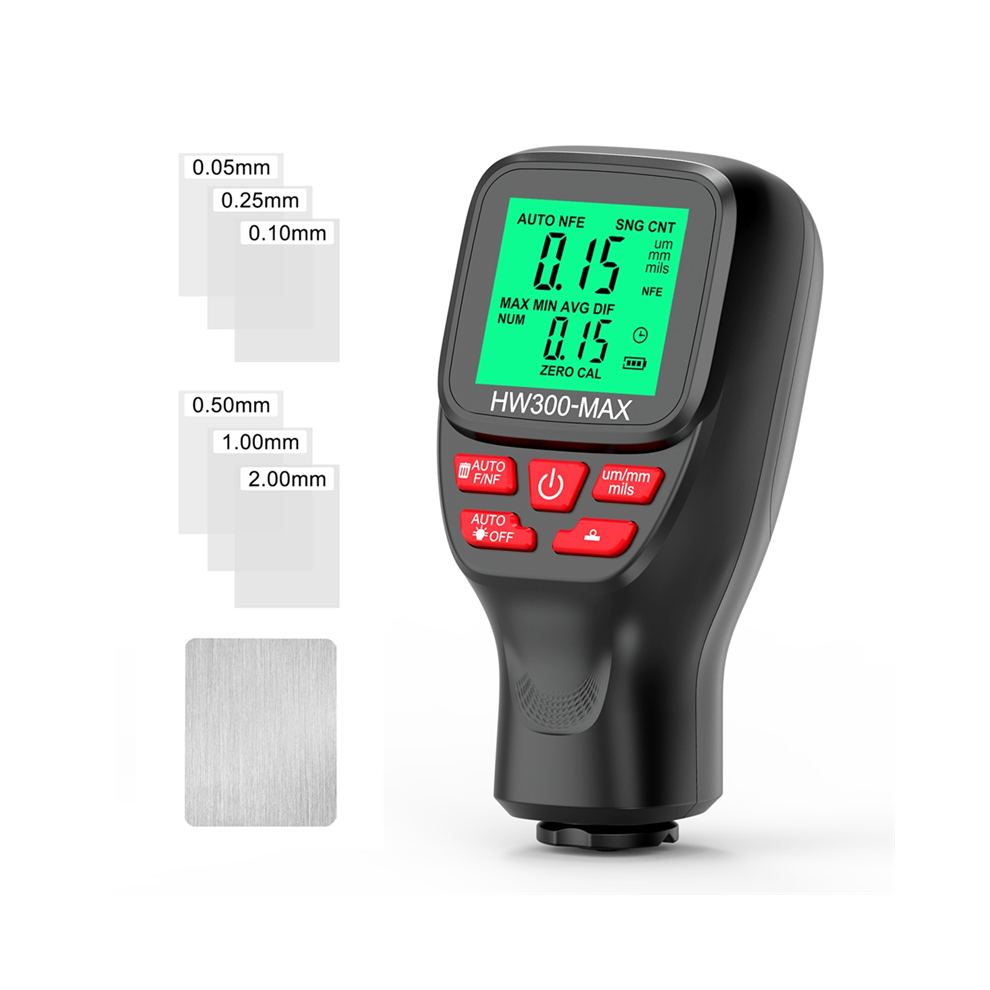

Standard Aluminum Film: Comes with aluminum sheet and 6pcs calibration films, with different thickness of 0.05mm, 0.25mm, 0.10mm, 0.50mm, 1.00mm and 2.00mm to meet your demands.
Measurement Object: The tester is used for non-destructive measurement of coating and paint thickness, fast and accurate. It is mainly used to measure the thickness of non-conductive coating on metal , as well as the thickness of non-ferromagnetic coating on ferromagnetic metal (such as iron, , cobalt, etc.), such as paint thickness on automobile , coating thickness of metal parts and so on.
Wide Applications: It is widely used in manufacturing, metal processing industry, chemical industry, commercial inspection, etc. It can also workstably in the laboratory, workshop and other fields.
Name:Thickness Gauge
Display:LCD backlight diaplay
Measurement ranges:0-2000UM
Measurement accuracy:(3% +1UM)
Operating temperature:-10 to 50
Power Suplly:2 AAA batteries(Not included batteries)
Colour:Black
Material:ABS
Size:85x40x30mm/3.35x1.57x1.18in

Package Contents:
1 * Thickness Gauge
6 * Calibration Film
1 * Base Sheet

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
