Ignition Coils and Spark Plug Caps Set for CB350F

Ignition Coils and Spark Plug Caps Set for CB350F Description

Low tension wires: 8 inch long - 1 male and 1 female connector (power goes to the black/white line male terminal. points/condenser wire goes to the blue female terminal)
Primary Windings: 4.6 ohms +- 10% (just like the coil)
Coils Replace Part Numbers:
30510-333-013, 30520-333-013 (CB350F, CB400F)
30501-323-003, 30502-323-003 (CB500, CB550 up to '76)
30501-404-000, 30502-404-000 (CB550 '77-'78)
Fits for :
CB350F Four - 1972-1974
CB400F Super Sport - 1975-1977
CB500K Four - 1971-1973
CB550F Super Sport - 1975-1977
CB550K Four - 1974-1978
Colour:Black
Material:ABS
Size:Spark plug wires length17 inch
Mounting holes: 102mm (4 inch) apart

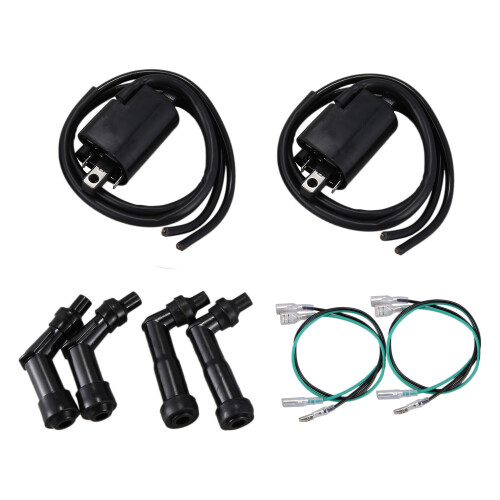

Package Contents:
2x Ignition Coils
4x Spark Plug Caps
Installation Tip: Fan out the spark plug wires before twisting on the caps that way you make a better connection.
Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
