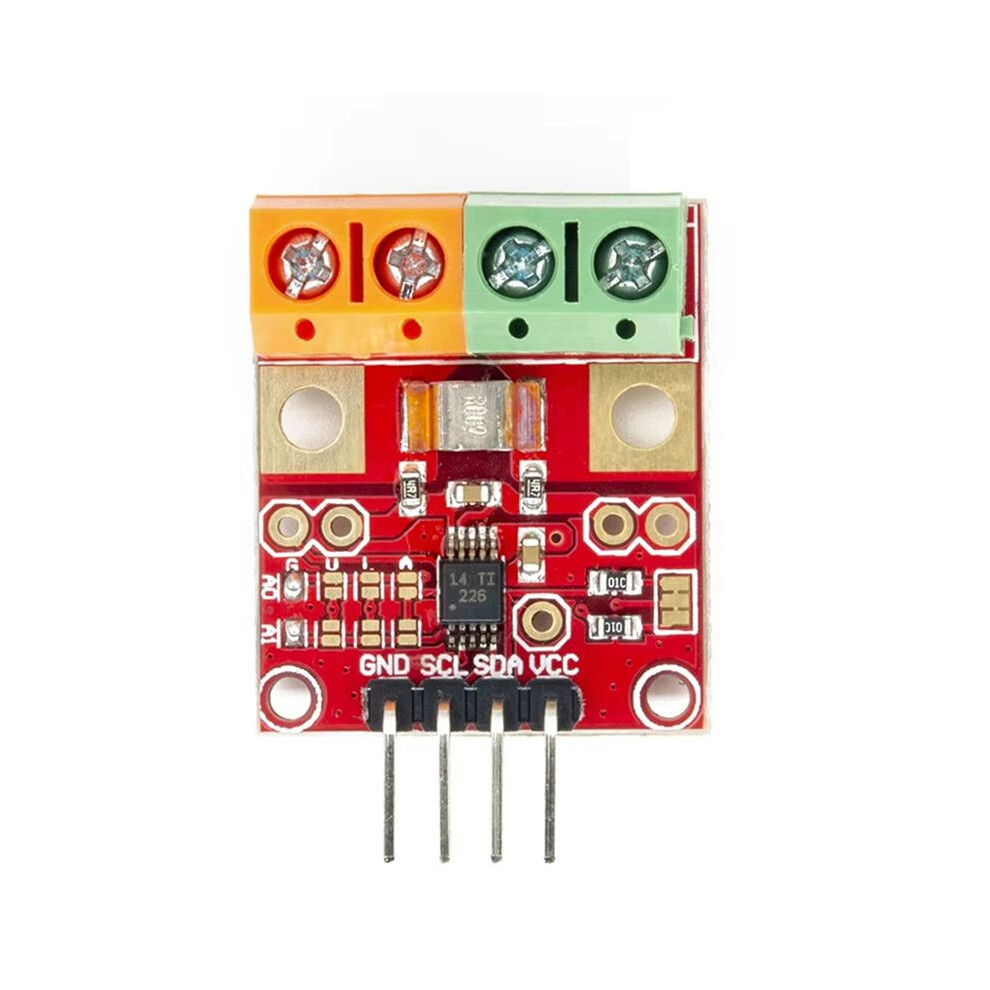

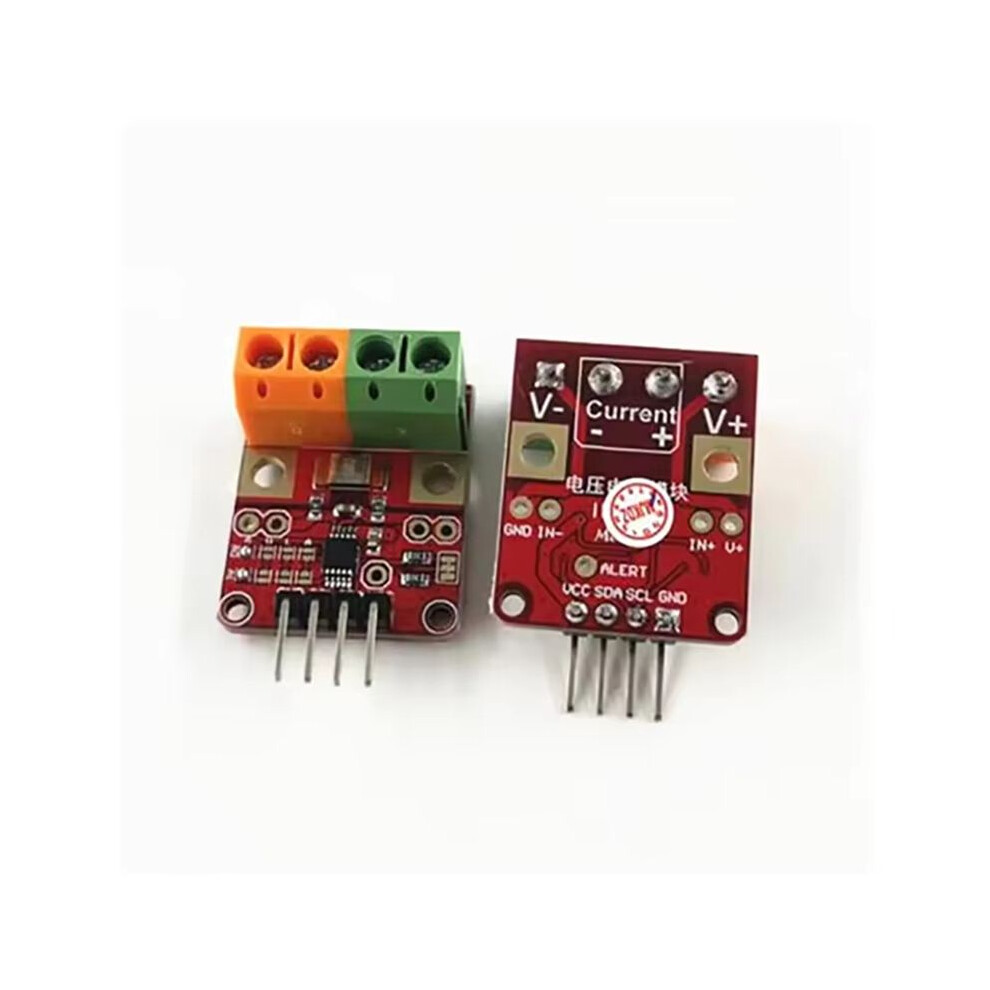

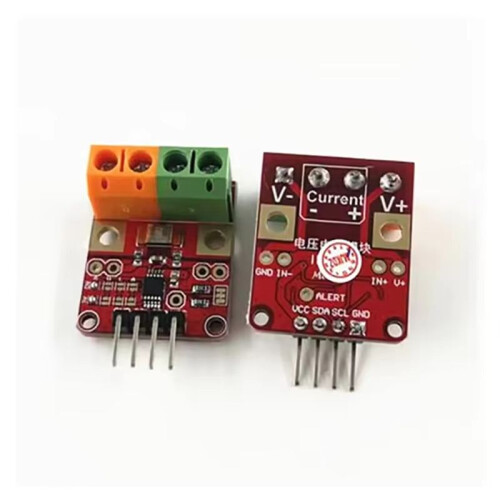

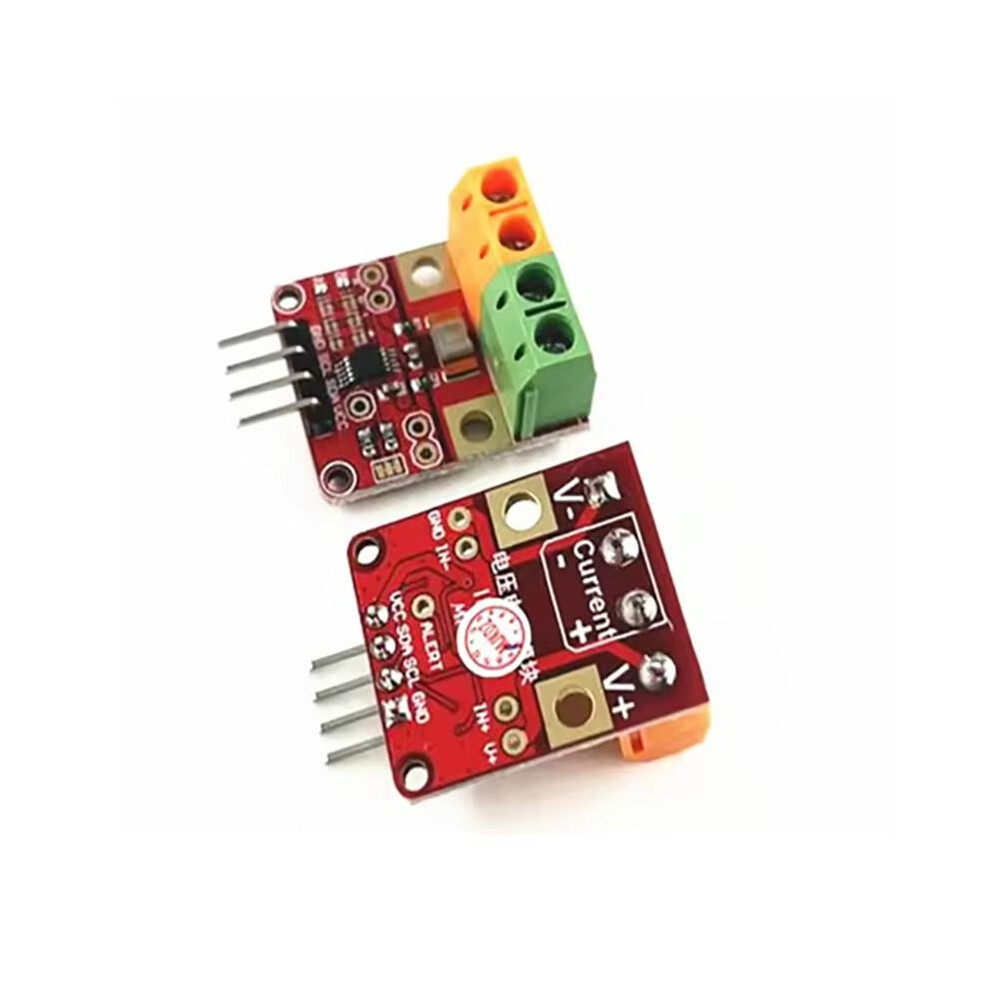

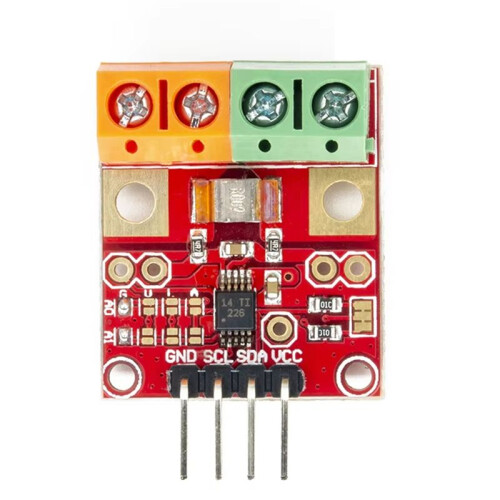

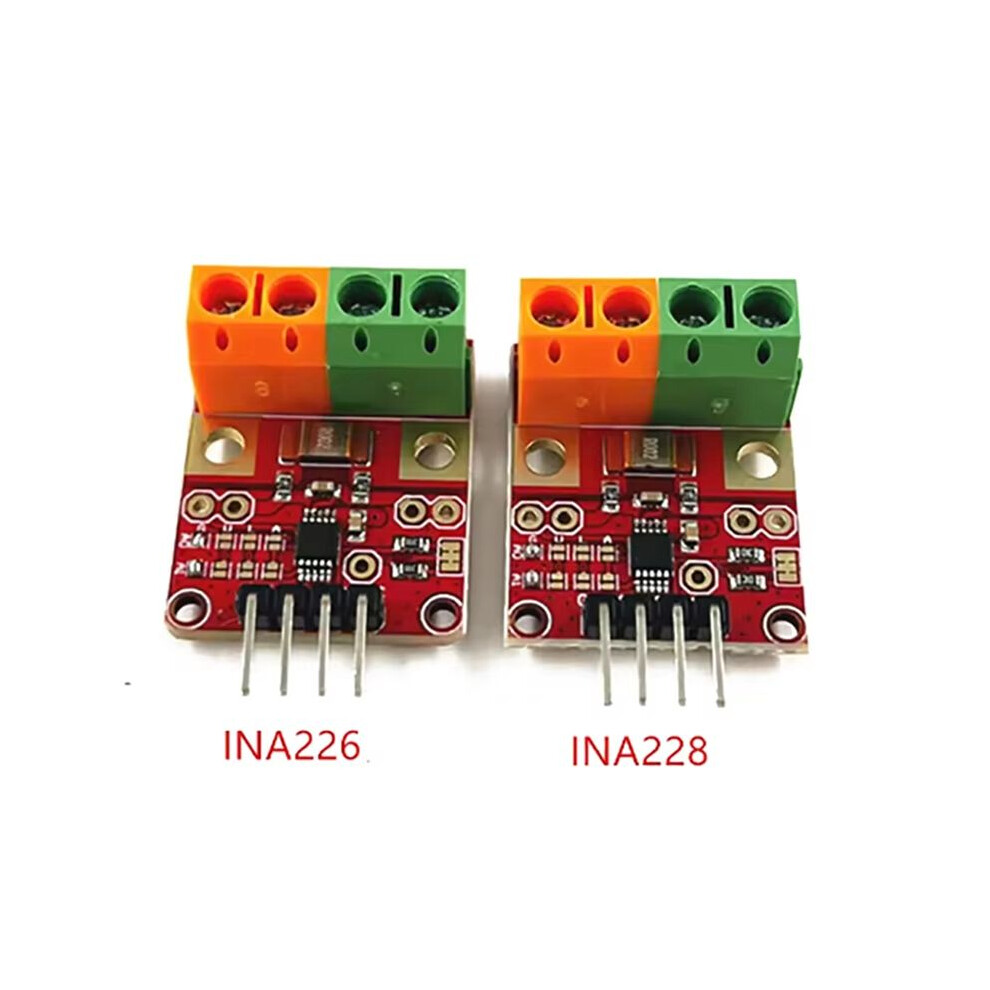

INA226 Current Voltage Monitoring Sensor Module IIC I2C Interface Bi-Directional Zero-Drift Breakout Board INA226
Brand Typecat
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 135,000 Trustpilot reviews and an 'Excellent' rating
€18.14
€24.45
26% off!
FREE Delivery
1%
What is instant Cashback?
Learn More
All prices include VAT.
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Fri 9th - Wed 14th Oct
Sold by: Papishop
Returns: 30 days
180-day payment protection
You might also like
Description & Details
Summary
- INA226 is a current shunt and power monitor with I2C or SMBUS compatible interface.
- The device simultaneously monitors the parallel voltage drop and the bus power supply voltage.
- The programmable calibration value, conversion time and average value are used in conjunction with the internal multiplier to directly read the current in amperes and the power in watts.
- The device has up to 16 programmable addresses on the I2C compatible interface.
- Voltage Monitoring Sensor Module
INA226 Current Voltage Monitoring Sensor Module IIC I2C Interface Bi-Directional Zero-Drift Breakout Board INA226 Description
INA226 is a current shunt and power monitor with I2C or SMBUS compatible interface.
The device simultaneously monitors the parallel voltage drop and the bus power supply voltage.
The programmable calibration value, conversion and average value are used in conjunction with the internal multiplier to directly read the current in amperes and the power in watts.
The device has to 16 programmable addresses the I2C compatible interface.
Micro-controller
Safety inspection
Industrial control
Product name: INA226 Voltage Current Monitor
Work voltage: 2.7V~5.5V
Measured voltage: 0V~36V
Measured current:-20A~20A
Error accuracy:+/-1%
Resolution:16Bit

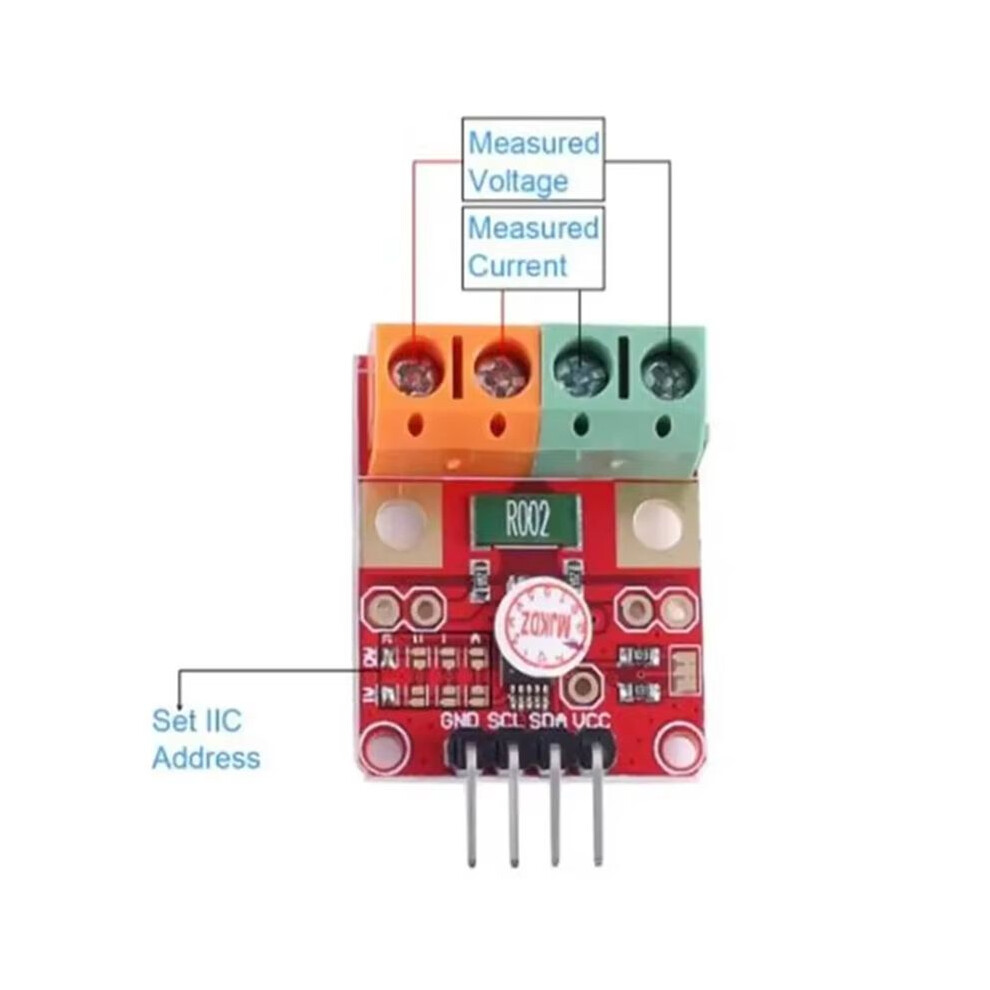

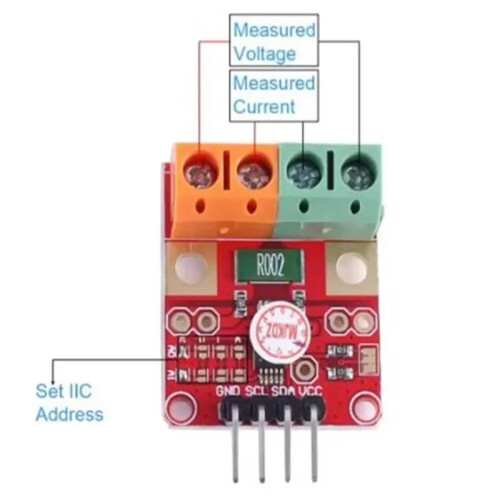

IIC address:Set by pads
PCB Size:26 x 22 x 14mm
IIC address can be set
Measuring voltage
Measuring current
Specifications: INA226
Color: As Shown
Material: PCB
Package Contents:
1 * Module
Details
| OPC | PW2PYCJ |
|---|---|
| Brand | Typecat |
| Codes | 4712344365122 (EAN) |
| Product and Safety Information |
Product Data
| Height | 1cm |
|---|---|
| Width | 2cm |
| Length | 3cm |
| Weight | 0.006kg |
| Colour | As Shown |
| Size | INA226 |
| Material | PCB |
