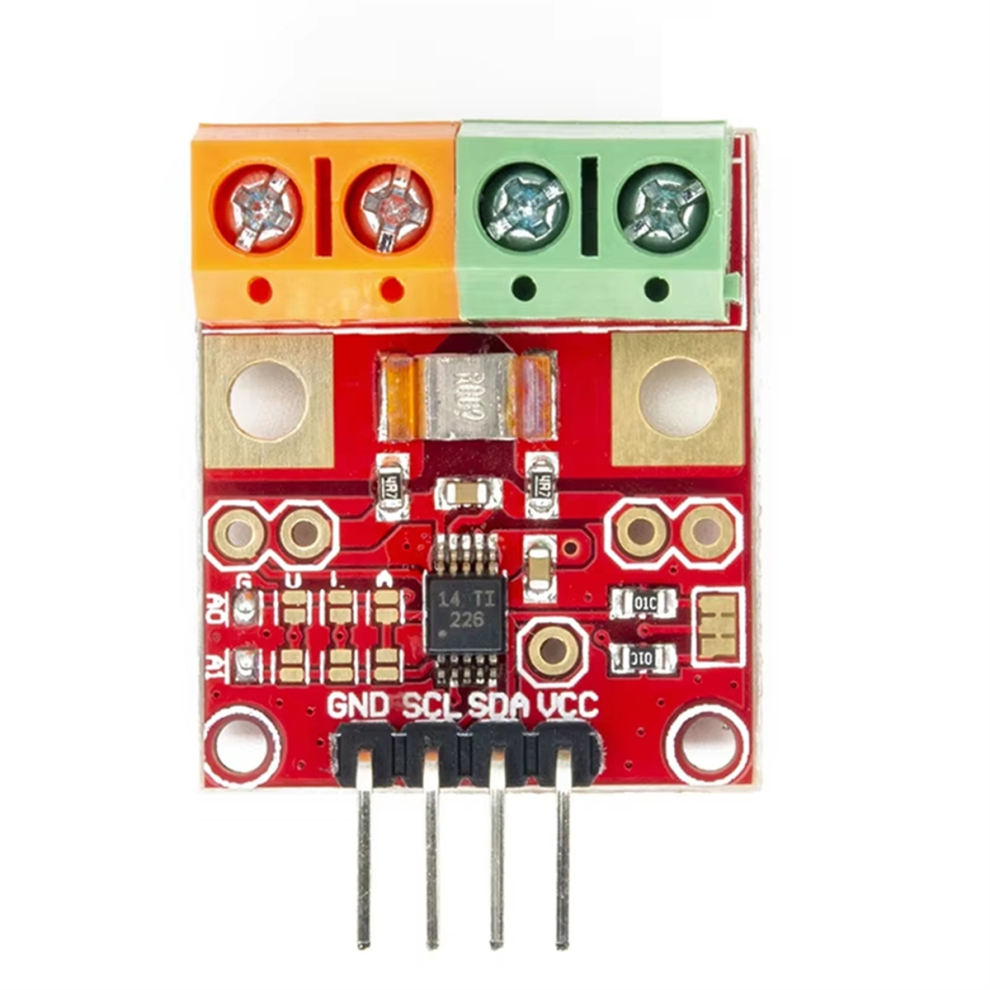

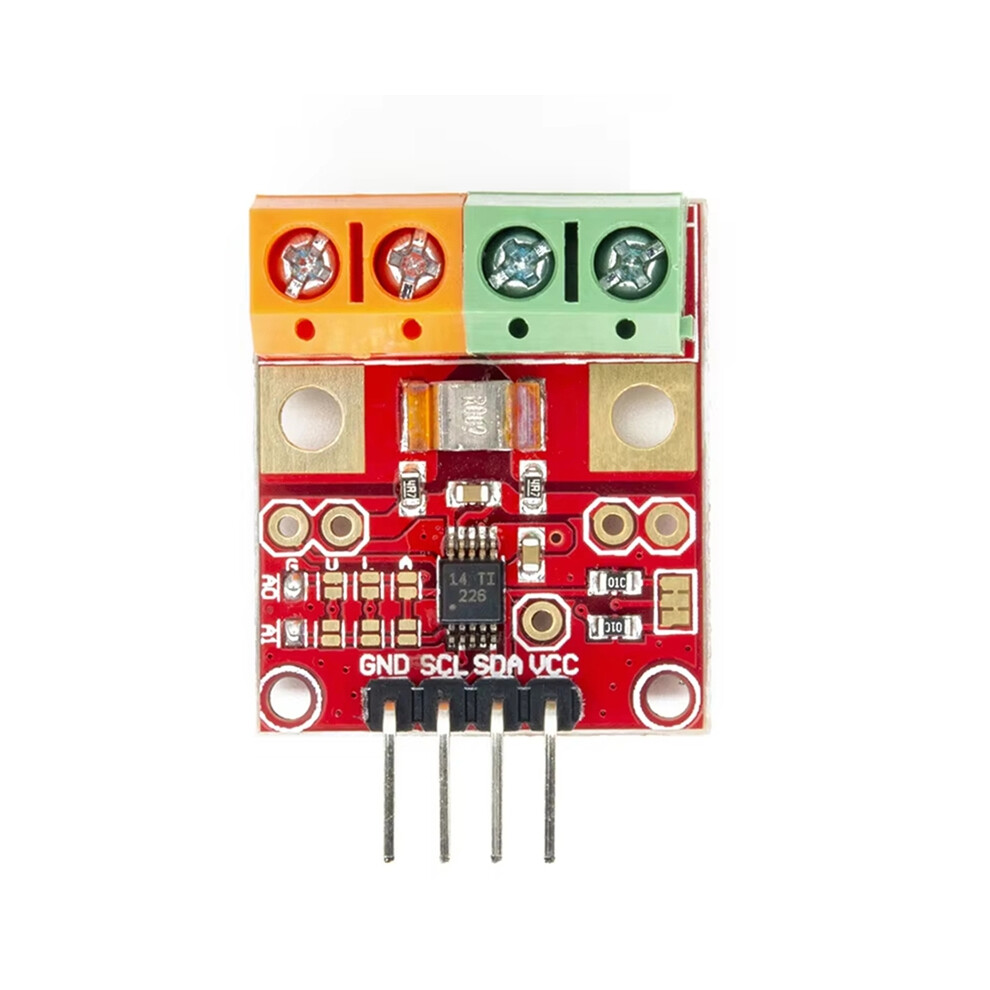

INA226 Current Voltage Monitoring Sensor Module IIC I2C Interface Bi-Directional Zero-Drift Breakout Board

INA226 Current Voltage Monitoring Sensor Module IIC I2C Interface Bi-Directional Zero-Drift Breakout Board Description

INA226 is a current shunt and power monitor with I2C or SMBUS compatible interface. The device simultaneously monitors the parallel voltage drop and the bus power supply voltage. The programmable calibration value, conversion time and average value are used in conjunction with the internal multiplier to directly read the current in amperes and the power in . The device has up to 16 programmable addresses on the I2C compatible interface. Micro-controller Safety inspection Industrial control Product name: INA226 Voltage Current Monitor Work voltage: DC 2.7V~5.5V Measured voltage:DC 0V~36V Measured current:-20A~20A Error accuracy:+/-1% Resolution:16Bit IIC address:Set by pads PCB Size:26 x 22 x 14mm IIC address can be set Measuring voltage Measuring current Specifications: INA226 Color: As Shown Material: PCB Package Contents: 1 * Module Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
