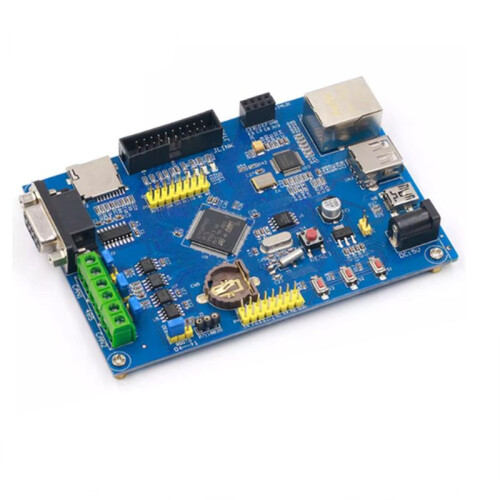

Industrial Control STM32F407VET6 Development Board RS485 Dual CAN Ethernet Networking STM32

Industrial Control STM32F407VET6 Development Board RS485 Dual CAN Ethernet Networking STM32 Description

Master MCU:STM32F407VET6-LQFP100
Ethernet chip:DP83848-LQFP48
Serial port:1 RS232 interface with serial port 1 PA9 PA10
RS485 interface:1 RS485 interface with serial port 2 PD5 PD6
CAN interface:2 CAN interfaces with chip PD0 PD1 / PB5 PB6

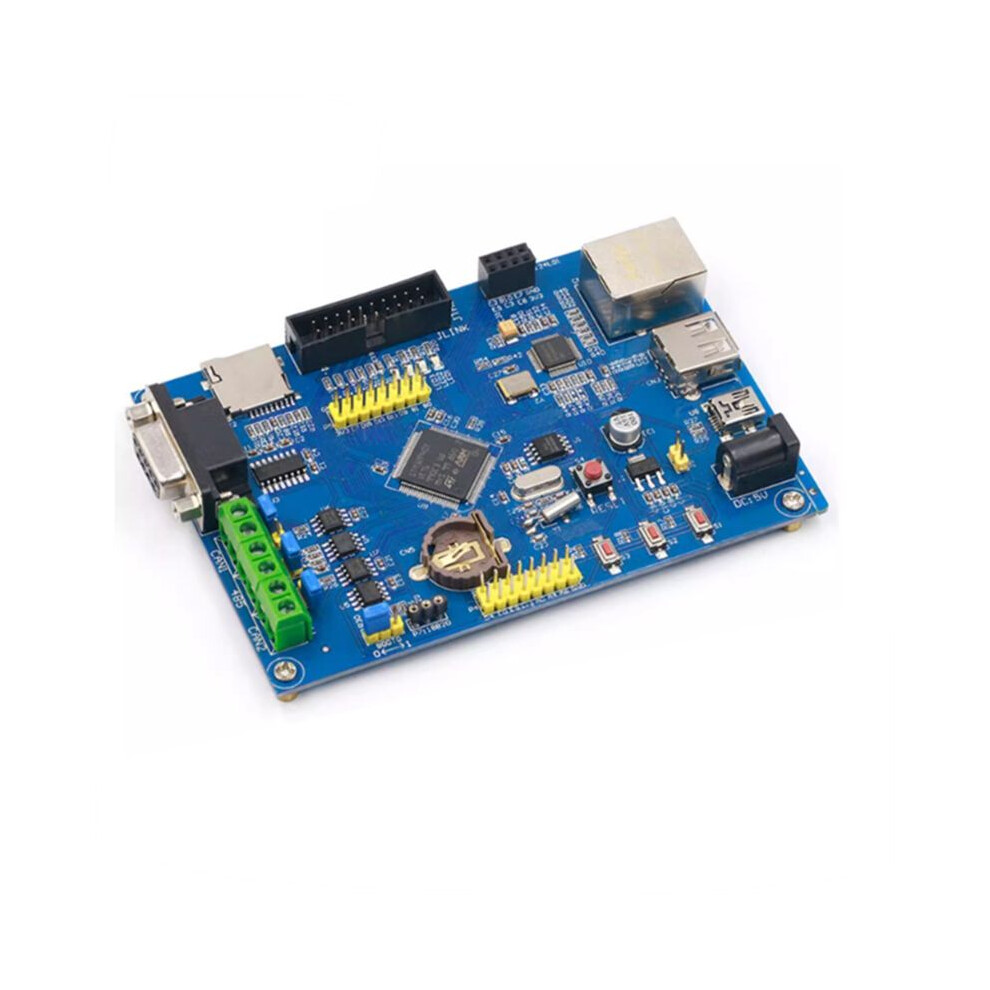

The development board uses the STM32F407VET6 chip as the main controller, M4 super core, expansion with 1 RS232 interface, 1 RS485 interface, 2 CAN interfaces, 1 Ethernet interface, 1 USB HOST interface, 1 USB DEVICE interface , Three user buttons, three user indicators. Very suitable for loT application development, gateway server development, bus communication development and industrial control.
TF card:9-pin small card, controlled by thePC and PD pins
Wireless interface:P3 leads to NRF24L01 interface
USB interface:One master USB and one slave USB
Storage:Built-in 24C02 and 25Q64 memory chips
Temperature Sensor interface:Lead out DS18B20 sensor interface
JTAG interface:JTAG corresponding to J-LINK
button:K1,, K3 three user buttons
Indicator light:LED1,LED2, LED3 three user indicators
Note:Due to different product batches, the appearance may be different, which does not affect use.
Colour:
Material:PC+Metal

Package Contents:
1 * Development Board
1 * Cable
