Integrated Fan & Temperature Sensor Pneumatic Spot Welding Controller

Integrated Fan & Temperature Sensor Pneumatic Spot Welding Controller Description

Spot Welder Controller Pneumatic Color LCD Display Multi-point Personalization

Features:

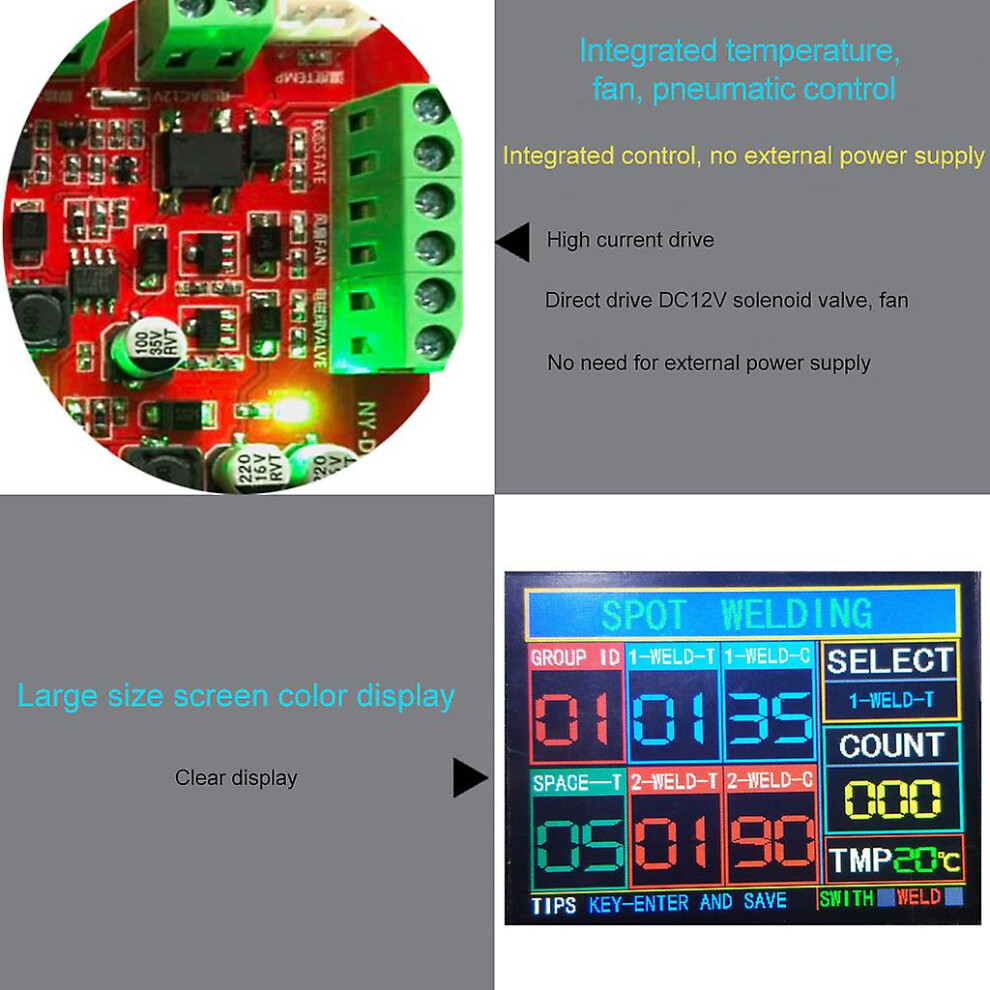

Integrated temperature, fan, pneumatic control.Integrated control, no external power supply
High current drive. Direct drive DC12V solenoid for valve, fan. No need for external power supply
Pneumatic parameters can be changed, Can be changed according to machine characteristics
Temperature detection fan control with temperature for protection, The fan has a normally open, closed, intelligent control mode
Support for personalization: Rated voltage, secondary voltage, rated power
With English interface
Instructions
Switch language: The controller is powered off, press and hold the red button, power on, the system enters the language setting

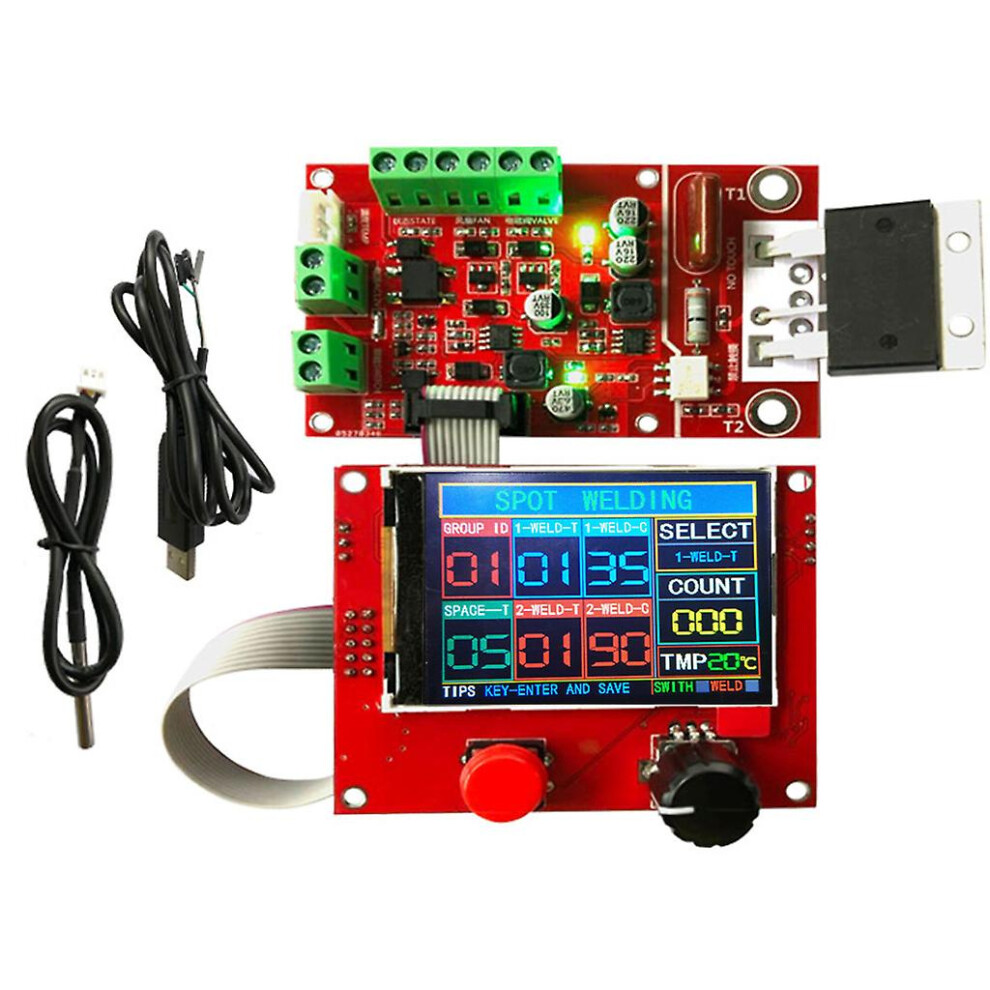

Welding specification selection:
The controller can save 10 sets of welding specification parameters
Use the knob to make the right side currently selected as the welding specification.
Press the red button to change the current selection to the setting parameters.
By selecting the welding specification, after the selection is made, press the red button to save

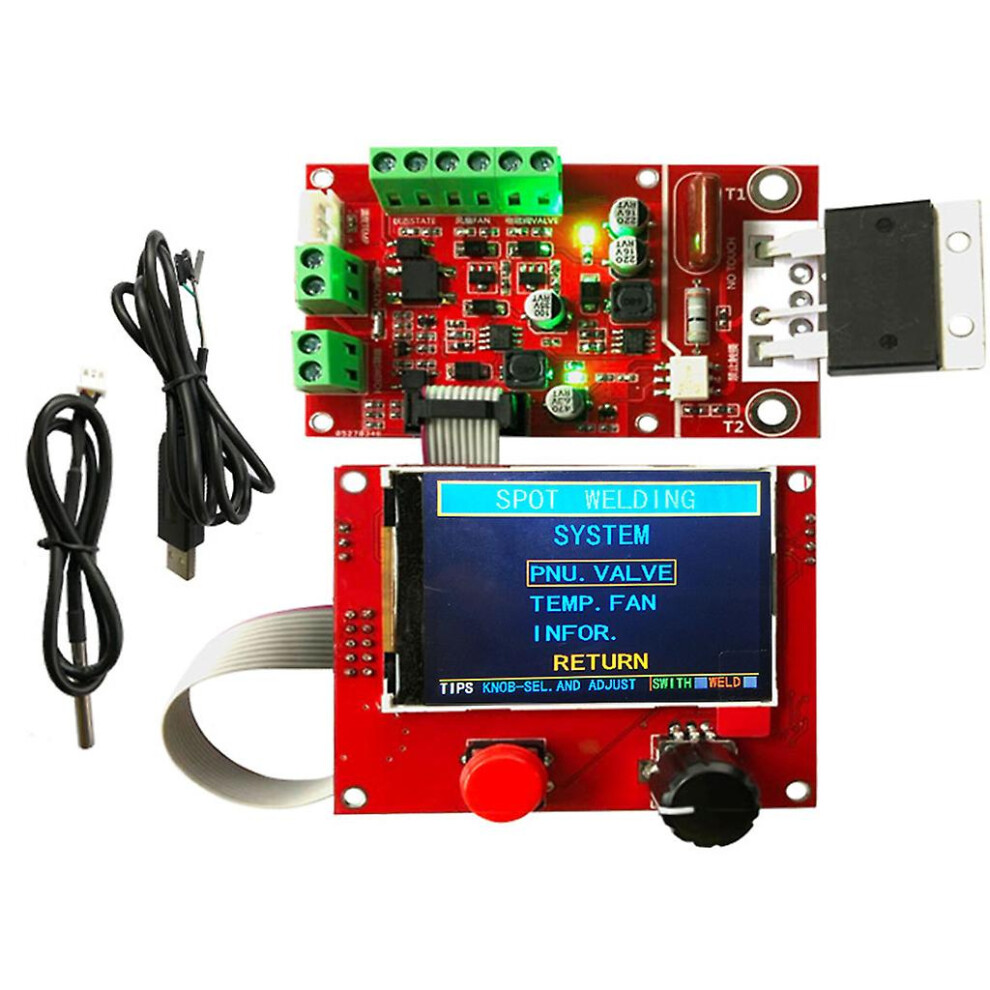

Welding parameter setting :
The control welding parameters have a total warm-up for time, preheating current, and interval for time.

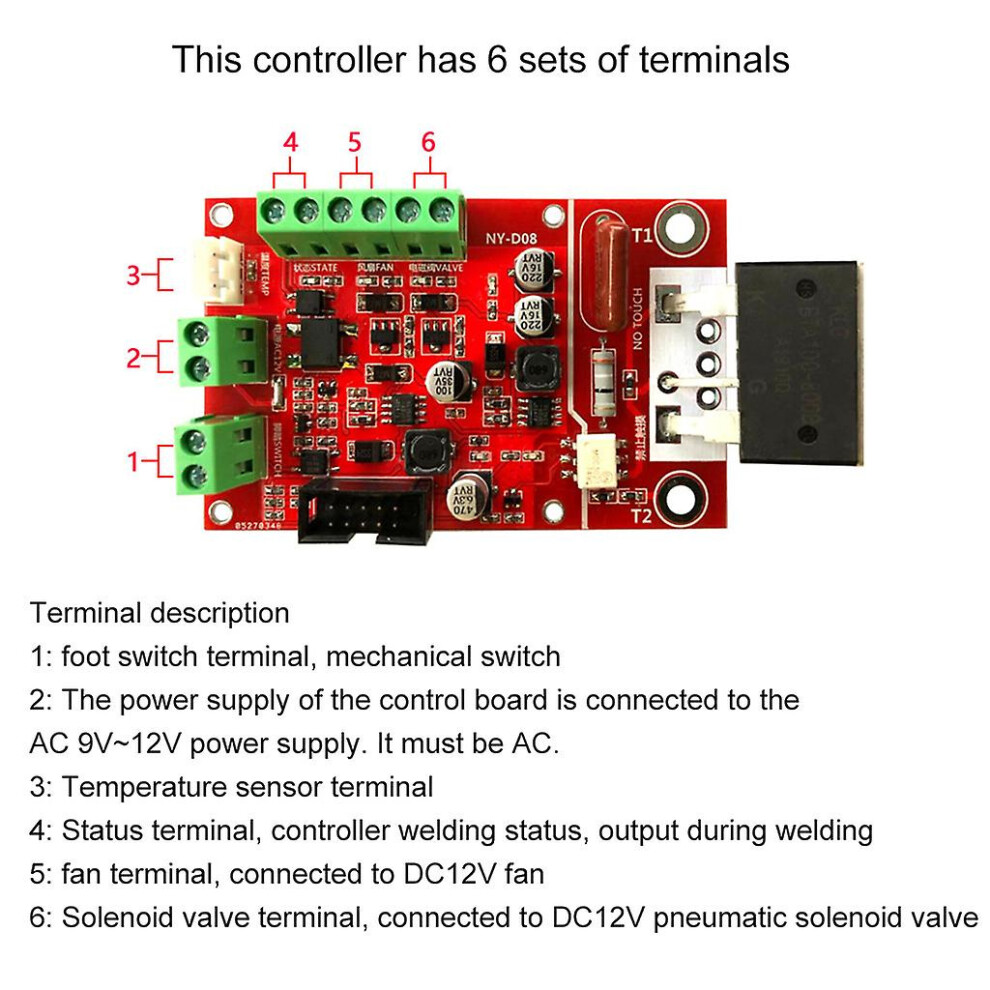

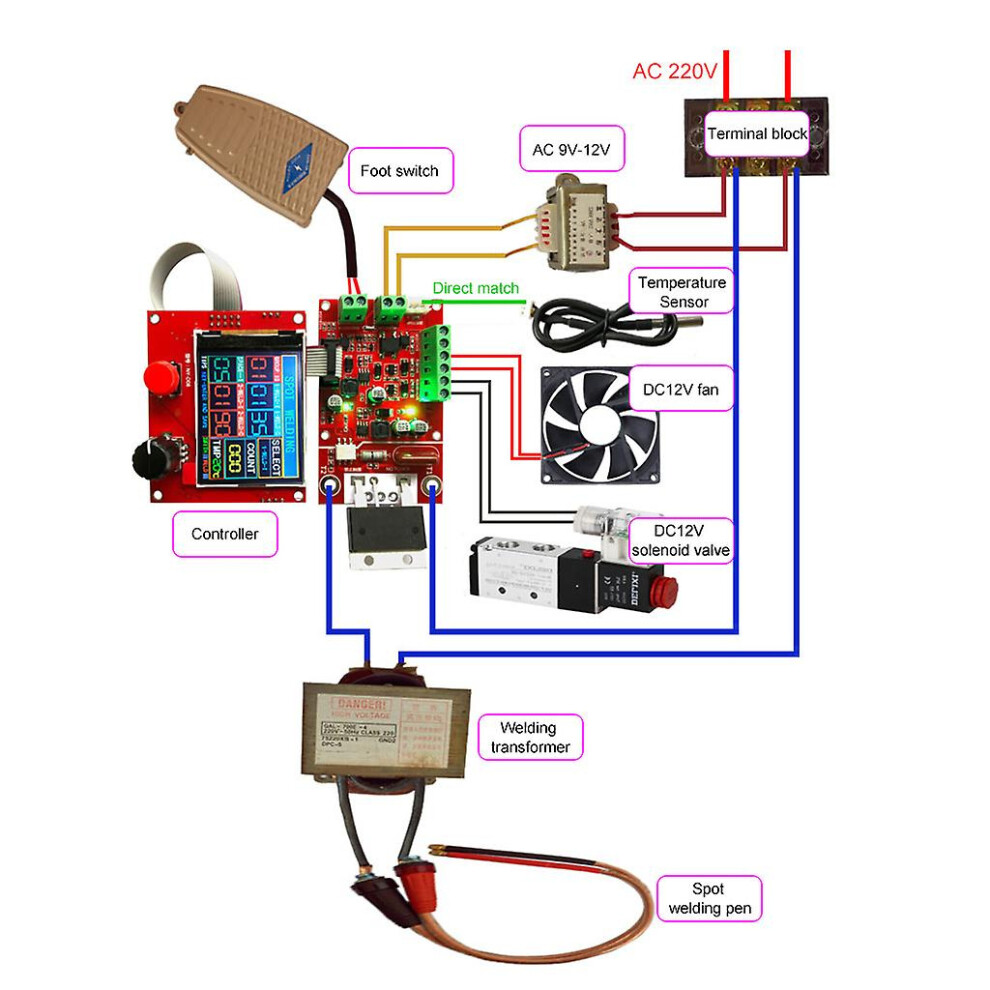

Terminal description
1: foot switch terminal, mechanical switch
2: The power supply of the control board is connected to the AC 9V~12V power supply. It must be AC.
3: Temperature sensor terminal
4: Status terminal, controller welding status, output during welding
5: fan terminal, connected to DC12V fan
6: Solenoid for valve terminal, connected to DC12V pneumatic solenoid valve

Note:
Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
Please allow 1-3mm slight deviation due to manual measurement. Thank you!
Personalization software available, Please contact us to send.

Package included:
1 Set Spot Welder Controller
1 * Temperature Sensor
