Intelligent Capacitive Screen with Housing 7inch H

Intelligent Capacitive Screen with Housing 7inch H Description

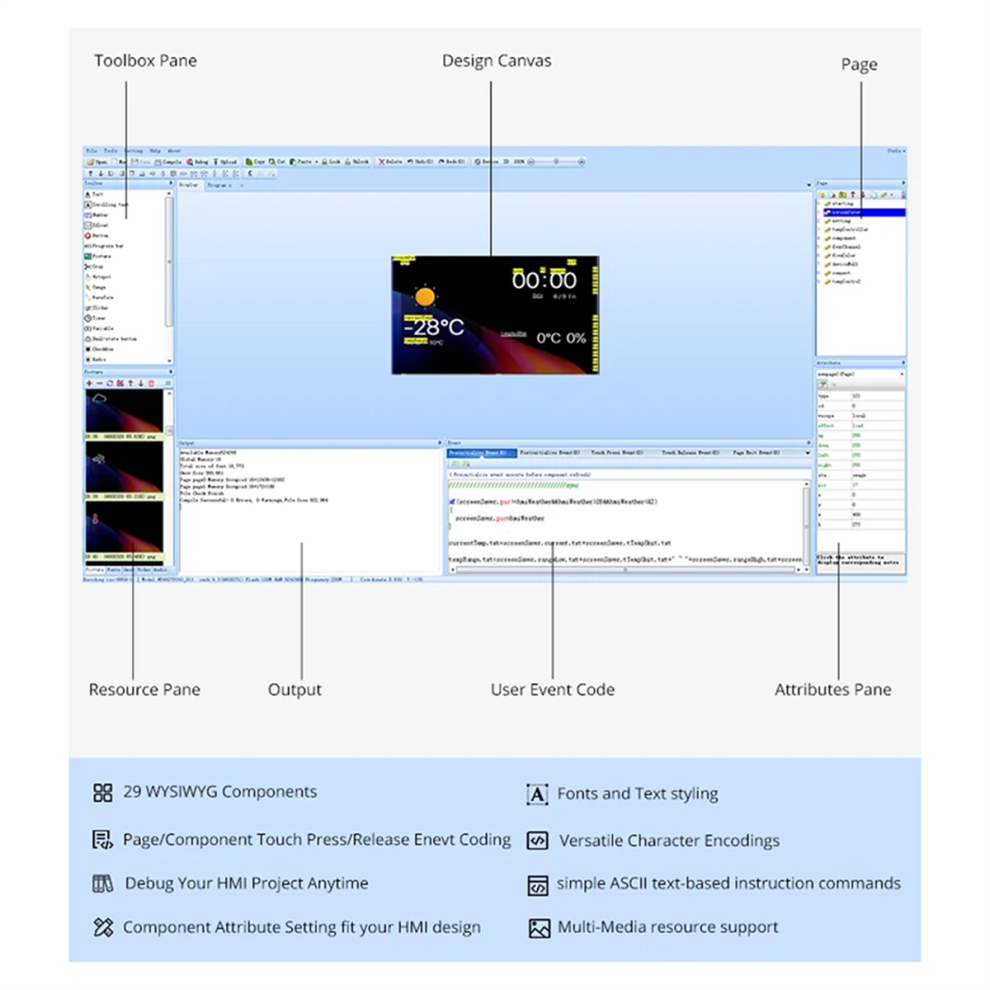

Editor is a free human-machine interface (HMI) GUI development software for Basic Series, Enhanced Series, and Intelligent Series. The software offers an to create an intuitive and superb touch user interface even for beginners. Add a static picture as a background, define functions by components, you can make a simple GUI in minutes.
The easy Drag-and-Drop components and simple ASCII text-based instructions dramatically reduce your HMI project development workloads and develop projects in a cost-effective way. The product is the best balance HMI solution between cost and with a low and decreased learning curve.

Hardware Features:
800x480 screen resolution
RGB 65K true-to-life colours
Capacitive or Resistive touch panel
300 nit Brightness
Onboard 200MHz MCU
512 KB of
128 MB of Flash memory
1024 Byte EEPROM

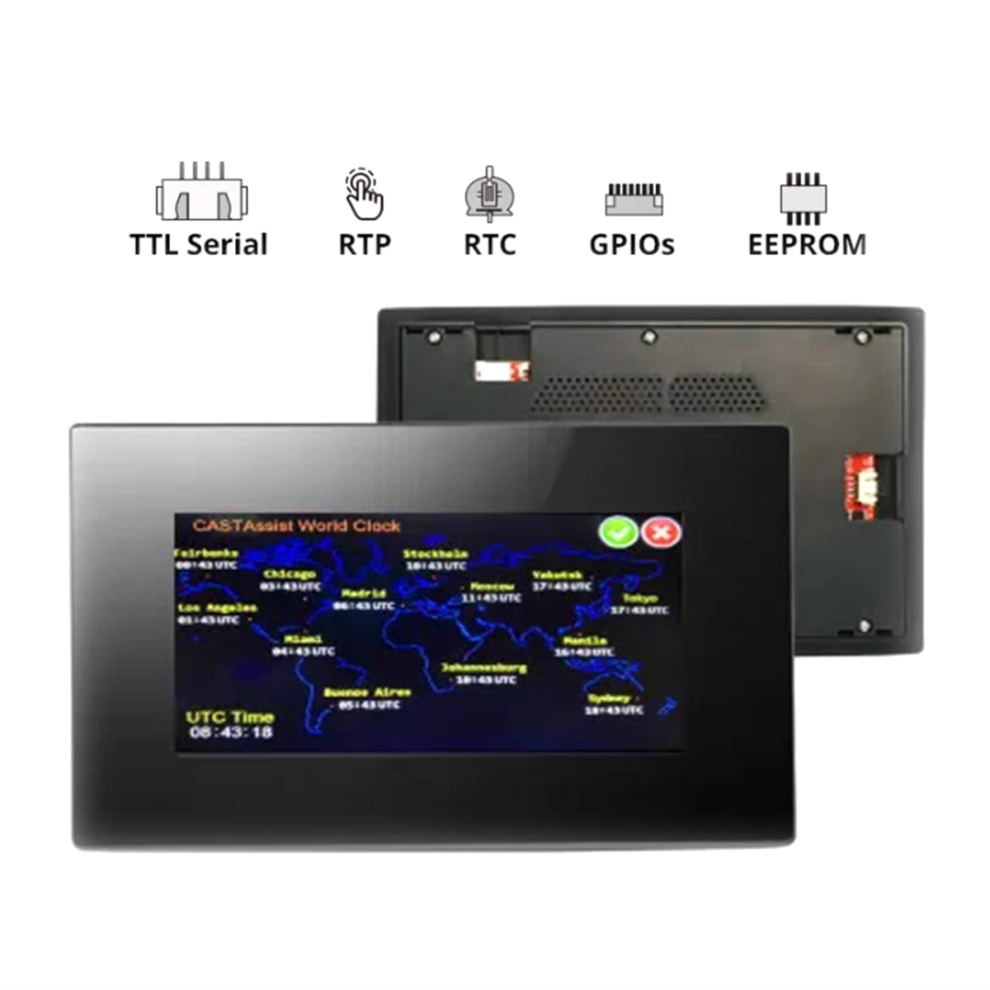

XH2.54 4 Pins (+5V, TX, RX, GND) TTL serial interface
1.25T-2-2A Audio port for external speaker connection
8 Digital extended GPIO
(IO0-IO7 support input, output and component binding event, IO6-IO7 support PWM)
Built-in RTC support
Color:Black
Material:plastic

Package Contents:
1 * Intelligent Capacitive Screen

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
