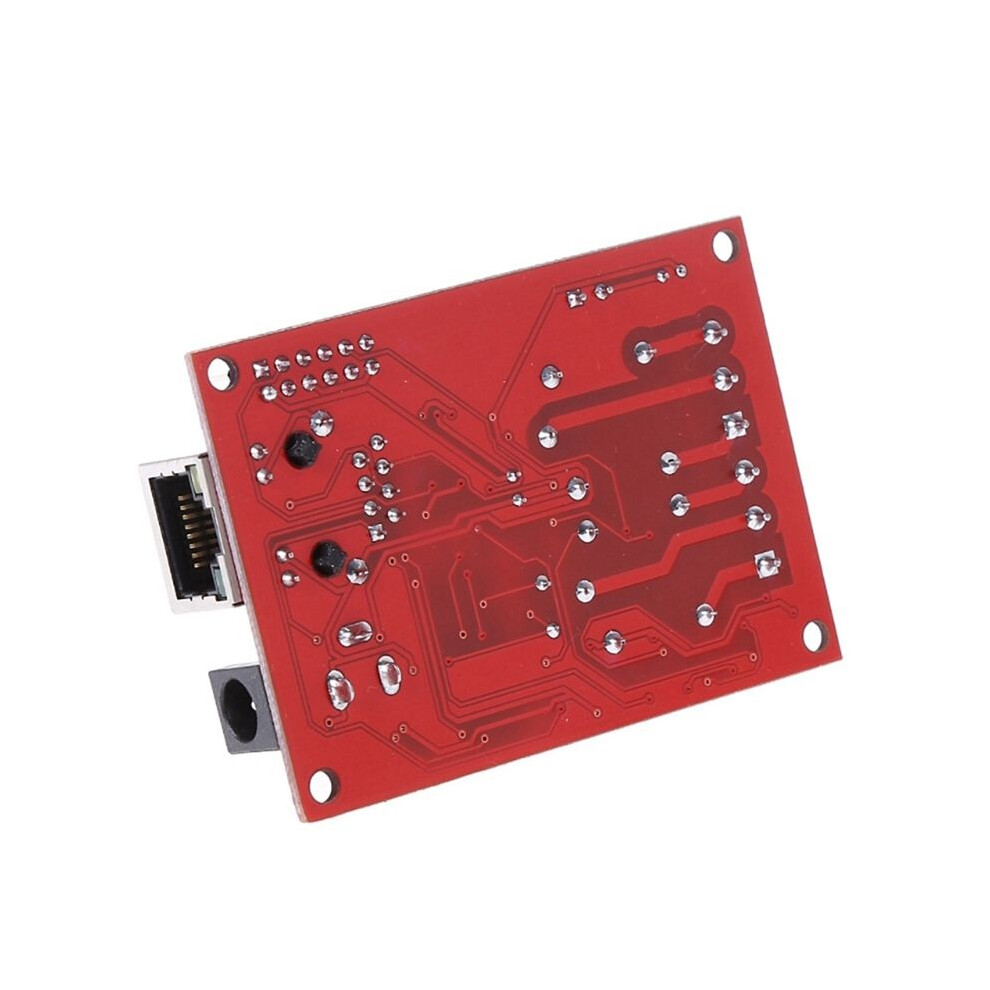

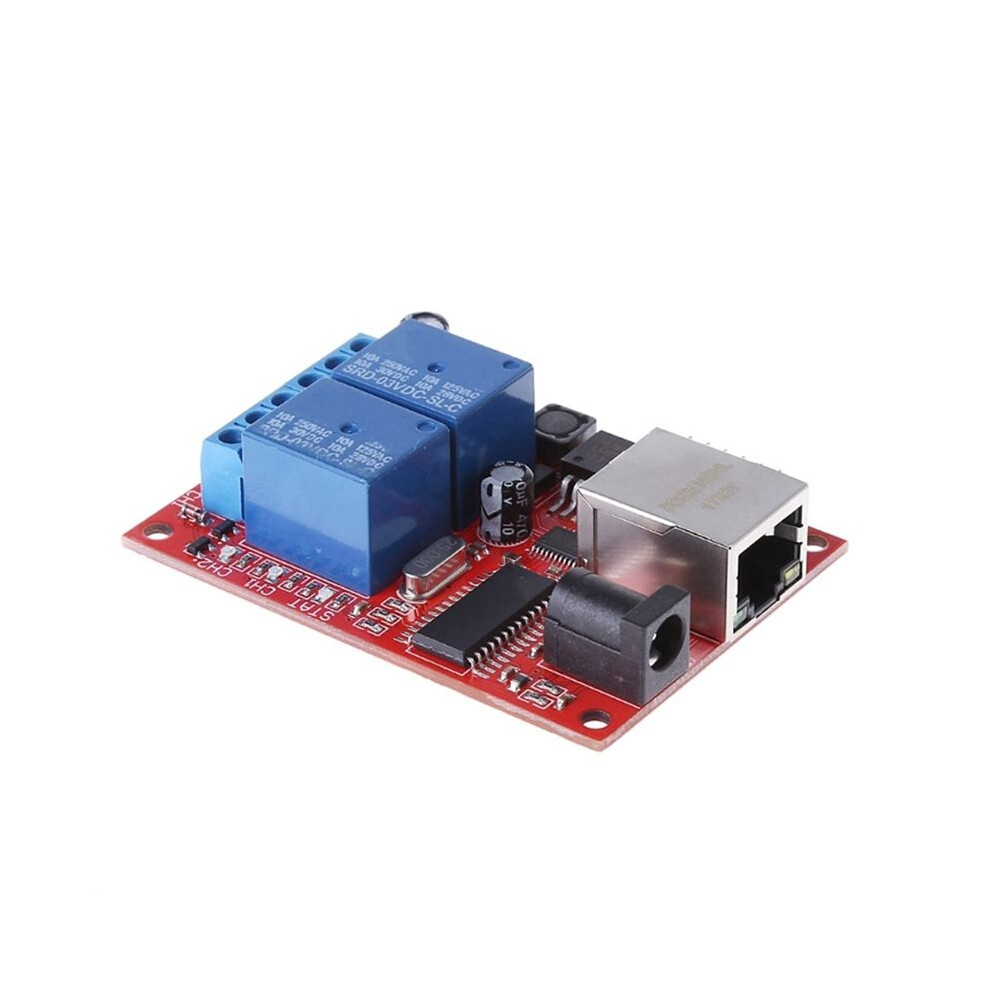

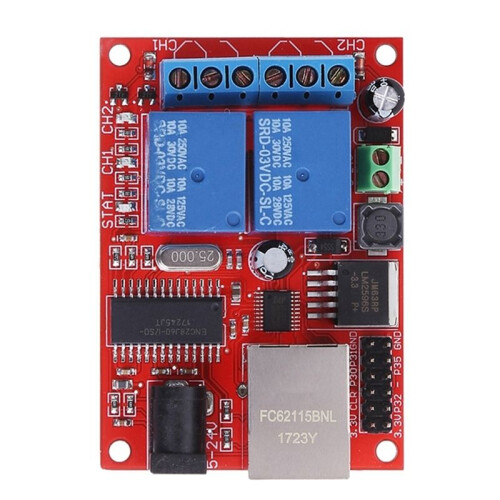

LAN Ethernet 2 Way Relay Board Delay TCP/UDP Controller Module WEB Server US Plug

LAN Ethernet 2 Way Relay Board Delay TCP/UDP Controller Module WEB Server US Plug Description

1. Industrial-grade STC microcontroller + ENC28J60 + stable version firmware, supports 6 network connections in TCP server mode, and also provides UDP control mode and cloud remote control function
2. The control command is very simple. In string mode, send 11 to open the first relay, send 21 to close the first relay, 11x command the first relay to jog, 11K command simulates the first local button (only for models with local buttons), 11:10 the first channel is opened and automatically closed for 10 seconds (delay supports 1-65535 seconds); send 00 to return all channel status
3. Full support for secondary development, local connection, cloud remote control, PC and mobile terminals have demonstration programs and source code, provide module configuration program, timing program DLL encapsulation, easy to integrate various configuration functions
4. The hardware is extensible, the pins the module can be connected to the real- clock, 485, , 2.4G...
5. The 8-bit reduced instruction system is powerful, with low development cost and price advantage in function customization

Module features:
Industrial-grade STC microcontroller as the main control chip

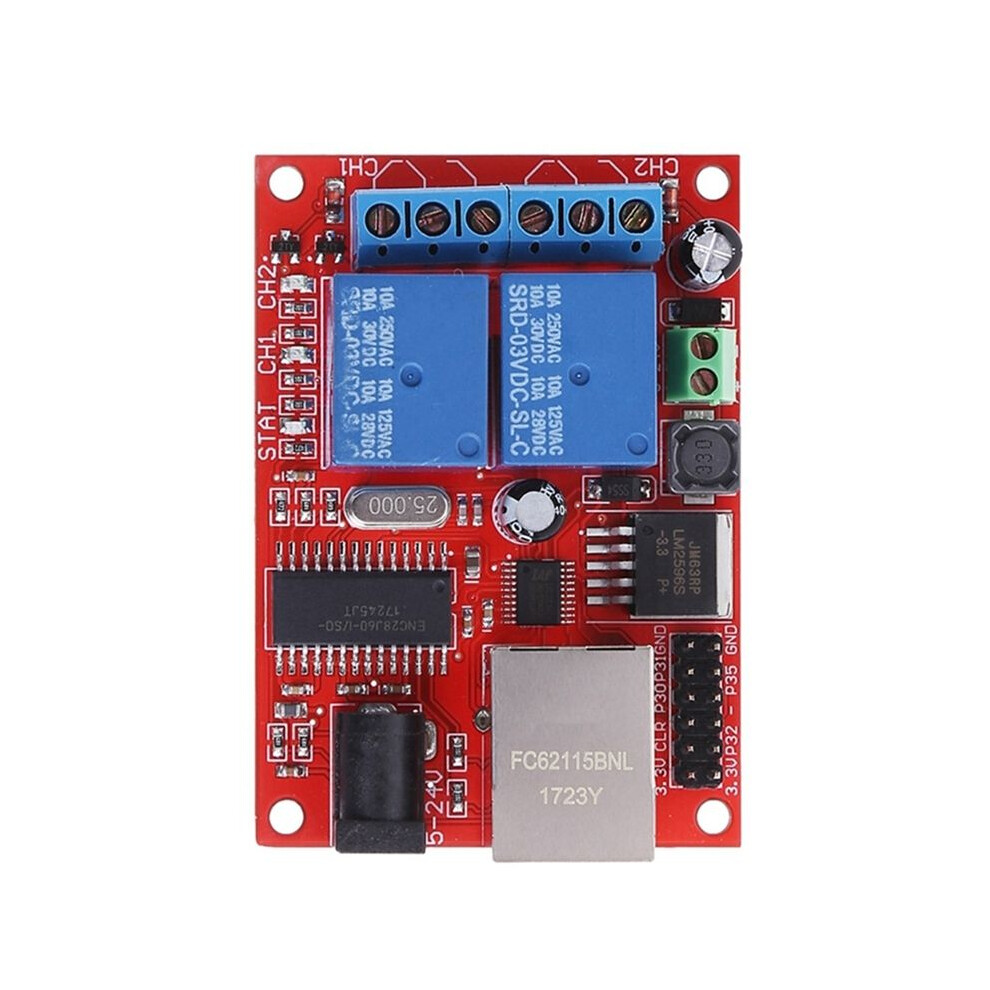

Onboard 2 high-quality relays, relays with absorption diode circuit
With 1 power indicator light, each relay has a status indicator light, and the light is when the relay is energized
6-channel TTL output, the relay module can be expanded to reach 8 outputs, Note: The relay module should be high level effective
Module parameters can be configured through the network, such as module IP address, default gateway, etc.
Support Modbus TCP protocol
Note: Due to different production batches, there may be slight differences in products.
Plug Type: US Plug, it applies to Canada, India, Mexico, Thailand, the United States, the Philippinesand so .
Voltage: AC110V
Colour:Photo Color
Material:PCB

Package Contents:
1
