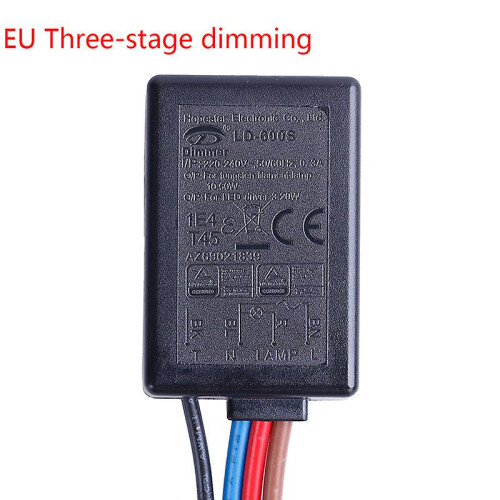

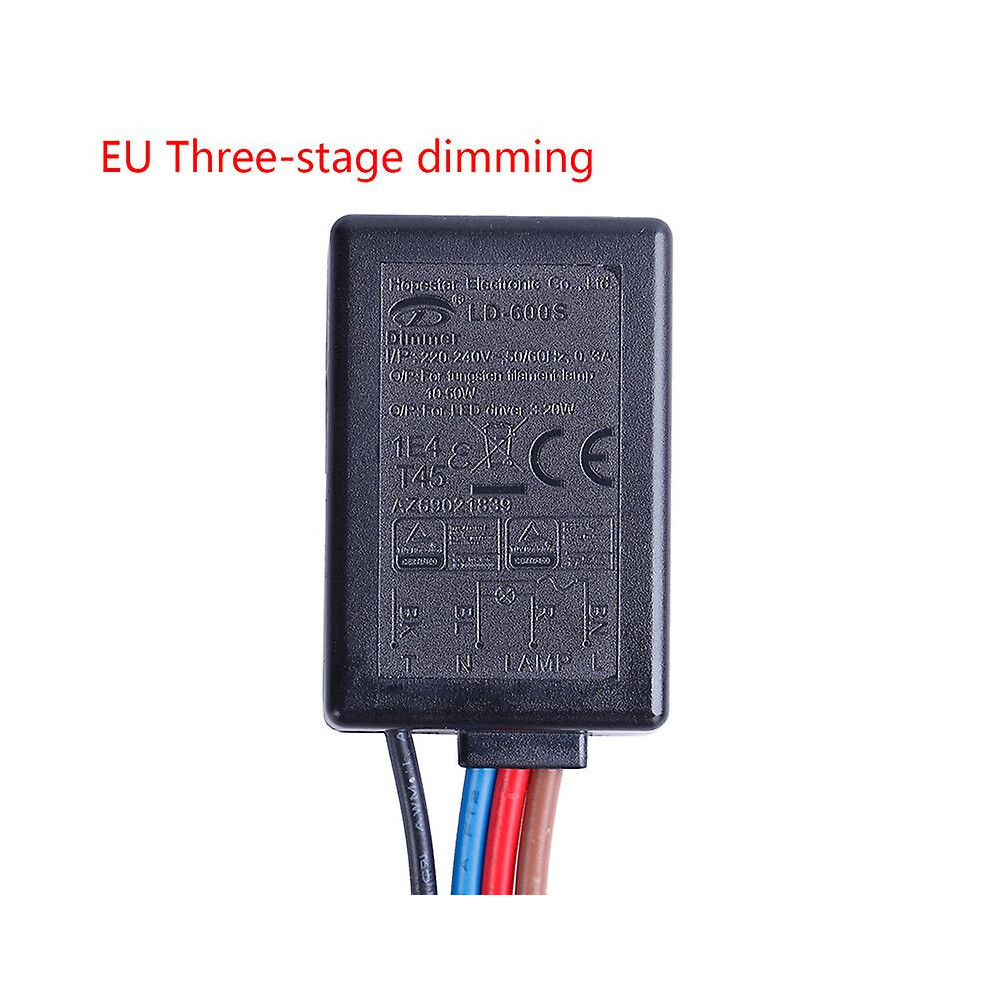

Ld-600s Build-in 3 Way Finger Touch Dimmer On/off Switch Us/eu

Ld-600s Build-in 3 Way Finger Touch Dimmer On/off Switch Us/eu Description

Specification:

Model: LD-600S

Rated current: 0.3A\/0.8A

US Type: 120V,60Hz

Input: 220~240V ac, 50\/60Hz, 0.8A

Output: 25~150W Incandescent Lamps \/ Tungslen Filament Lamp

EU Output: 3-25W LED Driver \/ LED light \/ LED Bulb

TypeUS\/EU

Switch Type: 3 way touch dimming dimming\/ON OFF

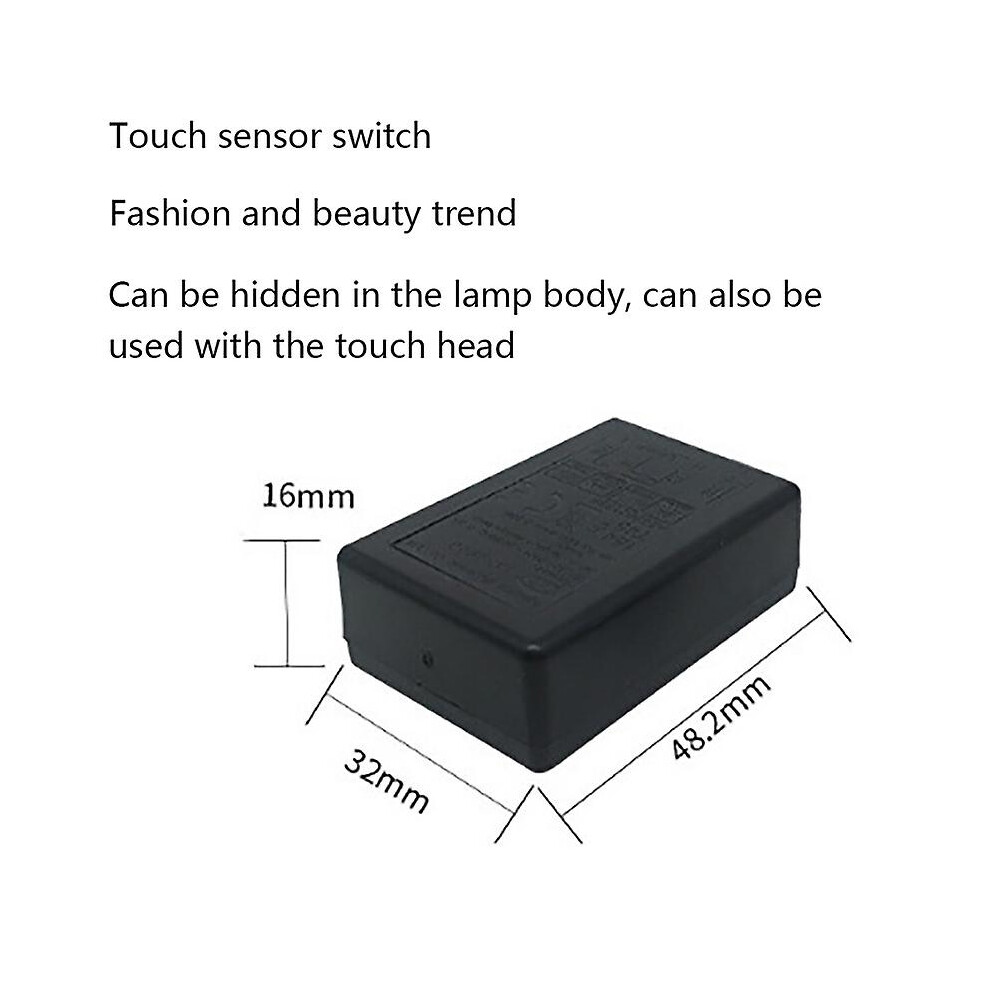

Size48.2*32*16mm

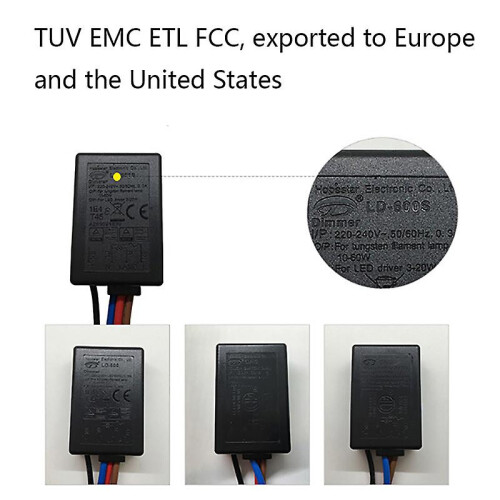

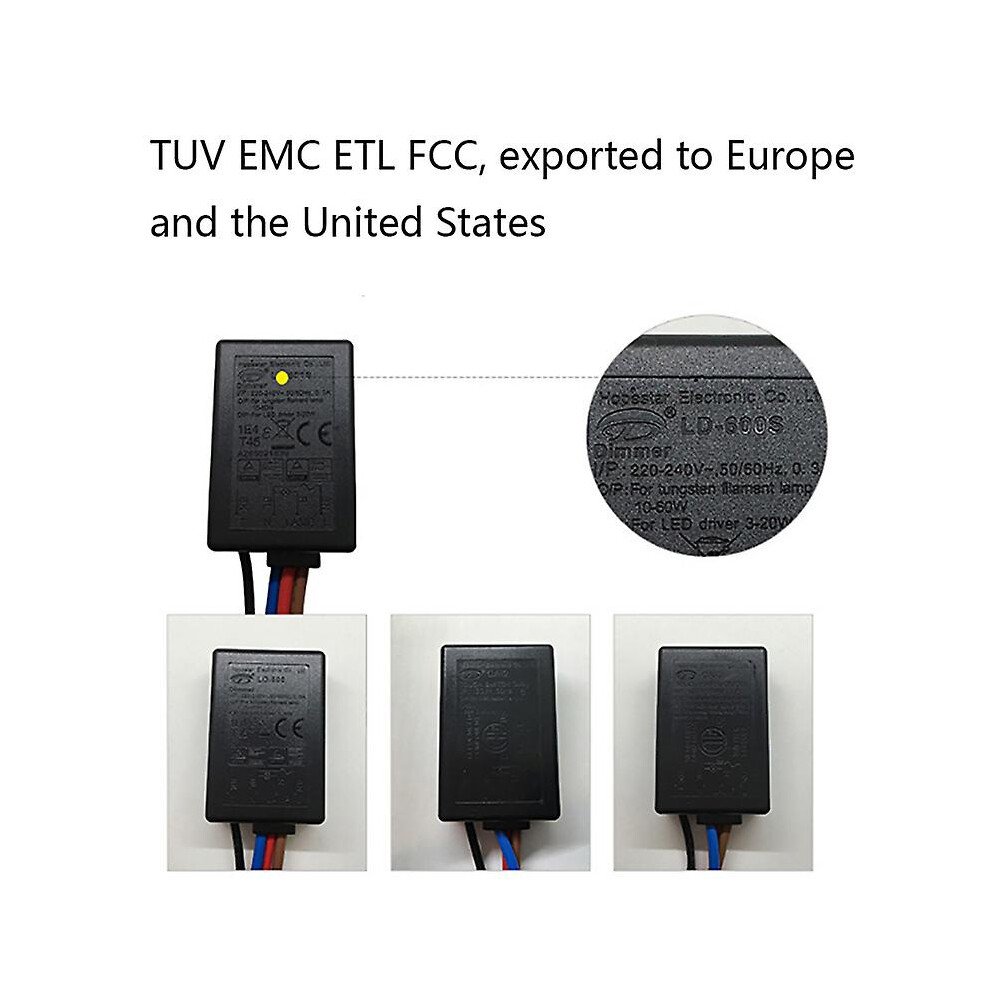

Approval: TUV\/EMC\/CE\/SAA

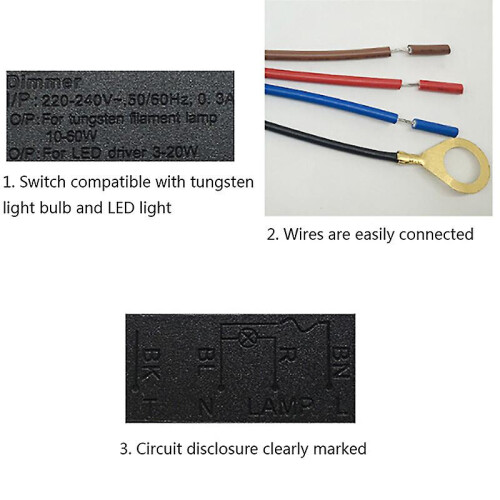

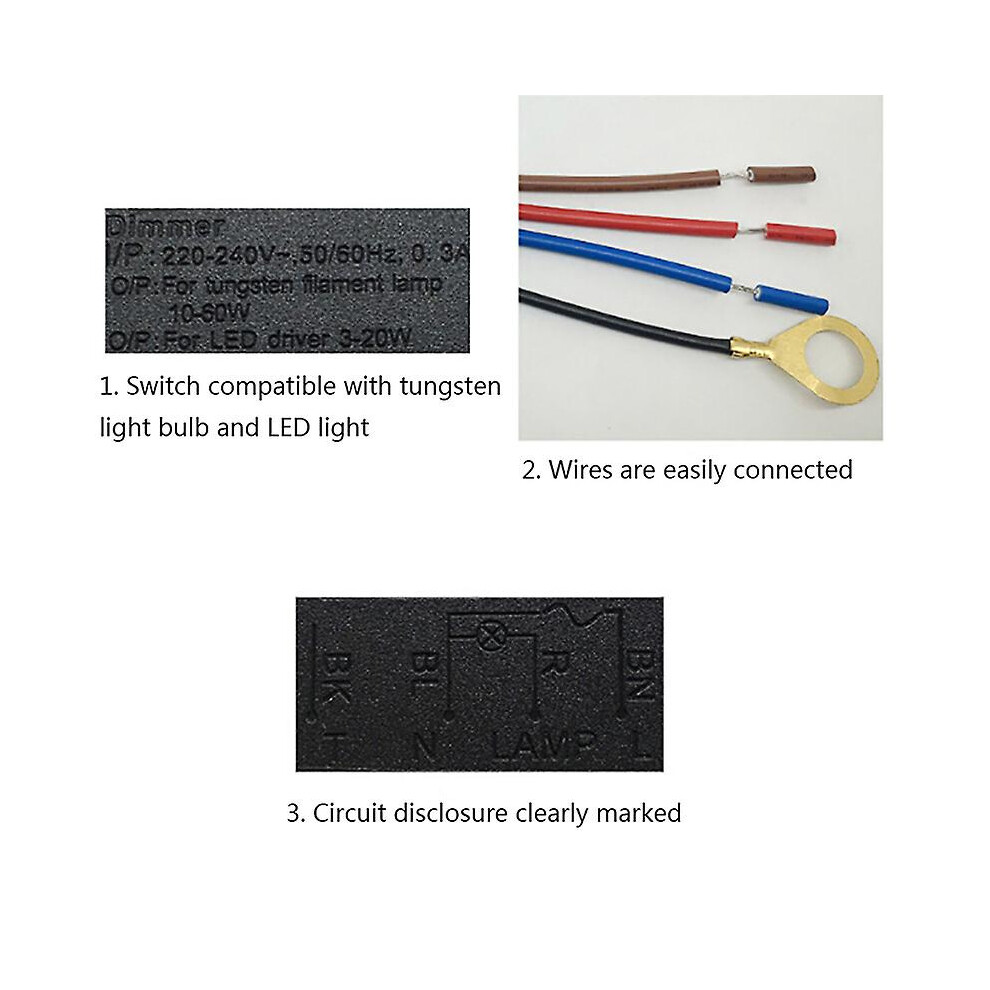

Touch switch connection:

Black with wire eared conductor

Red line connects one of the light bulbs

Brown wire connector wire L pole

The blue line is a common line, and the other line of the bulb and the plug line N pole are connected.

A Small transparent touch switch head:

White line: light line (the foot line on the board)

Long foot: positive (white line on the board)

Short foot: negative (black line on the board)

B Plastic touch switch head:

Middle foot: touch the foot

+: positive

-:negative electrode

Package included1 x Switch touch

Note:

1.Under the influence of light and the display, the color difference may decrease slightly.

2.Due to manual measurement, please allow size differences about 1-3cm. Thank you for your understanding
