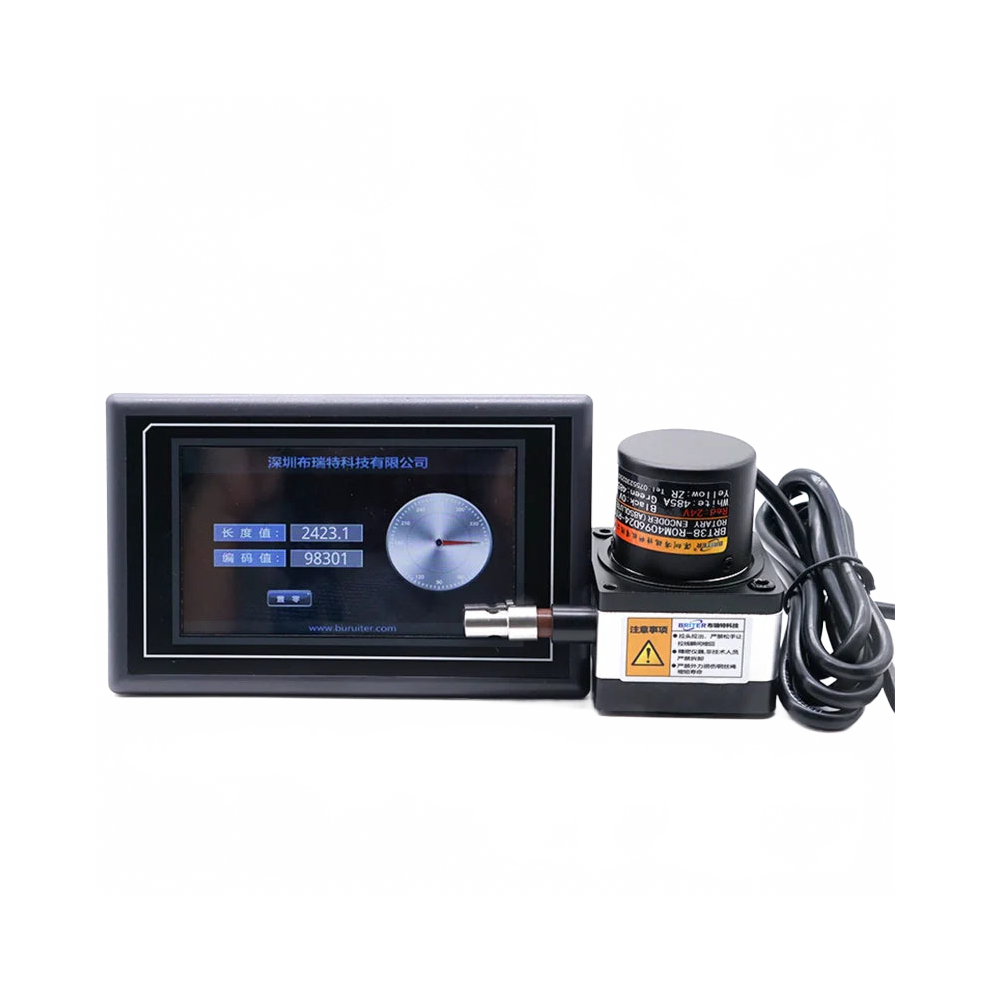

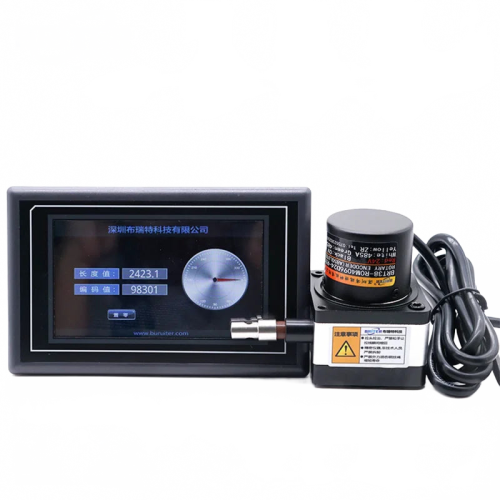

Linear Displacement Position Sensor with Digital Display - 0-10m Draw Wire Encoder Transducer

Linear Displacement Position Sensor with Digital Display - 0-10m Draw Wire Encoder Transducer Description

- High-precision linear displacement sensor with digital display, designed for accurate measurement over ranges from 0.5 meters to 10 meters. - Constructed with a durable aluminum alloy housing for enhanced robustness and longevity. - Features a stainless steel wire with nylon coating, ensuring reliability in demanding environments. - Operates on an input voltage of 5V to 30V, supporting versatile power options. - Supports multiple communication interfaces including RS485, Biss, CANbus, CANopen, SSI, 4-20mA, 0-10V, and 0-5V for flexible system integration. - Certified compliant with RoHS, EMC, CE, and other relevant standards, ensuring safety and regulatory adherence. - IP68 rated for protection against dust and water ingress, suitable for harsh conditions. - Wide operating temperature range from -40C to +85C, enabling use in diverse environments. - Features a linearity of 0.5% full scale (FS) and a repeatability of 0.3% FS for precise and consistent measurements. - Typical rope breaking force of approximately 330 N, ensuring durability under load. - Maximum wire pull-out speed of 1 meter per second for efficient operation. - Long lifespan of around 500,000 cycles at 25C, ideal for long-term applications. - Can be connected via male connector or cable, with a pull-out force requirement of 2N to 3N for secure installation. - Suitable for various industrial and automation applications requiring reliable displacement measurement. - For more information, visit www.briterencoder.com or contact [email protected]. Specifications & Features: - Measurement Range: 0.5m to 10m - Housing Material: Aluminum alloy - Wire Material: Stainless steel with nylon coating - Power Supply: 5V - 30V - Communication Interfaces: RS485, Biss, CANbus, CANopen, SSI, 4-20mA, 0-10V, 0-5V - Certification: RoHS, EMC, CE - Protection Rating: IP68 - Operating Temperature: -40C to +85C - Linearity: 0.5% FS - Repeatability: 0.3% FS - Rope Breaking Force: ~330 N - Max Wire Pull-out Speed: 1 m/s - Cycle Life: ~500,000 cycles at 25C - Connection Options: Male connector or cable - Pull-out Force: 2N to 3N
