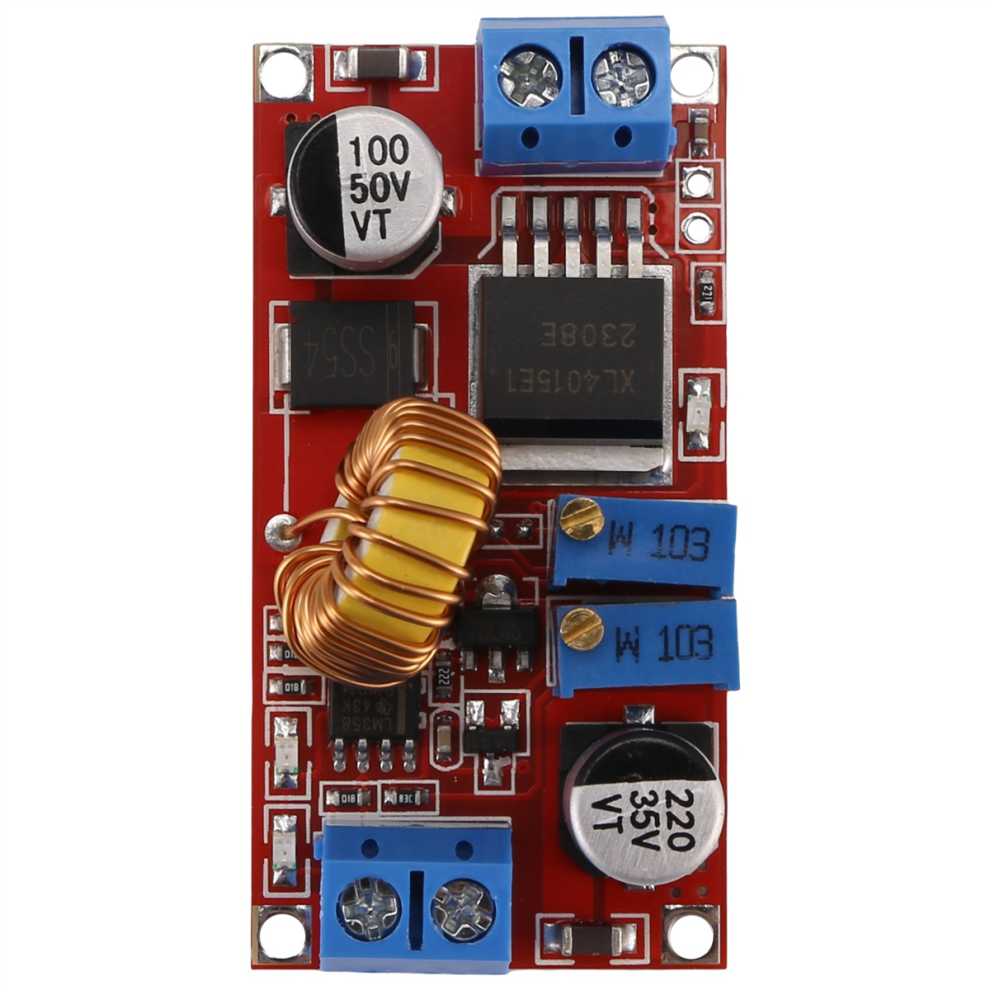

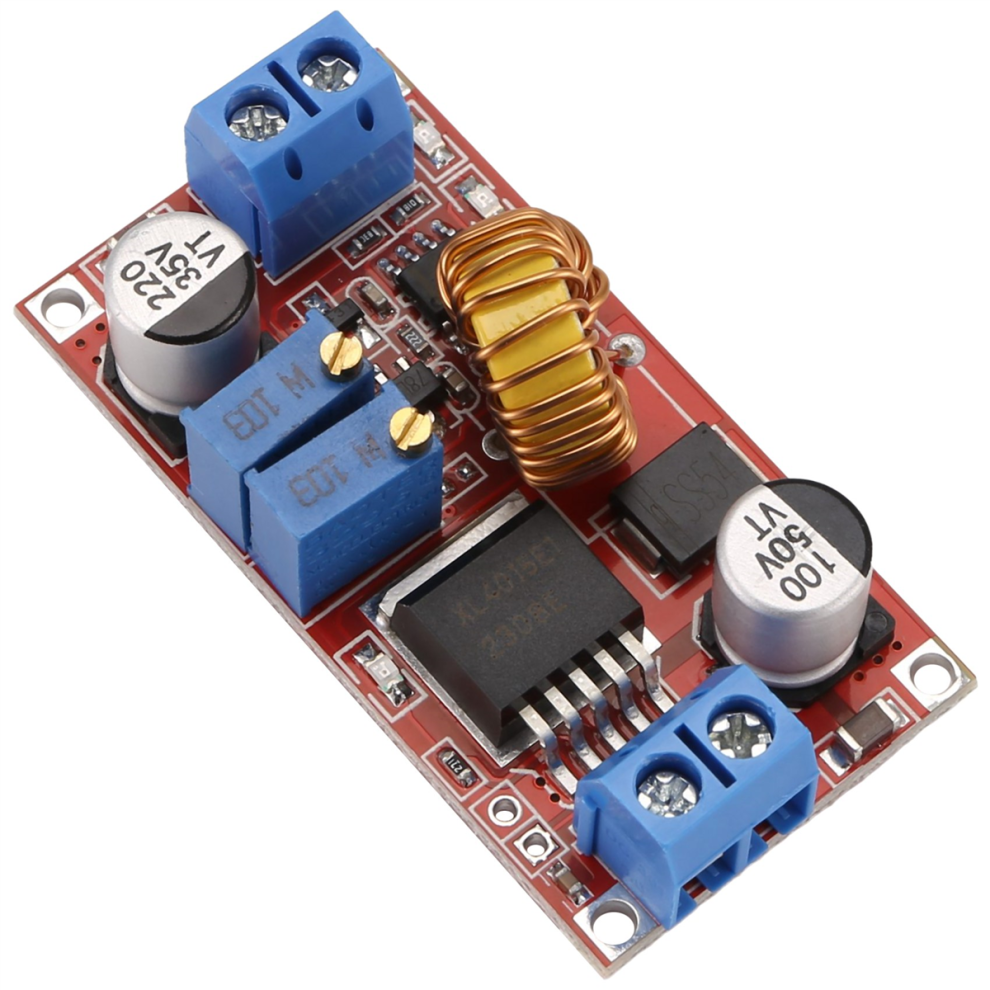

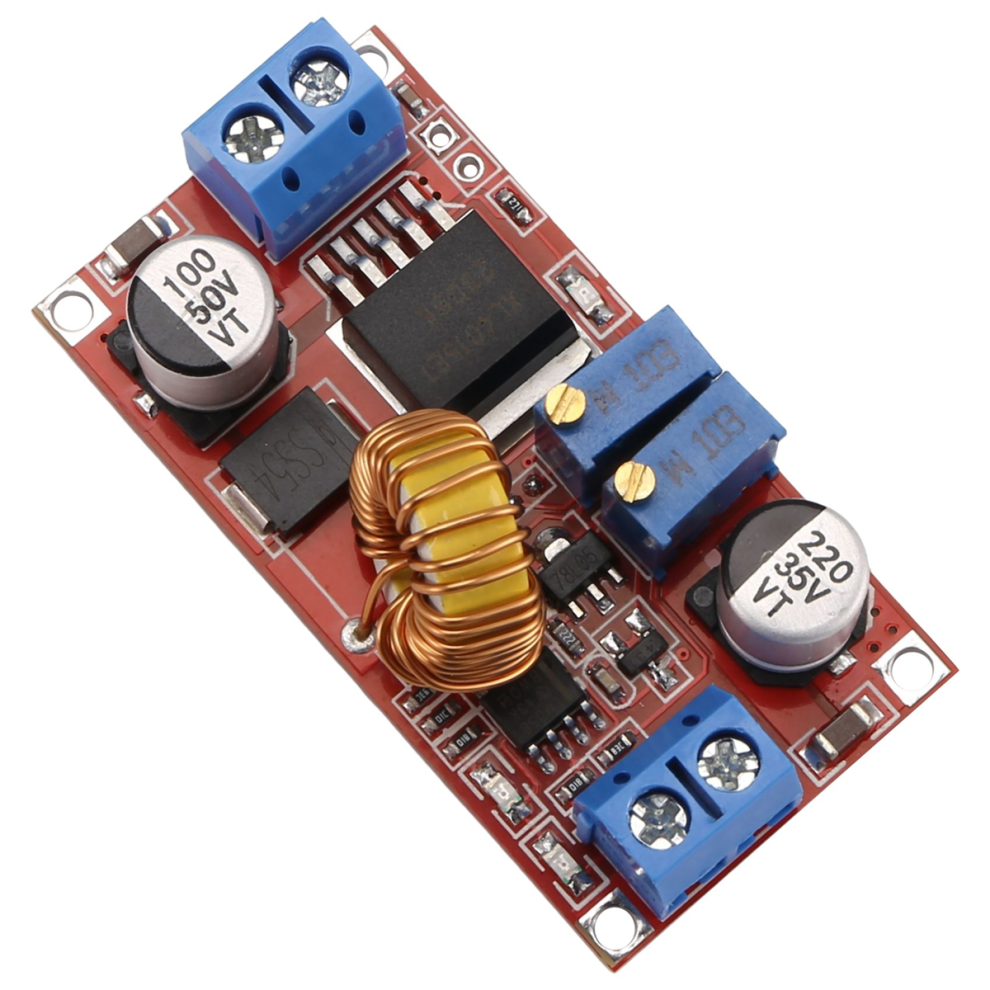

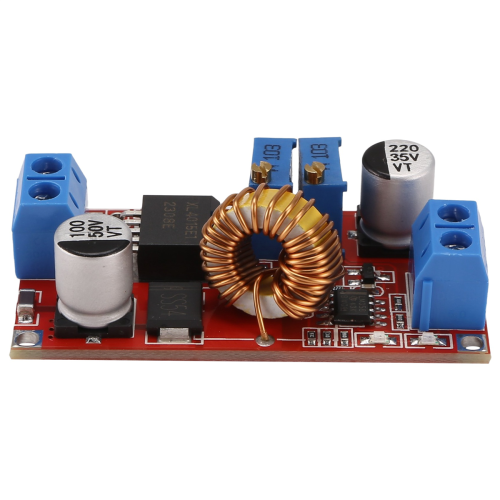

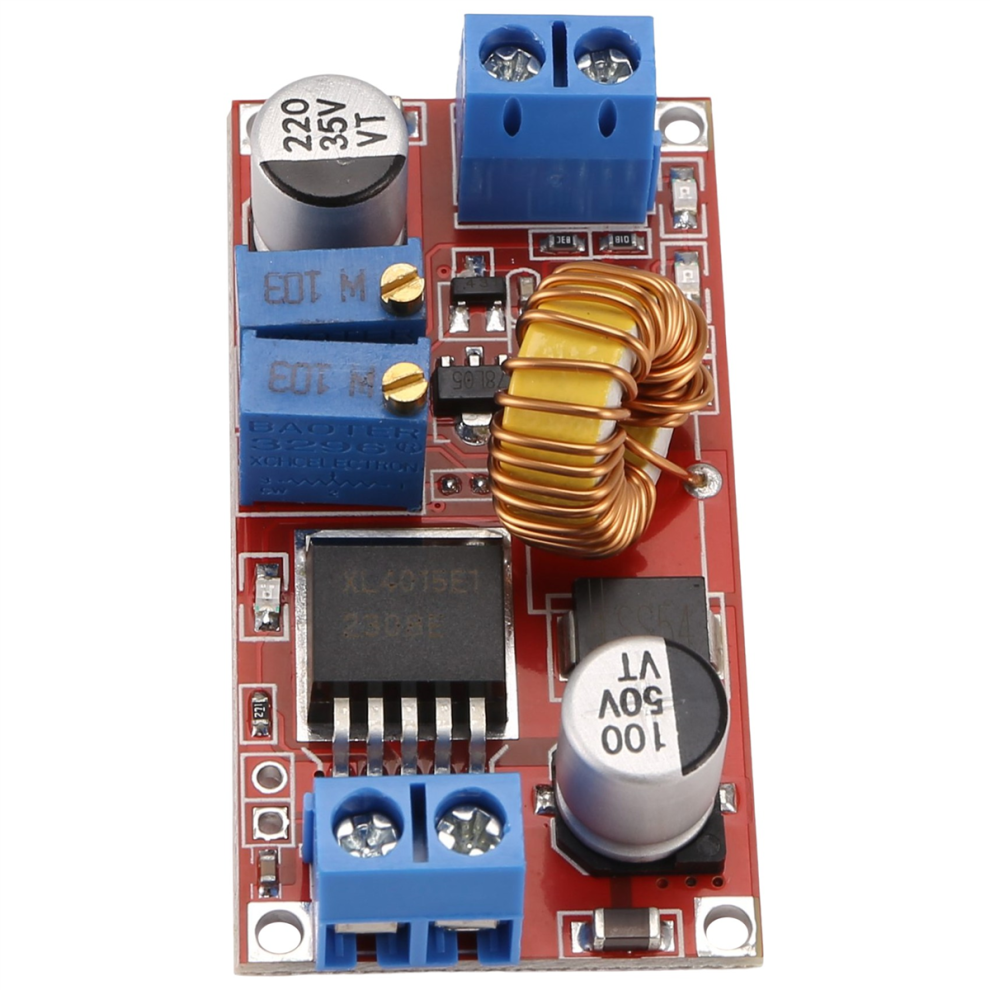

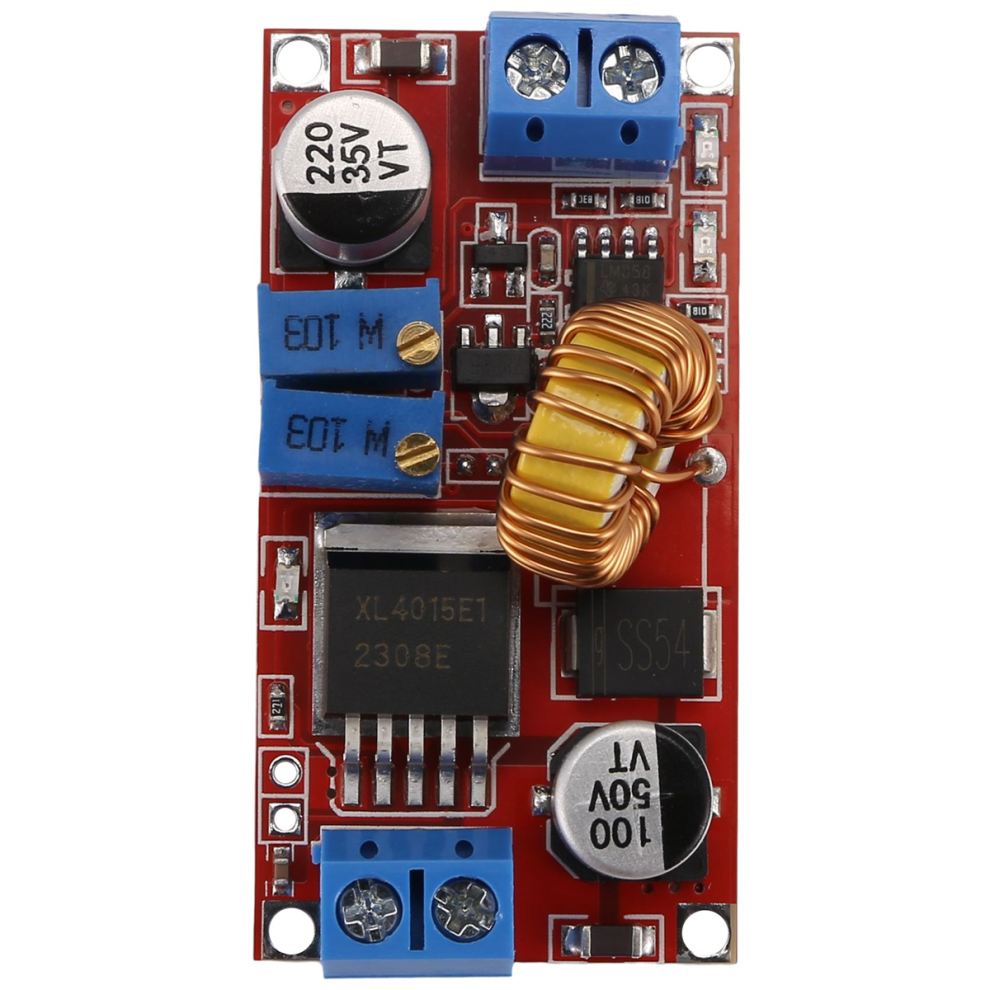

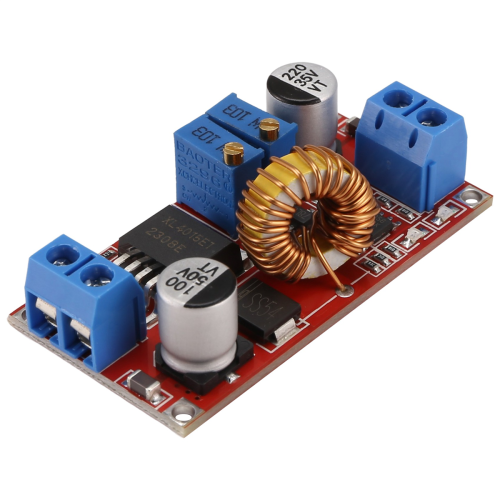

Lithium Battery Charger Module Driver Step Converter Board Constant

Lithium Battery Charger Module Driver Step Converter Board Constant Description

1. High power, high efficiency, 5A, low ripple;2. Triple:(1) Use as a normal blood pressure modules with overcurrent protection capability;(2) As the voltage lithium batteries, batteries, nickel-cadmium nickel-metal hydride batteries (battery) charger for solar panels, wind turbines and other occasions;(3) Used as a high-power LED constant current drive module;
3. With constant pressure and constant current modes, there are light indicates which mode is currently in module;4. When used as a lithium battery charger, you can set the float voltage and the charge current size, there is light indicates is being or has been filled;
5. Has the current limit protection, output short circuit even if it not burn module.
6. This module uses machine placement, reflow soldering, and each module shipments have been two hours before the aging tests to high reliability.
Overtemperature protection: (automatically shut off the output after overtemperature)，Input reverse polarity protection: None, (if necessary, please enter into the high current diode)
Type:Voltage Regulator
Condition:New
Input: IN + input positive, IN- input negative
Output way: OUT + output positive, OUT- output negative
Input voltage: 4-38V
Output voltage: 1.25-36V continuously adjustable
Output current: adjustable, maximum 5A
Output Power: 75W maximum
Working temperature: -40 to + 85 Celsius
Operating frequency: 180KHz
Conversion efficiency: up to 96%
Short circuit protection: Yes (limit current 8A)
Installation: four 3mm screws
colour:As shown
Material:Metal +pc
size:Module dimensions: 51 x 26 x 15mm (L x W x H)
Package Contents:
1*Module
Note: When you use this product, the module inputs and outputs to the ground and do not co-together, this cause the board power current sense resistor is bypassed, so that the module can not adjust the output current size, the case then load easy to burn power chip module.
Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
