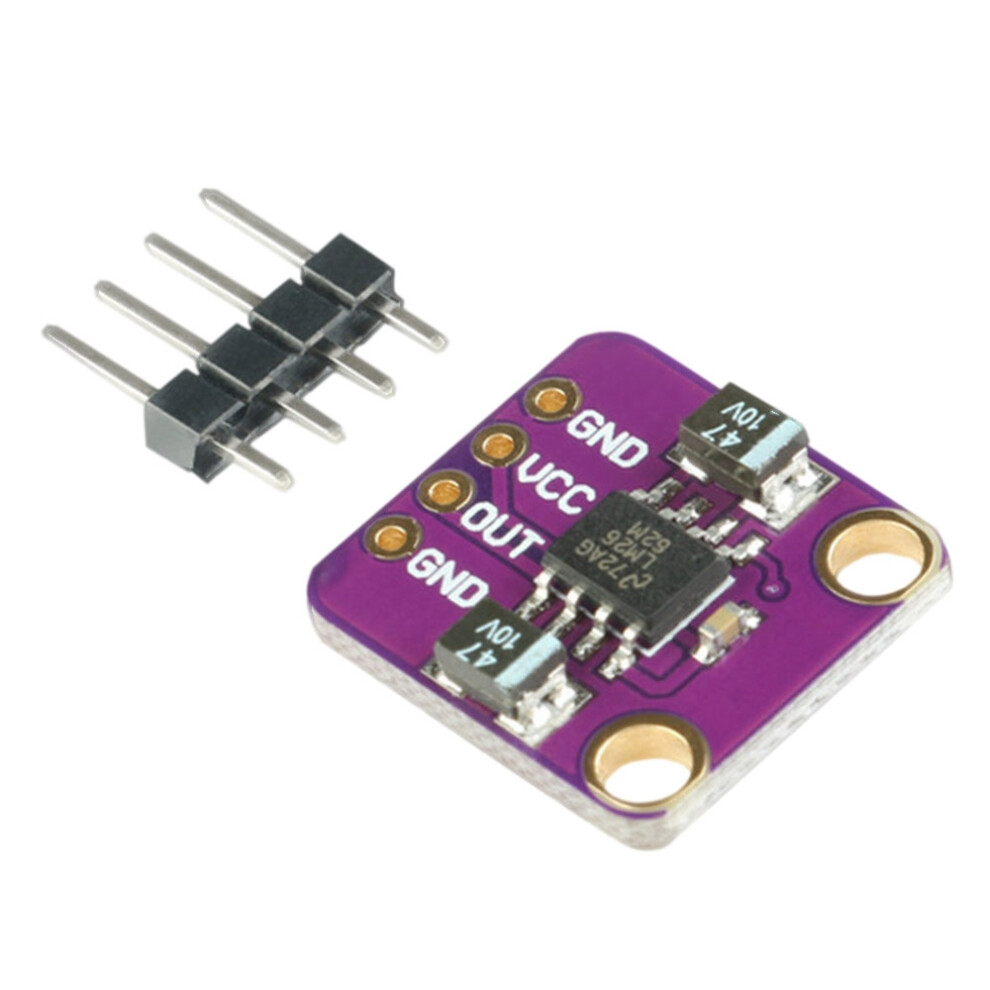

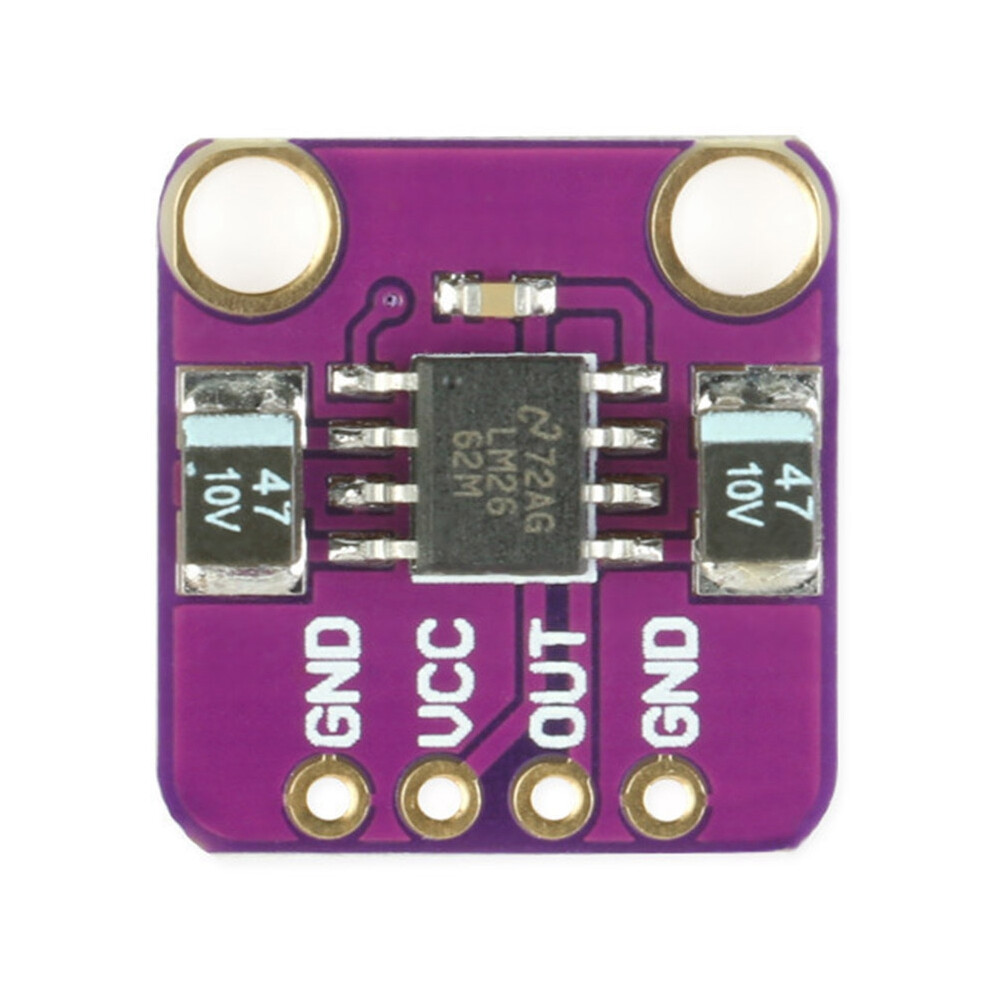

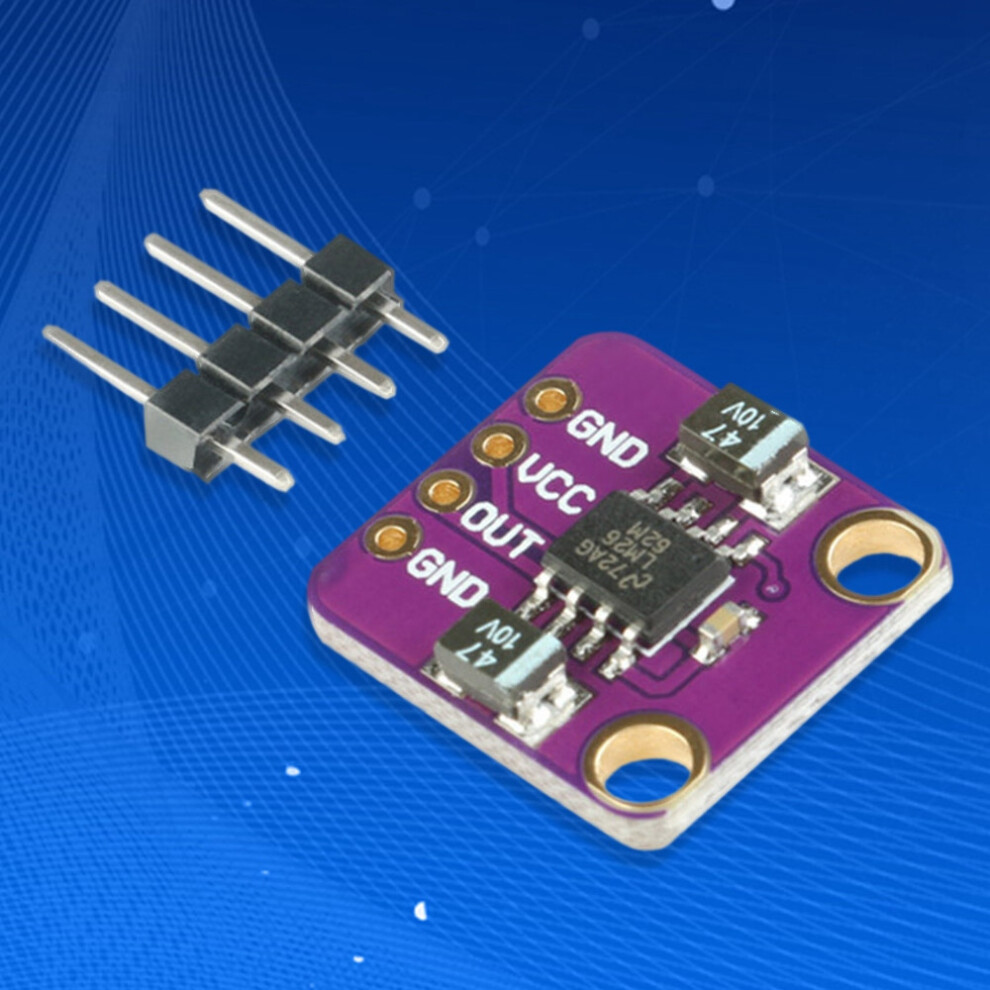

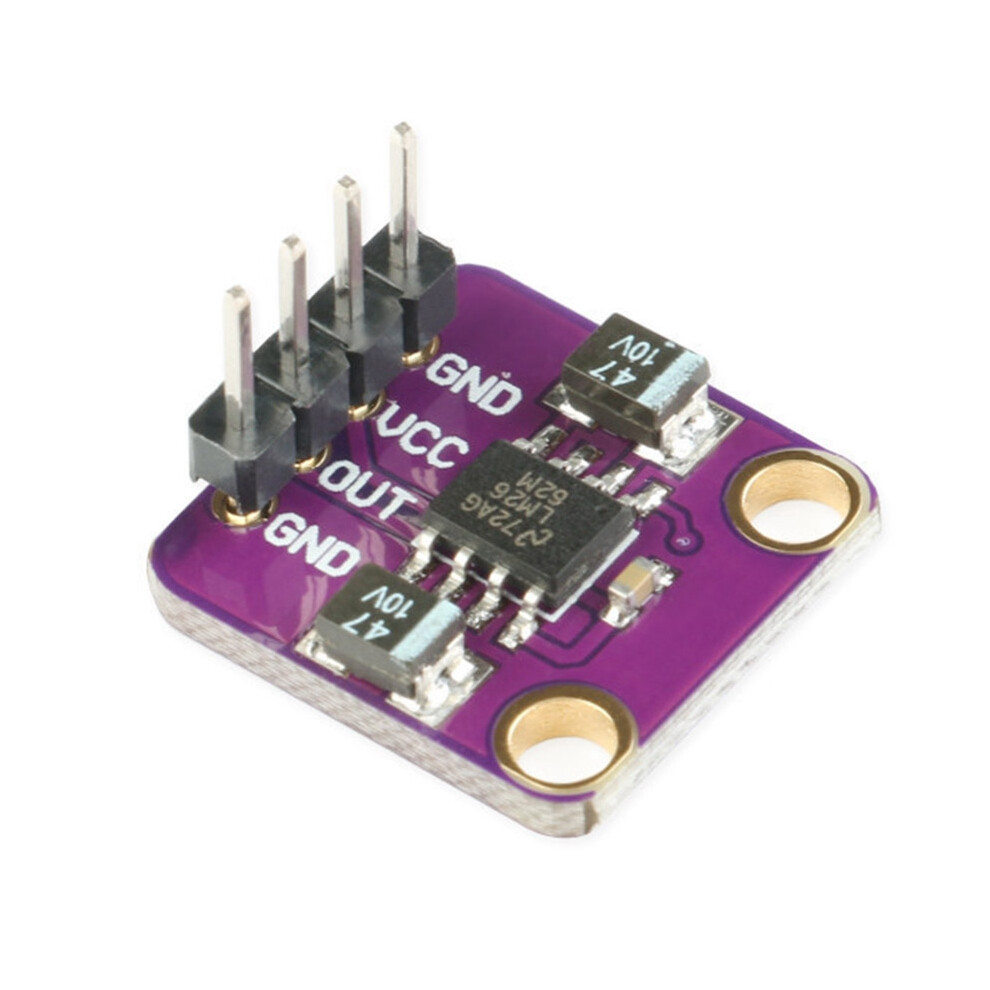

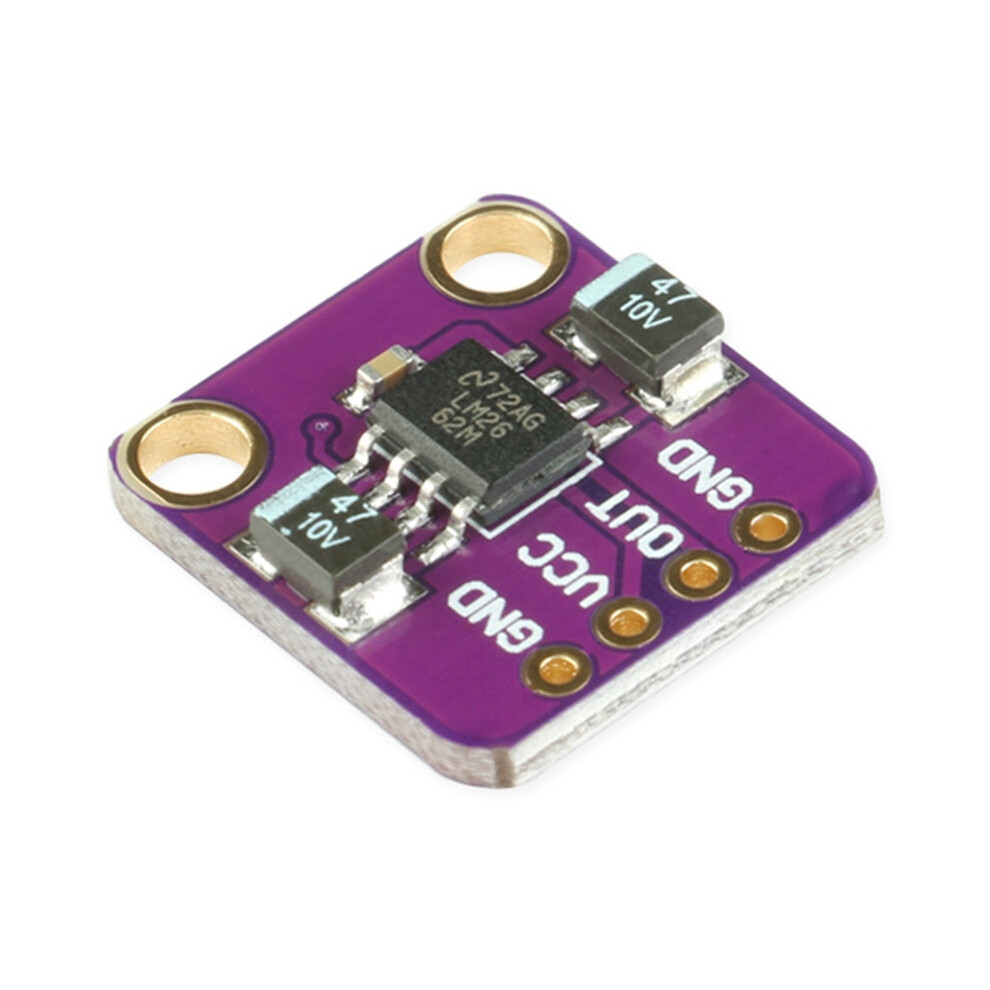

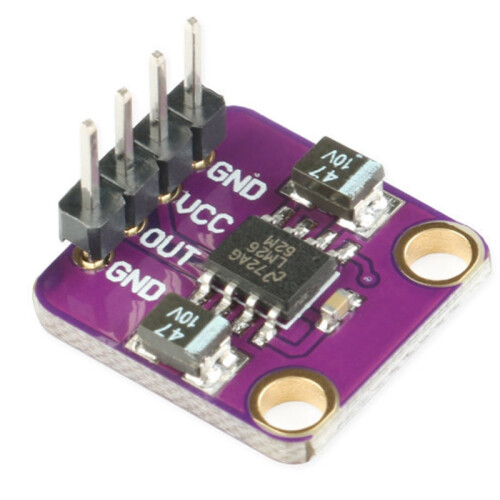

LM2662 Negative Voltage Module Converter Charge Pump Positive to Power Switch Capacitor

LM2662 Negative Voltage Module Converter Charge Pump Positive to Power Switch Capacitor Description

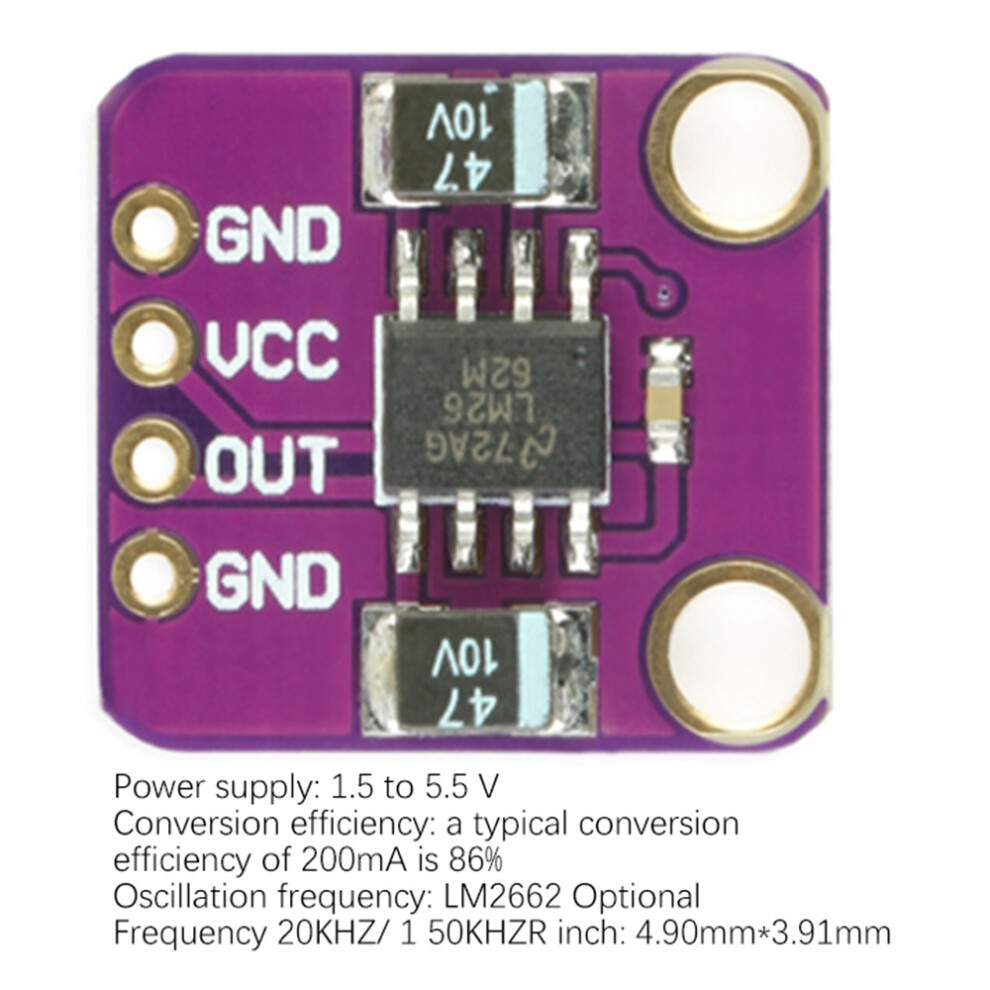

The CMOS charge pump voltage converter converts the positive voltage in the range of 1.5 to 5.5V into the corresponding negative voltage. LM2662 uses two small capacitors to provide an output current of 200mA, eliminating the associated cost of inductor-based converters. LM2662 can also be used as a positive voltage multiplier. By adding an external capacitor to the Os pin, the frequency of the oscillator can be reduced. In addition, the external clock of OSC can also be used to drive LM2662. For M2662, the frequency control (FC) pin selects the oscillator frequency of 20KHz or 150KHz. Application areas are in notebook computers, mobile phones, operational amplifier power supplies, interface power supplies, etc. Conversion efficiency: typical conversion efficiency of 200mA 86%. Oscillation frequency: 20KHz/150KHz Colour: Material: PCB Size: 4.90mmx3.91mm Package Contents: 1 * Negative Voltage Module Only the above package content, other products are not included. Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
