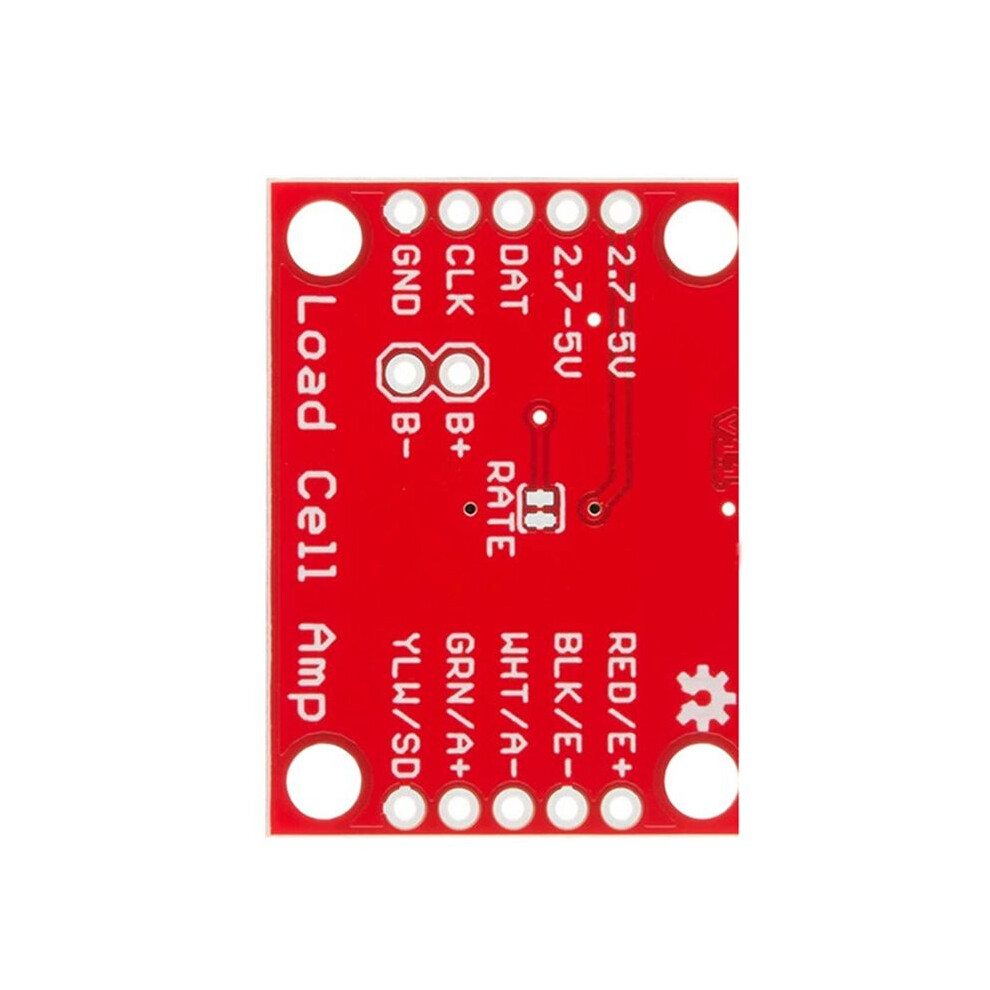

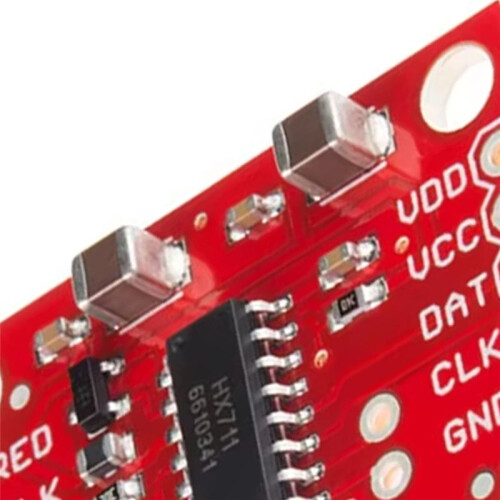

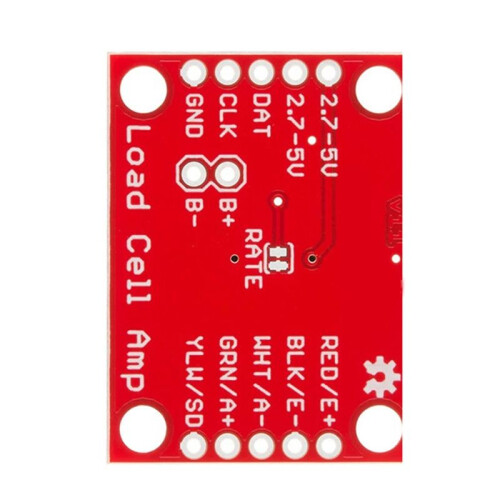

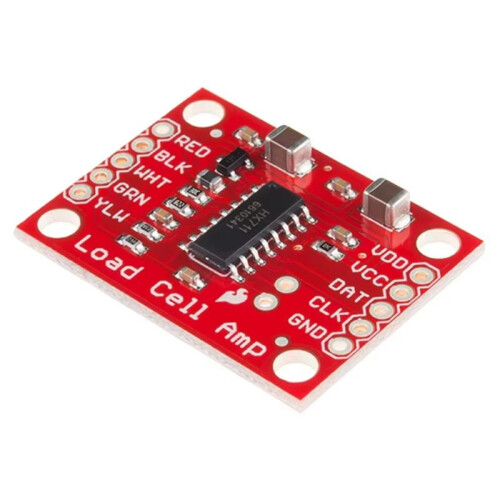

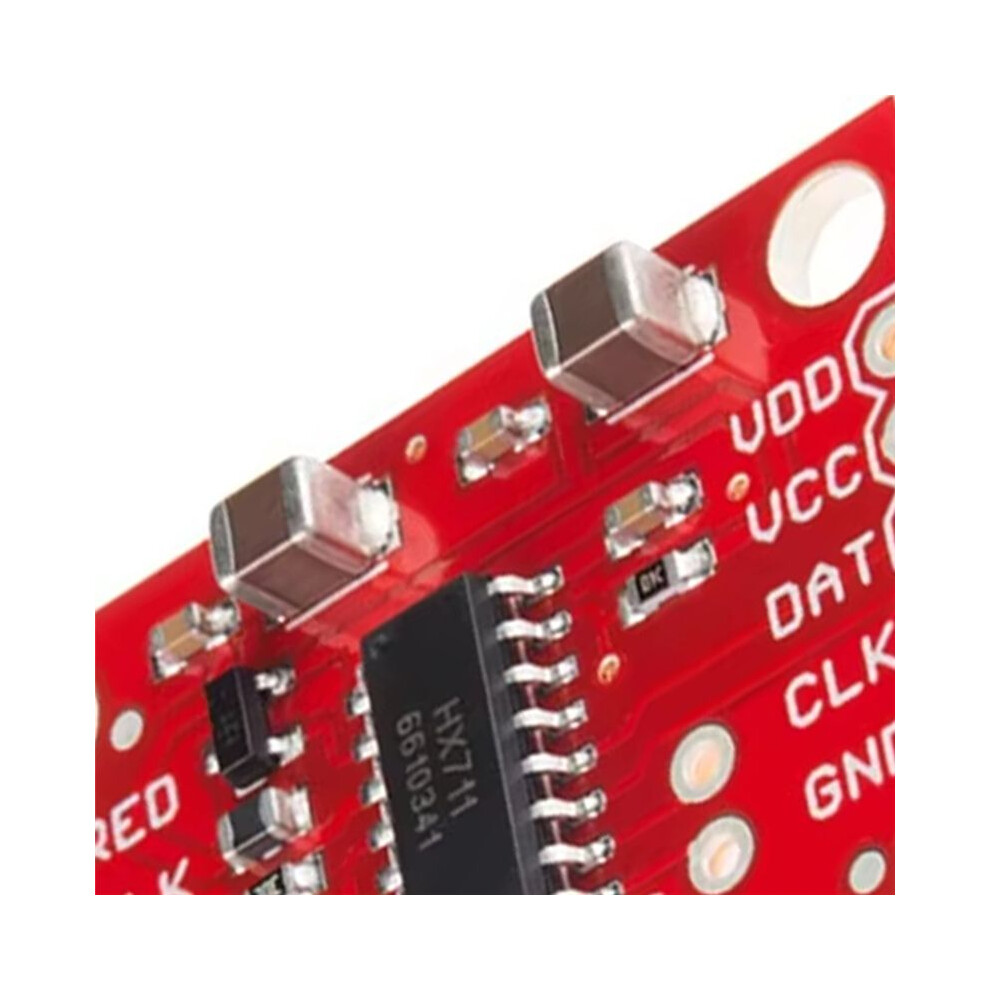

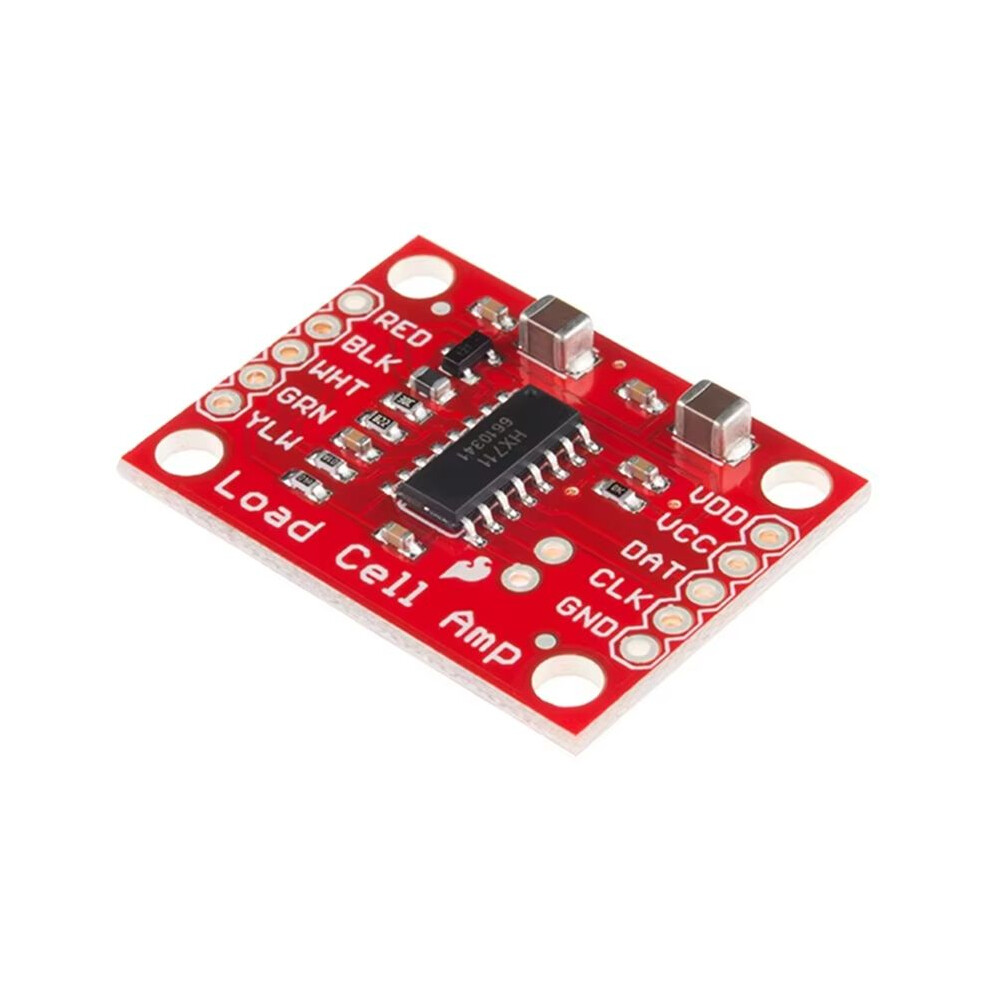

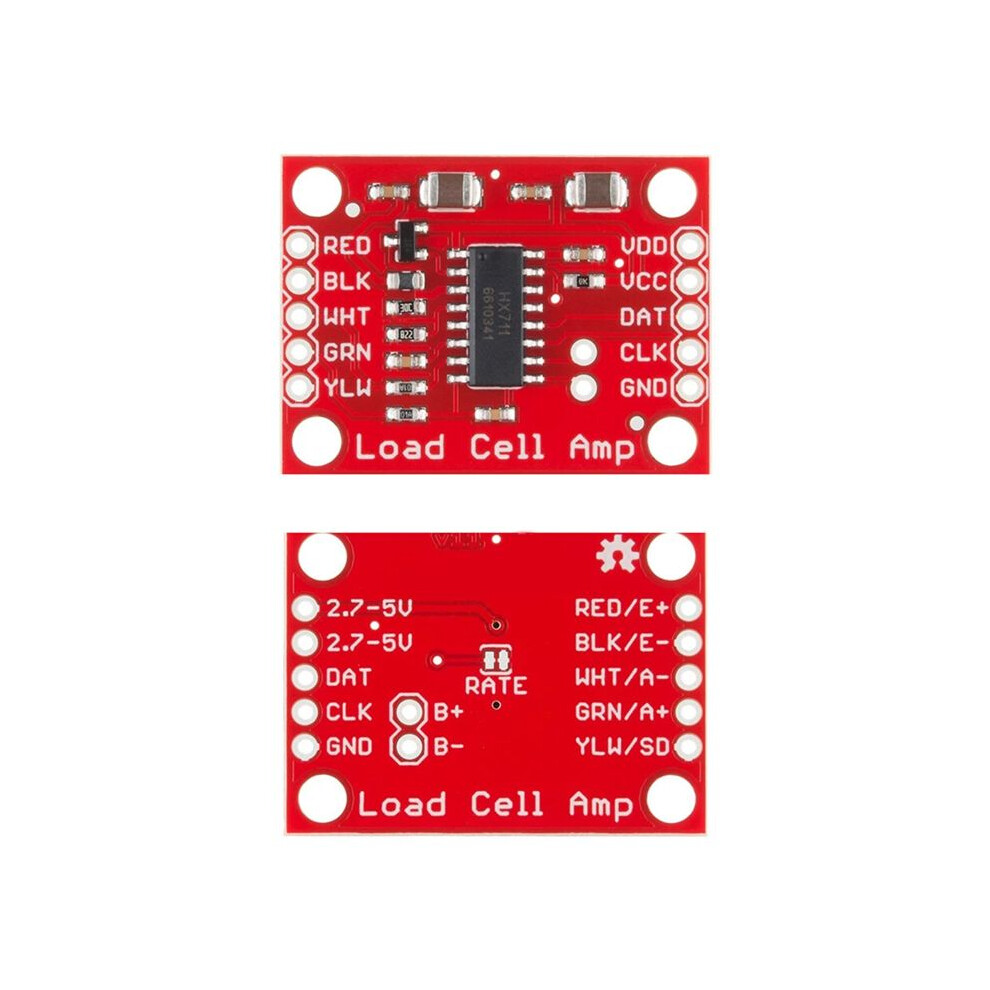

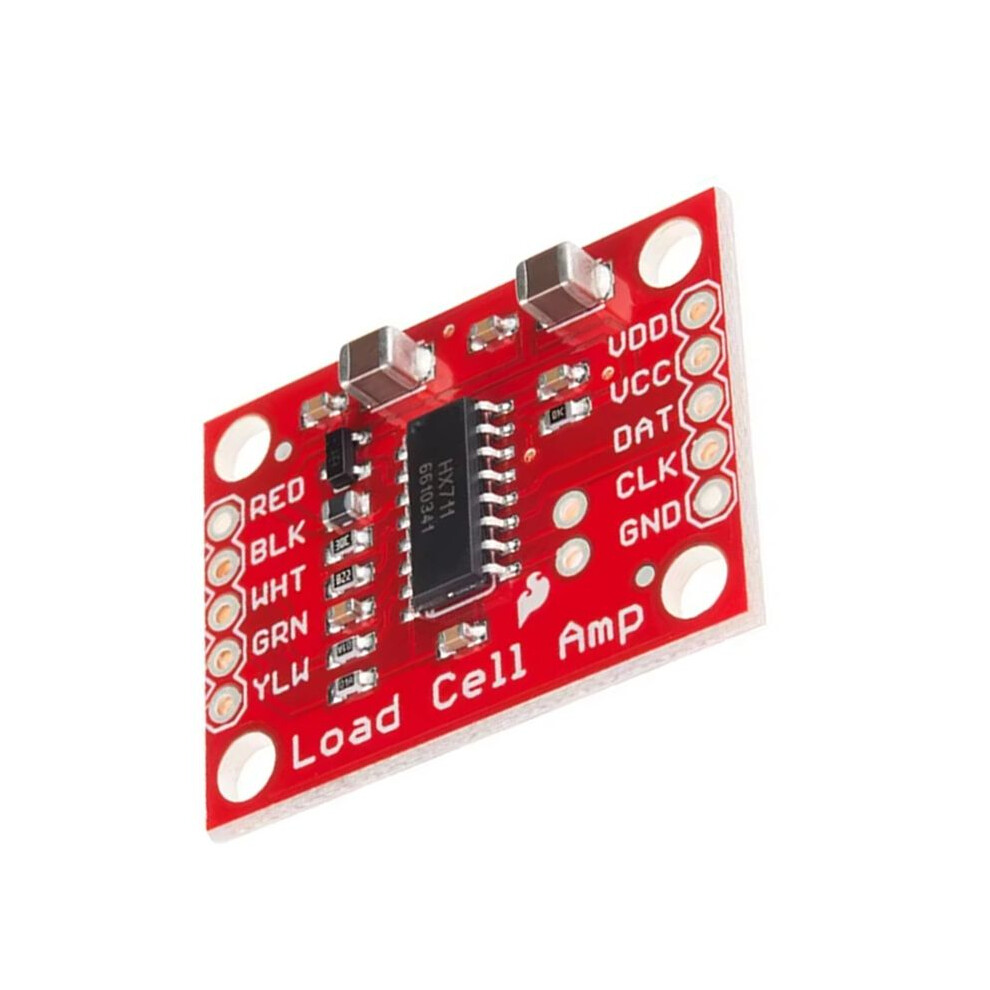

Load Cell Amplifier - HX711 SEN-13879 Module
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 128,000 Trustpilot reviews and an 'Excellent' rating
Interest-free payment options available
See full product description & details
Delivery: Standard (€3.00) | Mon 20th - Sat 25th Jul
Returns: 30 days
180-day payment protection
Description & Details
Summary
- The weighing sensor is connected to HX711 using a four wire Wheatstone bridge configuration. These are usually colored RED, BLK, WHT, GRN, and YLW. Each color corresponds to the conventional color code of the weighing sensor: Red (motivation+or VCC)
- Black (excitation or GND)
- White (amplifier+, signal+or output+)
- Green (A -, S -, or O -)
- Yellow (blocked)
Load Cell Amplifier - HX711 SEN-13879 Module Description
The weighing sensor is connected to HX711 using a four wire Wheatstone bridge configuration. These are usually colored RED, BLK, WHT, GRN, and YLW. Each color corresponds to the conventional color code of the weighing sensor: Red (motivation+or VCC)
Black (excitation or GND)
White (amplifier+, signal+or output+)
Green (A -, S -, or O -)
Yellow (blocked)
The YLW pin is used as an optional input and is not connected to a strain gauge, but is used for grounding and shielding against external EMI (electromagnetic interference). Please note that some force sensors may have slight variations in color coding.
Working voltage: 2.7V-5V
Working current: Less than 1.5mA
You can choose 10SPS or 80SPS output data rate
Simultaneously provide 50 and 60Hz power suppression
Color: Red
Material: PCB
Package Contents:
1 * module
Details
| OPC | PPNQNHF |
|---|---|
| Codes | 4713499627639 (EAN) |
| Product and Safety Information |
Product Data
| Height | 2cm |
|---|---|
| Width | 6cm |
| Length | 6cm |
| Weight | 0.02kg |
| Colour | Red |
| Material | PCB |
