LP-1 Logic Probe High Frequency Response DTL CMOS Pulse Memory Logic Tester Plastic LP-1 L Ogic Tester Electrical Instruments

LP-1 Logic Probe High Frequency Response DTL CMOS Pulse Memory Logic Tester Plastic LP-1 L Ogic Tester Electrical Instruments Description

High-concerned chemical : None

Origin : Mainland China

Features:

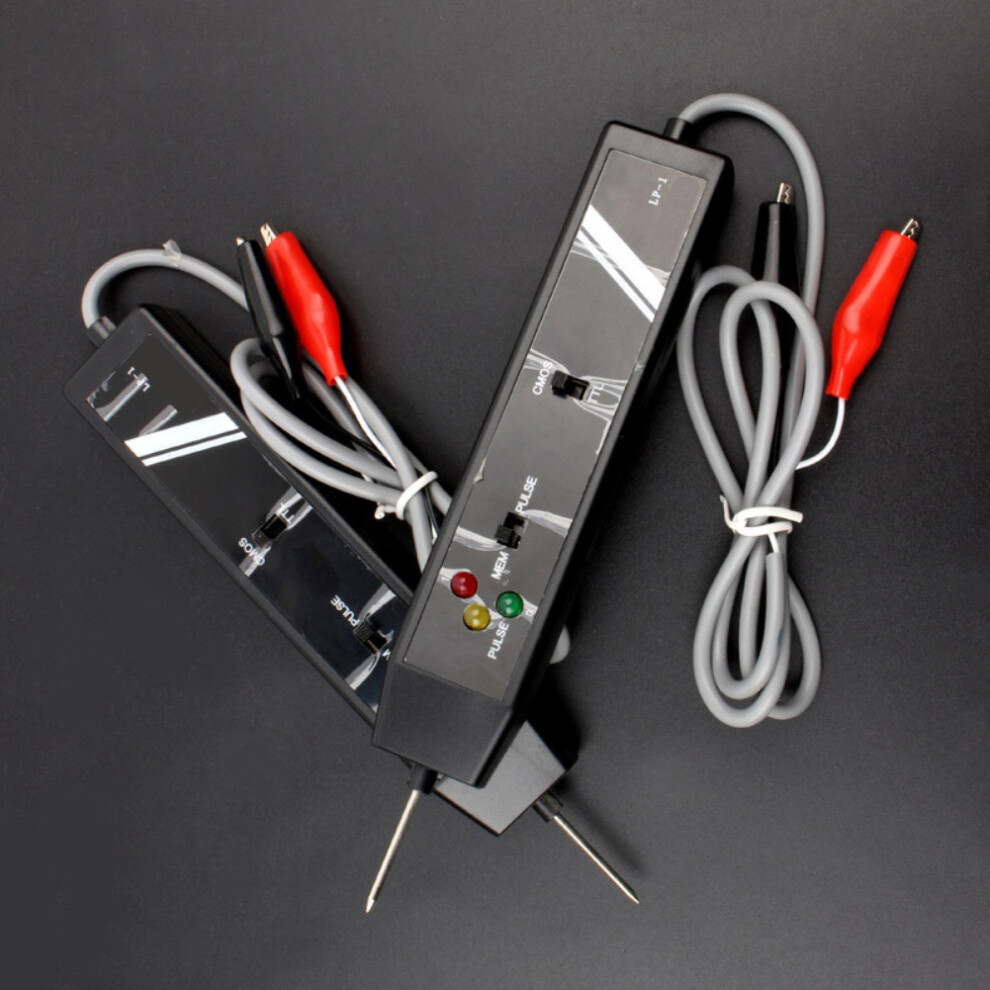

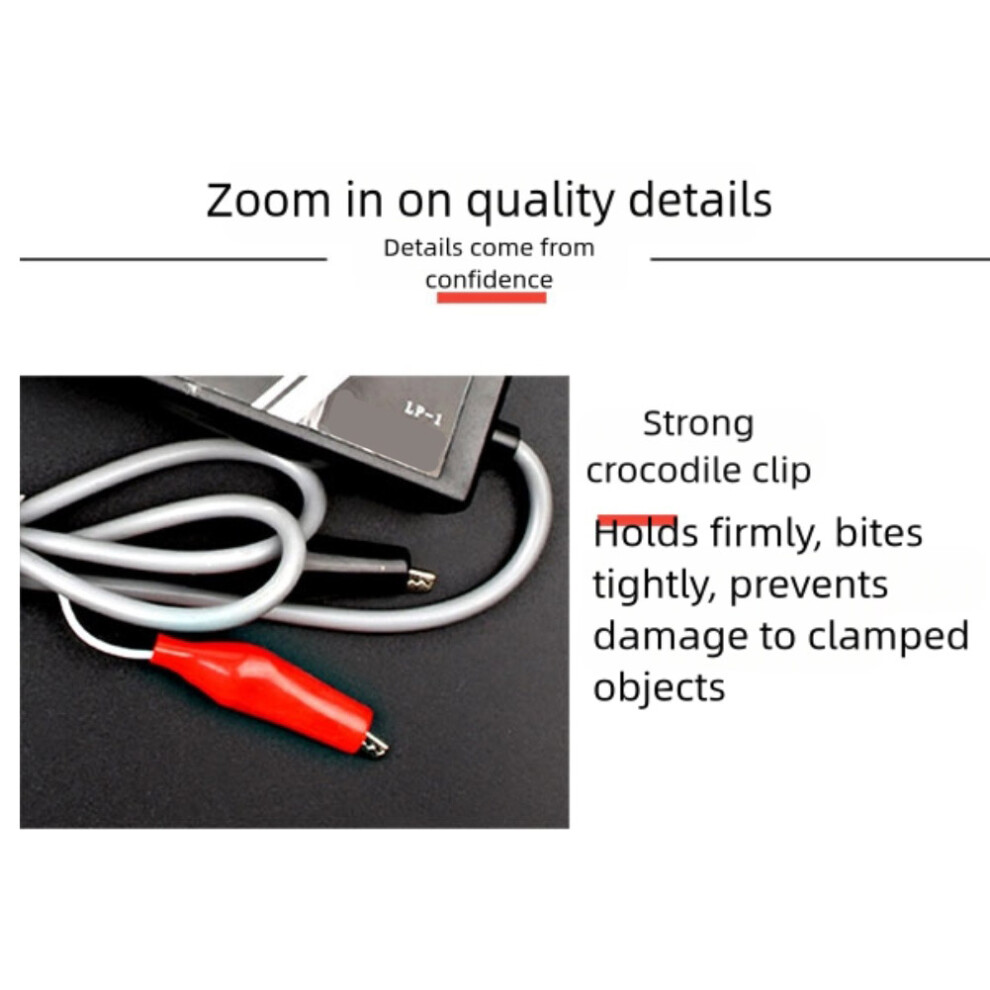

Connect the red clip to the terminal and the black clip to the power supply terminal of the circuit being tested. The power supply voltage should not exceed 18V DC.

For TTL and DTL, set the upper selector switch to the side marked "forTTL". For CMOS, set the upper selector switch to the side marked "CMOS".

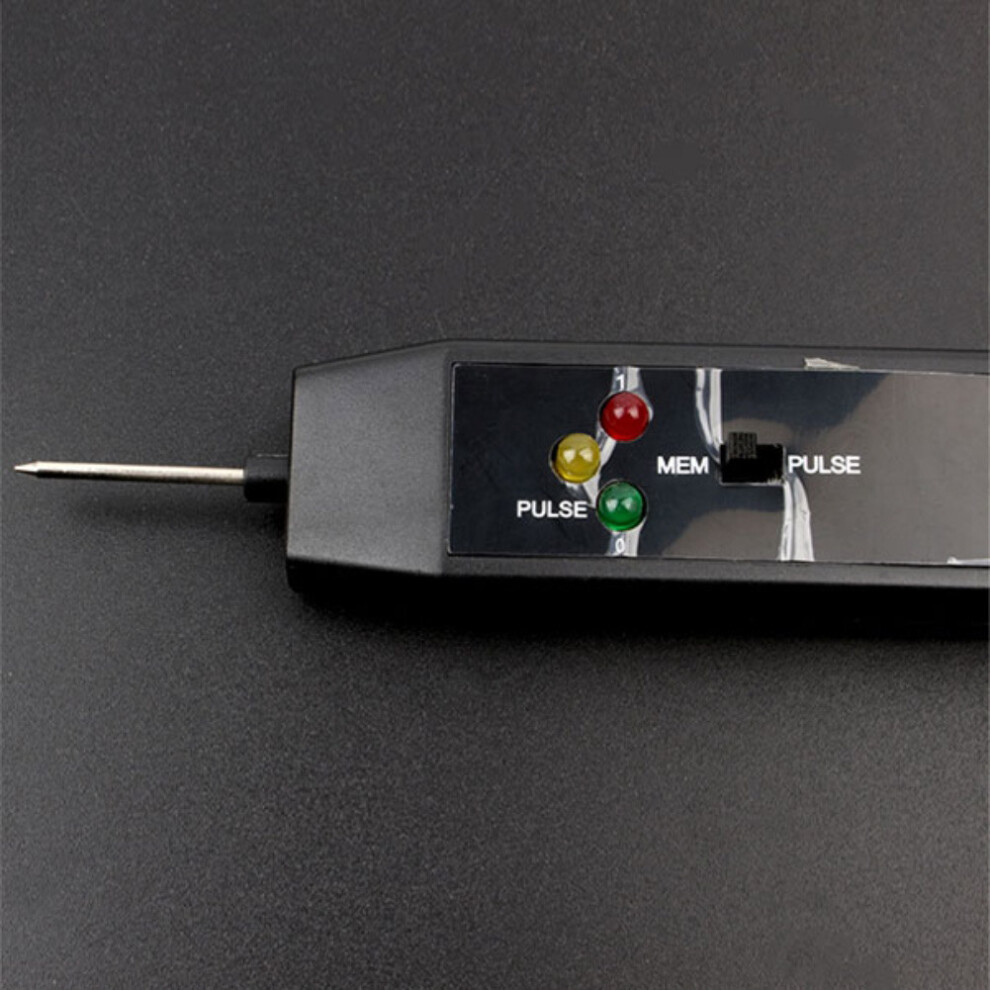

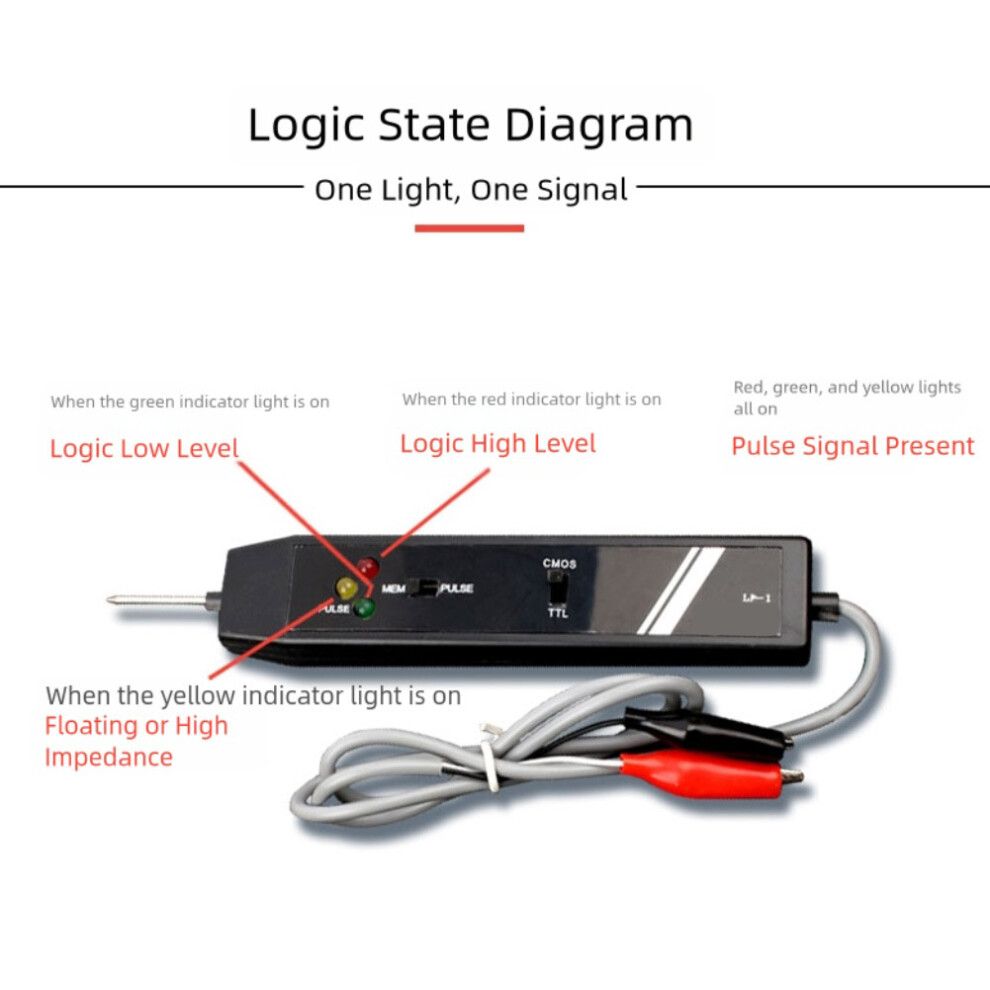

Touch the probe to the test point; the LEDs will indicate the logic state: A: All LEDs off --- High impedance B: Red LED on --- High state [1] C: Green LED on --- Low state [0] D: Orange LED on --- Pulse To detect and store pulses or level transitions, first set the lower selector switch to the side marked "PULSE".

Touch the probe to the test point. The LEDs will indicate the initial state. Then, set the lower selector switch to the side marked "MEM". The orange LED will light up when any pulse or level transition is detected. The pulse direction can be determined relative to the original initial state. After use, reset the logic probe by moving the lower selector switch back to the side marked "PULSE".

Specifications:

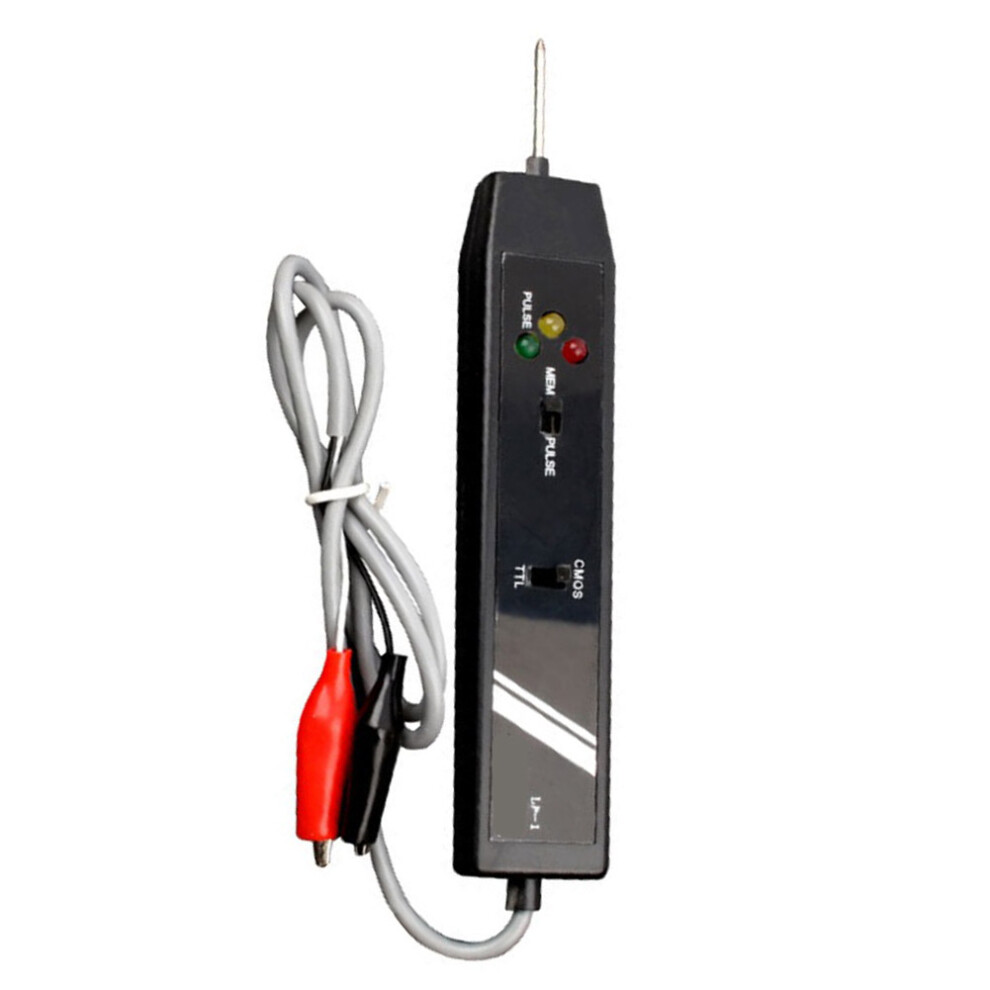

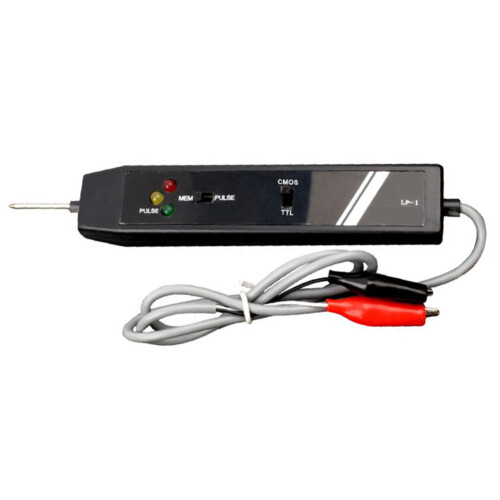

PartName: LP-1 Logic Tester

Size: As shown in the picture

Color: Gray

Material: Plastic

Package content:

1 * Circuit Probe

Note:

1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.

2. Please allow slight manual measurement deviation for the data.
