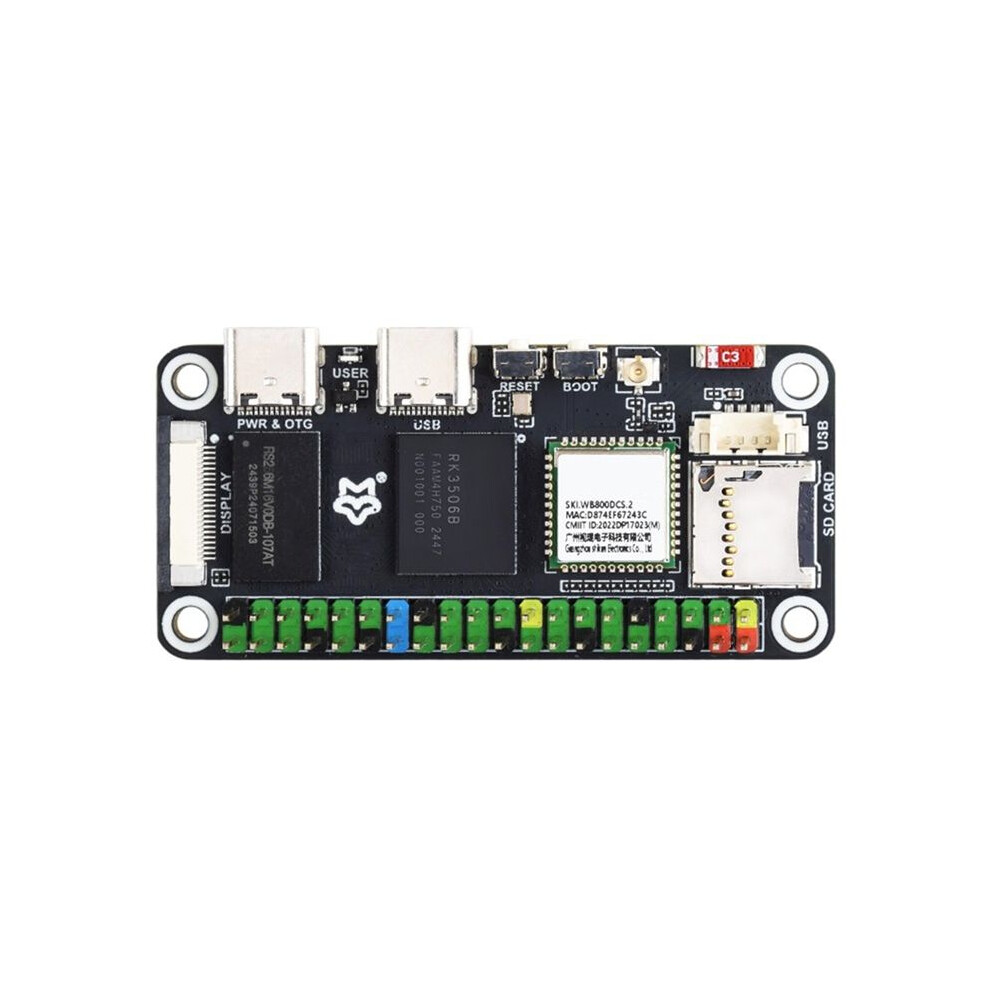

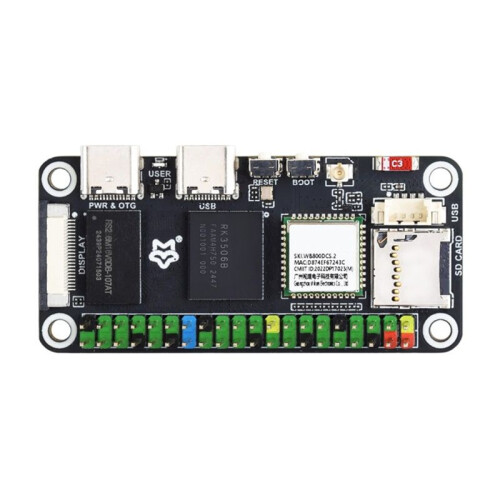

Luckfox Lyra Zero W Linux Development Board Based RK3506B Chip, Integrated with Triple-Core Arm Cortex-A7

Luckfox Lyra Zero W Linux Development Board Based RK3506B Chip, Integrated with Triple-Core Arm Cortex-A7 Description

Luckfox Lyra Zero W is a Linux development board powered by the Rockchip RK3506B to provide a simple and efficient development platform for developers.
Onboard multiple high-speed interfaces including MIPI , SDMMC, USB, etc. to meet various application scenarios.
The low-speed interfaces utilize Rockchip Matrix IO design which supports multiplexing 98 function signals GPIO pins, allows for flexible configuration of interfaces like PWM, UART, I2C, SPI, and I2S for quick development and debugging.
Integrated wireless communication module, suitable for IoT communication scenarios such as home and industrial control.
Triple-core ARM Cortex-A7 32-bit core, with integrated VFP to support single-precision and double-precision floating-point operations.

Built-in ARM Cortex-M0 MCU design, supports SMP and AMP configuration.
Supports DDR3L memory interface expansion, meeting various expansion needs.
The low-speed interfaces adopt Rockchip Matrix IO design, which allows rich function signals to share the limited chip pins, making peripheral circuit adaptation more flexible.
Supports multiple audio inputs and outputs, providing high-quality audio playback and recording functions.
Specifications:
Model: Luckfox Lyra Zero W
Processor: Triple-core Arm Cortex-A7 (1.2GHz) + Arm Cortex-M0
Memory: Onboard 512MB DDR3L
USB: USB OTG 2.0 x 1
HUB expanded: USB HOST 2.0 x 2
Display Interface: MIPI 2-
GPIO: 28 x Rockchip Matrix IO pins
Default Storage: SPI NAND FLASH (256MB)
Wireless communication: Onboard 2.4GHz Wi-Fi 6 / 5.2 / BLE
Color: Black
Material: PCB+Components

Package Contents:
1 x Development Board
