M5Stack Servo Kit 180 Degree Micro Servo 9g SG90 Servo UIFlow Helicopters Drones Airplane

M5Stack Servo Kit 180 Degree Micro Servo 9g SG90 Servo UIFlow Helicopters Drones Airplane Description

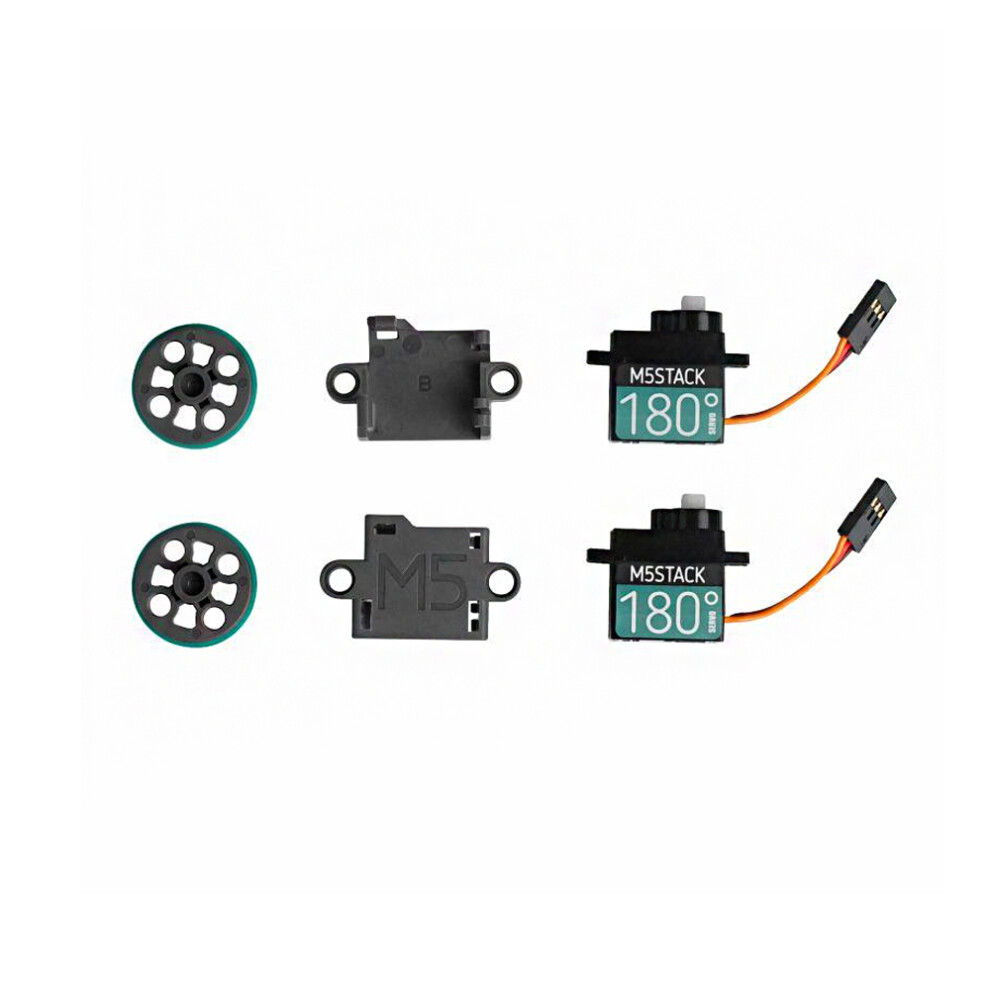

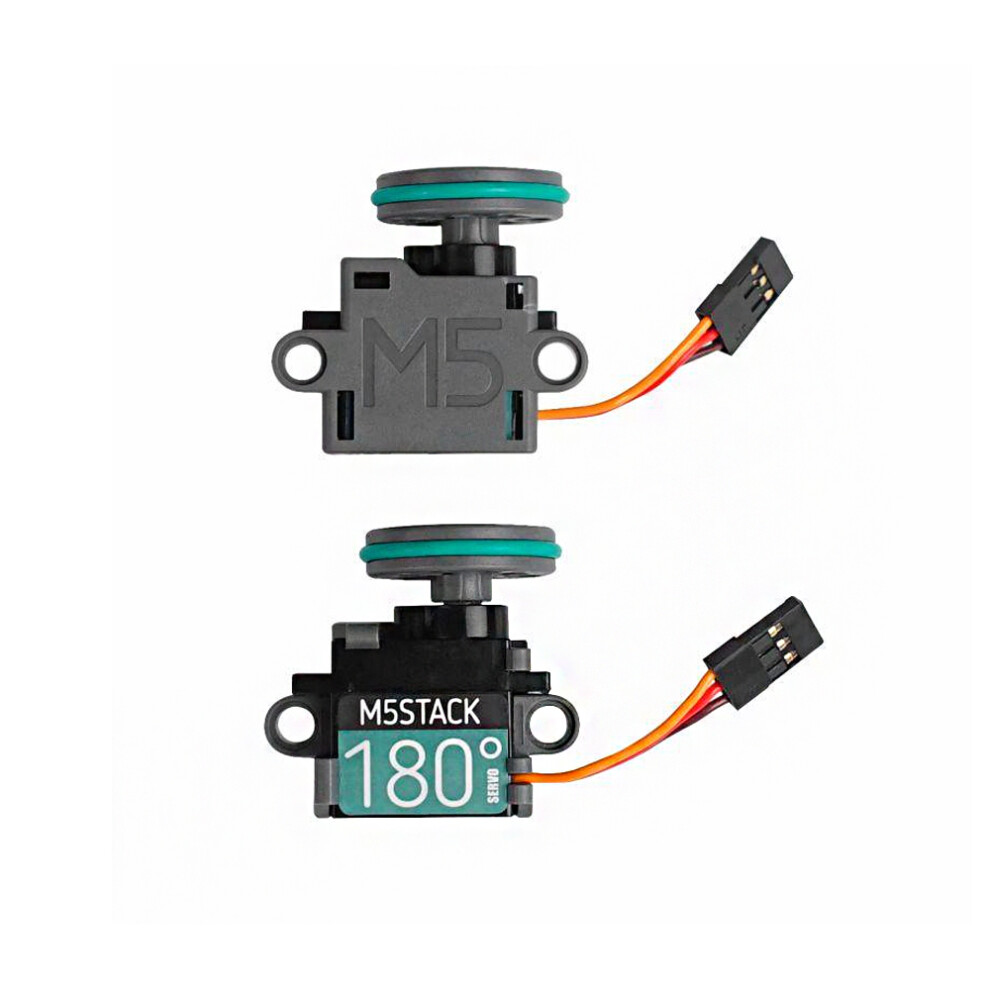

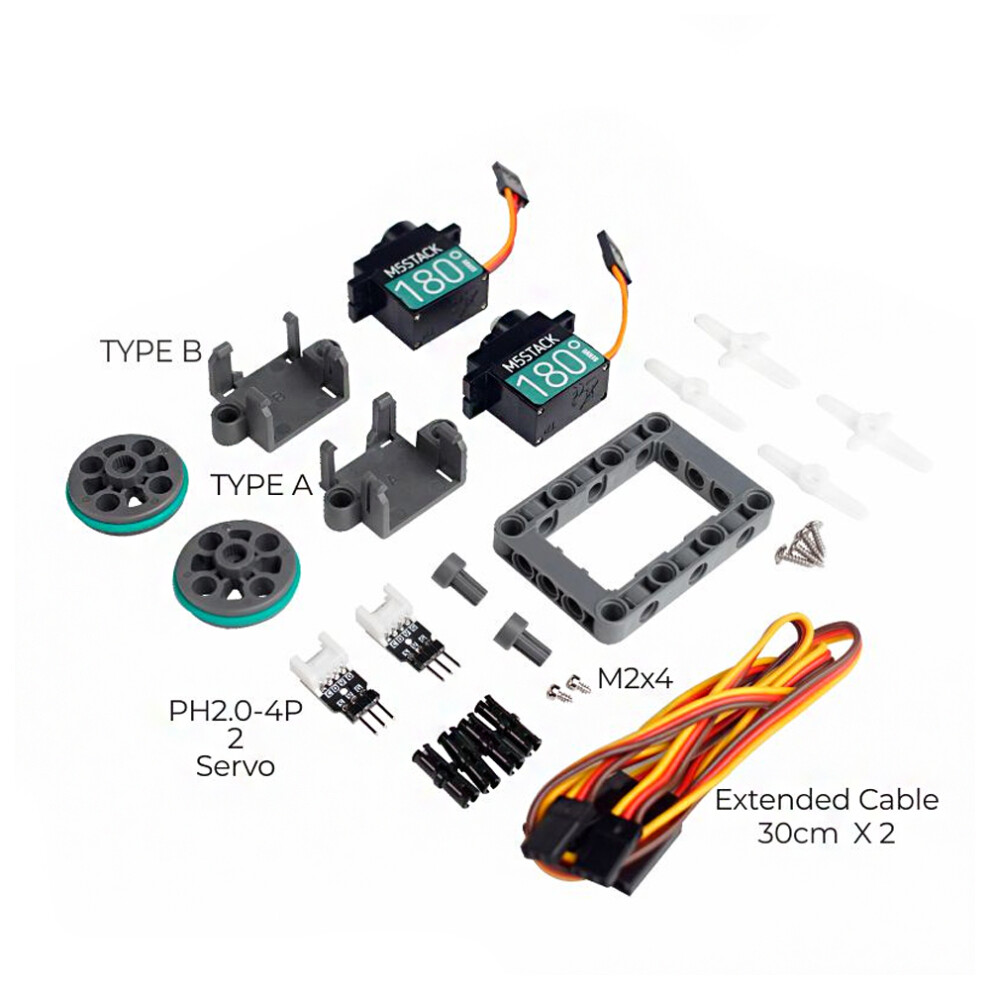

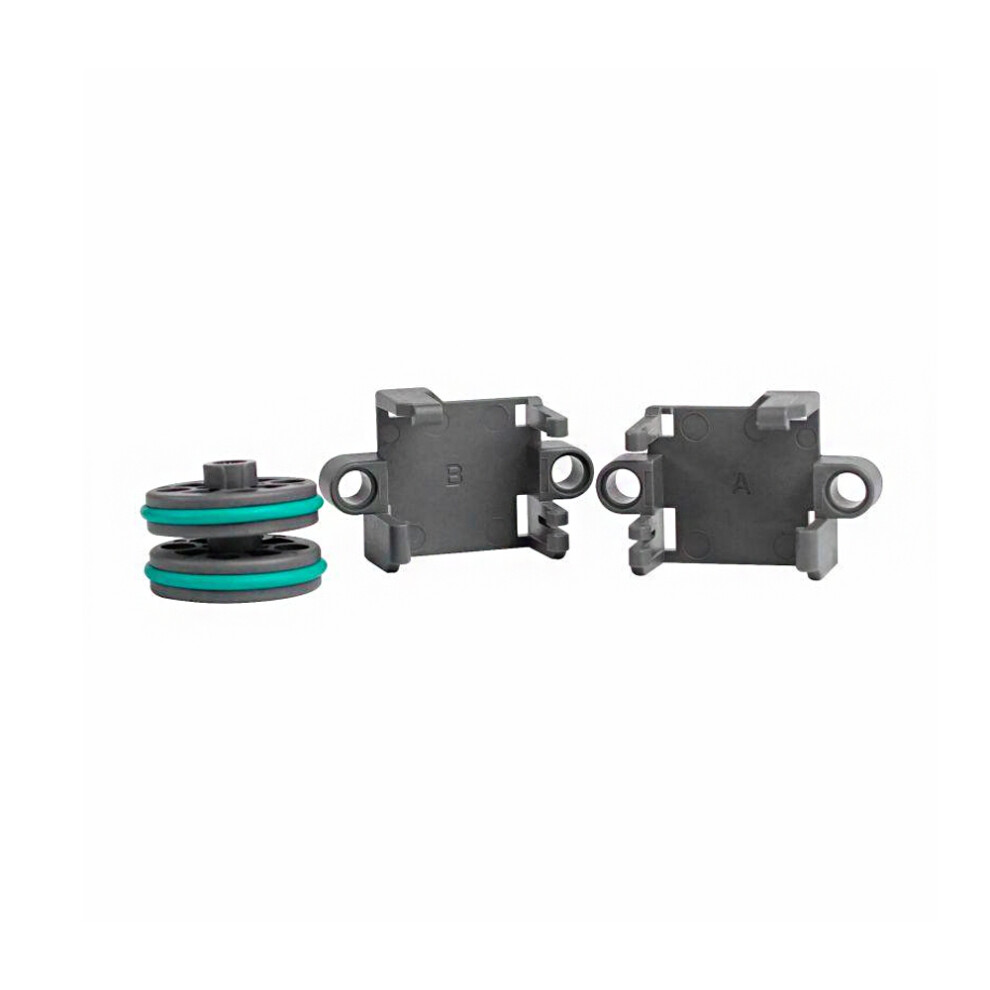

Description: Servo Kit 180 is a 9g servo with LEIGO compatible fixed bracket.There are 180 specifications.The independent design of the fixed bracket can be easily disassembled, and the product is completely designed according to the LEIGO standard unit,so that you can easily combine with LEIGO series products, play unlimited creativity.The rudder plate is redesigned, it can be directly connected with LEIGO parts. No matter 180  servo, it is very easy for beginners to use.Even if you don't know how to program, you can easily drive it with UIFlow.There is no need to use a dedicated servo-drive board with feedback control and a complicated gear. Any common pwm driver or a microcontroller can easily control this servo. Compared to driving a stepper motor, a servo is much simpler to use. You can use it to do interesting small projects requiring angular movement and/or control.If you feel that the cable is not long enough, you can purchase the servo extension cable to extend it. The yellow wire is for the control signal, brown is for the ground, and the red wire is for the Vcc (voltage).180 servo can only control angle.360 servo can't control the angle, but you can adjust the speed and direction by controlling PWM.When using the servo, pay attention to the power supply current and voltage to prevent burnout. Features: Micro servo system LEIGO compatible Easy to control Support for ArduiãUIFlow Package Included: 2x SG90 Servo 180 optional 2x GROVE2SERVO adapter 2x Elastic 2x Fixed base of servo 2x Special steering wheel 2x Axle connector 4x Conncetor peg with friction 1x Frame 5x7-module 2x Servo accessories package 2x M2*4mm self tapping screw 2x Extension wire 30CM Specifications: Resources Parameter Gear material Metal motor teeth, plastic gear PWM 50Hz/0.5~2.5MS Servo weight 9g Locked rotor current 750mA No-load current 60mA Torque 1.6kgâcm/4.8V;1.8kgâcm/6.0V 180 Servo speed 0.1sec/60Â/4.8V;0.09sec/60Â/6.0v dead zone 8μm Spline 20Teeth Voltage 4.8~6.0V Spline 20Teeth Cable length 3cm net weight 44g Gross weight 49g Product Size 40*12*36mm Package Size 73*45*23mm Example: 1. ARDUI Connecting the 360 will control the speed and direction, and connecting the 180 servo will control the angleï¼360 servo duty cycle 0~7.075 clockwise rotation ï¼greater than 7.625 counterclockwise rotationï¼the relationship between rotation speed and duty cycle is nearly linear) Click here to get code. 2. UIFlow This is an example of a simulated radar,you need a ToF Unit. Click here to get code.
