M65ANTSC RF Modulator Support AV Output Professional HD VHF Demodulator Converte RF Modulator RF Coaxial Converter

M65ANTSC RF Modulator Support AV Output Professional HD VHF Demodulator Converte RF Modulator RF Coaxial Converter Description

High-concerned chemical : None

Origin : Mainland China

Features:

1. [Practical] This RF modulator is very suitable for your local CATV system. You will get more benefits and convenience while saving a lot of costs.

2. [Stable performance] The VHF operating frequency is controlled by PLL, including HD input, A/V output and RF output. The output-channel is optional.

3. [Easy to use] This RF coaxial converter supports NTSC TV format output, no driver installation is required, portable, flexible, and play.

4. [Small appearance] This VHF demodulation converter has personalized design and exquisite workmanship, which makes you love it.

5. [High-quality materials] This RF modulator is made of high-quality plastic material, which is fordurable and has a long service life. Professional manufacturing, stable performance and high reliability.

Specifications:

Part Name: RF Modulator

Material: Plastic

Color: White

Size: 10.9*7.1*3.0cm

TV Standard Format: NTSC

Frequency Range: CH3=61.25 / CH4=67.25

Output Impedance: 75OHm

Output Level: 805dBμV

Accompaniment System: M=4.5MHz

Video Input Impedance: 75 Ohms/1k Ohms (Switchable)

Input Impedance: 133k Ohms

TV to Ant I Input Loss 50-860: -62dB

A/V Connection: forRCA Female

RF Input: F Female

RF Output: F Female

Power Consumption: 5Volt DC, 500mah (Minimum)

Operating Temperature: 0 40

How to use:

Step 1: Connect a 5V1A power adapter with USB output;

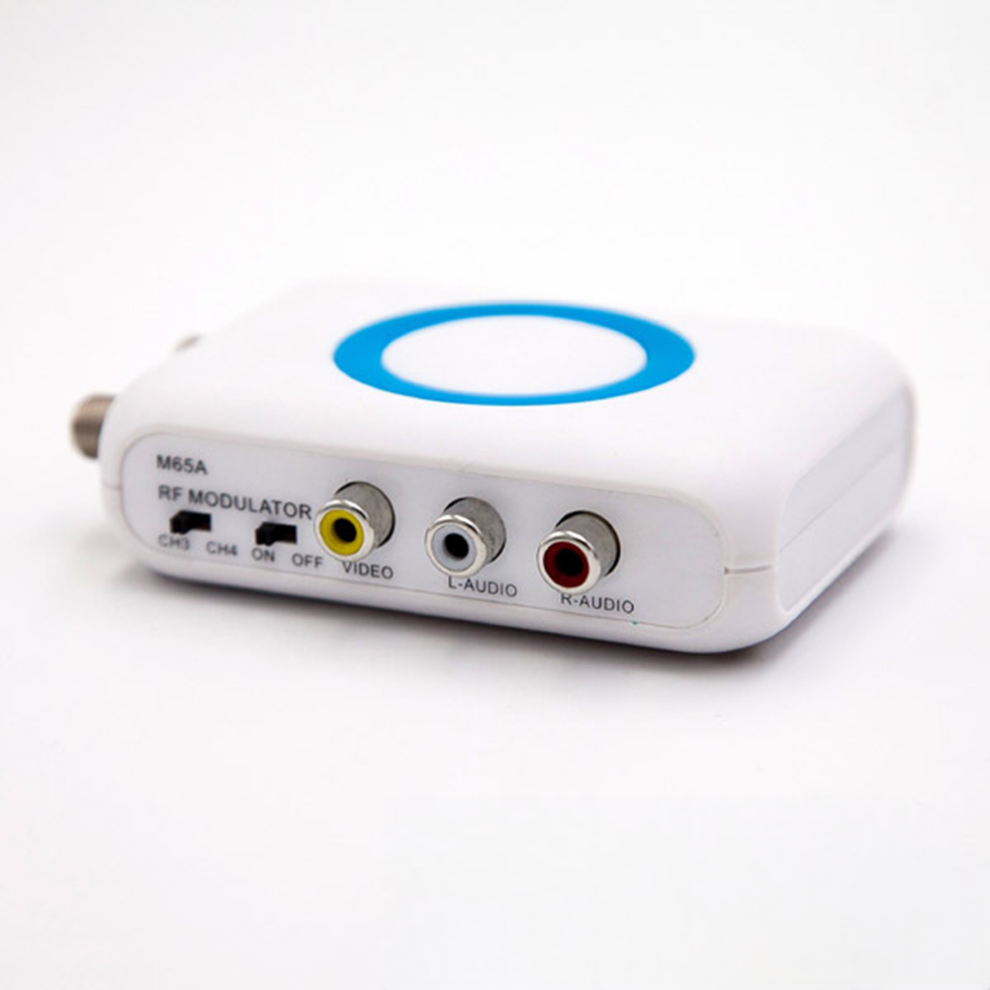

Step 2: Setswitch to CH3 or CH4, and the modulator switch to on; (set to off, RF does not work);

Step 3: Connect RF and RF OUT;

Step 4: Connect A/V input signal;

Step 5: Turn on the TV and tune to CH3 or CH4;

Please strictly follow the above steps.

Package Contents:

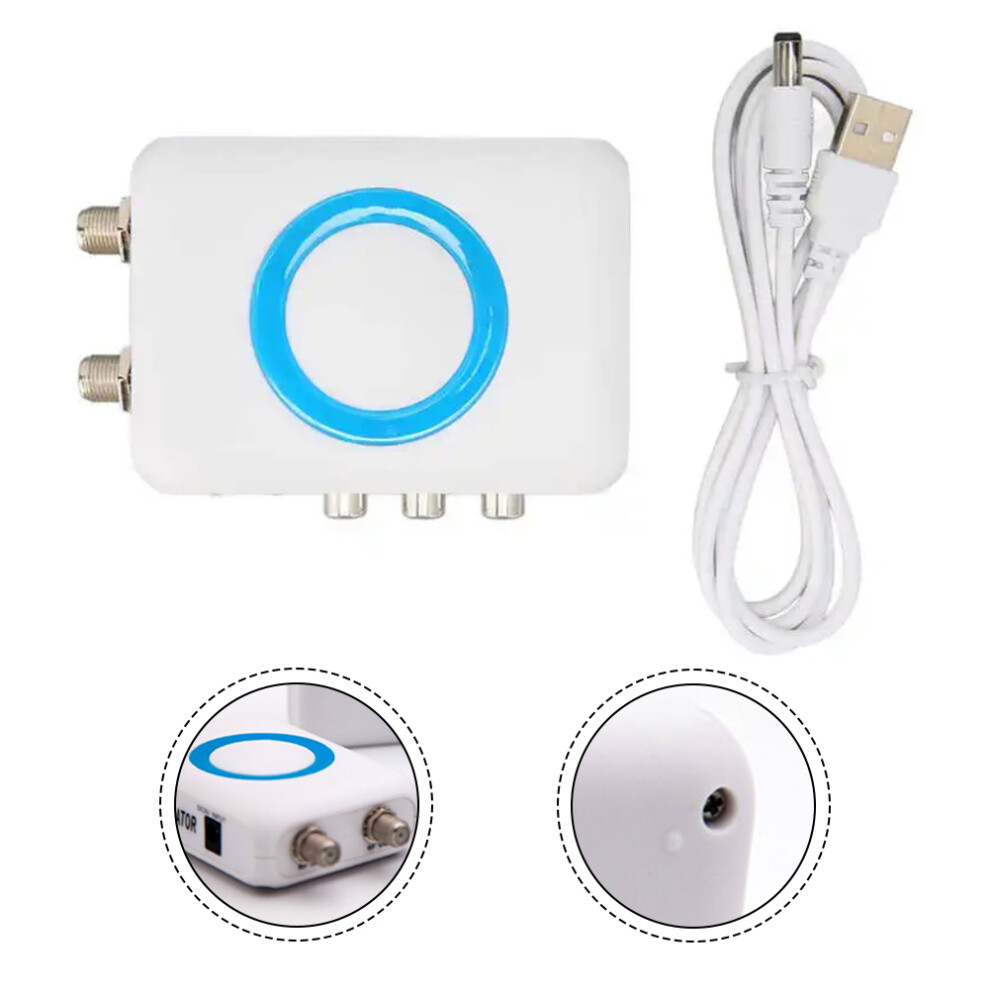

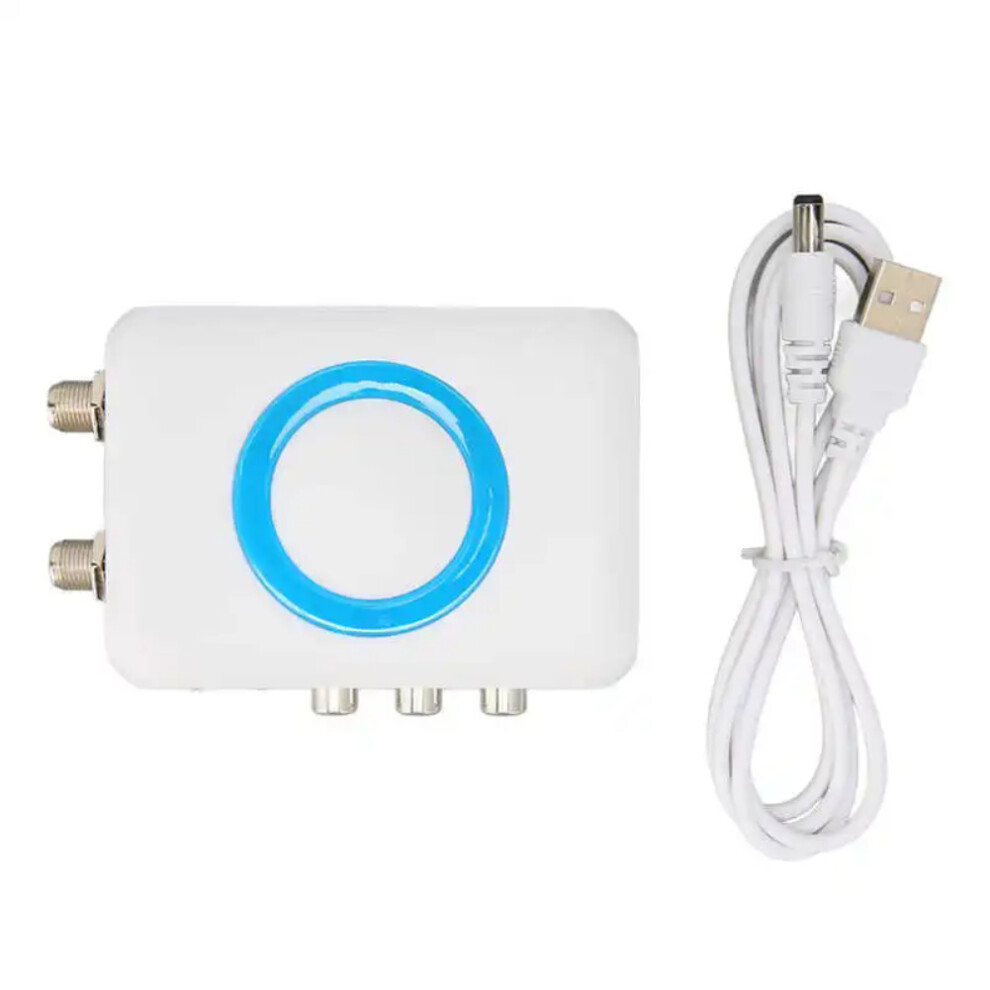

1 x RF modulator

1 transmission line

1 English manual

Note:

1: Please allow 1-2 cm error due to manual measurement, please make sure you do not mind before ordering.

2: Due to the difference between different monitors, the image may not reflect the actual color of the item
