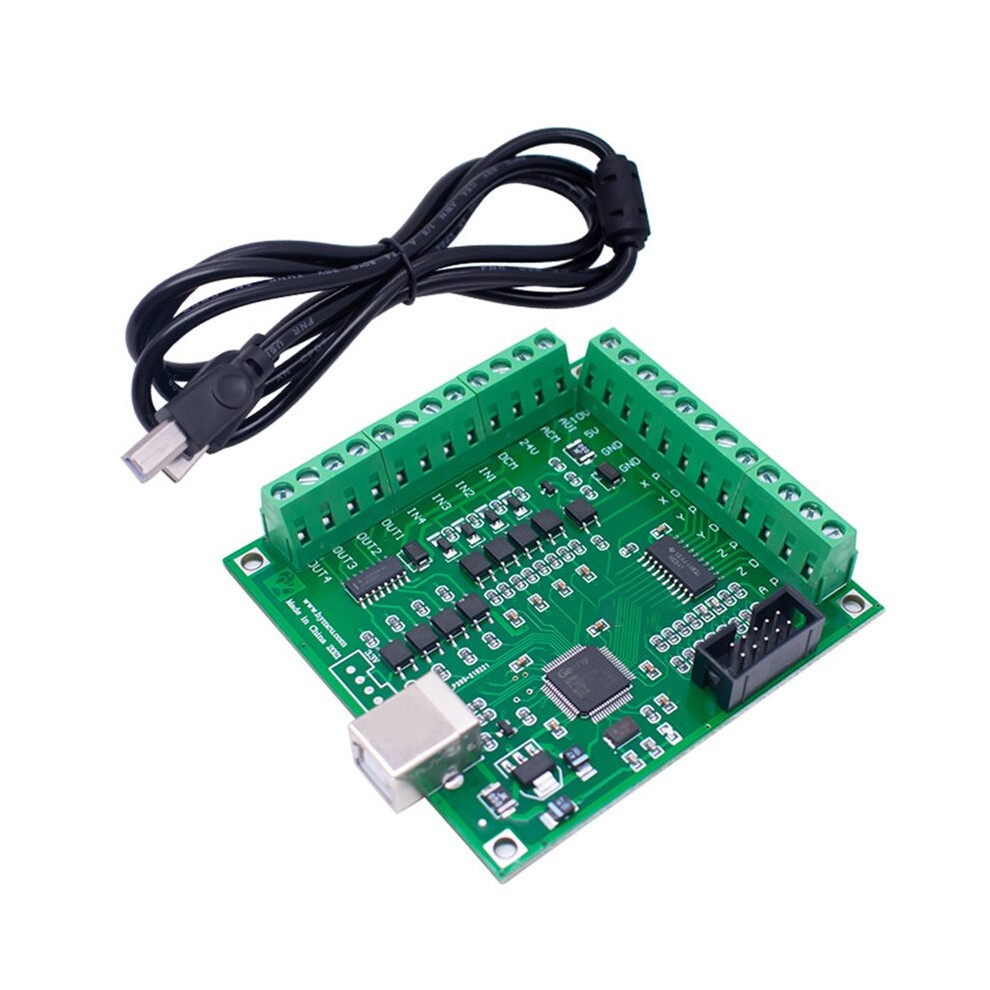

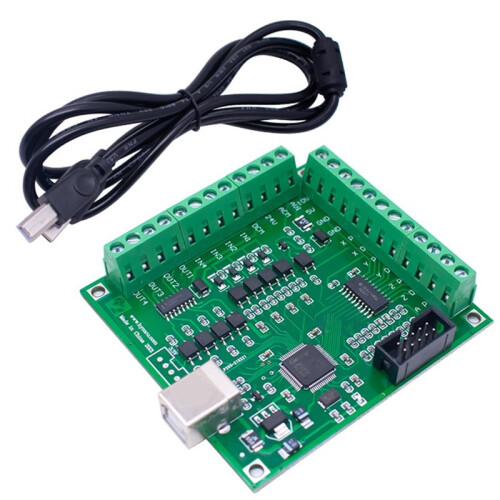

MACH3 CNC USB 100Khz Breakout Board 4 Axis Interface Driver Motion Controller, CNC Motion Control Card for Stepper Motor
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 126,000 Trustpilot reviews and an 'Excellent' rating
All prices include VAT.
Interest-free payment options available
See full product description & details
Delivery: Priority (Free) | Fri 19th - Thu 25th Jun
Sold by: CNNOTEPAD
Returns: 30 days
180-day payment protection
Most Popular in Power Tool Routers
Summary
- This MACH3 CNC USB 100Khz breakout board is a 4-axis interface driver and motion controller designed for desktop and industrial CNC retrofit projects. It connects to your computer via USB and works with MACH3 control software to drive stepper motor drivers with stable, high-speed pulse output up to 100Khz per axis.
- The board supports up to 4 axes (X, Y, Z, A), making it suitable for CNC milling machines, engraving machines, plasma cutters, and DIY CNC routers. With opto-isolated inputs and well-arranged signal terminals, it offers reliable performance and reduces interference in complex electrical environments.
- USB CNC Interface: Direct USB connection to PC, eliminating the need for a parallel port and improving compatibility with modern computers.
- 100Khz Pulse Output: High-speed pulse generation up to 100Khz for precise stepper motor control and smooth motion.
- 4-Axis Motion Control: Supports X, Y, Z and A axes for multi-axis CNC applications and complex machining tasks.
MACH3 CNC USB 100Khz Breakout Board 4 Axis Interface Driver Motion Controller, CNC Motion Control Card for Stepper Motor Description
This MACH3 CNC USB 100Khz breakout board is a 4-axis interface driver and motion controller designed for desktop and industrial CNC retrofit projects. It connects to your computer via USB and works with MACH3 control software to drive stepper motor drivers with stable, high-speed pulse output to 100Khz per axis.
The board supports to 4 axes (X, Y, Z, A), making it suitable for CNC milling machines, engraving machines, plasma cutters, and DIY CNC routers. With opto-isolated inputs and well-arranged signal terminals, it offers reliable performance and reduces interference in complex electrical environments.
USB CNC Interface: Direct USB connection to PC, eliminating the need for a parallel port and improving compatibility with modern computers.
100Khz Pulse Output: High-speed pulse generation to 100Khz for precise stepper motor control and smooth motion.
4-Axis Motion Control: Supports X, Y, Z and A axes for multi-axis CNC applications and complex machining tasks.
Color: As Shown
Material: PCB
Package Contents:
1*engraving machine control board
Details
| OPC | PTQQG5P |
|---|---|
| Brand | Tlily |
| Codes | 4711824125089 (EAN) |
Product Data
| Height | 3cm |
|---|---|
| Width | 13cm |
| Length | 20cm |
| Weight | 0.1135kg |
| Colour | As Shown |
| Material | PCB |
