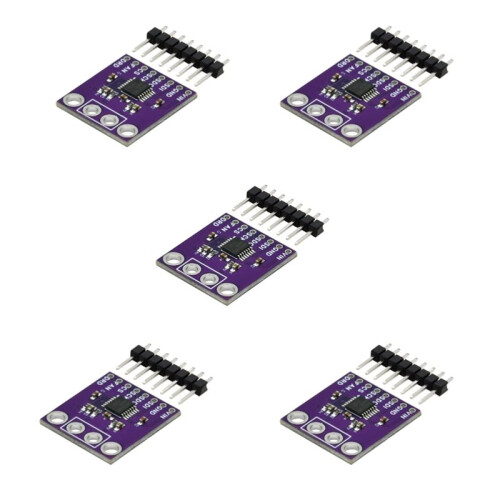

MAX31856 CJMCU Thermocouple Module High-Precision A/D Converter Universal Development Board Temperature Measurement

MAX31856 CJMCU Thermocouple Module High-Precision A/D Converter Universal Development Board Temperature Measurement Description

The MAX31856 performs cold-end compensation and digitizes the signal of any type of thermocouple. The output data is in Celsius format.
The converter can resolve the temperature to 0.0078125C, allowing readings to + 1800C and down to -210C (depending the thermocouple type), and has a thermocouple voltage measurement accuracy of 0.15%.
The thermocouple input has overvoltage protection to 45V. Lookup tables (LUTs) store linear correction data for several types of thermocouples (K, J, N, R, S, T, E, and B). Includes 50Hz and 60Hz frequency filtering, and thermocouple fault detection.
The SPI-compatible interface allows the selection of thermocouple types as well as Settings for conversion and fault detection processes.
Note: Installation guide not included, we strongly recommend you seek professional installation. Please check as much as possible to make sure the item is what you need.

Provides high-precision thermocouple temperature readings. Includes automatic linearity correction for 8 thermocouple types. 0.15% (maximum, -20C to +85C) thermocouple full-scale and linearity error. 19-bit thermocouple temperature resolution of 0.0078125C. Internal cold junction compensation minimizes system components. 0.7C (maximum, -20C to +85C) cold junction accuracy. 45V input protection provides stable system performance. Simplifies system fault management and troubleshooting. Detects open-circuit thermocouples. Overheat and cryogenic fault detection. 50Hz/60Hz noise suppression filtering improves system performance.
Color: As Shown
Material: PCB

Package Contents:
5* Module
