Meshtastic T-Lora Pager ESP32-S3 GPS LoRa SX1262 Wireless Module Dual-Mode RFID/NFC RTC GNSS Al Programmable AIoT B

Meshtastic T-Lora Pager ESP32-S3 GPS LoRa SX1262 Wireless Module Dual-Mode RFID/NFC RTC GNSS Al Programmable AIoT B Description

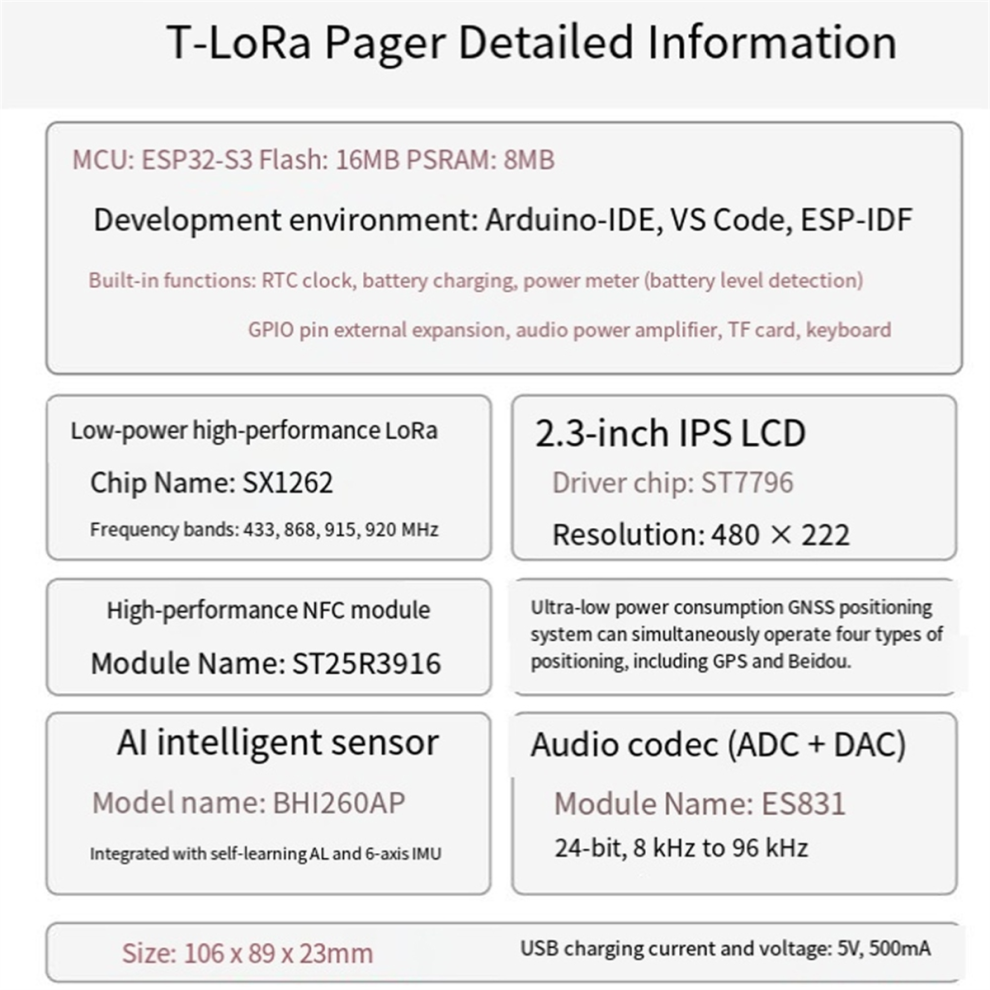

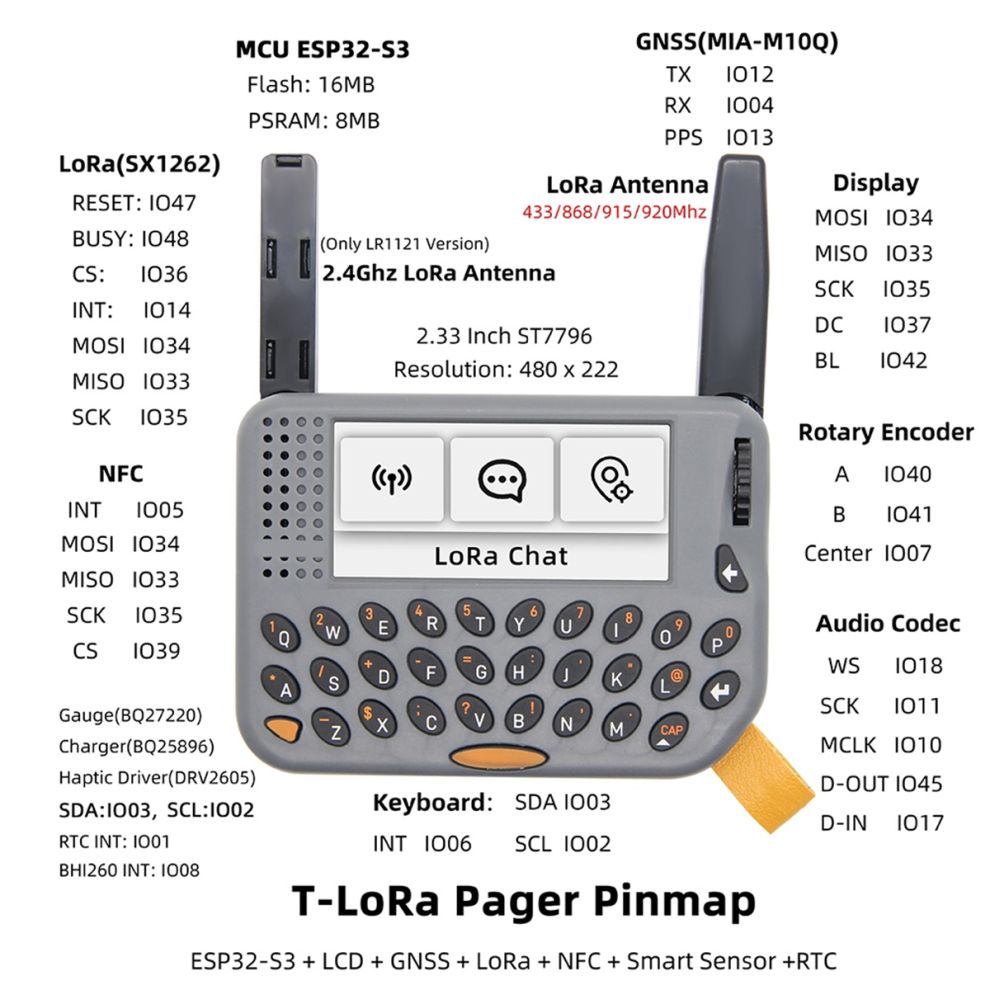

T-LoraPager Introduction: Next-generation programmable handheld AIoT device from combining ESP32-S3 with selectable wireless modules. Features a compact form factor with foldable external antenna, delivering optimal performance without compromising aesthetics. Key Hardware Features: keyboard input AI-enabled 6- IMU (BHI260AP) 2.33inch IPS strip display (222x480 resolution) GNSS module (MIA-M10Q-01B) Dual-mode RFID/NFC with RTC Professional audio system (ES8311 CODEC + mic/speaker/3.5mm jack) Multi-function rotary encoder with push button 8-channel GPIO expansion interface (NRF24L01 compatible) Industrial-grade power management (TI BQ25622+BQ27750) Standard 1/4inch tripod mount & 4xM2 threaded inserts (The product printed words depending on the batch, but this does not affect use) Specifications: B 868MHz Color: As Shown Material: ABS Package Contents: 1 * LoRa AIoT Devic Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
