-MF9 TFT LCD Display Multi-Meter Transistor Tester Diode Triode Capacitor Resistor Test Meter MOSFET NPN PNP Triac

-MF9 TFT LCD Display Multi-Meter Transistor Tester Diode Triode Capacitor Resistor Test Meter MOSFET NPN PNP Triac Description

Built-in 300MAH 4.2V lithium battery, rechargeable.

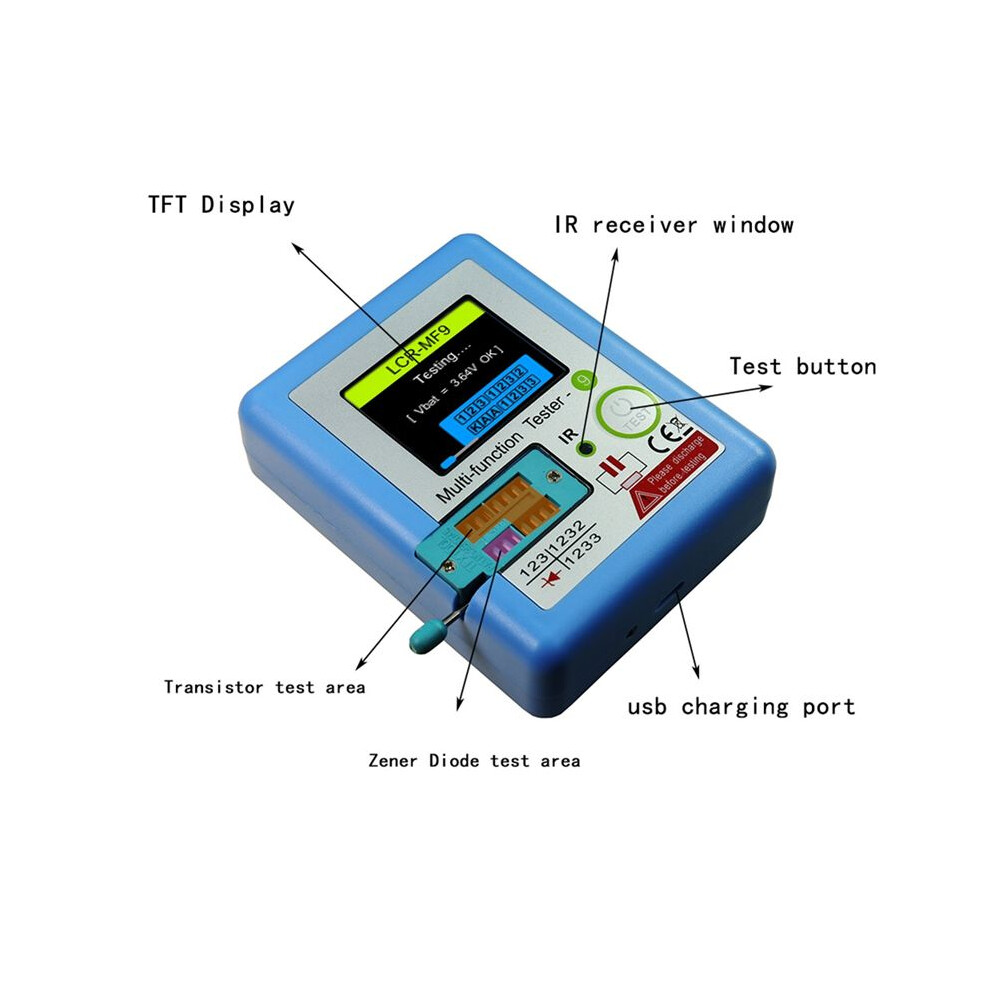

TFT 1.8-inch color screen display, graphical display of various parameters
Automatically detects NPN and PNP transistors, N-channel and P-channel MOSFETs, IGBTs, diodes (including double diodes), thyristors, transistors, resistors and capacitors.
Automatically detects the pinouts of components and graphically displays them a color screen.
Can detect infrared code (support format infrared remote control)

Transistors, MOSFET protection diodes, etc. can be detected amplification coefficient and the base of the determination of the forward bias voltage of the emitter transistor
Depletion type and enhancement type MOSFETs can be distinguished.
MOSFETs with gate threshold voltage and gate capacitance can be measured.
Supports measurement and symbol display of two resistors with a resolution of 0.1 Ohm and a maximum measurement value of 50M Ohm.
VOSS and ESR can be displayed for capacitors higher than 10UF.
Measures inductance for resistances below 2100 ohms and resistance for inductances below 10UH.
Higher test speed, expiration date component test: in 2 seconds (except in the larger capacitors, large capacitance measurement also need a longer )
Equipped with a calibration needle, calibrated to test small resistors more accurately
One button operation, power test
Power consumption off mode: less than 20 nA
Automatic shutdown function, saving battery , improve the duration.
Colour:Photo Color
Material:plastic
The color of different production batches may be different but it does not affect the applicability

Package Contents:
1 set of resistor tester
