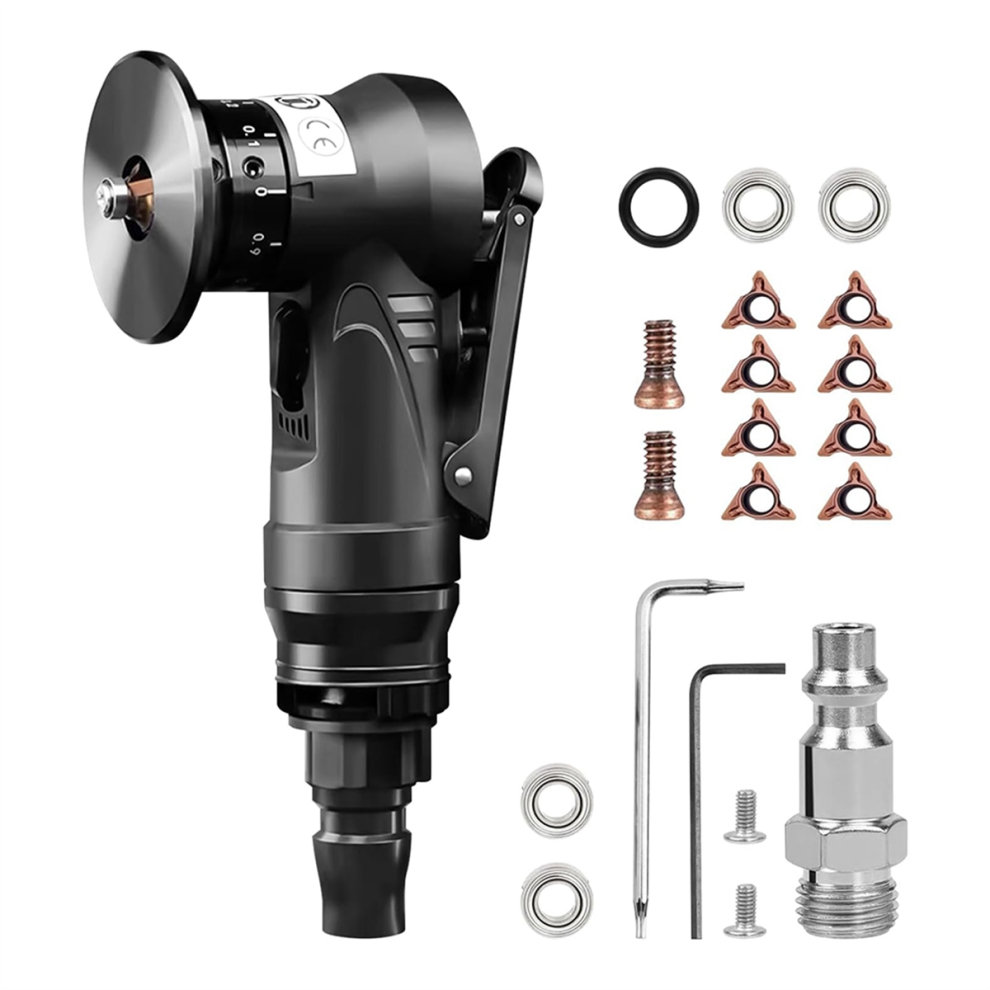

Mini Chamfering Machine, for Metal Trimming Arc Corner Deburring Linear Beveling (8xR Angle Blade+4x Bearing)

Mini Chamfering Machine, for Metal Trimming Arc Corner Deburring Linear Beveling (8xR Angle Blade+4x Bearing) Description

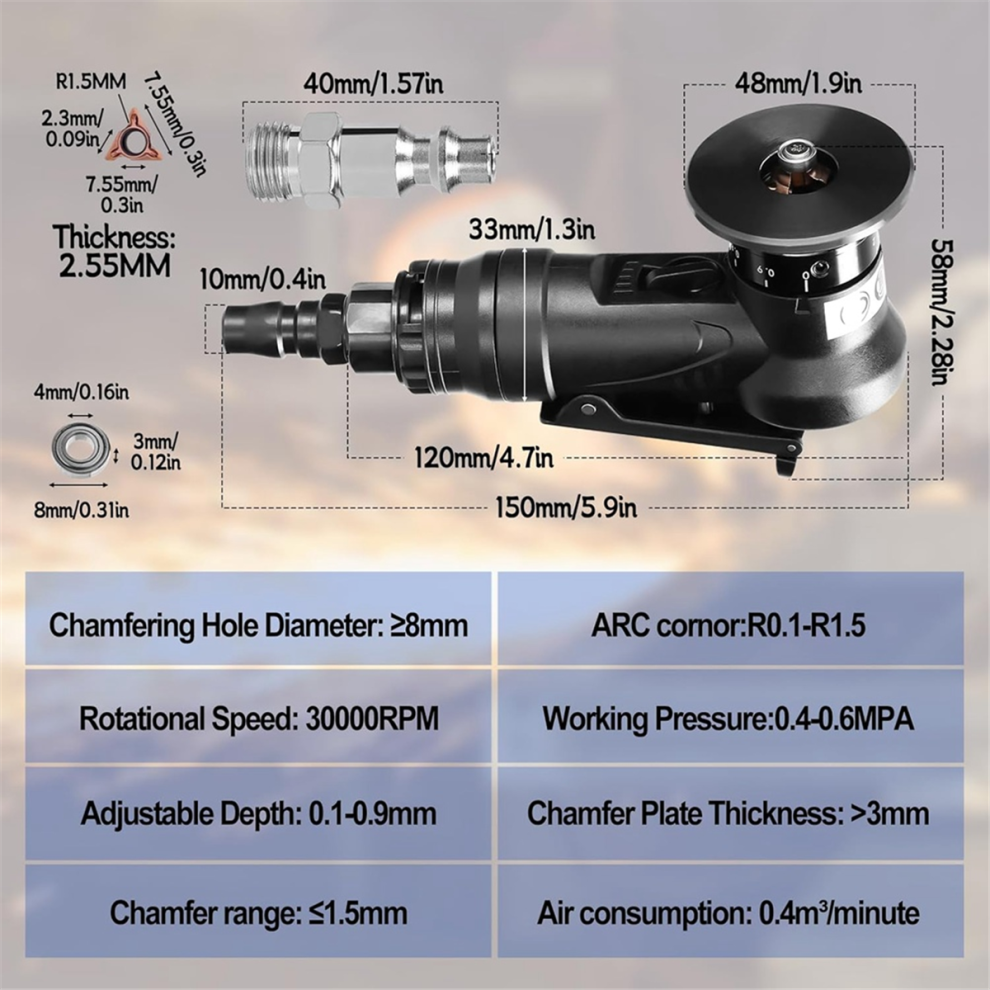

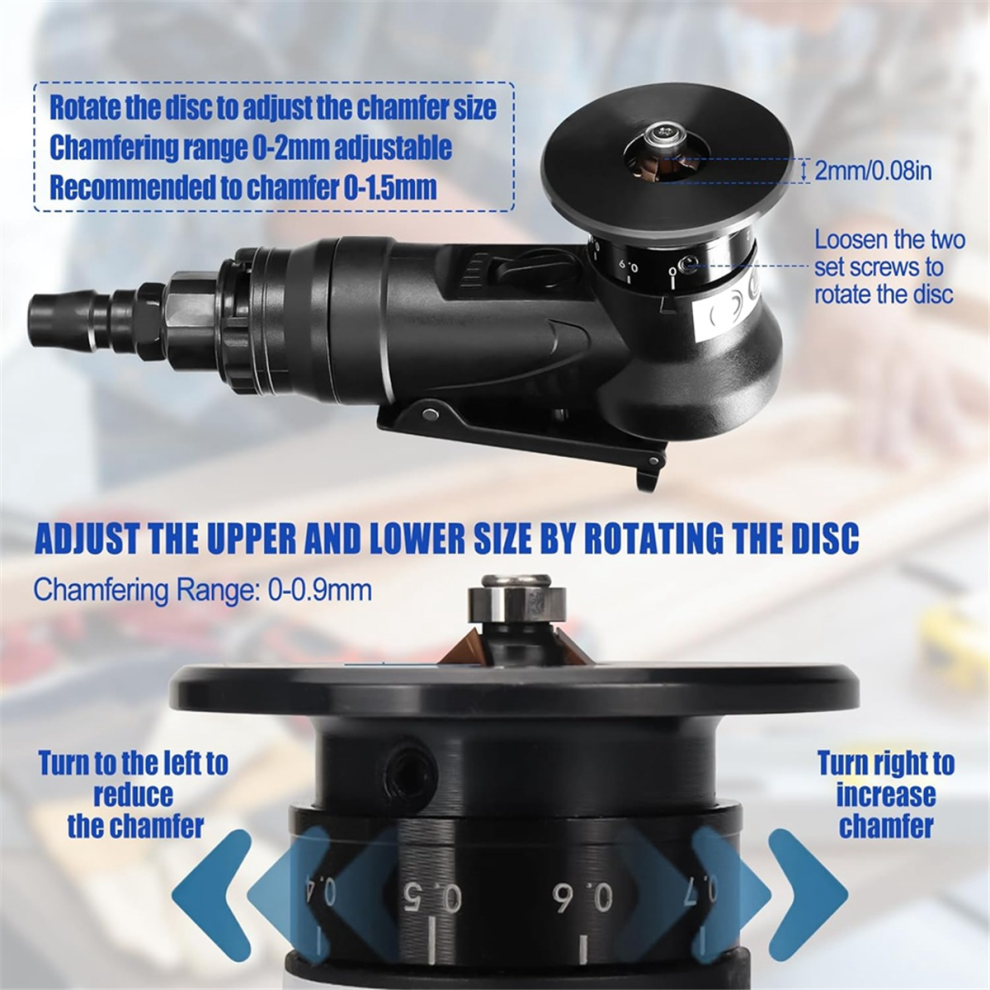

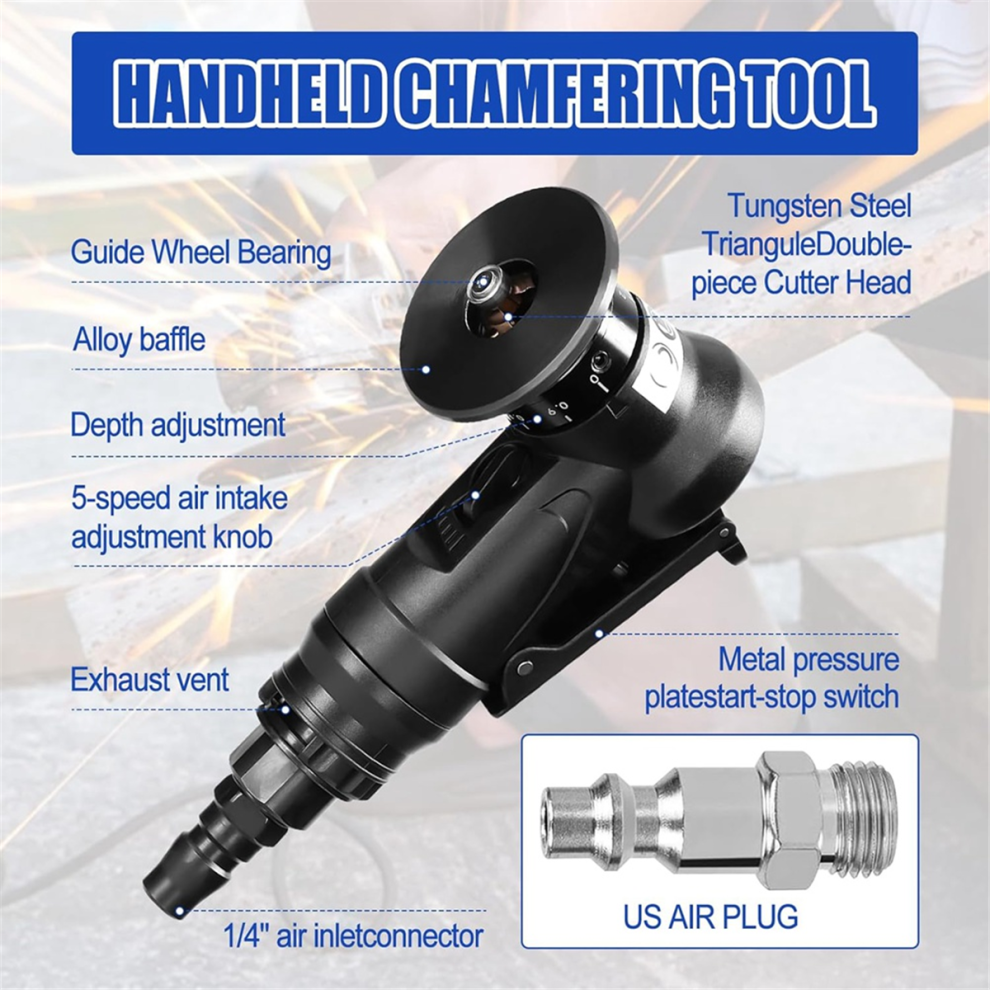

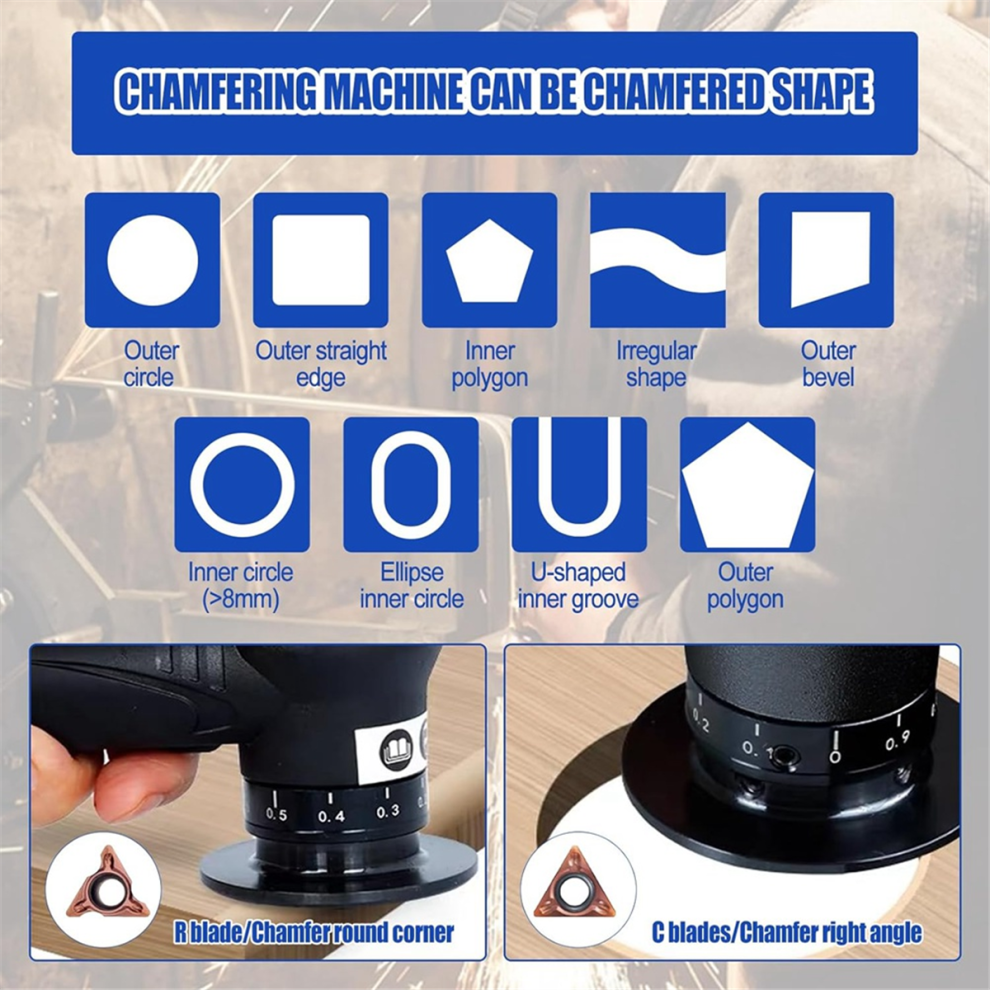

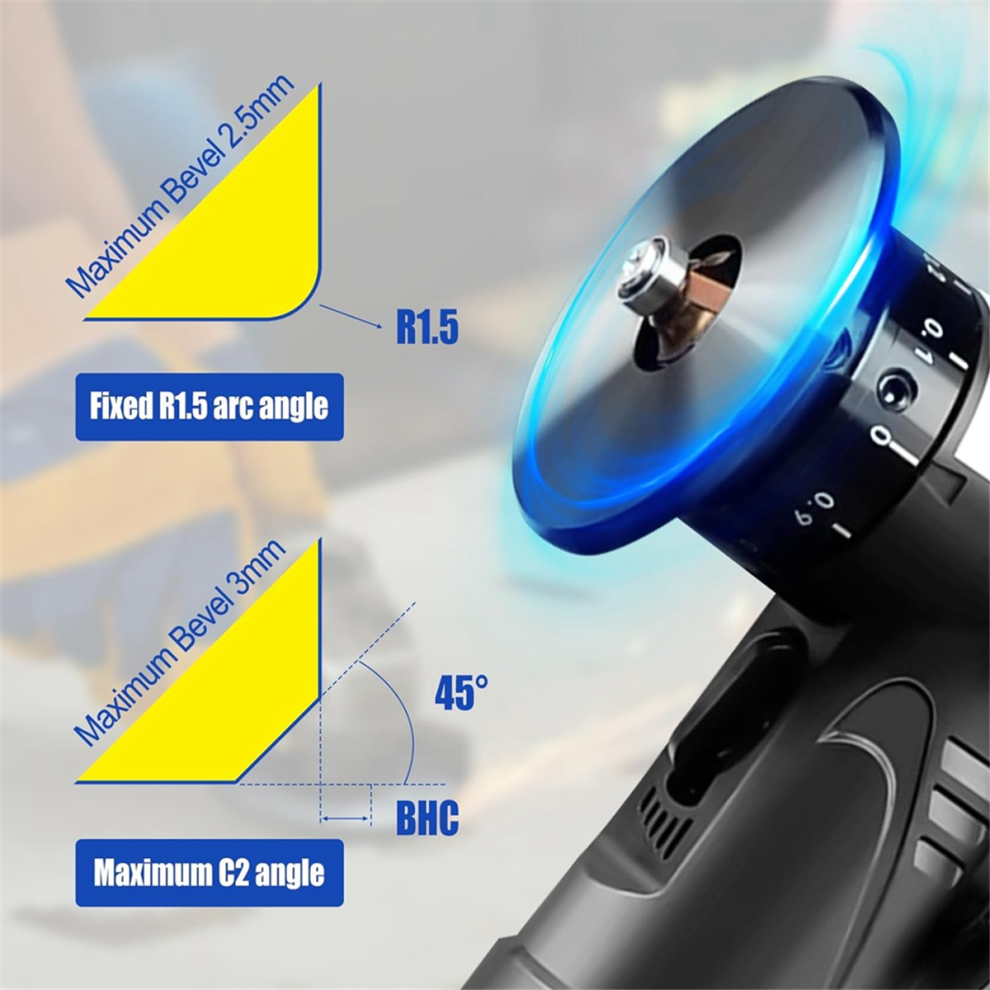

Efficient Chamfering: With a high rotational speed of 30000RPM, this machine ensures quick and efficient chamfering of metal edges. It can handle chamfering hole diameters of 8mm or larger, providing precise and clean results. Adjustable Depth and Range: The machine offers adjustable depth settings ranging from 0.1mm to 0.9mm, allowing you to achieve the desired chamfering depth. The chamfer range is up to 1.5mm, providing flexibility for various applications. and Versatile: Made from plastic steel, this chamfering machine is built to withstand heavy-duty use. It can handle chamfer plate thicknesses 3mm, making it suitable for a wide range of metal trimming tasks. Easy to Use: The handheld design of this air beveling machine ensures ease of use and maneuverability. Simply adjust the parameters according to your requirements, and the machine is ready to deliver precise chamfering results. Eliminates Common Machining Issues: This chamfering machine effectively addresses common problems encountered during machining, such as "square holes" and "square corners". It minimizes blind zones by utilizing guide wheels with a radius the workpiece's radius, ensuring comprehensive chamfering coverage. Material: aluminum alloy Color: as shown Parameters: Chamfering Hole Diameter8mm Chamfering Ability: C0.1-C2 ARC cormor:R0.1-R1.5 Rotational Speed: 30000RPM Working Pressure:0.4-0.6MPA Adjustable Depth: 0.1-0.9mm Chamfer Plate Thickness: 3mm Chamfer range: 1.5mm Air consumption: 0.4m³/minute C angle up to C0.1-2 Chamfer range: Minimum aperture8mm,Minimum aperture or equal to 8mm Min radius4mm, min radius or equal to 4mm Min depth5mm, min depth or equal to 4mm max thickness3mm, the min thickness or equal to 3mm life is longer. Package Contents: 1 x chamfering machine 8 x R angle blade 4 x bearing Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
