Mini Chamfering Machine,Handheld Air BevelingMachine Pneumatic Tool Be Description

Efficient Chamfering: With a high rotational speed of 30000RPM, this machine ensures quick and efficient chamfering of metal edges. It can handle chamfering hole diameters of 8mm or larger, providing precise and clean results.
Adjustable Depth and Range: The machine offers adjustable depth settings ranging from 0.1mm to 0.9mm, allowing you to achieve the desired chamfering depth. The chamfer range is up to 1.5mm, providing flexibility for applications.
Versatile: Mini Chamfering Machine is Made from Metal, this chamfering machine is built to withstand heavy-duty use. It can handle chamfer plate thicknesses 3mm, making it suitable for a wide range of metal trimming tasks.
Easy to Use: The handheld design of this air beveling machine ensures ease of use and maneuverability. Simply adjust the parameters according to your requirements, and the machine is ready to deliver precise chamfering results.
Eliminates Common Machining Issues: This chamfering machine effectively addresses common problems encountered during machining, such as inch square holes inch and inch square corners. It minimizes blind zones by utilizing guide wheels with a radius the workpiece's radius, ensuring comprehensive chamfering coverage.

Chamfering Hole Diametergreater than equal 8mm
Chamfering Ability: C0.1-C2
ARC cormor:R0.1-R1.5
Rotational Speed: 30000RPM
Working Pressure:0.4-0.6MPA
Adjustable Depth: 0.1-0.9mm
Chamfer Plate Thickness: 3mm
Chamfer range: less than equal 1.5mm
Air consumption: 0.4m³/minute

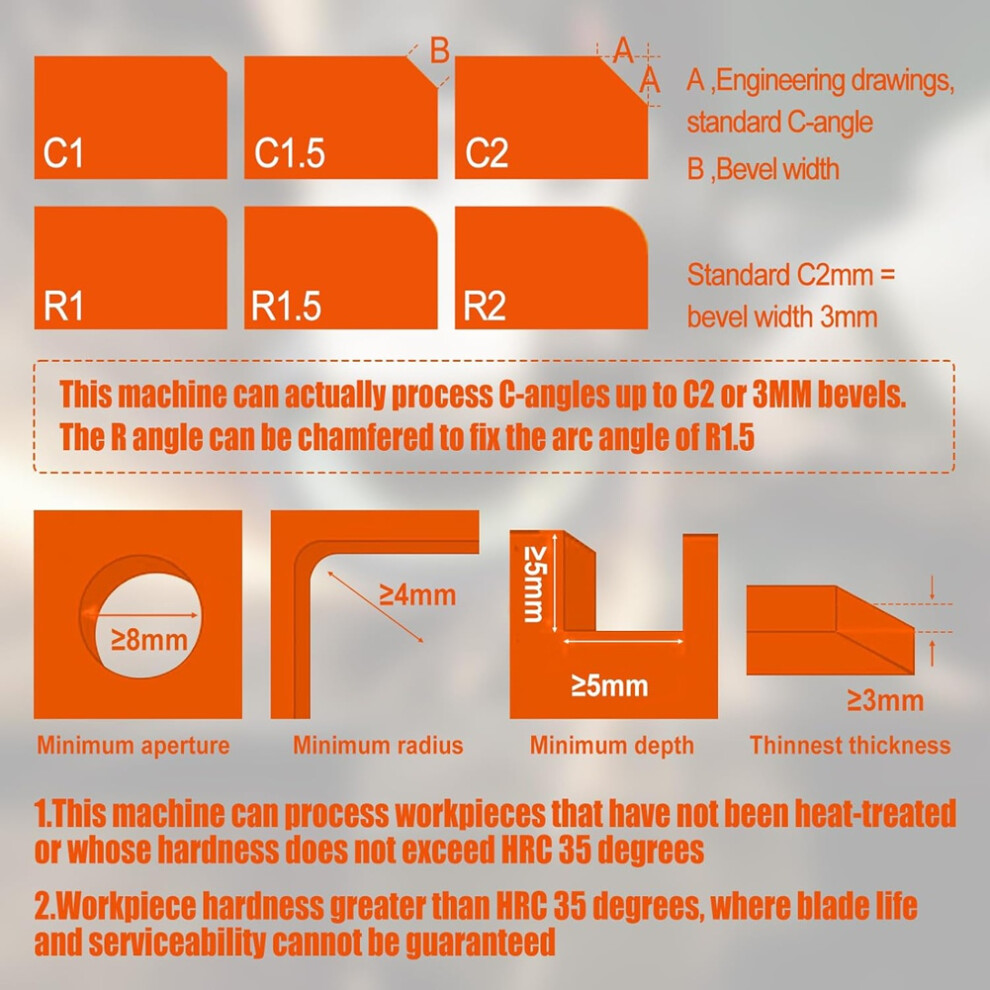

Chamfer range: Minimum aperturegreater than equal 8mm,Minimum aperture or equal to 8mm
Min radiusgreater than equal 4mm, min radius or equal to 4mm
Min depthgreater than equal 5mm, min depth or equal to 4mm
max thicknessgreater than equal 3mm, the min thickness or equal to 3mm
life is longer.
Colour:As Shown
Material:Metal
Type:Set 2

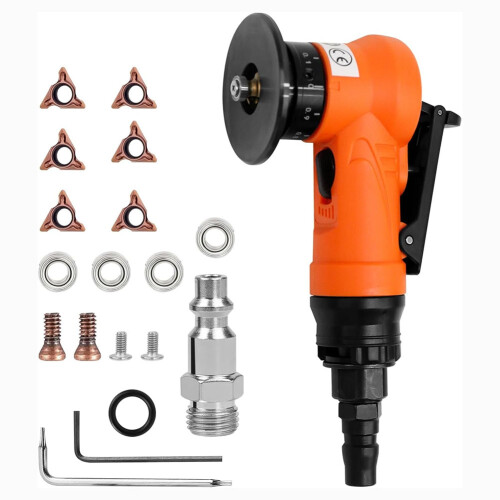

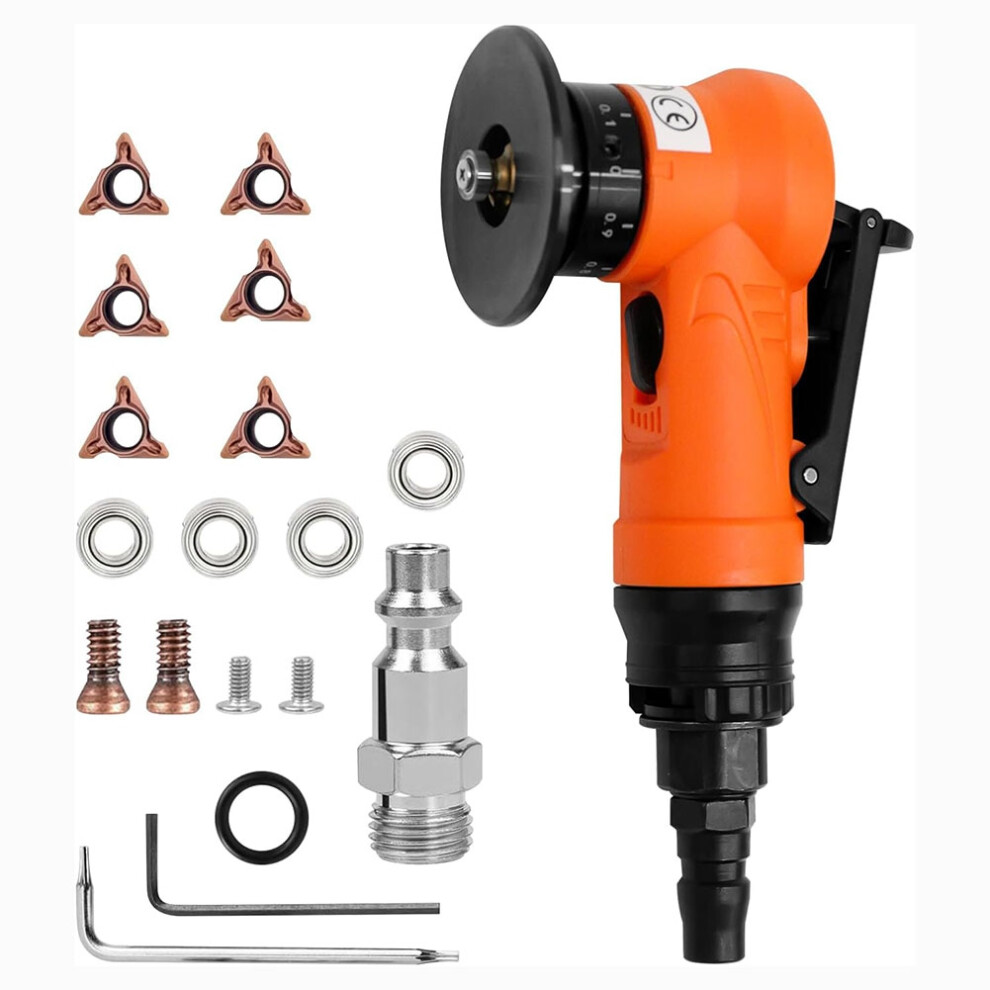

Package Contents:
6 x R-angle blades
4 x bearings

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
