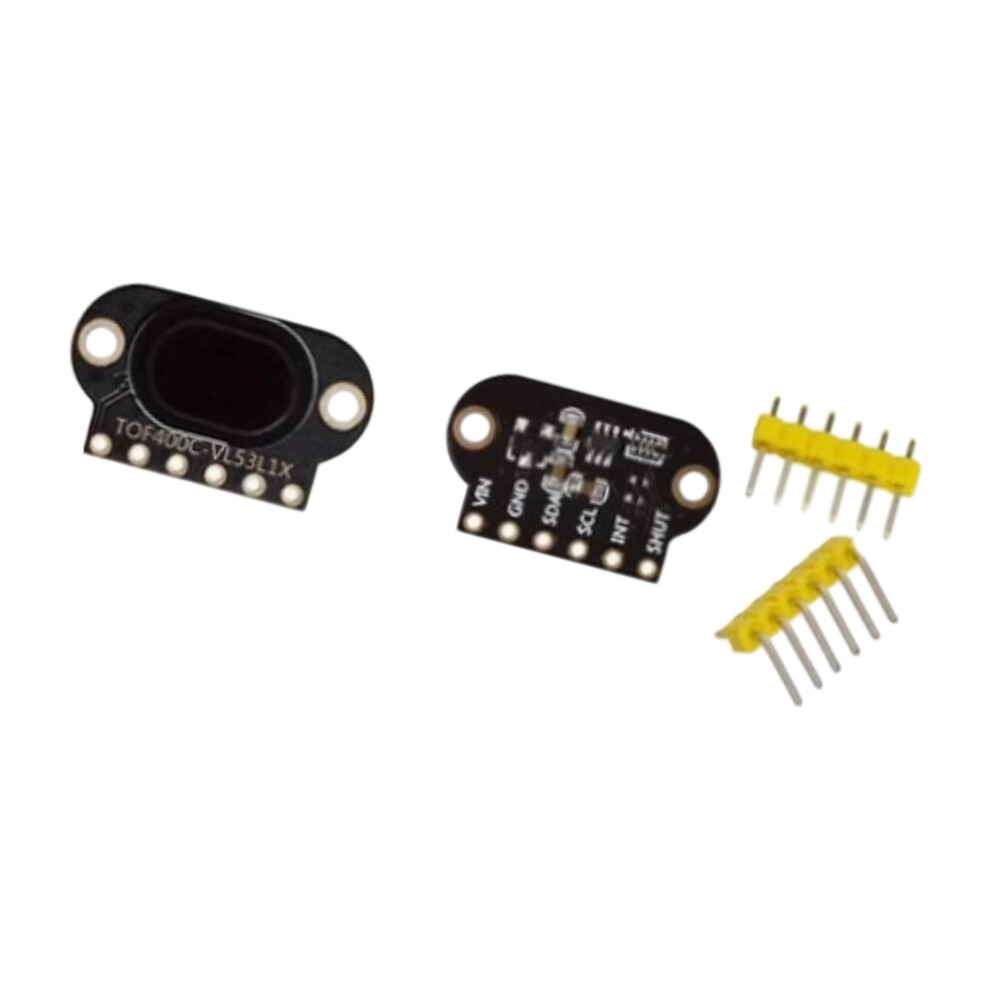

Mini Distance Measurement Module M.2 Mounting Holes-TOF400C
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 131,000 Trustpilot reviews and an 'Excellent' rating
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Mon 24th - Wed 26th Aug
Returns: 30 days
180-day payment protection
Description & Details
Summary
- Utilizes standard I2C connection for uniform data transmission, functions with common development boards. Contains pre made sample programs for robotic, intelligent device applications
- Operates at DC3V-5V power input with greatest 40mA current draw, functioning dependably from 20℃ to 70℃
- 25 27° field of view with exclusive lens protect that provides dust prevention and enhanced data filtering

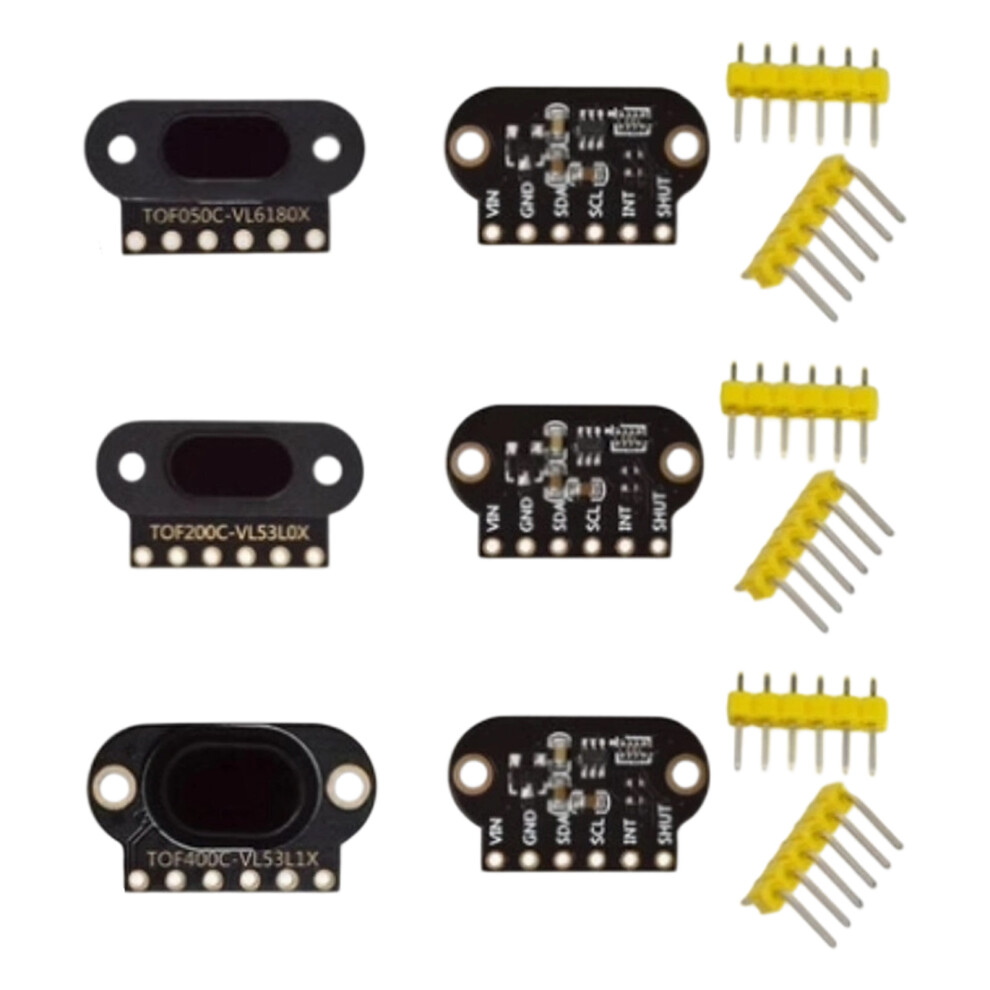

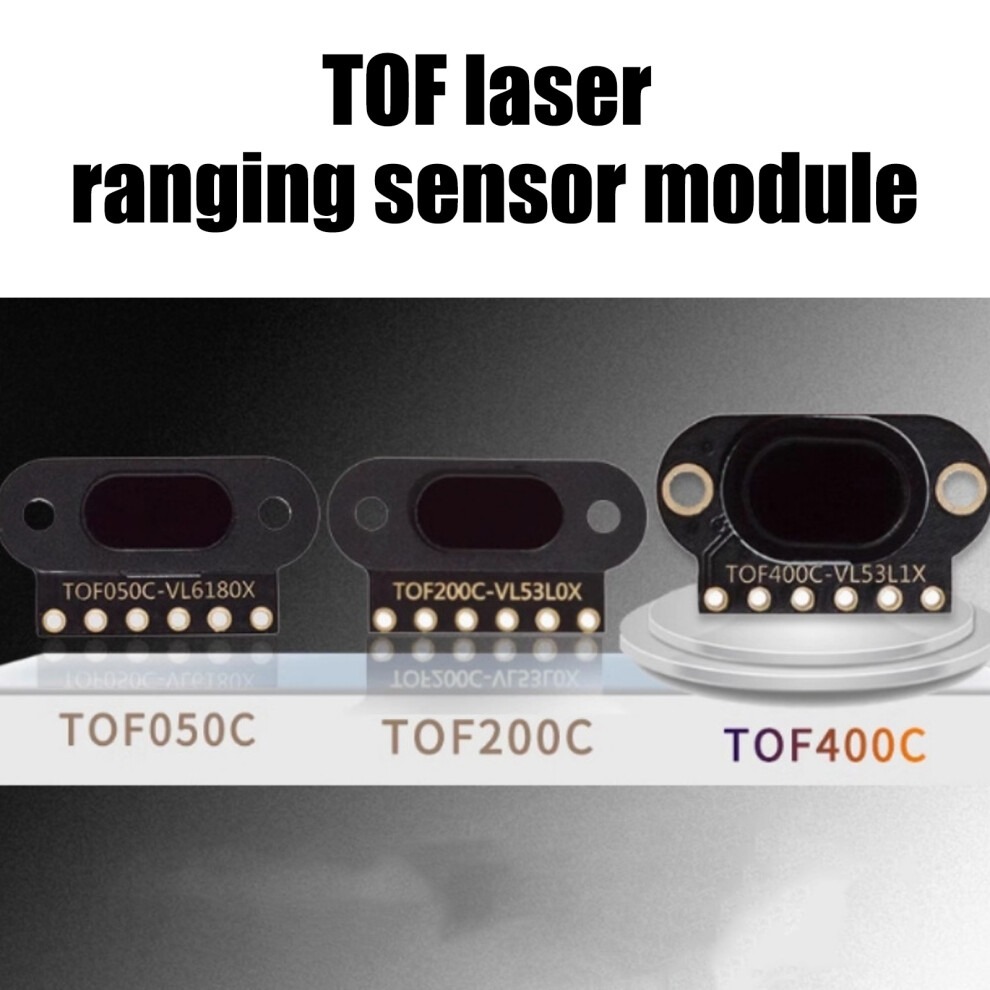

- Features three variants TOF050C (0.5m), TOF200C (2m), and TOF400C employing Time of Flight technology for correct distance calculation
- Easy Installation ABS housing with built in attachment points for rapid setup. Needs little calibration, prepared for direct implementation in UAVs, automated setups
Mini Distance Measurement Module M.2 Mounting Holes-TOF400C Description
Features:
Features three variants TOF050C (0.5m), TOF200C (2m), and TOF400C employing Time of Flight technology for correct distance calculation..
Utilizes standard I2C connection for uniform data transmission, functions with common development boards. Contains pre made sample programs for robotic, intelligent device applications.
25 27 field of view with exclusive lens protect that provides dust prevention and enhanced data filtering..
Operates at DC3V-5V power input with greatest 40mA current draw, functioning dependably from 20 to 70.
Easy Installation ABS housing with built in attachment points for rapid setup. Needs little calibration, prepared for direct implementation in UAVs, automated setups,.
Specifications:
Component: ABS.

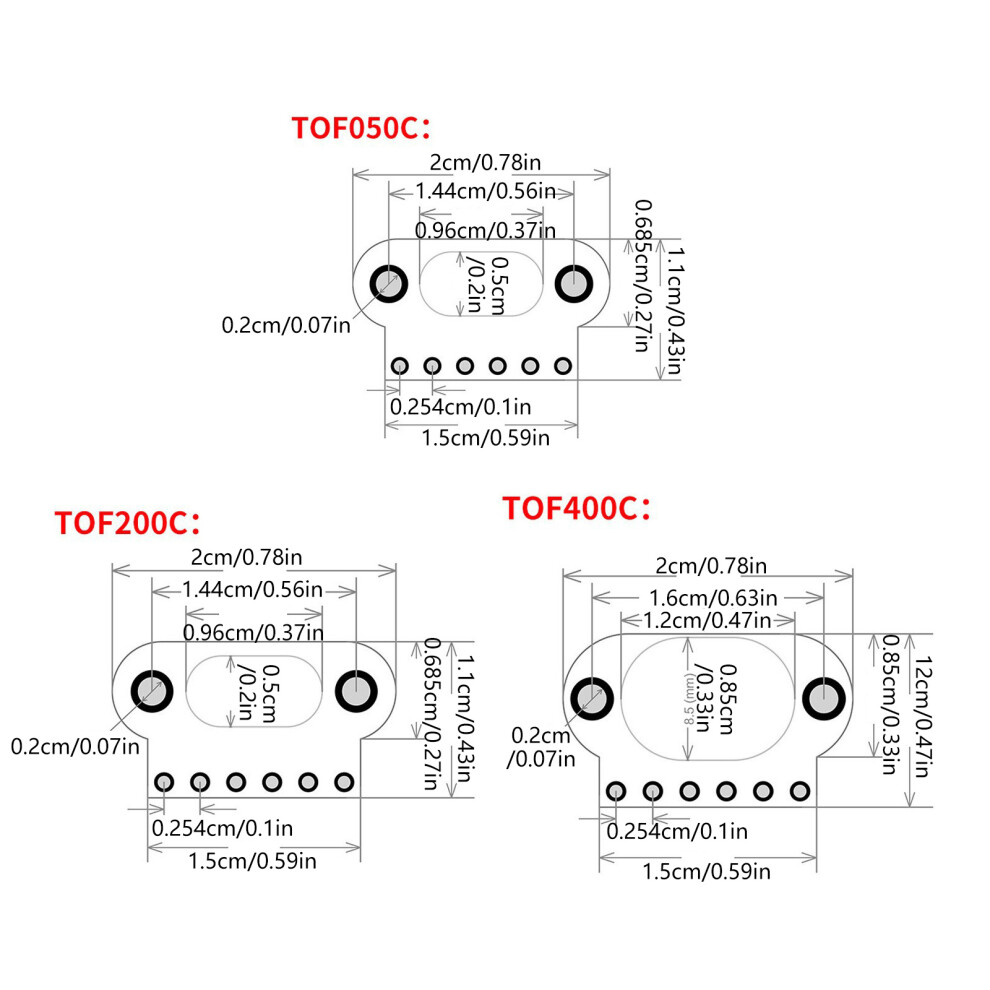

Dimensions: 20x11mm./0.78x0.43in
Weight: 10g.
Model: TOF050C (50cm), TOF200C (2m), TOF400C .
Working voltages: DC30V-5V .
Operating current: 40mA.
Working temperature: -20~70.
Storage temperature: -20~80.
Mounting holes: immersed gold mounting holes.
Emission wavelengths: TOF050C (850nm), TOF200C (940nm), TOF400C (940nm).
Package Includes:
2PCS Sensoring module
4PCS pin header
note:
Please allow 0-1cm error due to manual measurement, make sure you do not mind before you order.
Please allow slight chromatic aberrations due to different display resolutions.
