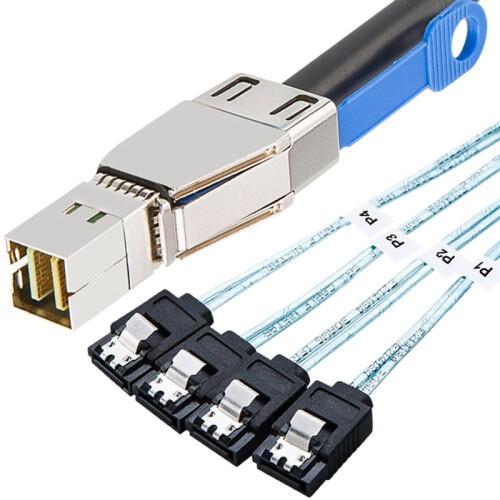

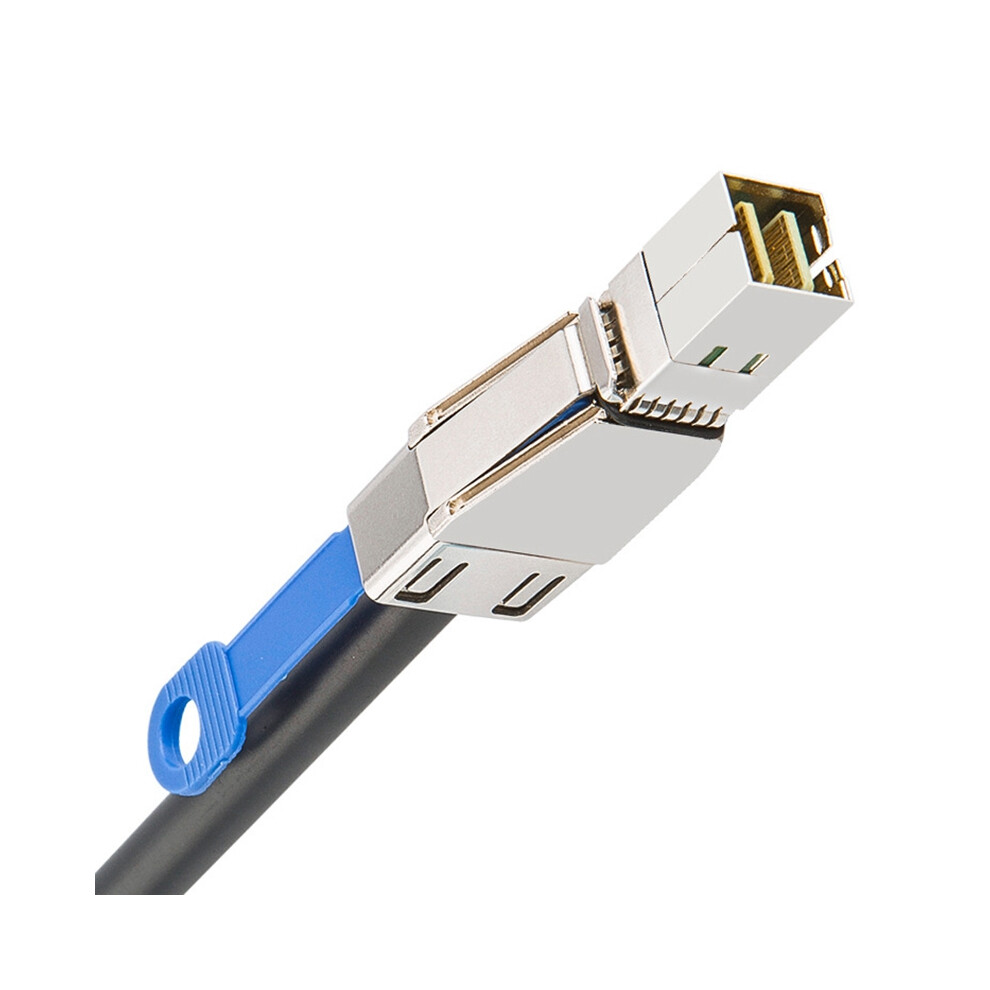

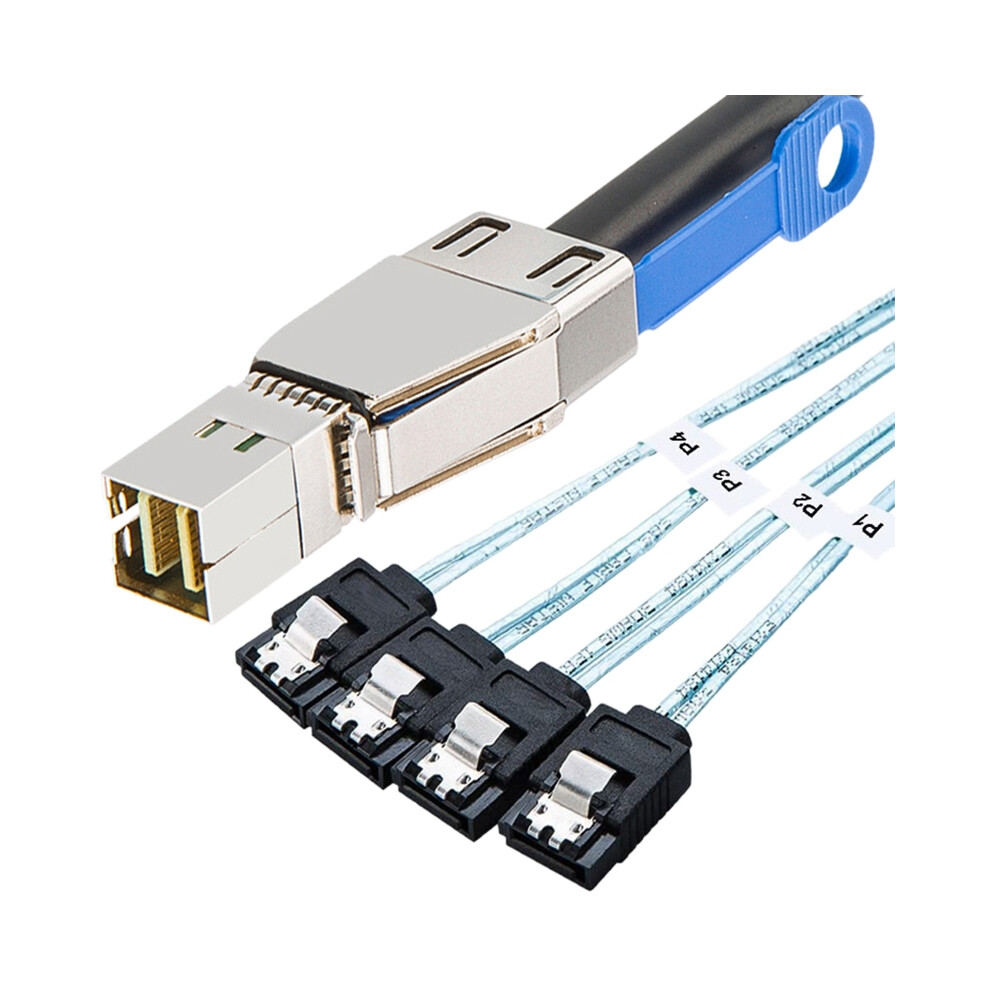

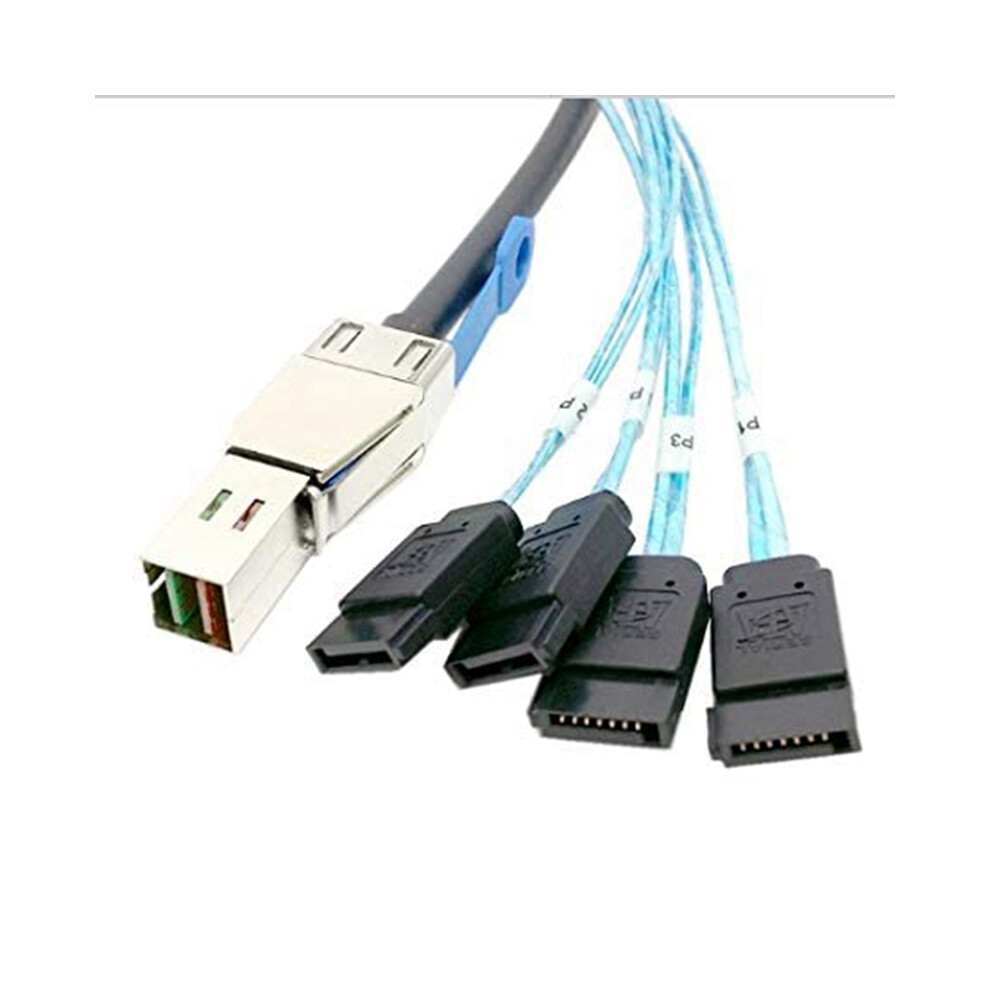

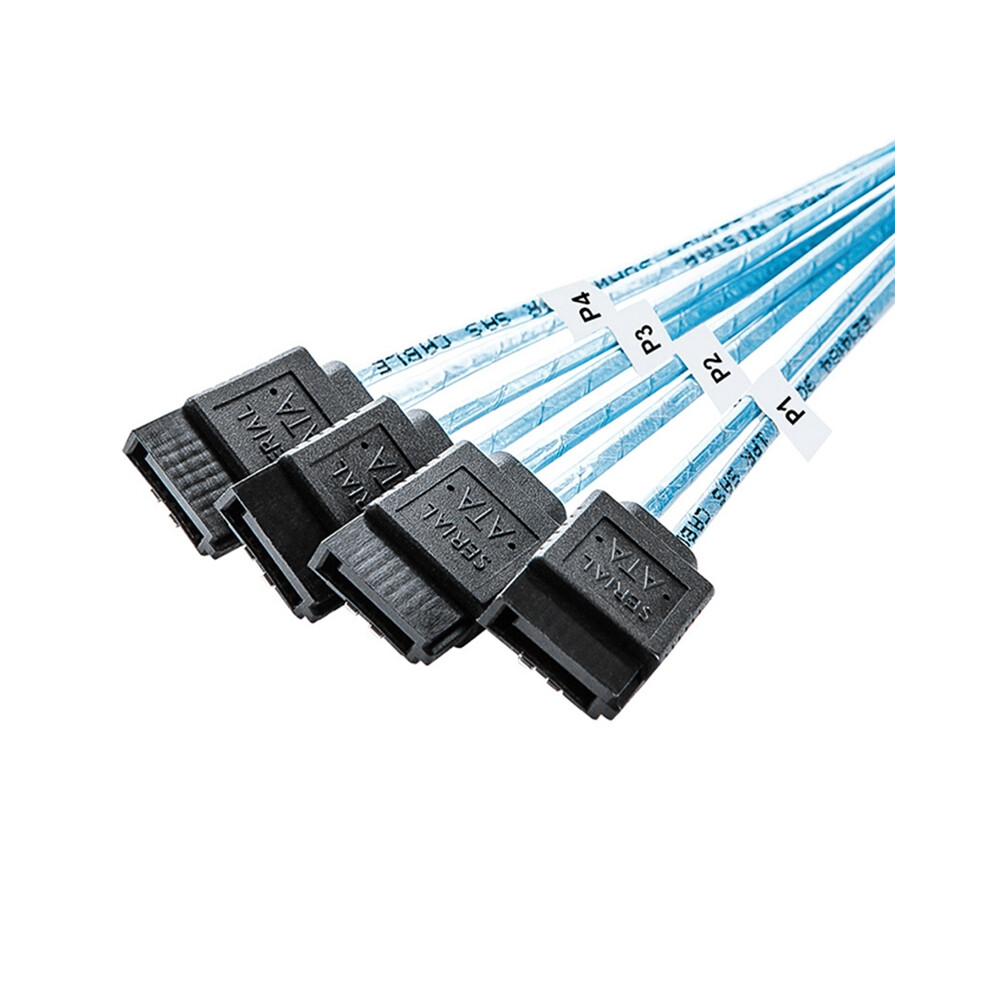

Mini SAS HD SFF-8644 to 4 x 7Pin Hard Disk Cable 12Gbps Server

Mini SAS HD SFF-8644 to 4 x 7Pin Hard Disk Cable 12Gbps Server Description

1. Use a cable to 7Pin hard drives to 1 Mini SAS SFF-8644 controller.
2. This adapter cable provides reliable high-performance drive and mini SAS controller connection.
3. The converter cable keeps the external mini SAS SFF-8644 to 4xSATA 7Pin connector and the power port.
4. Through the molding process, this server line is suitable for personal computers and used as an adapter cable.
5. Each channel of this adapter cable supports up to 12Gbps, and can maintain 4 7Pin connections, and each connection carries data and power.

Withstand voltage: 300V DC/0.1 second
Insulation resistance: 500MΩ minimum
On-resistance: 5Ω max
Working current: 0.5A contact current
Working voltage: 30V AC rescue voltage
Low power contact impedance: 80Mohm max
Insertion force: 55.5N max
Operating temperature: -20~85
Applicable equipment: hard disk and server connection
Weight: 120g
Material:copper
colour:Black

Package Contents:
1 x Hard Disk Cable

Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
