Mini V6.8 100A Brushless Motor Controller with He

Mini V6.8 100A Brushless Motor Controller with He Description

and compact, more applicable,Mini and compact, only the thickness of a coin, with powerful ESC function.

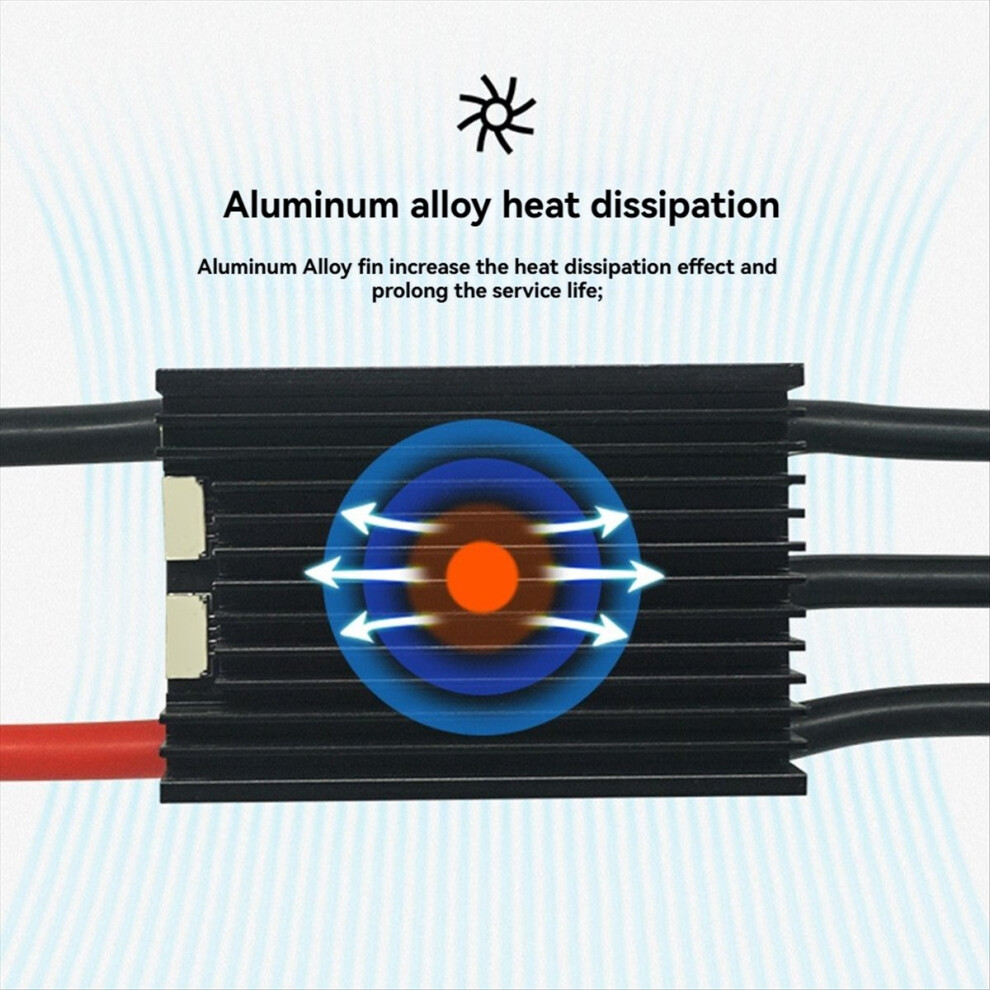

Aluminum alloy heat dissipation,Aluminum alloy heat sink increases heat dissipation effect and prolongs service life.
168MHz CPU,The CPU uses a main frequency of 168MHZ, - with function.
High current MOSFET,Adopt 12 NTMFS5C628NLT1G high current MOS tubes, the parameters are 60V/150A.

Firmware:VESC_TOOL_3.00 5.2 firmware (default firmware version for ESC)
Firmware upgrade:Support USB online firmware upgrade
Size:64x43.5x34.7mm
Voltage:14V-60V (4-125 for safety); voltage shall not exceed 60V
EPRM:150000
Sensor mode:Sensorless control
Motor cable:10 AWG
BEC:5V/1.5A output BE
Regenerative :Support regenerative energy recovery
Power cable:8 AWG
Support control communication mode: PPM / ADC / / UART

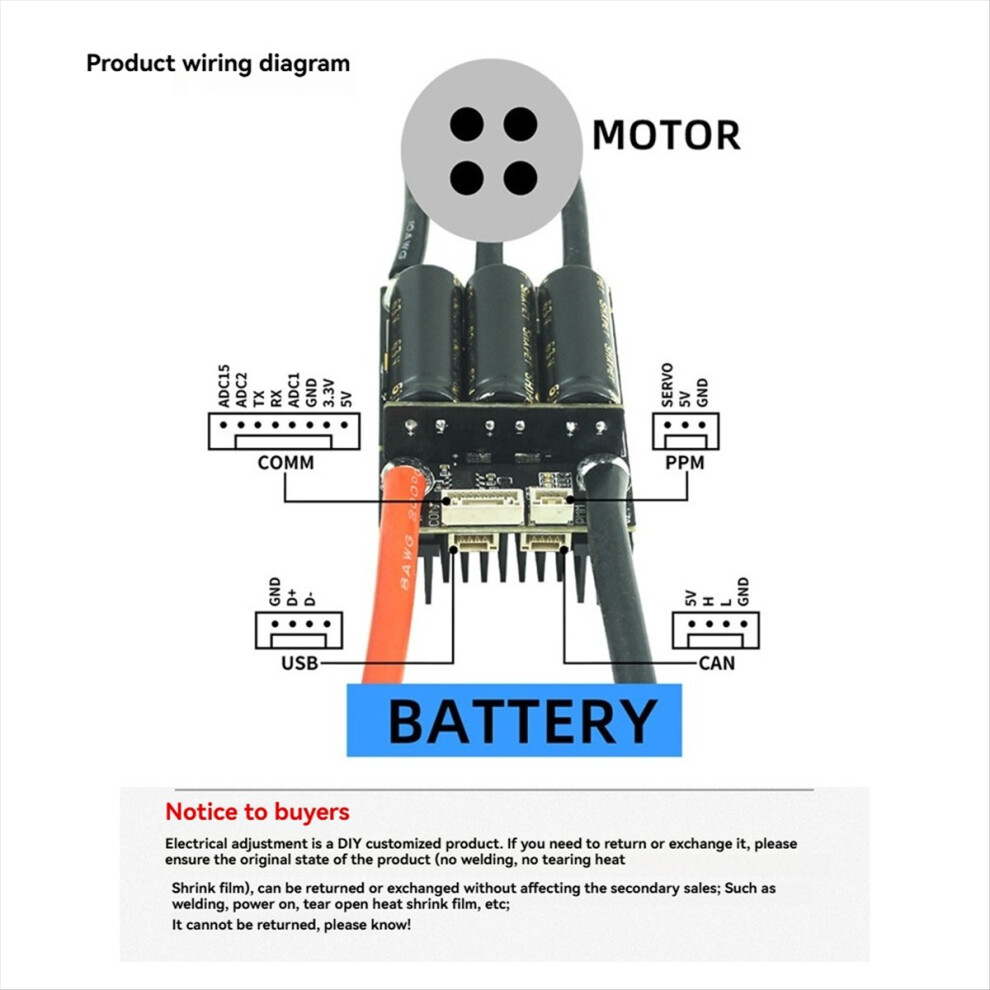

Communication port: USB / CAN / UART / IIC
Control mode: Support BLDC square wave control mode and FOC sine wave vector control mode
Continuous current: Single channel maximum continuous current: 100A (duration depends on external heat dissipation)
Single channel maximum pulse current: 150A
Colour:As Shown
Material:Aluminum Alloy

Package Contents:
1 * Motor
1 * Chinese and English instruction manual

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
