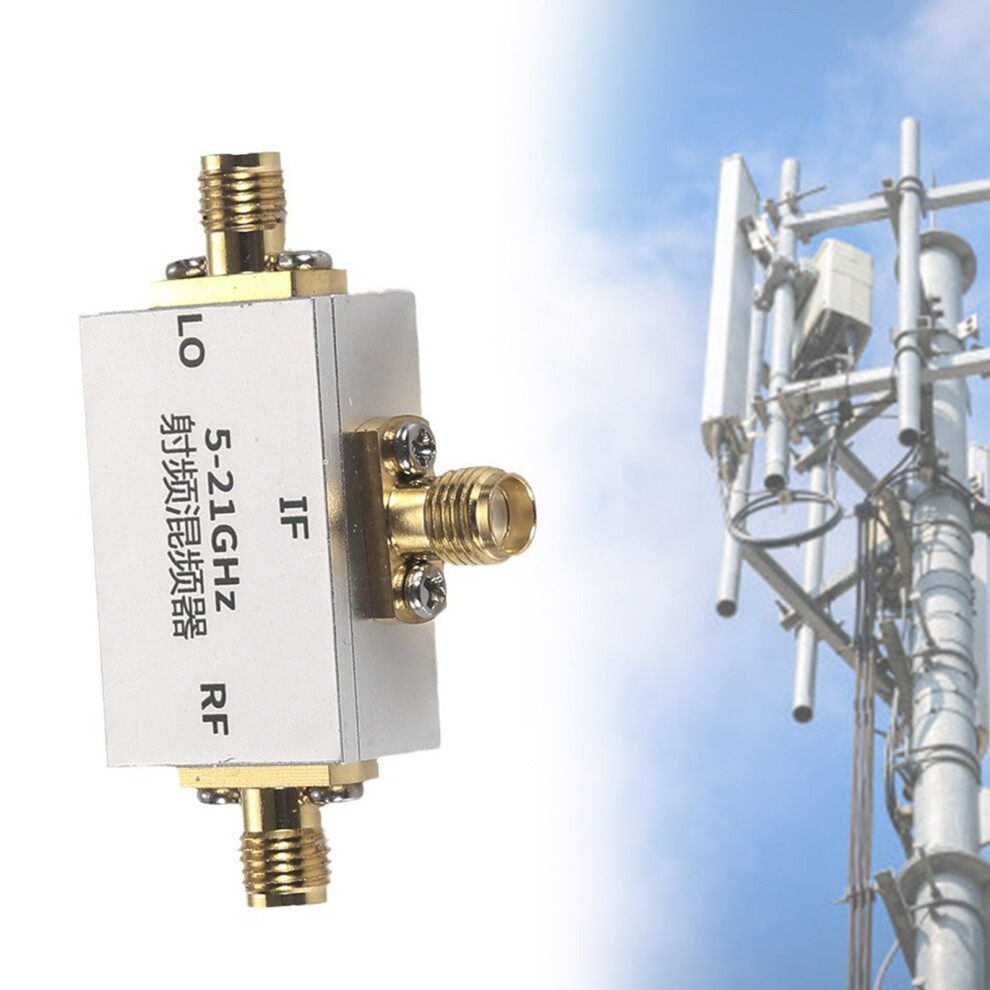

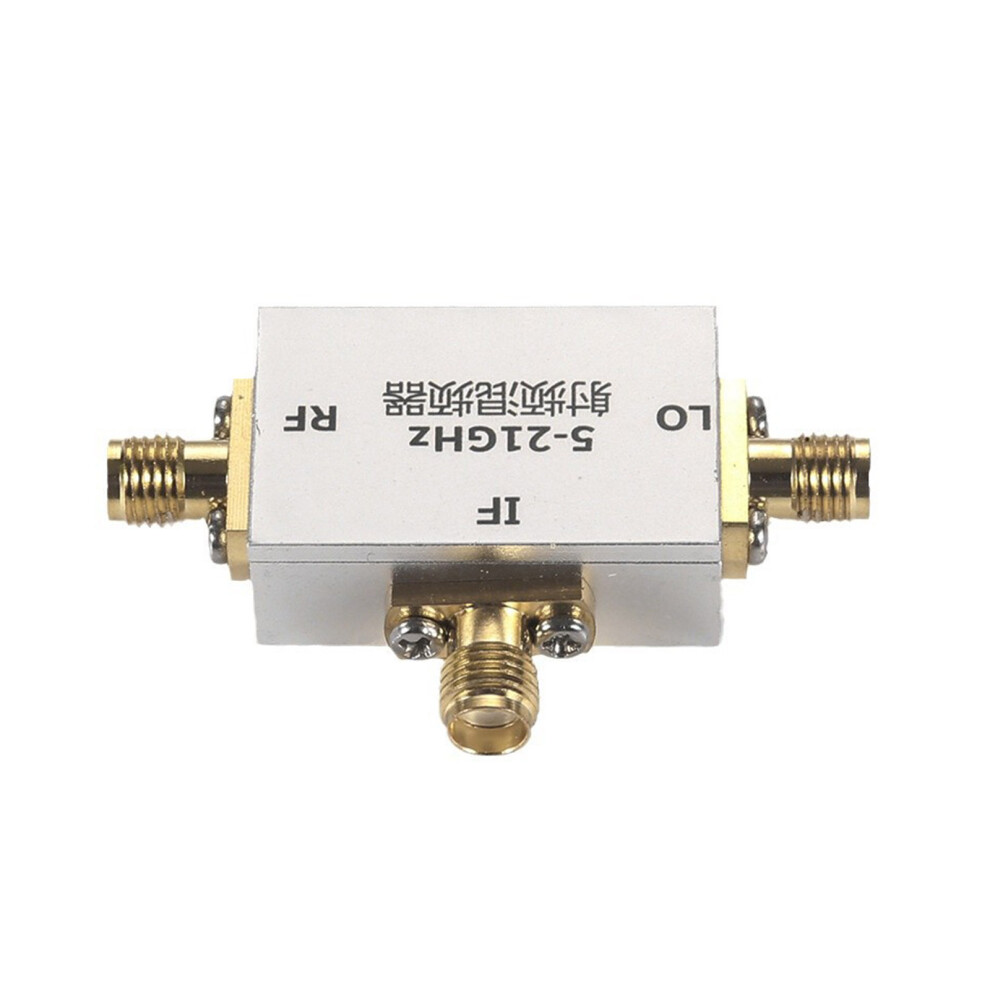

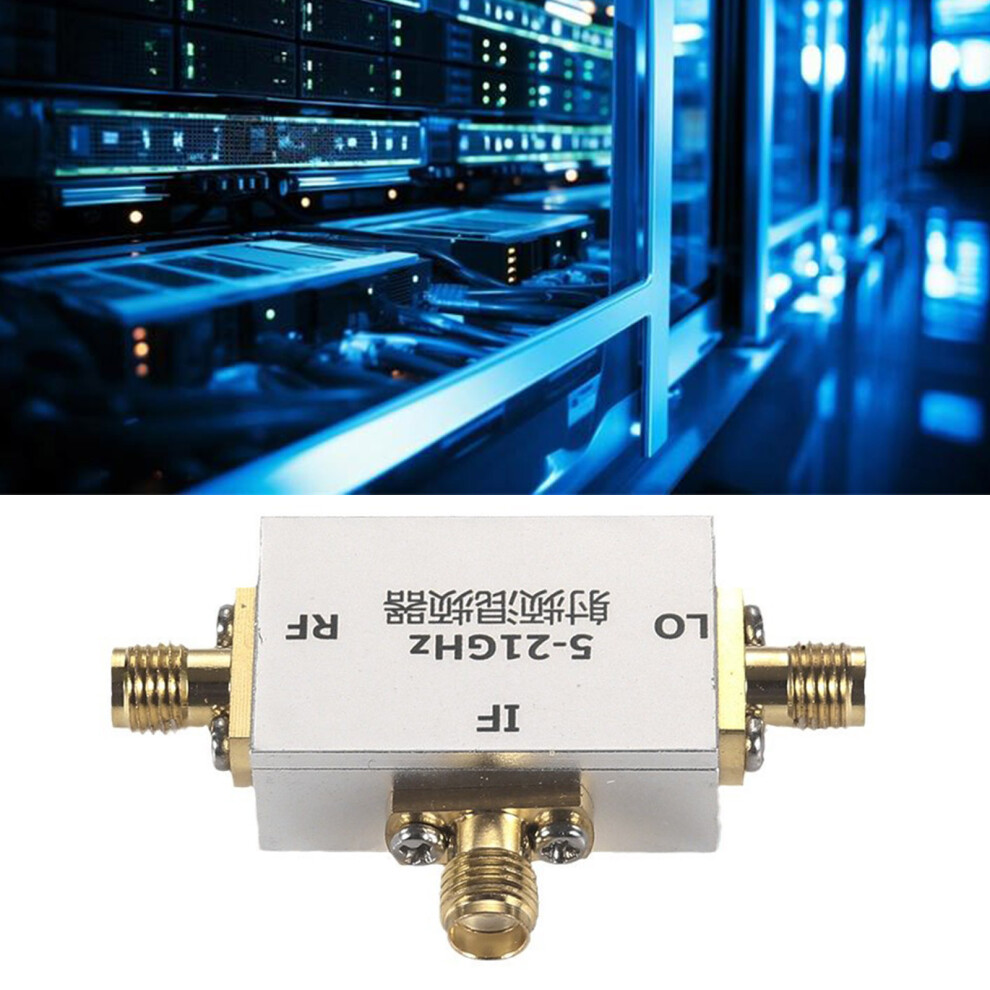

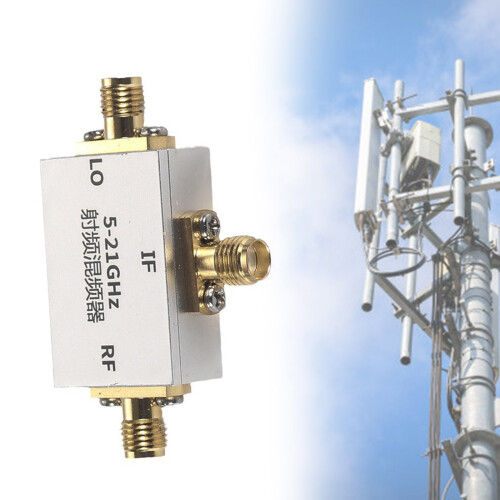

Mixer Module For Broadband Transceiver Systems Metal Housing

Mixer Module For Broadband Transceiver Systems Metal Housing Description

Features:
This 5-21GHz Mixer Module delivers superior frequency conversion capabilities for both up/down conversion operations, featuring an wide bandwidth that supports critical communication systems up to 21GHz.
Engineered with metal housing for optimal electromagnetic shielding and connectors, it incorporates low insertion loss circuit board to maintain signals integrity across (5-21GHz) and IF (5000MHz) ports.
Designed for engineers and systems integrators working on microwave communication systems, equipment, and satellite transceivers requiring precise frequency conversion solution.
Ideal for 5.8G/8G/12G/18G applications in base stations, testing instrumentation, and communication devices where compact design ensures seamless integration.
With +21dBm input power tolerance and standardized interfaces, this mixer module ensures stable performances in high frequency environments while minimizing conversion loss below 8dB.

Specifications:
Component: Metal
Working frequency: 5-21GHz;
IF intermediate frequency working frequency: 5000MHz;
Frequency conversion loss: 8-12dB;

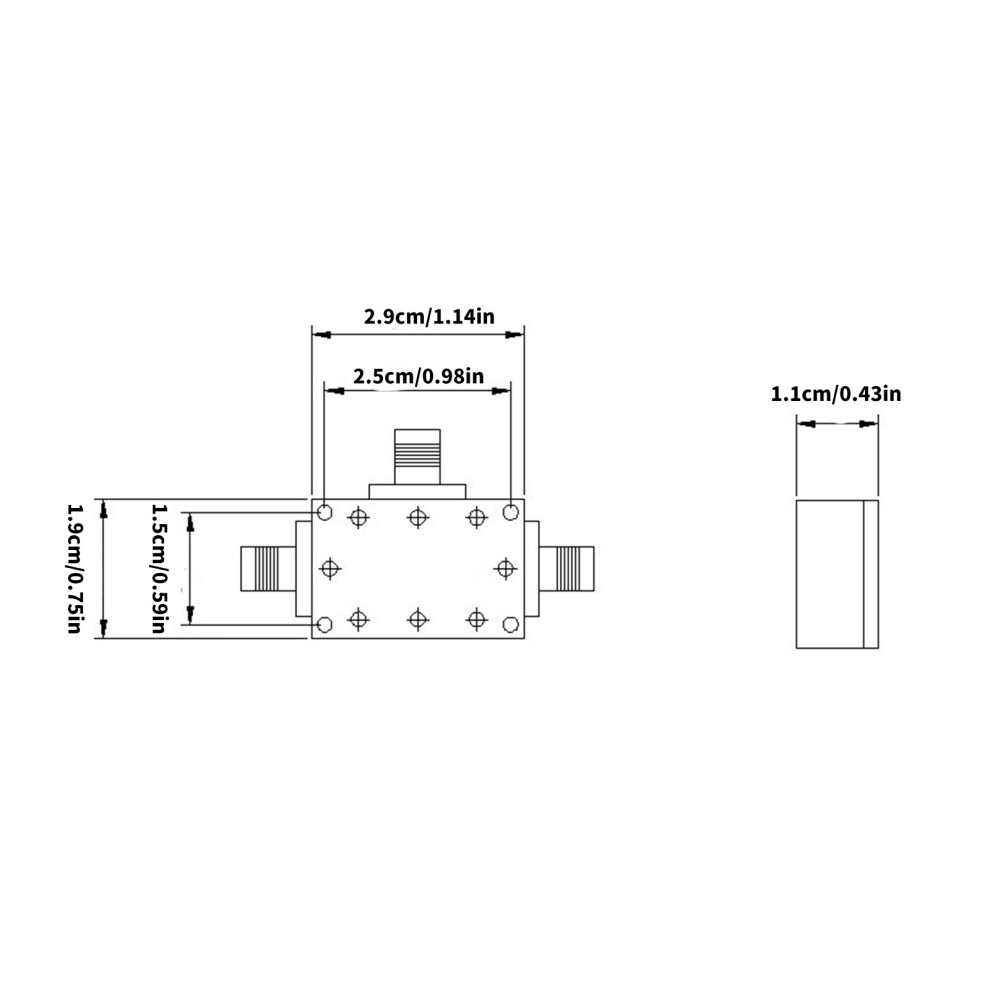

Size: 29x19x11mm/1.14x0.75x0.43in (excluding connectors);

Package Includes:
1pc Converter Module

note:
Please allow 1-2cm errors due to manual measurement.
Due to difference between different monitors, the picture may not reflect the item actual color.
