Mobile Digital Video Splitter 4 Channel Mini 720P

Mobile Digital Video Splitter 4 Channel Mini 720P Description

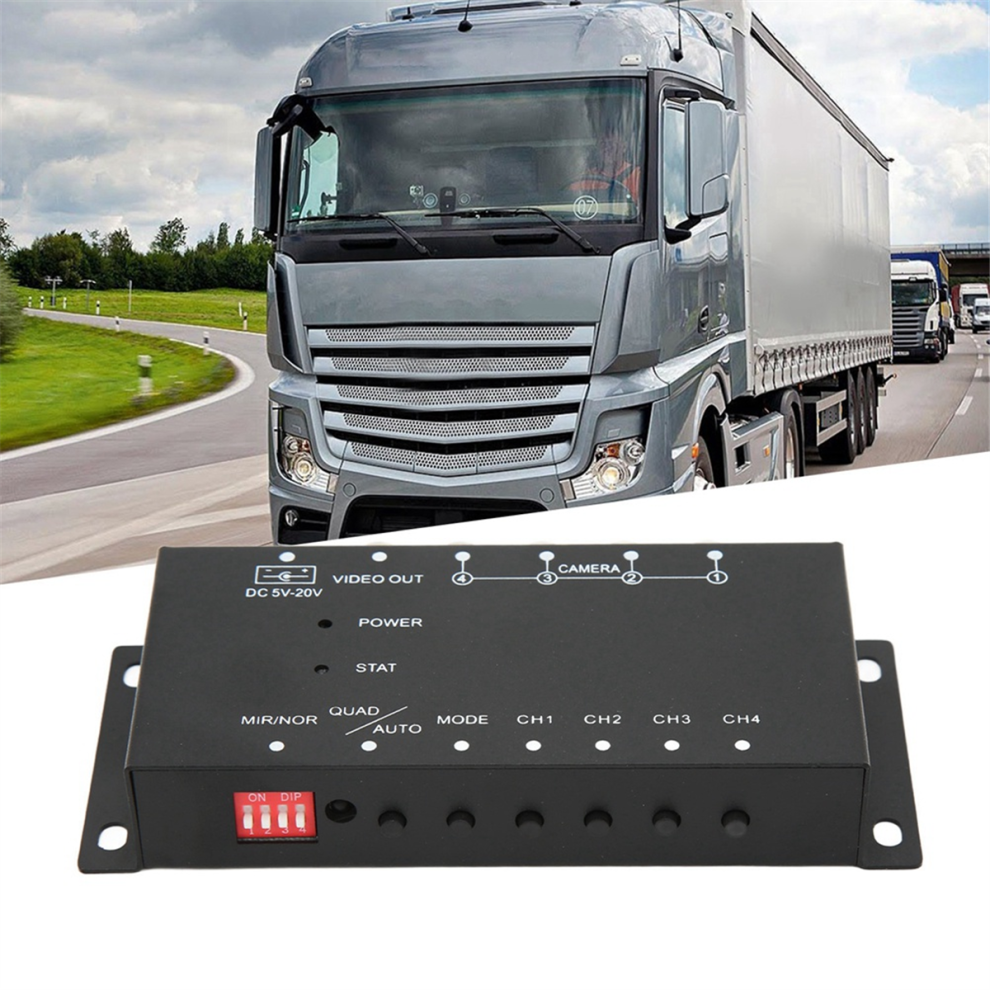

1. Extensive Application: The mini Video Splitter is widely applicable to school buses, buses, tank trucks, engineering vehicles, large trucks, boats, coaches, yachts and so on to meet your various demands.
2. Multiple Protection: The Video Splitter adopts industrial grade design, with secure interface, 9‑36V wide voltage input, overload protection, short circuit protection, reverse connection protection.
3. Advantages: Support for license plate numbers, time, driving information and other characters overlay. The host can be turned on, off and delayed. Support add left turn, right turn, and reverse auto full screen display.

Video Format: PAL/NTSC (automatic identification, note: the camera (not included) needs to be connected before power on, the default is PAL format)
Video Parameters of Each Channel:
Refresh Rate: 25 frames per second
Value: 1Vp-p
Impedance: 75Ω
Video Interface: 4 inputs ( interface), 1 output ( interface)
Audio: 1 in
Operation Screen Mode: 2.4G remote control / infrared remote control / wire control: high level trigger
Positive/Mirror Selection: OFF/ON

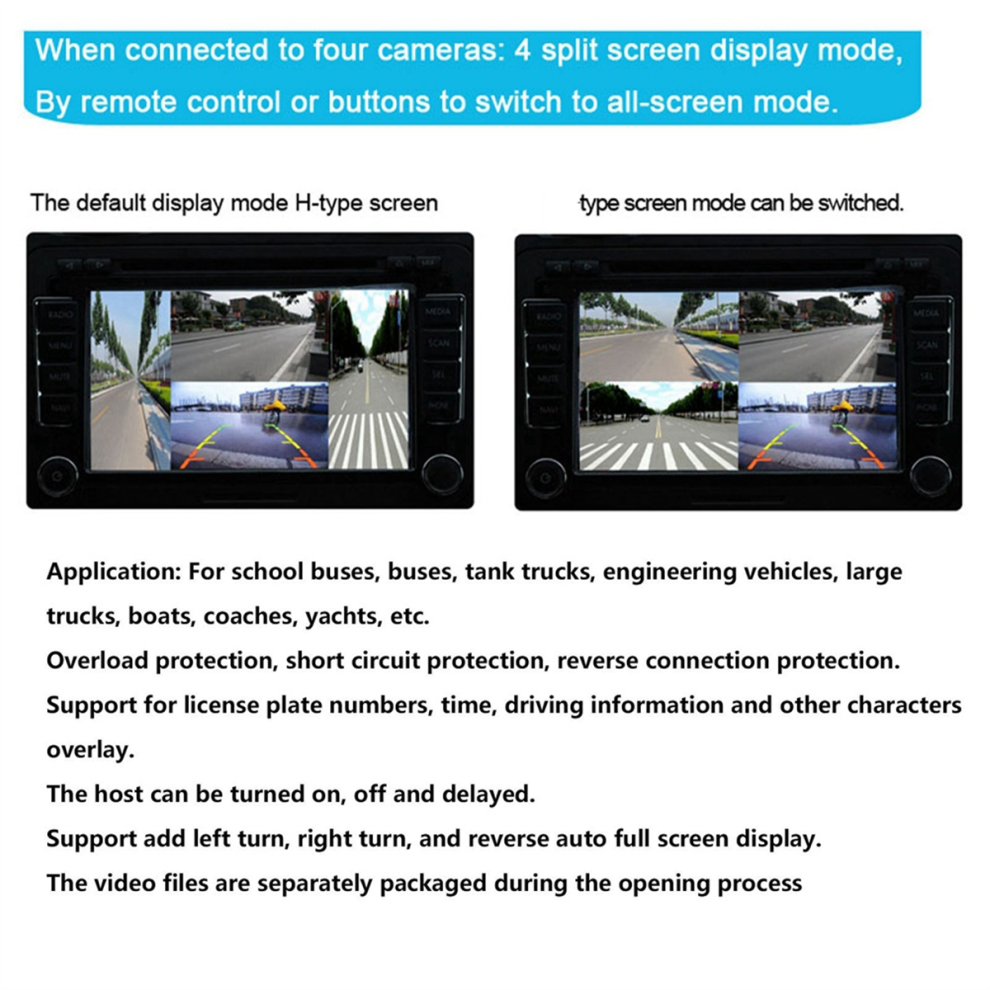

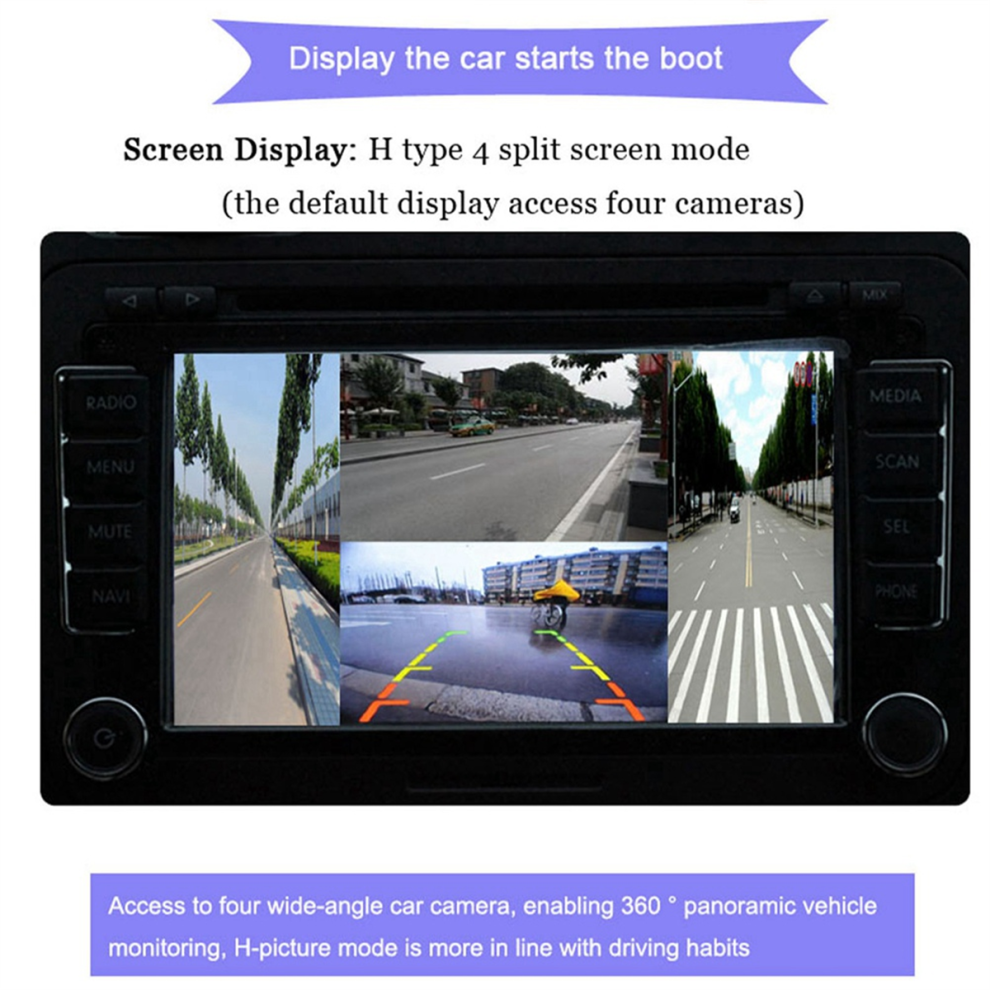

Default Boot Screen: Four screen mode, selectable in the menu

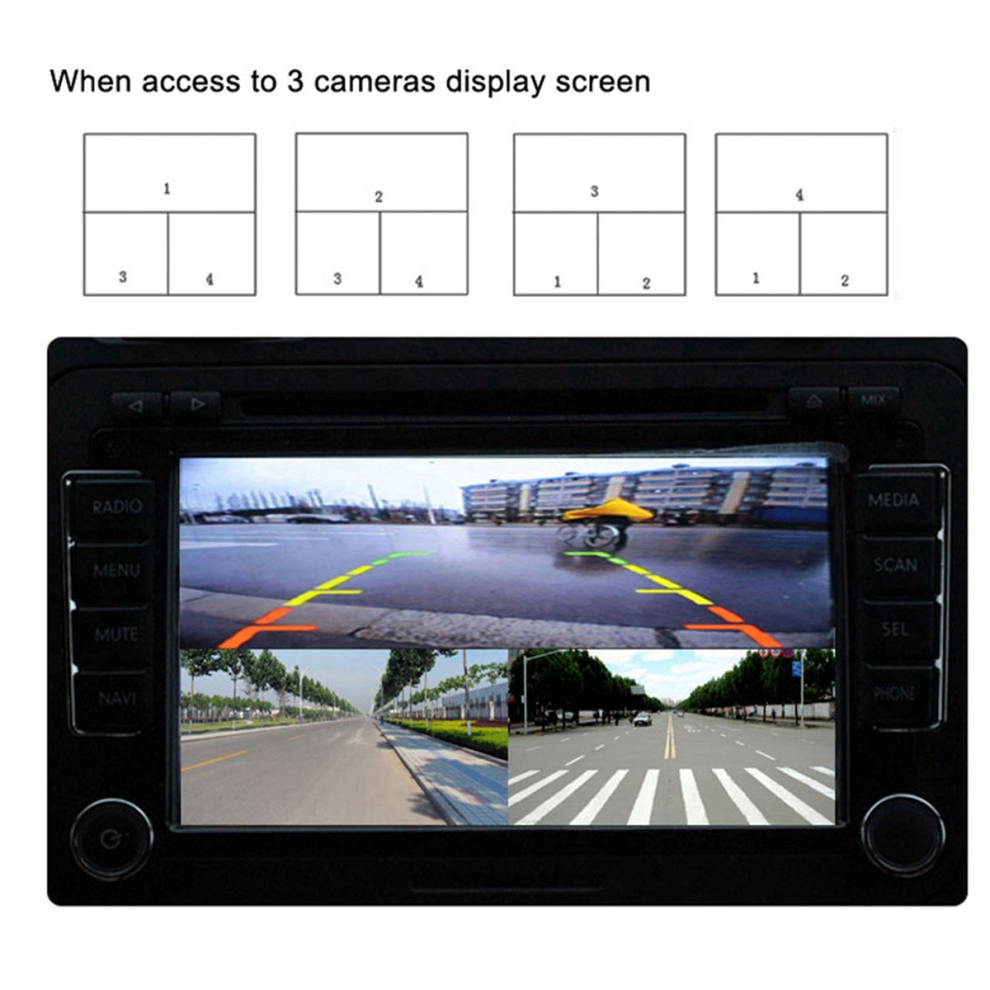

Picture Mode: Mode 4, mode 3, mode 2, mode 1
Host Operation Power Consumption: 2.5W
Output Power: None
Rated Voltage: DC 12V
Camera Input: 4 Channels
Operation Method: Remote Control
Application: For school buses, buses, tank trucks, engineering vehicles, large trucks, boats, coaches, yachts, etc.
Note:
Installation guide not included, we strongly recommend you professional installation.
Please check as much as possible to make sure the item is what you need.
Different batches have different colors of accessories and wiring harnesses, and designated colors are not accepted. There are slight differences between the actual product and the picture, which not affect normal use.
Colour:Black
Material:plastic

Package Contents:

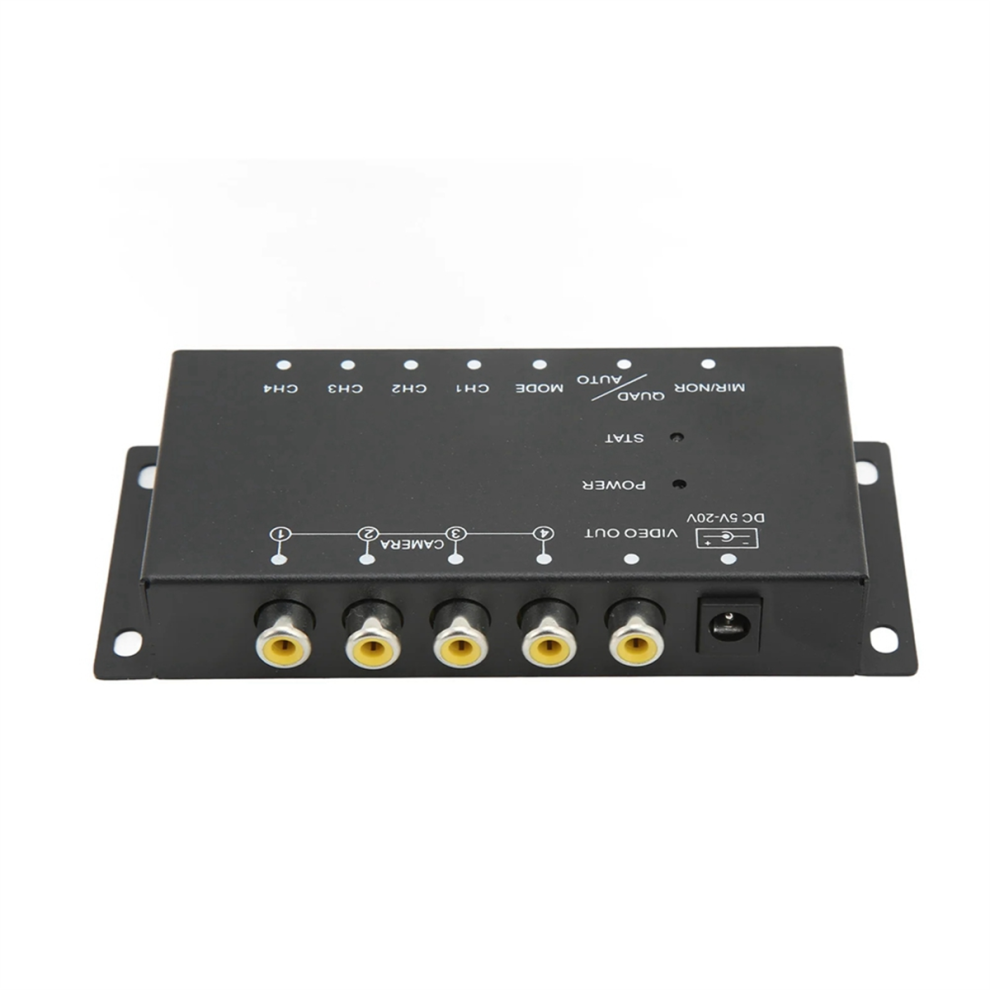

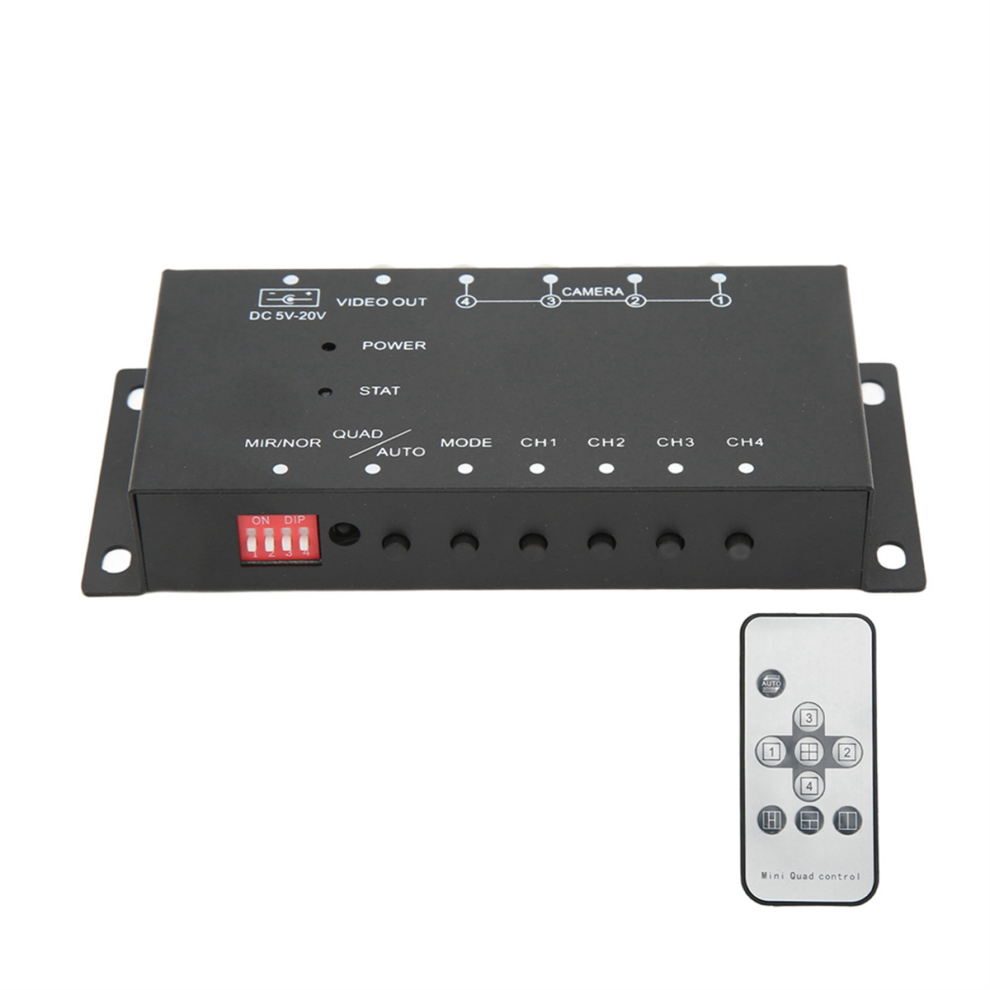

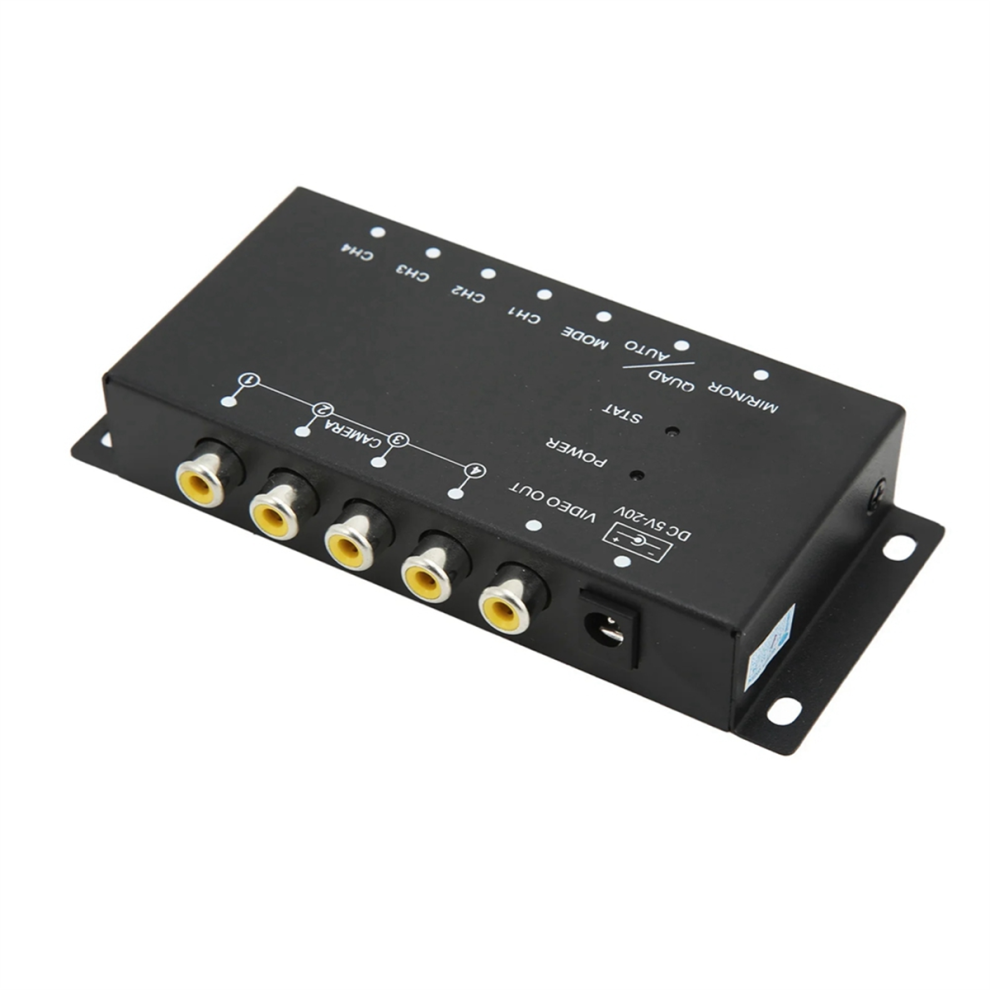

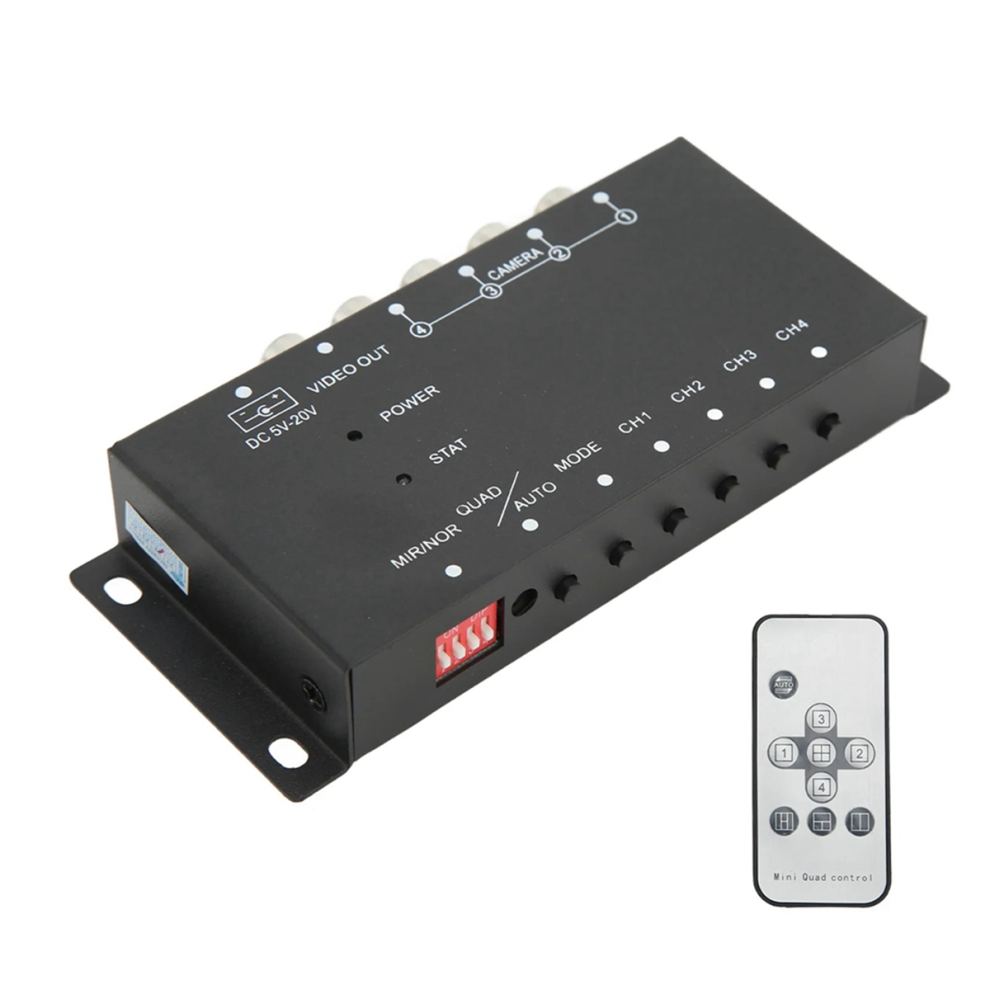

1 x Video Control Box
1 x Remote Control

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
