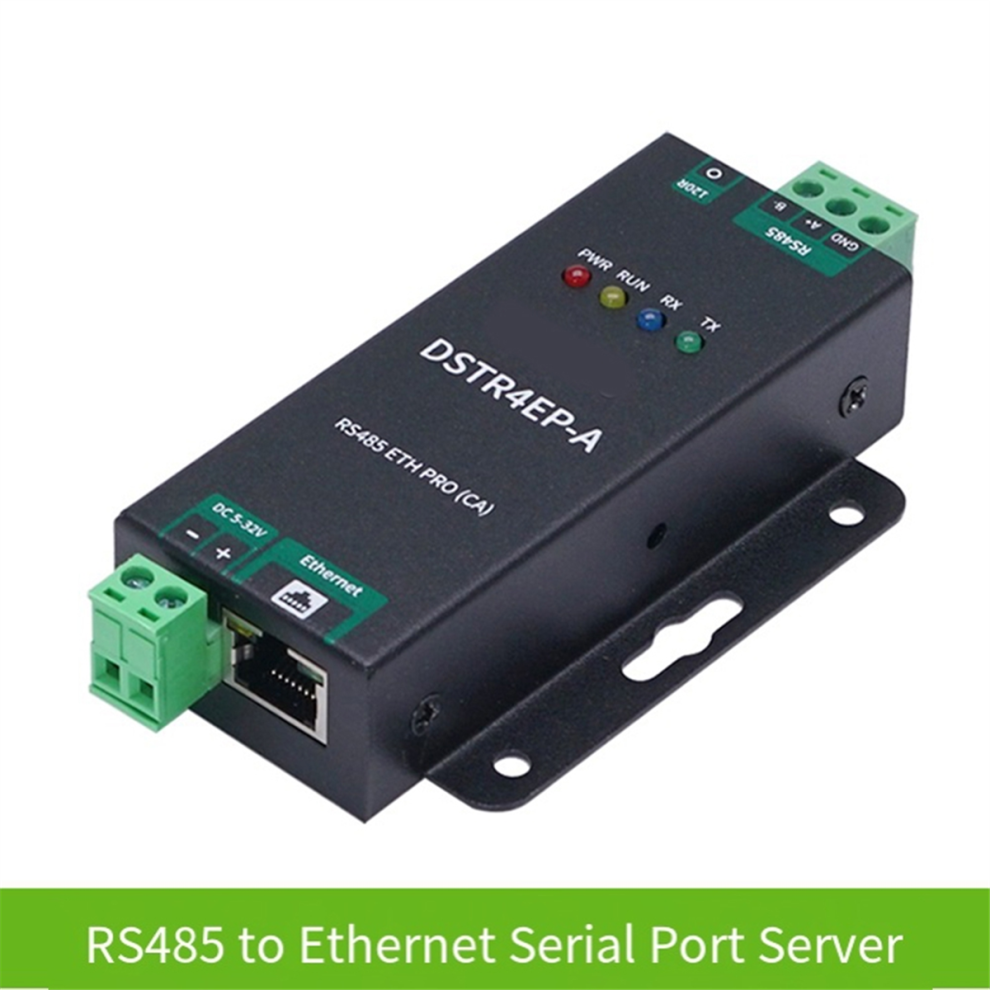

Modbus Ethernet Industrial Serial Server RS485 ETH

Modbus Ethernet Industrial Serial Server RS485 ETH Description

Working voltage:DC 5.0-32V
Install:Mounting ears or 3.5 cm universal rails
working temperature:Support -40-85
Network port specifications:RJ45, /MDIX line automatic conversion, -connection and direct connection self-adaptation
Working mode: server, client ( server also coexists) UDP, UDP multicast UDP dynamic mode;

baud rate:300bps-460800bps
Transformation Agreement: Modbus , , JSON, Realcom protocol, HTTP;
Modbus gateway:Supports multi-host mode, storage mode, pre-configured table (ZLMB) mode; supports to RTU/ASCII
Communication method:/IP direct communication, virtual serial port mode
(The product printed words depending on the batch, but this does not affect use)
Color: As Shown
Material: plastic

Package Contents:
1 x Ethernet Serial Server

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
