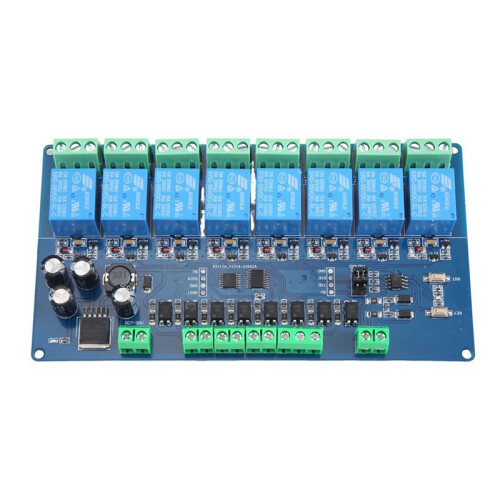

Modbus-Rtu 8 Channel Relay Module Modbus RTU 8 Input RS485 Communication TTL
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 136,000 Trustpilot reviews and an 'Excellent' rating
All prices include VAT.
Interest-free payment options available
See full product description & details
Delivery: Standard (€4.00) | Tue 20th - Tue 27th Oct
Sold by: is fearr
Returns: 30 days
180-day payment protection
Summary
- 1. Mature and stable 8-bit MCU on board: and MAX485 level conversion chip
- 2. Communication protocol: Supports standard Modbus RTU protocol
- 3. Communication interface: Supports RS485/TTL UART interface
- 4. Communication baud rate: 4800/9600/19200, default 9600bps, supports power-off saving
- 5. Optocoupler input signal range: DC3.3-30V (this input cannot be used for relay control)
Modbus-Rtu 8 Channel Relay Module Modbus RTU 8 Input RS485 Communication TTL Description
1. Mature and stable 8-bit MCU board: and MAX485 level conversion chip
2. Communication protocol: Supports standard Modbus RTU protocol
3. Communication interface: Supports RS485/TTL UART interface
4. Communication baud rate: 4800/9600/19200, default 9600bps, supports power-off saving
5. Optocoupler input signal range: DC3.3-30V (this input cannot be used for relay control)
Output signal: Relay signal, supporting manual, flash close, and flash break modes. The delay base for flash close/flash break is 0.1s, and the maximum set flash close/flash break is 0 XFFFF * 0.1S=65535 * 0.1s=6553.5s
Device address: Range 1-255, default 255, supports power-off saving
Board 1 circuit 5V, 10A/250V AC 10A/30V relay, capable of continuously attracting 100000 times with diode surge protection and short response
board relay indicator light
Power supply voltage: DC7-24V, with input anti reverse connection protection
Due to different batches, there may be differences in product appearance and printed text, which will not affect use.
Colour:As Shown
Material:PCB
Package Contents:
1 * Relay Modul
Details
| OPC | PRSHP5V |
|---|---|
| Codes | 4711256756684 (EAN) |
| Product and Safety Information |
Product Data
| Height | 2cm |
|---|---|
| Width | 11cm |
| Length | 17cm |
| Weight | 0.178kg |
| Colour | As Shown |
| Material | PCB |
