Motorcycle Handle Heated Grips Electric Thermostat

Motorcycle Handle Heated Grips Electric Thermostat Description

Installation is super simple: After installing the throttle, align the lead elbow of the right hand handle with the throttle cable post and insert it. Use a tie to lightly tie the elbow and cable post together. Improve the problem of too many and complicated installation of old accessories.
The first anti-detachment ring: the anti-detachment ring is used to prevent the handle from out, and it is more flexible because it not rotate eccentrically. Improve the old model with an iron ring to fix the handle. If the screw is loose, it easily come out. If the screw is tight, it cause eccentricity and make the rotation inflexible.
Tighten the aluminum hoop: Use your left hand to fix the aluminum hoop more firmly. Exercise .The improved old model uses an iron ring to fix it and is easy to swing.The wire does not rotate with the oil: The right hand heating wire and the power supply wire are powered by a spring, and the joints are all soldered to waterproofing and anti-corrosion.Ultra-thin turntable:The left and right hand handle turntables are thinner, more beautiful, and more convenient for honking the horn.
Inclined installation extends lifespan The left handle switch is installed at an angle to allow rainwater to flow out and extend the life of the switch. If the switch has poor contact, gasoline may drip and the switch is pressed repeatedly. Use a blade to remove the button and scrape off the contact rust and clean it with gasoline.
DC power supply vehicle connection method Features of DC models: The headlights are powered by batteries. The black wire on the handle is positive and is connected to the 12-volt positive wire locked out of the faucet. This wire must be to turn off the power when turning the faucet lock. If the power cannot be turned off, the battery be depleted if the handle switch is forgotten toturn off. The green wire on the handlebar is connected to the negative ground of the vehicle.

Input voltage:12V
Product power:25W(Power of one pair)
Handle temperature:50-70 adjustable (the above data are obtained from experiments. The laboratory room temperature is 15-20. The specific value may fluctuate slightly due to changes in objective factors such as voltage and environment. It is for reference only.)

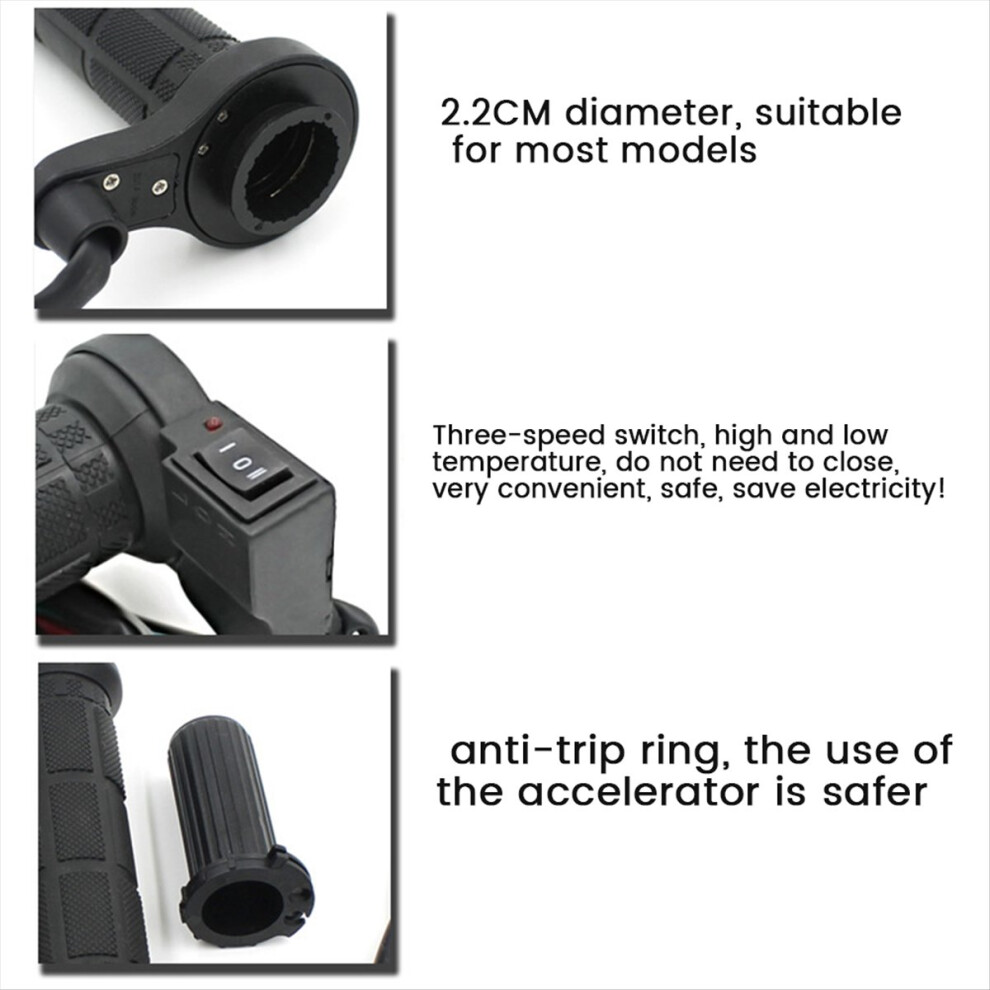

Switch type:Three-speed adjustable switch
Applicable models:Applicable handlebar diameter is 22MM motorcycle handlebars
design :
[1] The wire does not rotate with refueling, so it has a longer service life and is more convenient;
[2] No sliding contacts, spring power supply technology, the handle can be refueled and rotated more flexibly;
[3] The handle is integrated with injection molding, waterproof and dustproof, has a longer service life and is ;
[4] Split single and double 360-degree throttle design;
[5] The electric heated handlebar is designed for universal use and is suitable for a range of models.
Due to different batches, there may be differences in product appearance, color, and printed text, which not affect the use.
Colour:Black
Material:TPU rubber
Size:Left hand handle:14cm, Right hand handle length:14.7cm;
Handle diameter:2.2cm

Package Contents:
1set x Motorcycle Hand Heated Grips

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
