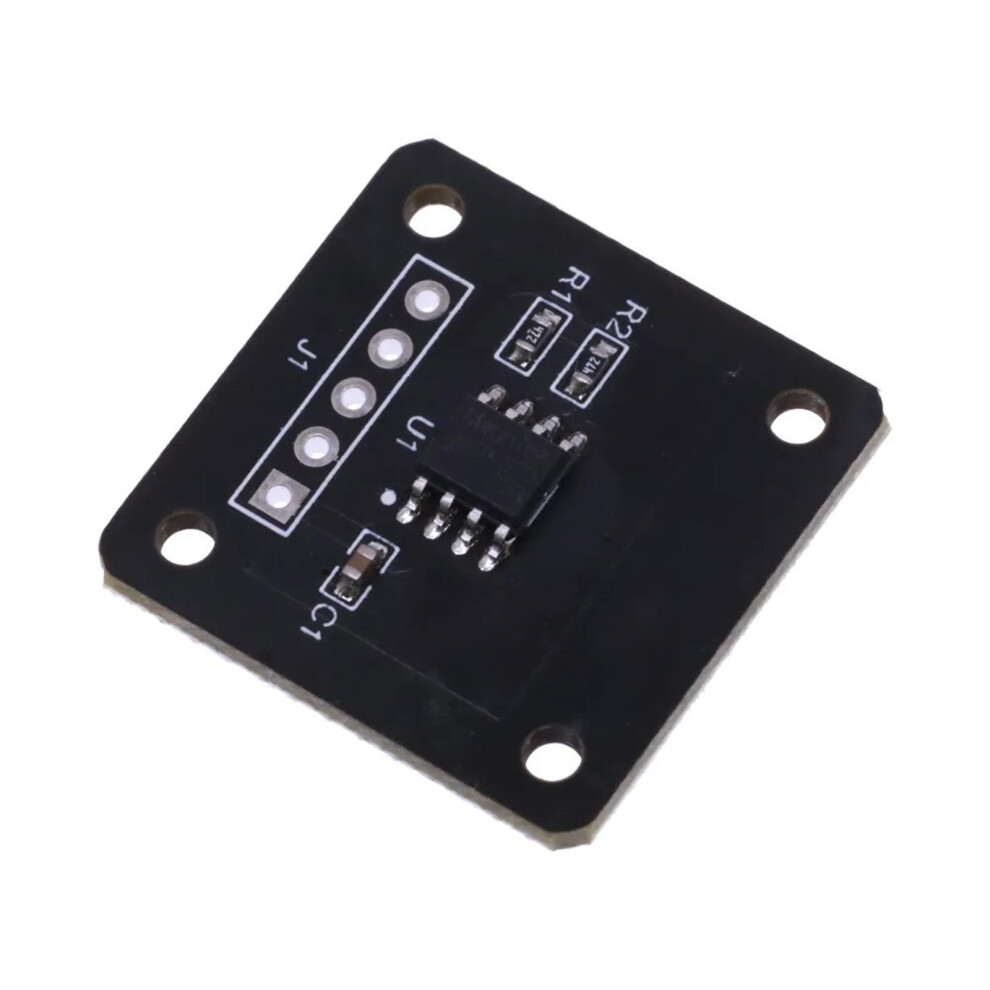

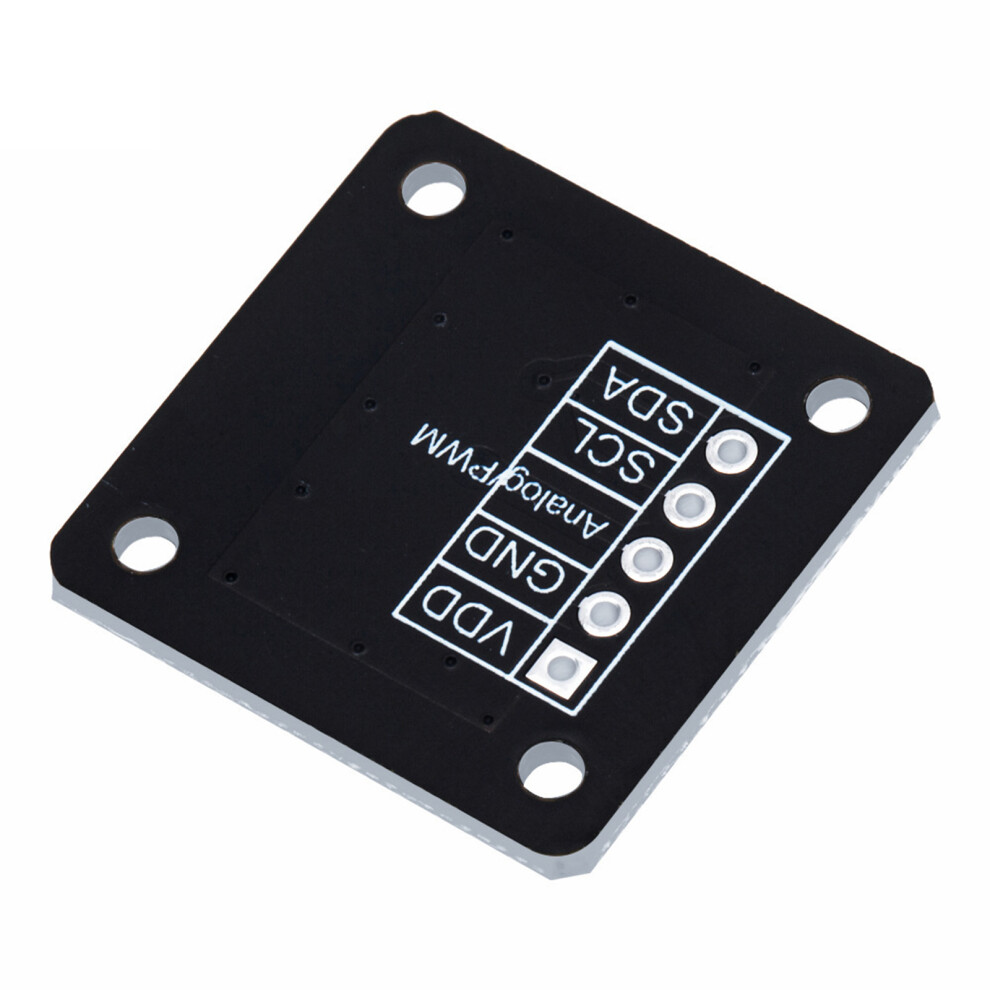

MT6701 Industrial Rotating Measurement With Wide Compatibility

MT6701 Industrial Rotating Measurement With Wide Compatibility Description

Features:
The MT6701 Magnetic Encoding utilizes advanced magnetic induction technology to deliver precise angles measurement with 0.5 accuracy, ideal for industrial automation and robotics applications requiring reliabled positioning solution.
Featuring PCB construction and broad spectrum compatibility, this encoding seamlessly integrates with multiple control while maintaining stable performances in harsh environments up to 125C.
Designed for engineers and developers working on industrial machinery, robotics projects, and electronic prototyping requiring robust angles sensing components.
Optimized for outdoor equipment, automated production lines, and energy efficient systems where shock resistant operating and low maintenance are critical.
With low 3mA power consumption and IP54 protections, this magnetic angles sensoring ensures extended service life for portable devices and sustainable energy applications

Specifications:
Magnetic angles encoding chip: MT6701
Based on the principle of differential Hall induction
The corresponding output of MT6701 is 0~360
Provides 14bit digital angles output through the I2C
Incremental output ABZ supports any resolution of 1~1024 lines
Incremental output supports any opposing poles of 1~16
Provides 12bit adjust output or analog output (12bit )
Size:about 23x23mm/0.91x0.91in

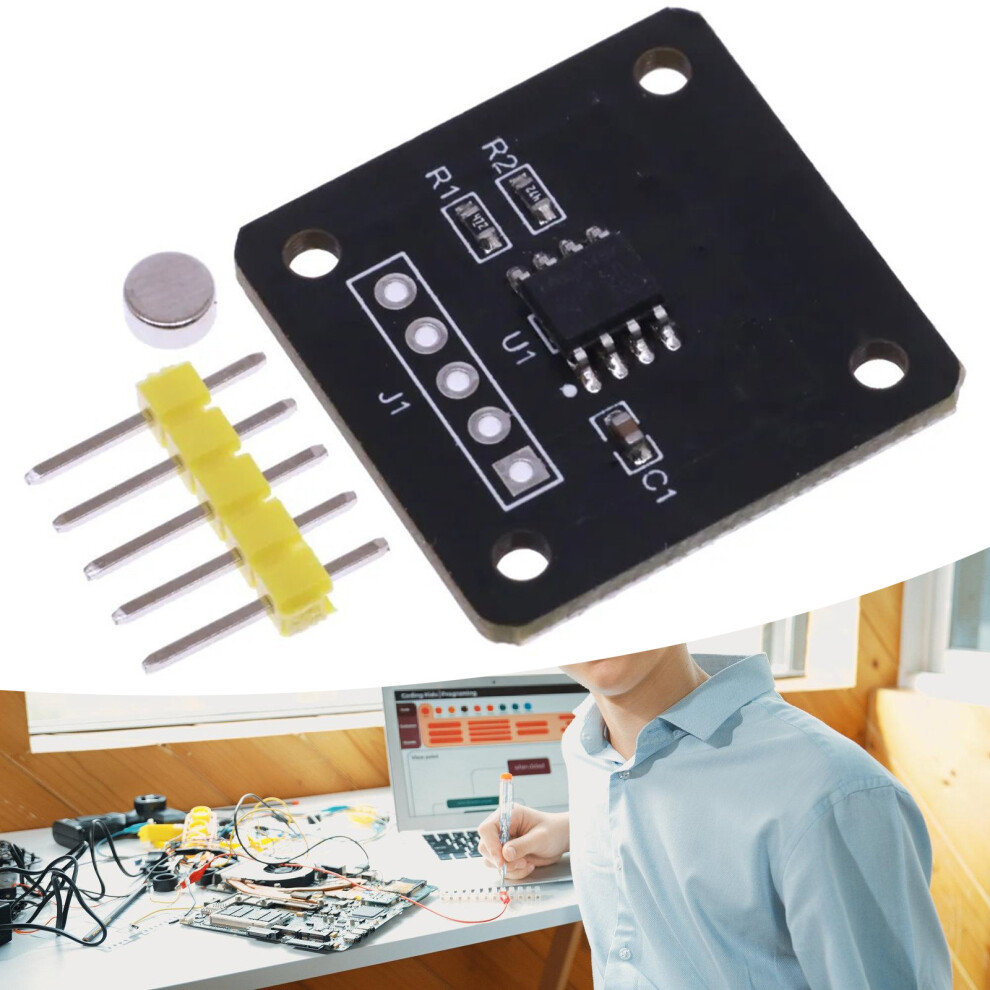

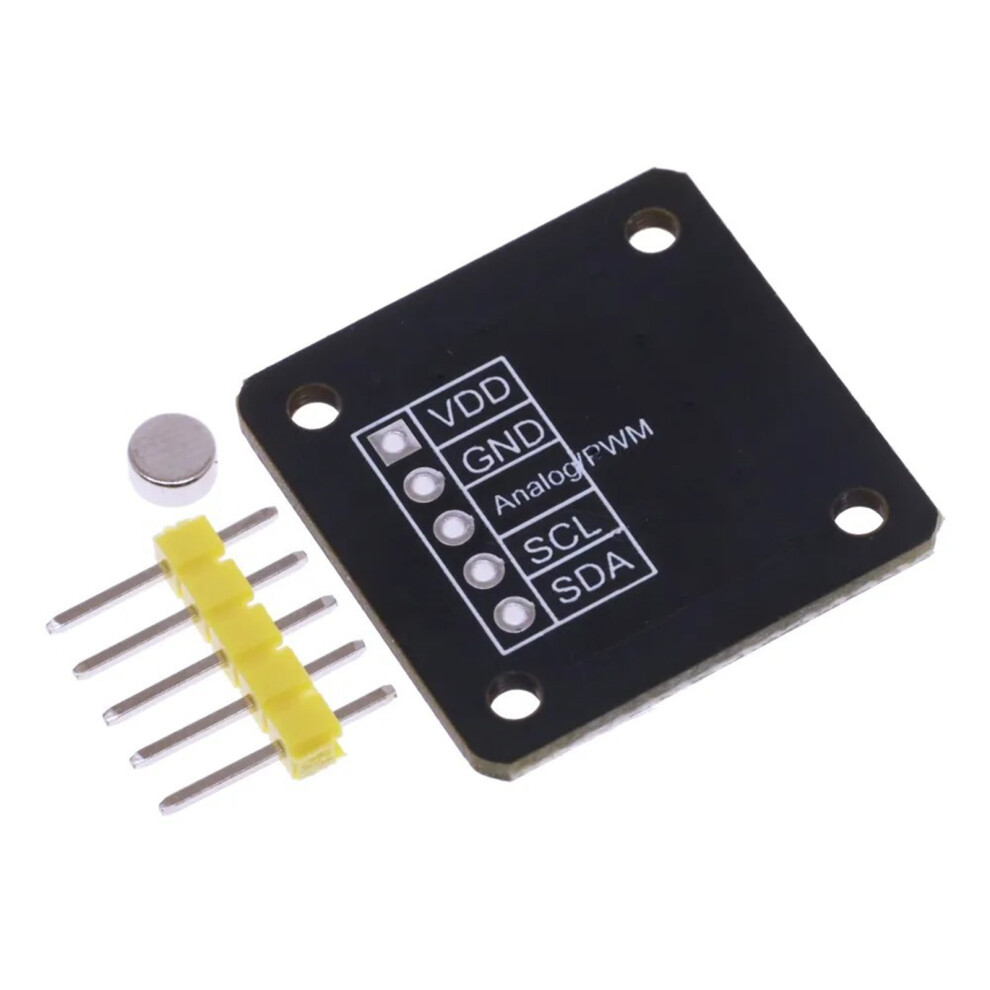

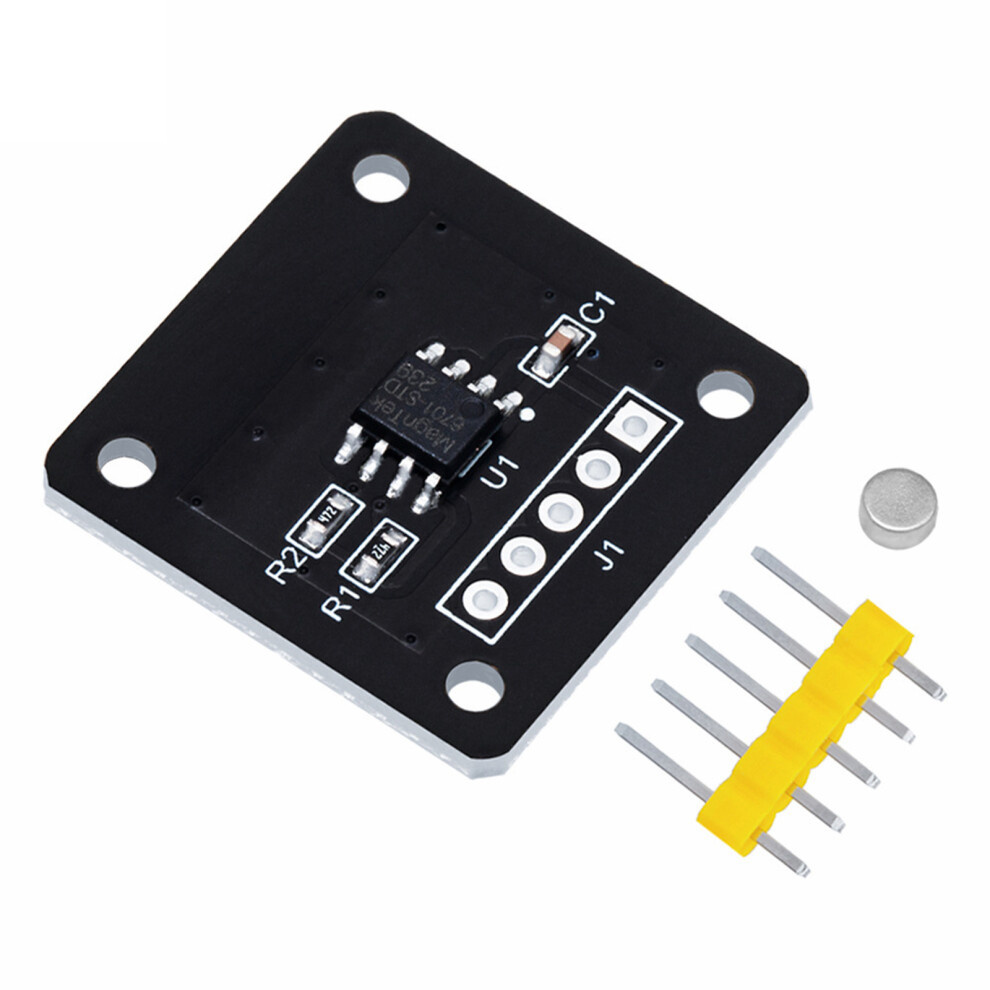

Package Includes:
1PC MT6701 Magnetic Encoding Device
1PC Cable
1PC Magnet

note:
Please allow 1-2cm errors due to manual measurement.
Please allow for slight color differences due to different display resolution.
