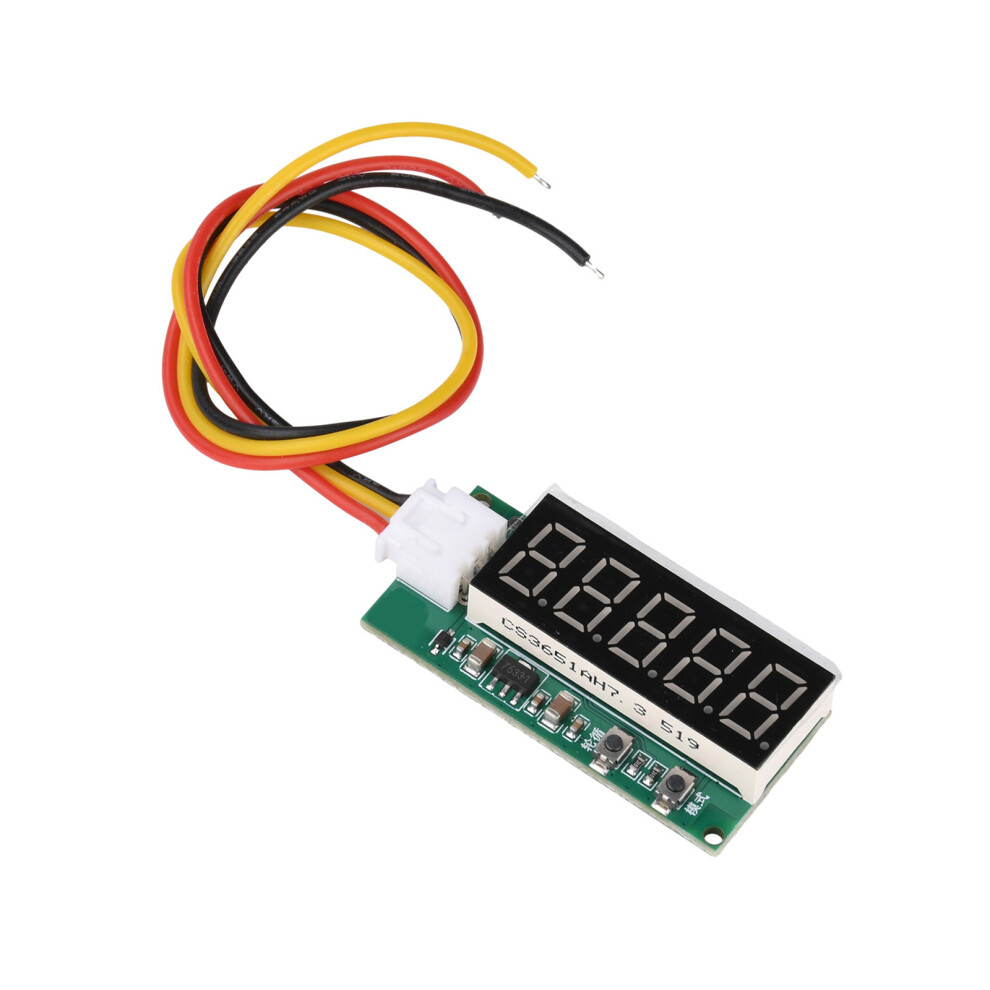

Multifunction Tachometer For BLDC Motors With Adjustable And

Multifunction Tachometer For BLDC Motors With Adjustable And Description

Features:
Simple Parameter Adjustment: Features easy to use button controls for quick setup of frequency, motor adjustments and ratio. .
Accurate Motor Matching: Adjustable motor settings allow proper pairing with different brushless motor types. .
Flexible Speed Monitoring: Allows ratio customization for complex drive systems. Monitors both rotation speed and output indication as needed.
10mA Low Power operating current makes it ideal for battery powered devices or energy efficient setups. consistent power inputs from 5V to 24V for different power sources.
Dedicated indication Connection: Color coded wiring points (red/yellow/black) provide good noise reduction. Compact 54.5mm design saves installation space.

Specifications:
Working voltages: 5-24V
Adjustment: button
Working current: 10ma
Frequency measurement/speed measurement: testing frequency or speed measurement can be set
Number of poles pairs: Set according to the number of poles pairs of the motor
Reduction ratio: configurable
Appearance size: 54.5x24x11.5mm/2.15x0.94x0.45in
Application: Brushless motor speed measurement, frequency testing

Package Includes:
1PC Brushless motor speed meter

note:
Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
