NanoPi DUO2 Developed Board 512M DDR3 Allwinner H3 Bluetooth Module

NanoPi DUO2 Developed Board 512M DDR3 Allwinner H3 Bluetooth Module Description

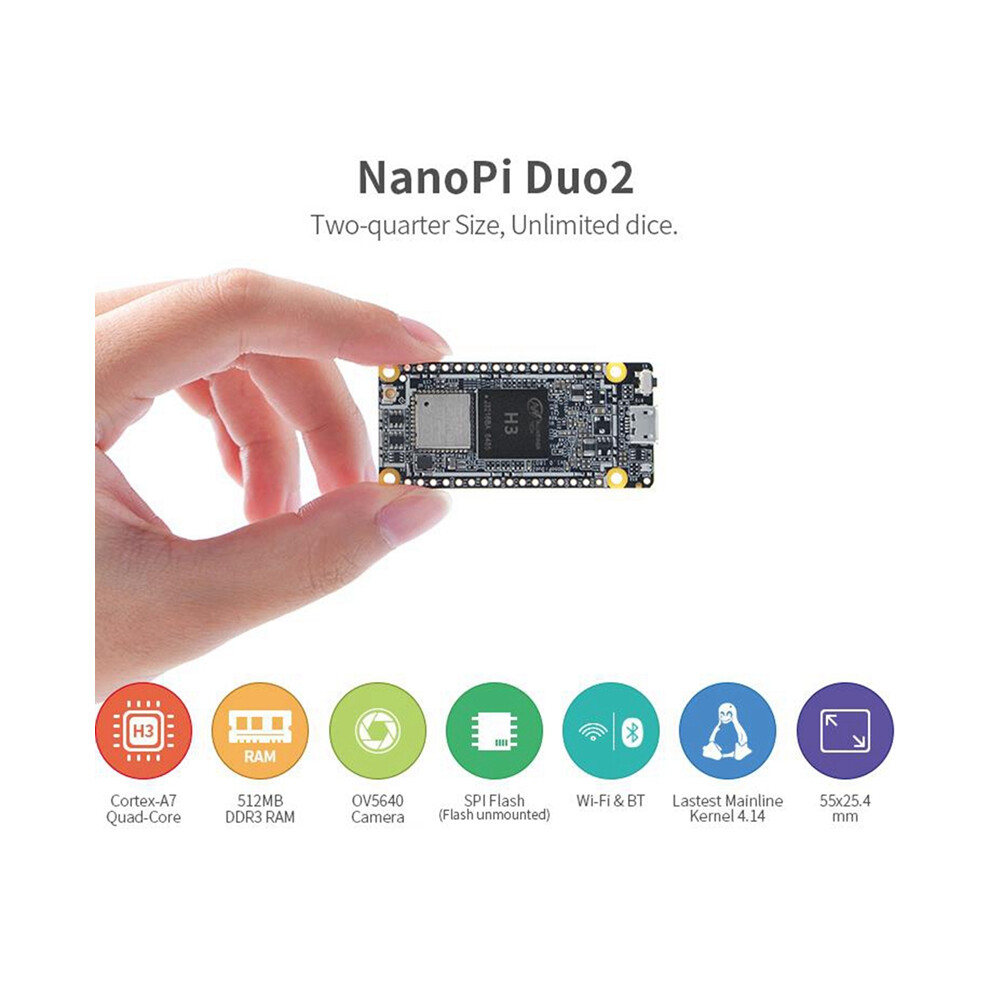

The NanoPi Duo2("Duo2") it is only 55 x 25.4mm. It features Allwinner quad-core A7 processor H3, and has 512M DDR3 RAM, onboard WiFi & bluetooth module and an OV5640 camera interface. It works with Linux variants such as Core.
The NanoPi Duo2 is tiny and compact with rich interfaces and ports. It takes power input from its MicroUSB port and can be booted from a SD card. It works with general bread-boards. Interface pins such as USB, SPI, UART, I2C, PWM, IR, audio input & output and Fast Ethernet etc are populated.
The NanoPi Duo2 supports software utilities such as WiringNP and Python etc. These are all open source. It is suited for various IoT applications.

Hardware Spec
CPU: Allwinner H3, Quad-core -A7 Up to 1.2GHz
DDR3 RAM: 512M
Connectivity: 10/100M Ethernet
WiFi: 802.11b/g
Bluetooth: Bluetooth V4.0 of 1, 2 and 3 Mbps.
Key: GPIO Key
USB Host: 2.54mm pin x2, exposed in 2.54mm pitch pin header
For SD Slot x 1
MicroUSB: OTG and power input
Debug Serial Interface: exposed in 2.54mm pitch pin header
Audio input/output Interface: exposed in 2.54mm pitch pin header

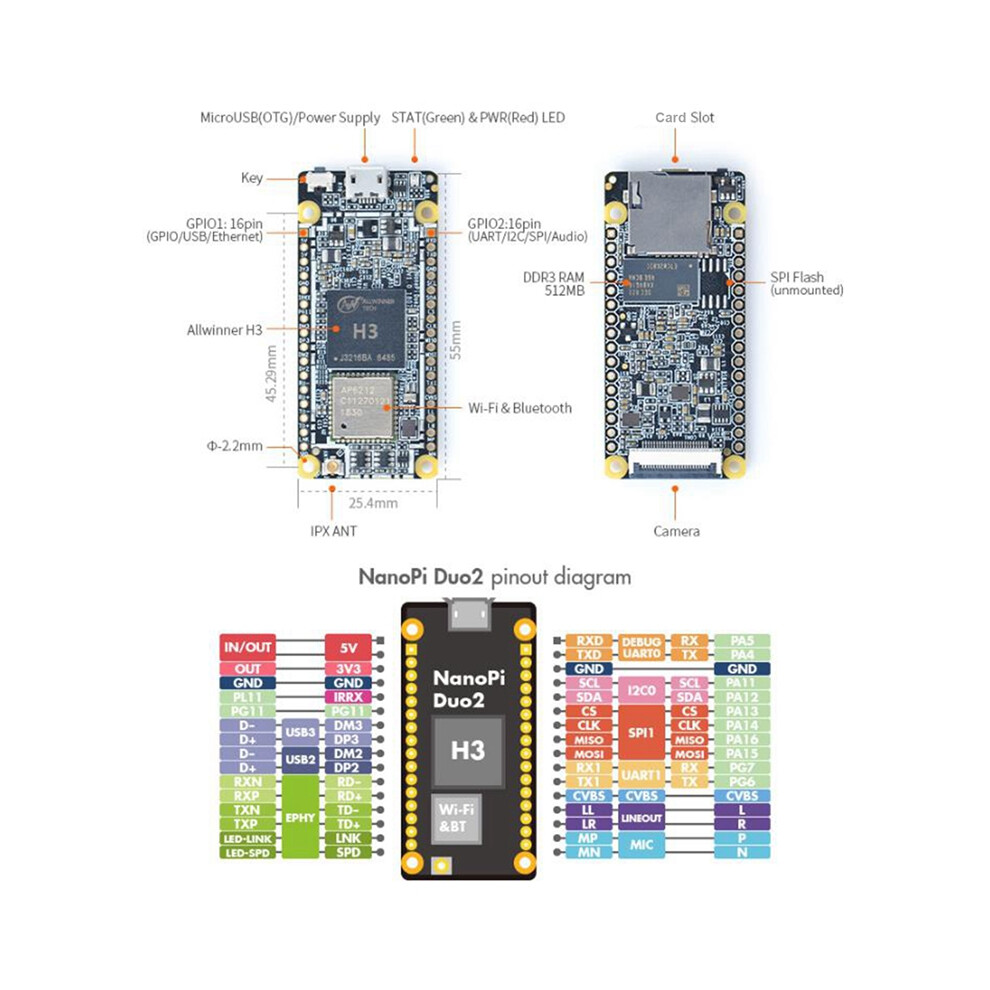

GPIO1: 2.54mm spacing 16pin. It includes UART, SPI, I2C, Audio etc
GPIO2: 2.54mm spacing 16pin. It includes USB,10/100M Ethernet, IO etc
PCB Dimension: 25.4 x 55mm
Power Supply: DC 5V/2A
Temperature measuring range: -40 to 80
OS/Software: U-boot,Linux 4.11.2 (mainline) , 16.04.2 (Xenial)
Material: PCB
colour: Random Color
Note: Random color, don't accept the specified color.

Package Contents:

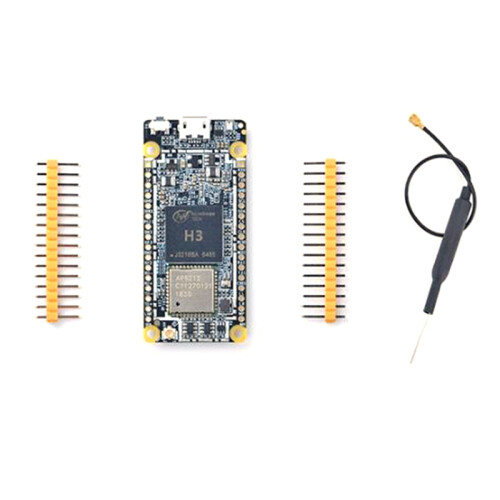

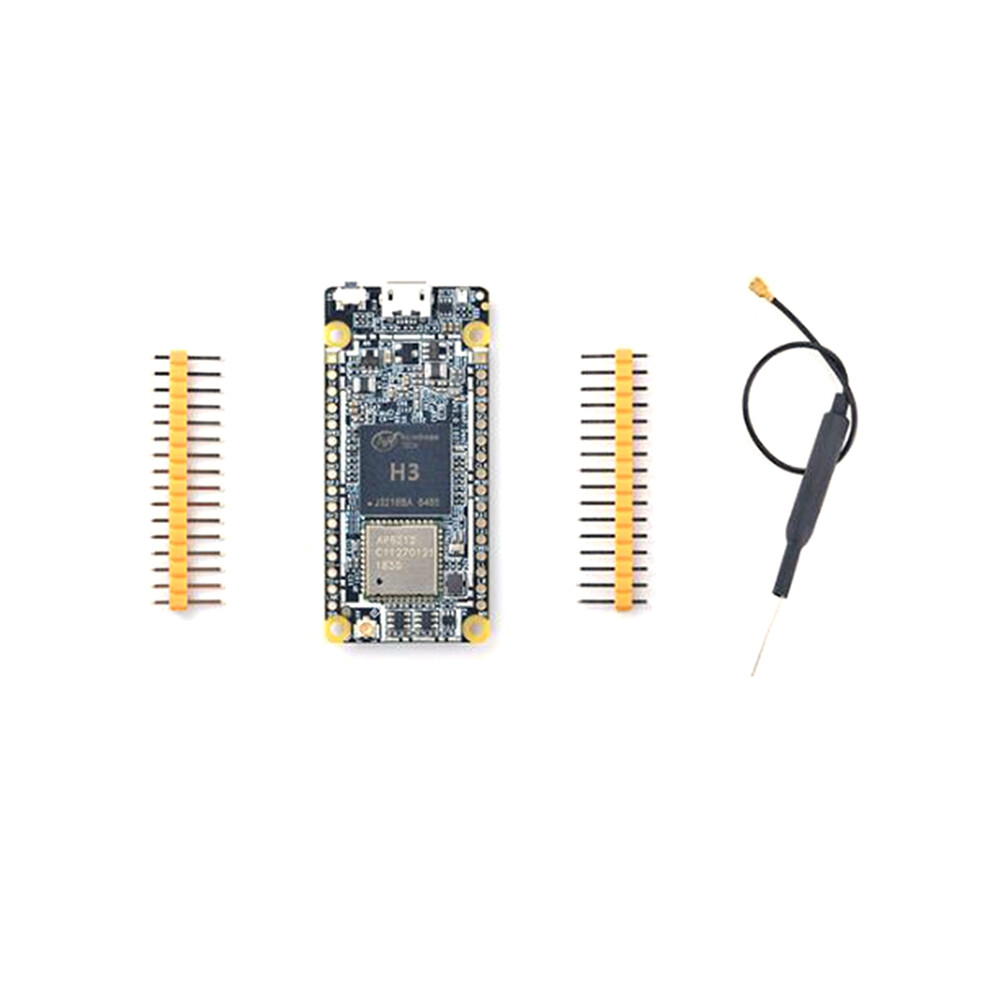

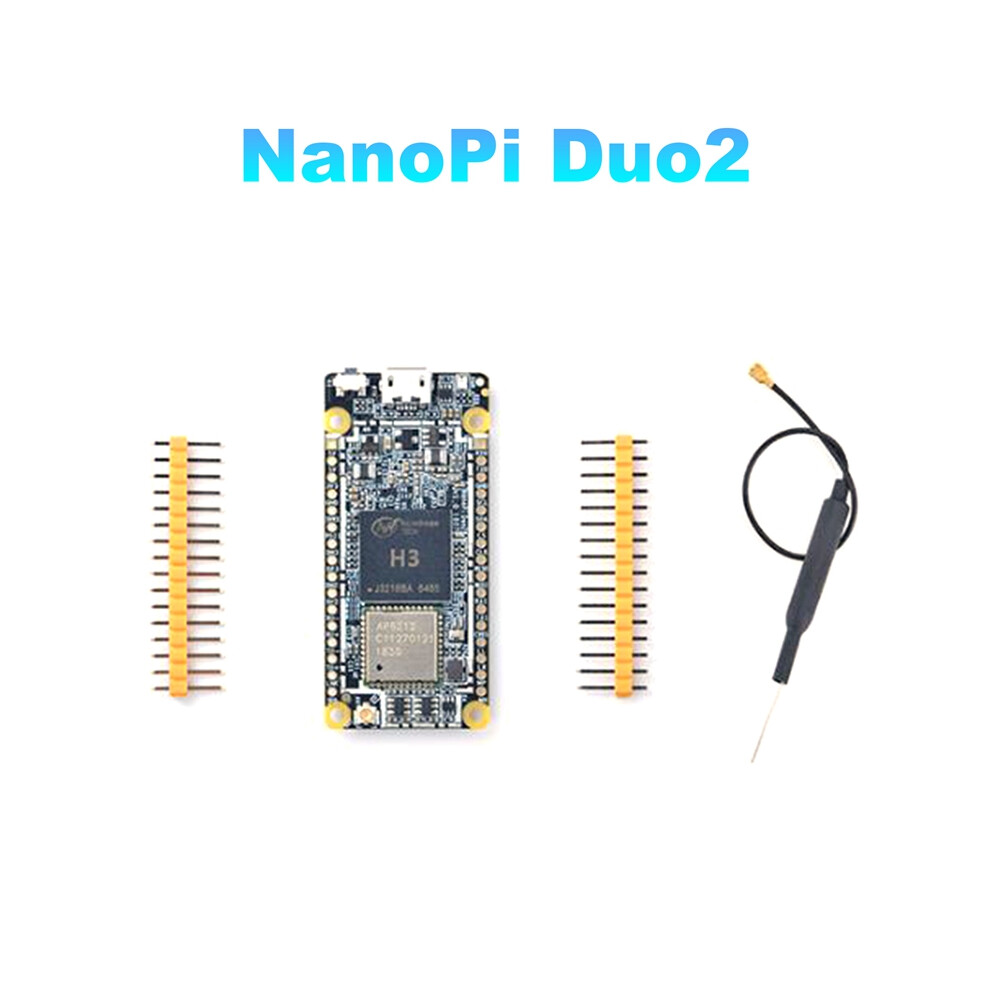

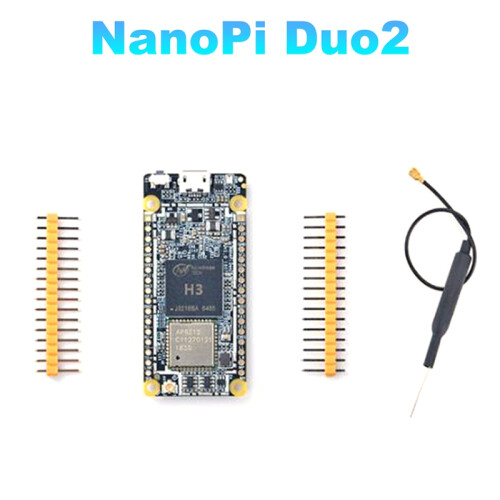

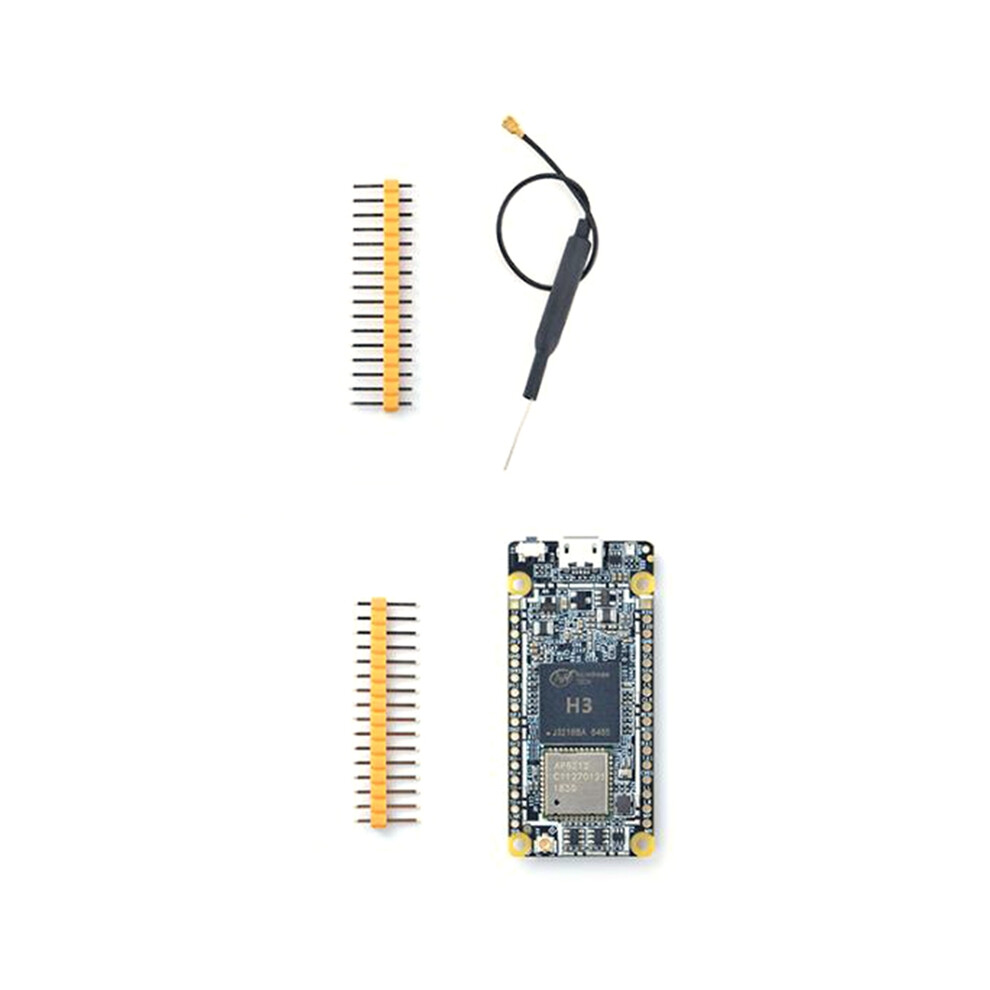

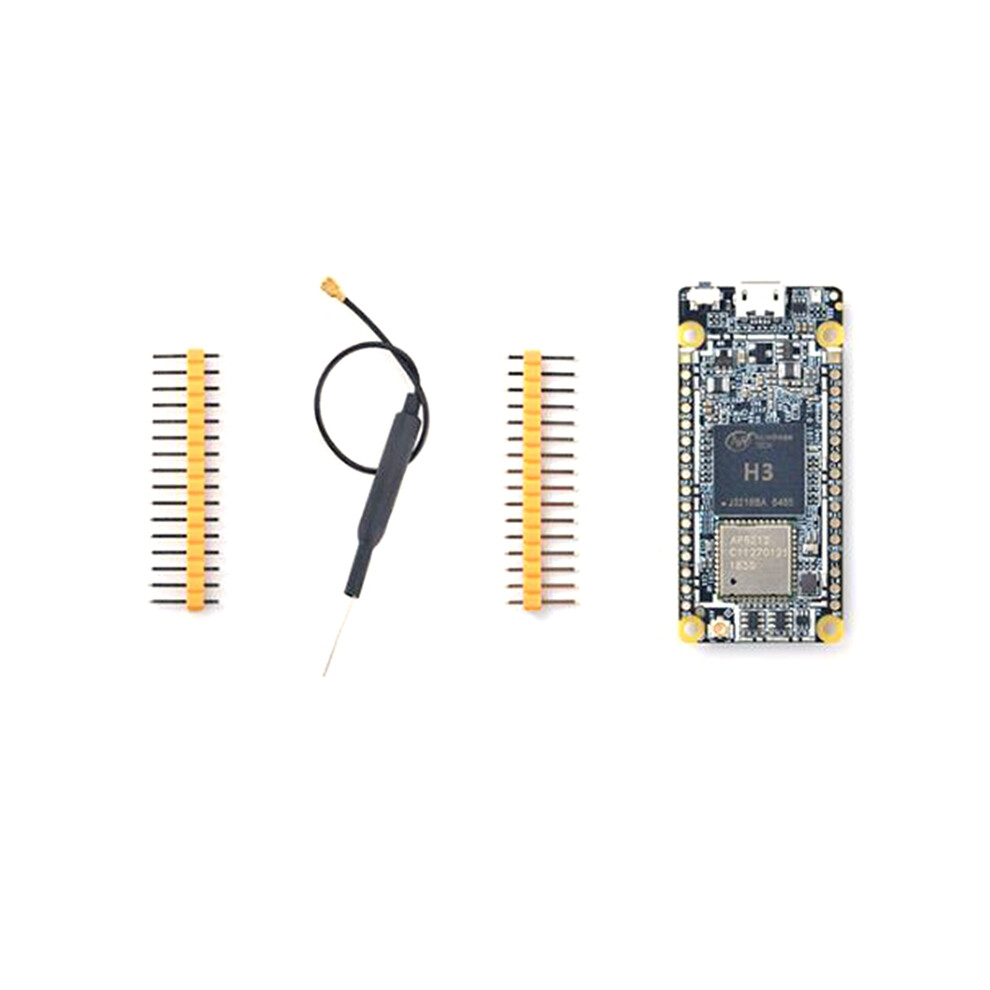

1 x Nano pi Duo2
2 x 16pin single-row pin header
1 x Antenna

Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
